Nice ROBUS 600 ERA ONE Set

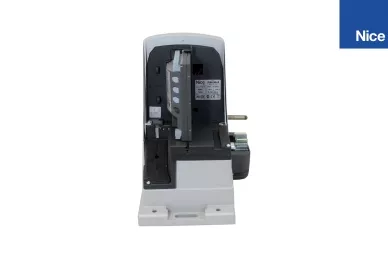

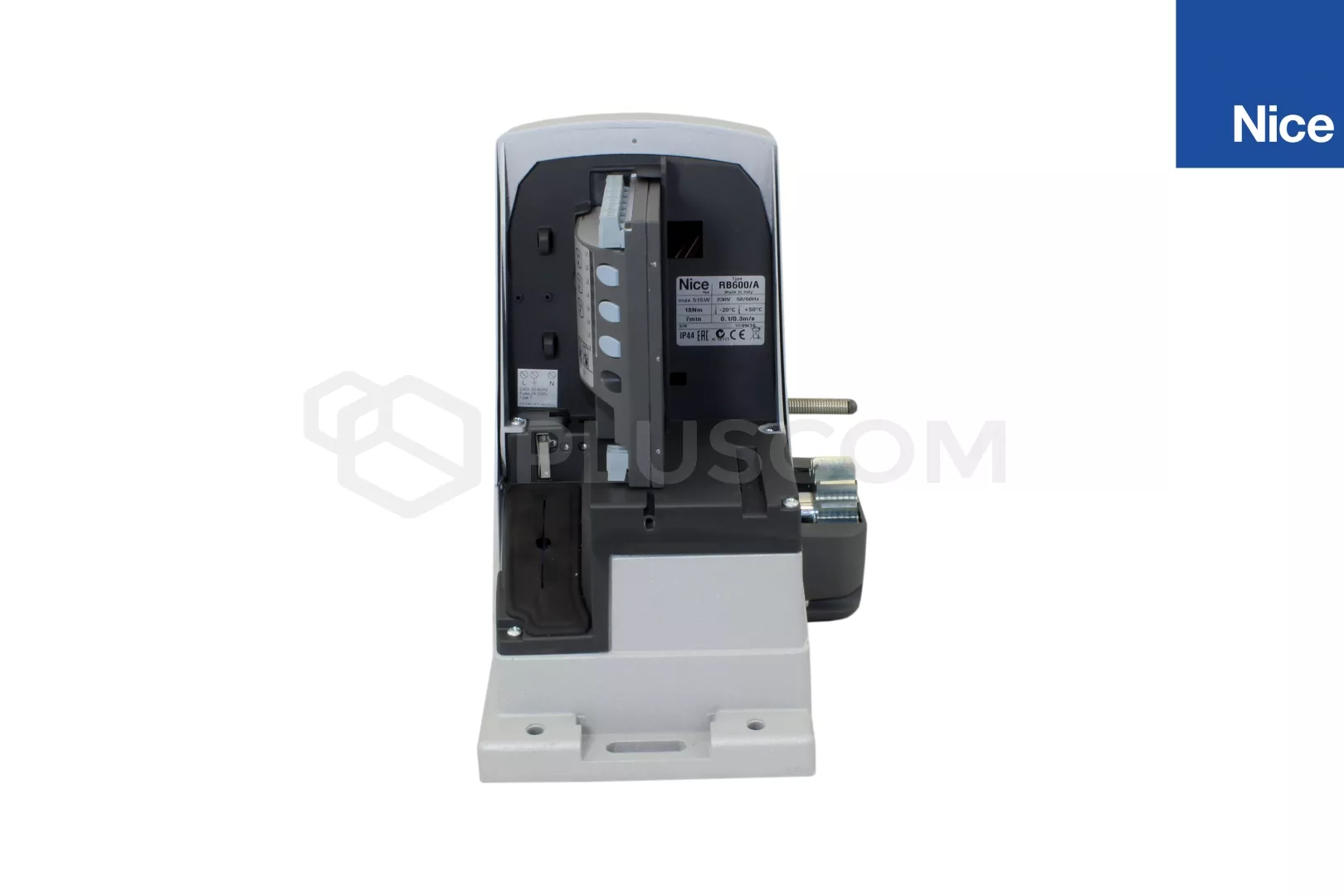

Culvert for the cable, Control unit and place the battery PS124:

Out of stock. Archived Product.

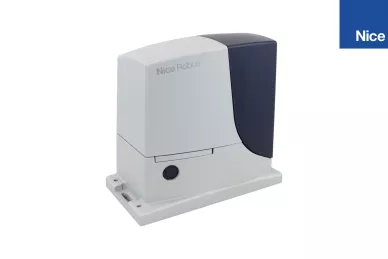

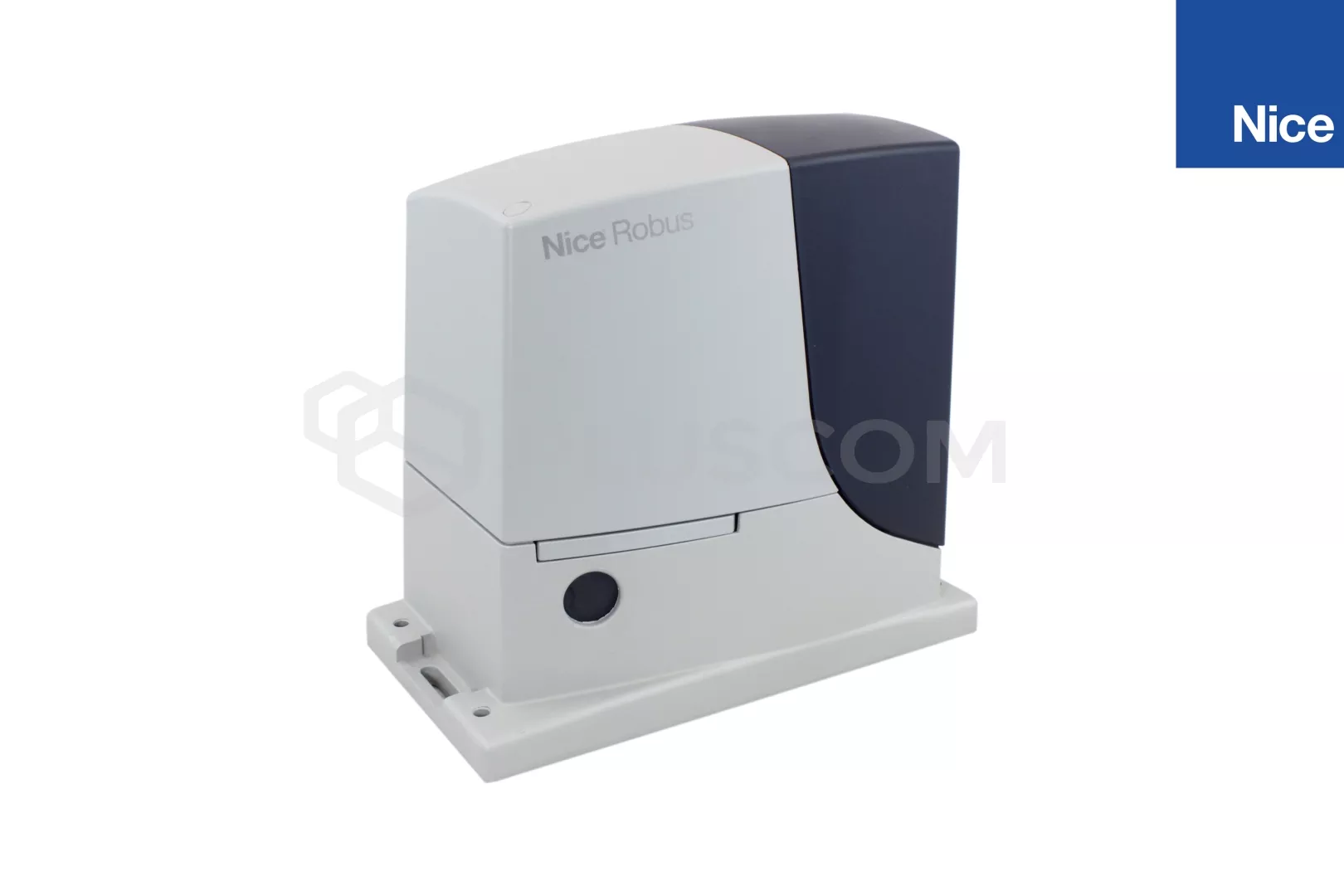

Nice ROBUSKIT600 Era One for sliding gates weighing up to 600 kg.

The set is no longer available. The new version of the set with the actuator, with the R10 unit you can find here:

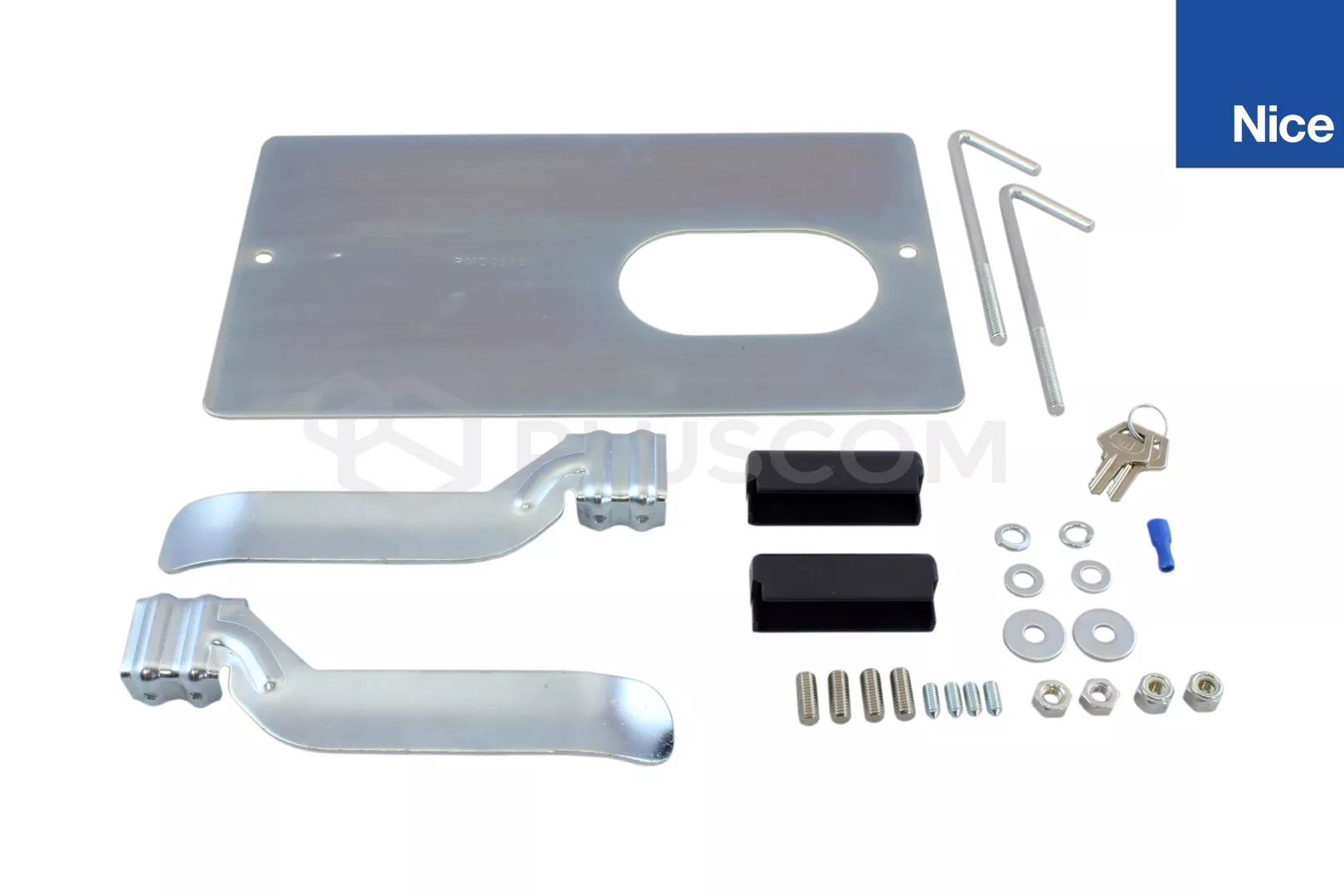

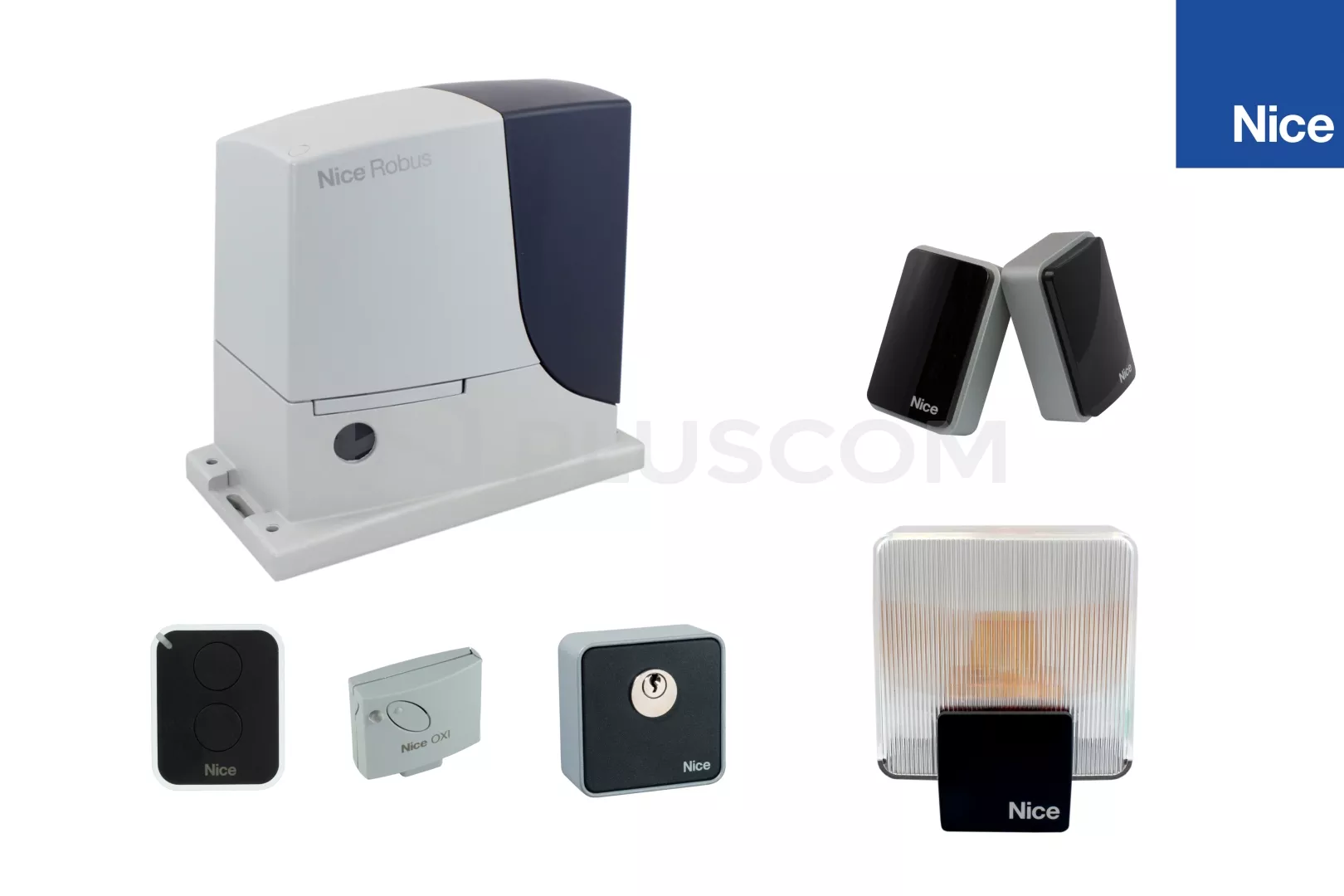

Kit contents:

User-friendly: the Nice BlueBUS technology, enables to power and control a maximum of seven couples of photocells using two wires only.

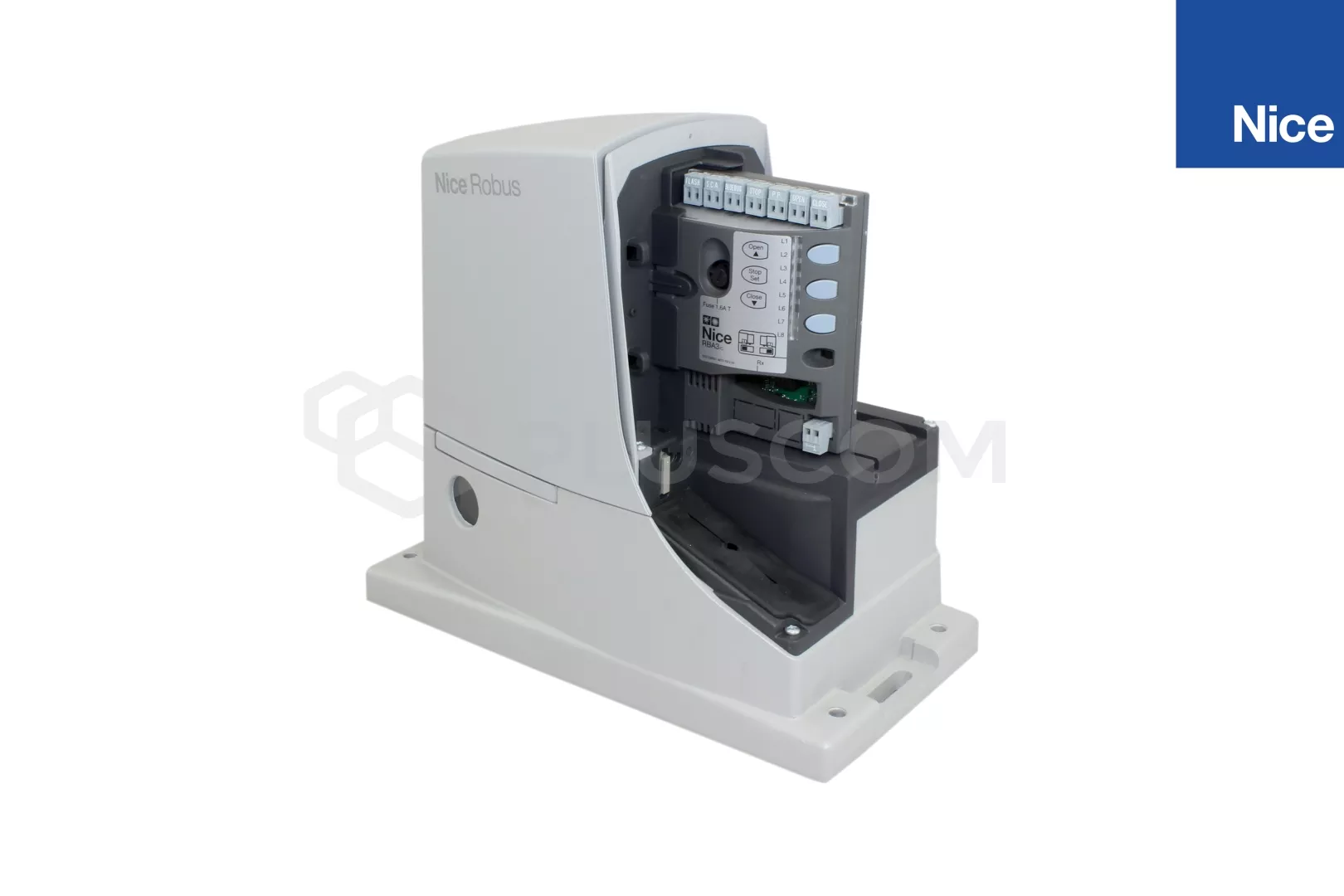

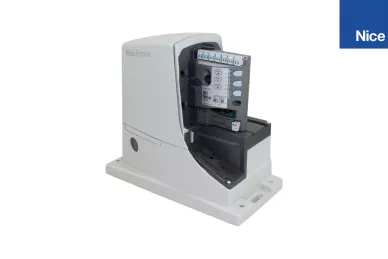

Practical: the control unit and PS124 buffer battery (optional) can be connected by means of a simple connector and can be housed directly inside Robus.

Advanced: RB600 is equipped with a temperature sensor adapt the motor power to the climatic conditions and at the same time thermal cut-out. A master/slave selection automatically synchronises two motors. This means it is possible to automate 2-leaf sliding gates set opposite each other.

Intelligent: thanks to the obstacle detection system and automatic programming of the working times. Self-diagnosis by means of a flashing light. 8 programming levels.

Safe: acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre.

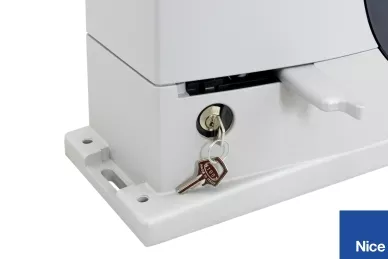

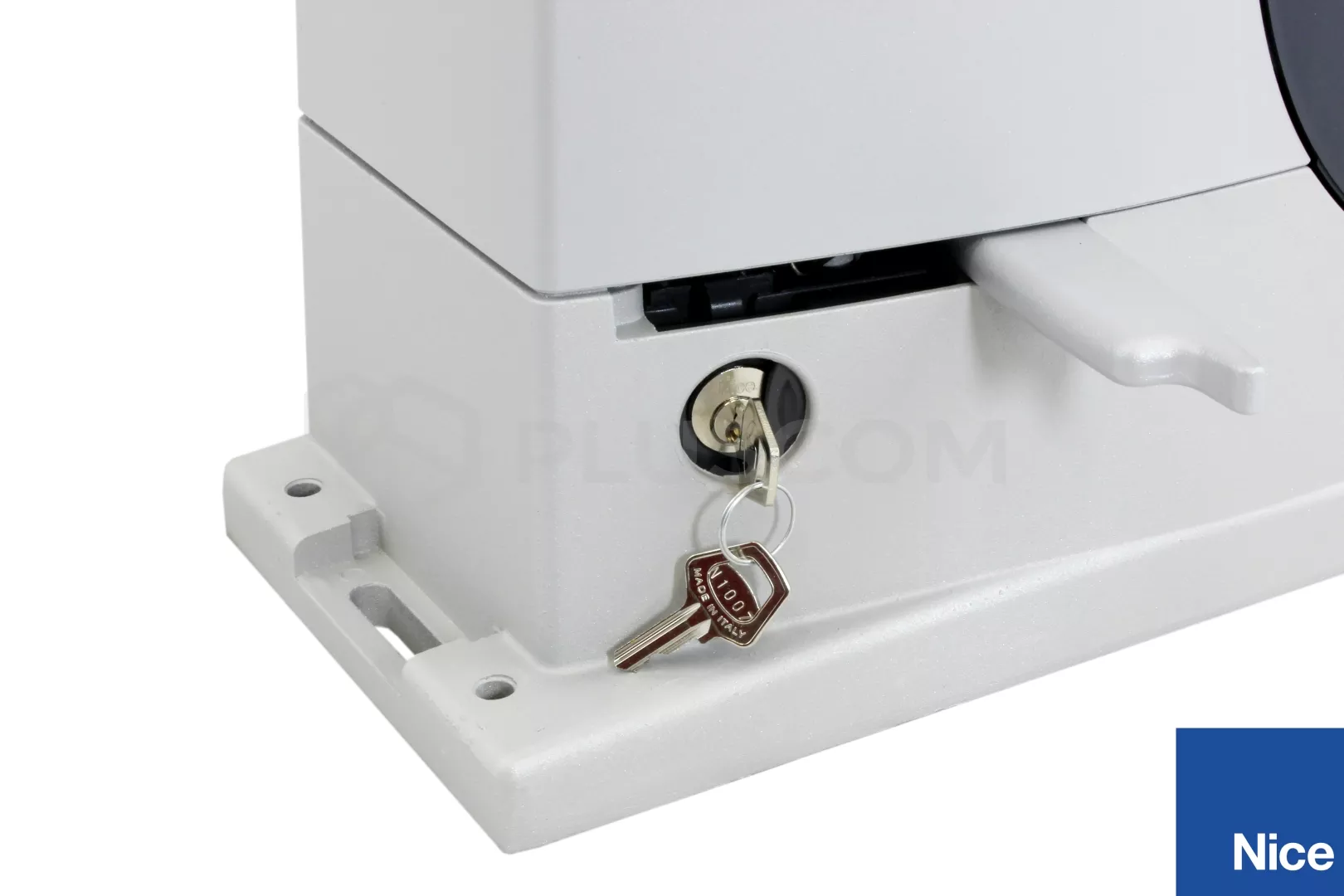

Sturdy: base and release in pressure die cast aluminium and epoxy paint finish.

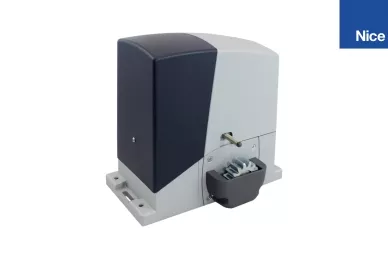

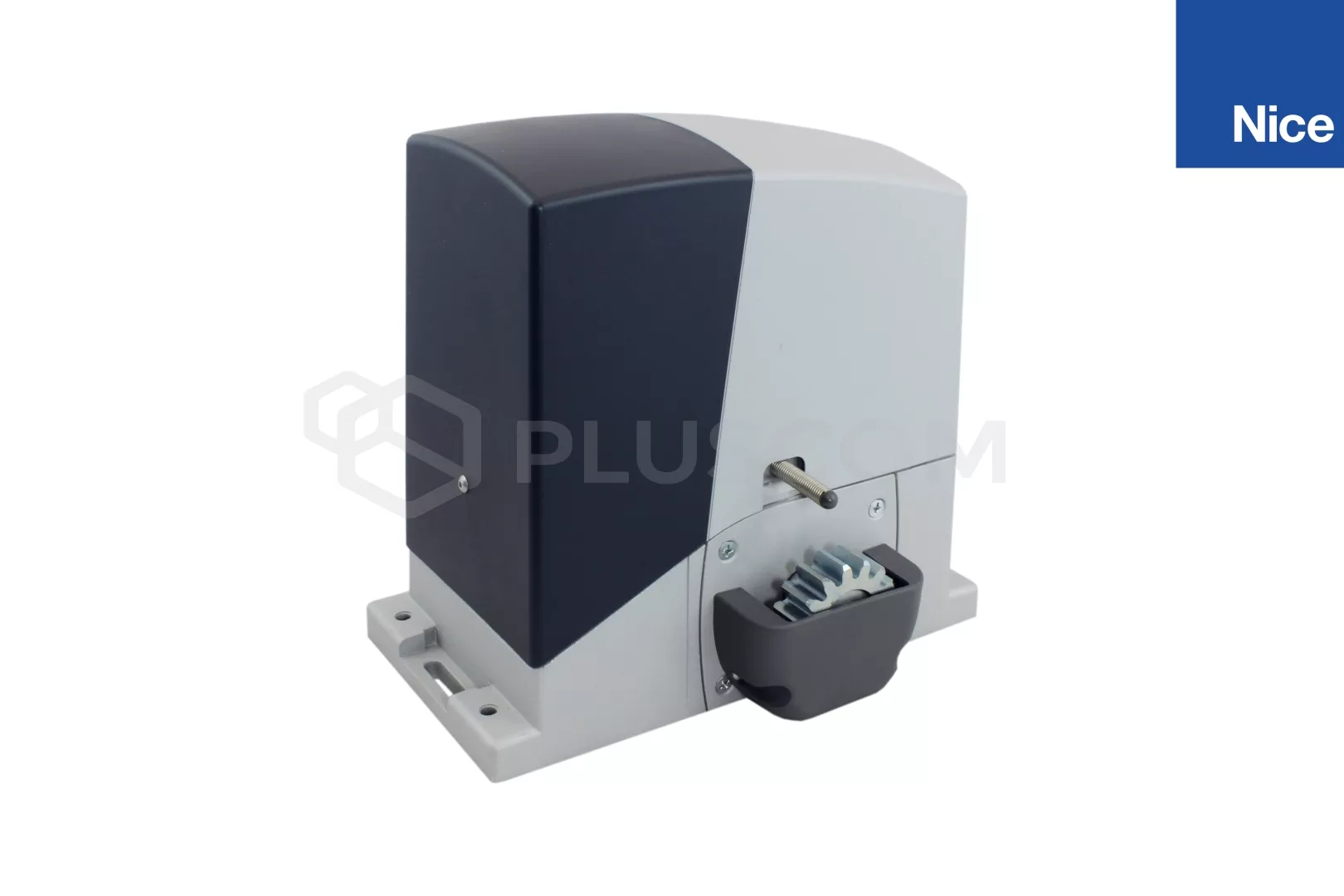

Very quiet: gear motor on bearings.

TECHNICAL SPECIFICATIONS

ELECTRICAL DATA
power supply (Vac 50/60 Hz): 230V
absorption (A): 2,5
power (W): 515

PERFORMANCE DATA
speed (m/s): 0,31
force (N): 600
work cycle (cycles/hour): 35

DIMENSIONAL AND GENERAL DATA
protection level (IP): 44
working temp: (°C min/max): -20...+50
dimensions (mm): 330x195x277(h)mm
weight (kg): 11

Download

Installation Instructions 3.1 MB
