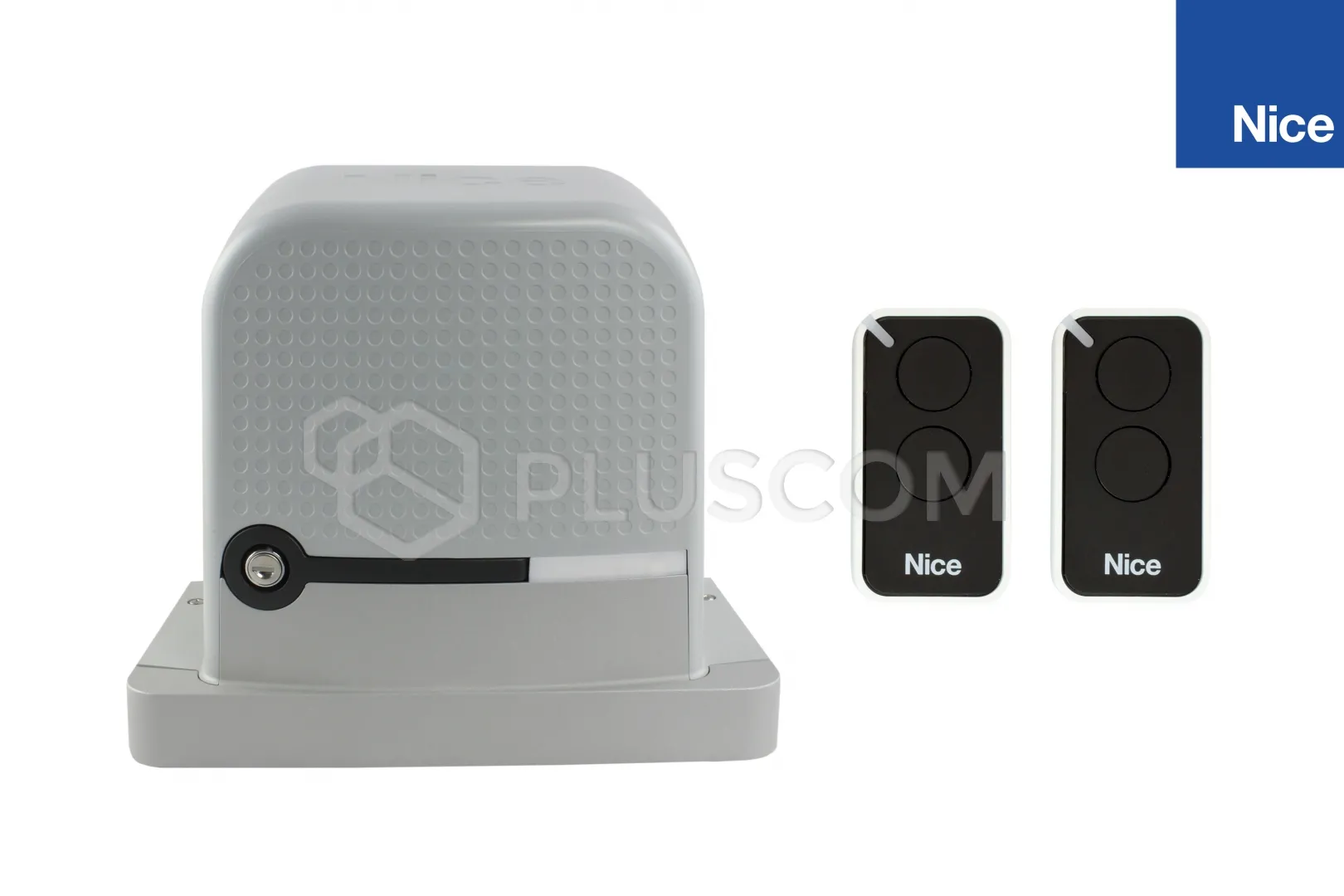

Nice ROBO1500KLTR00 Kit for sliding gates up to 1500kg

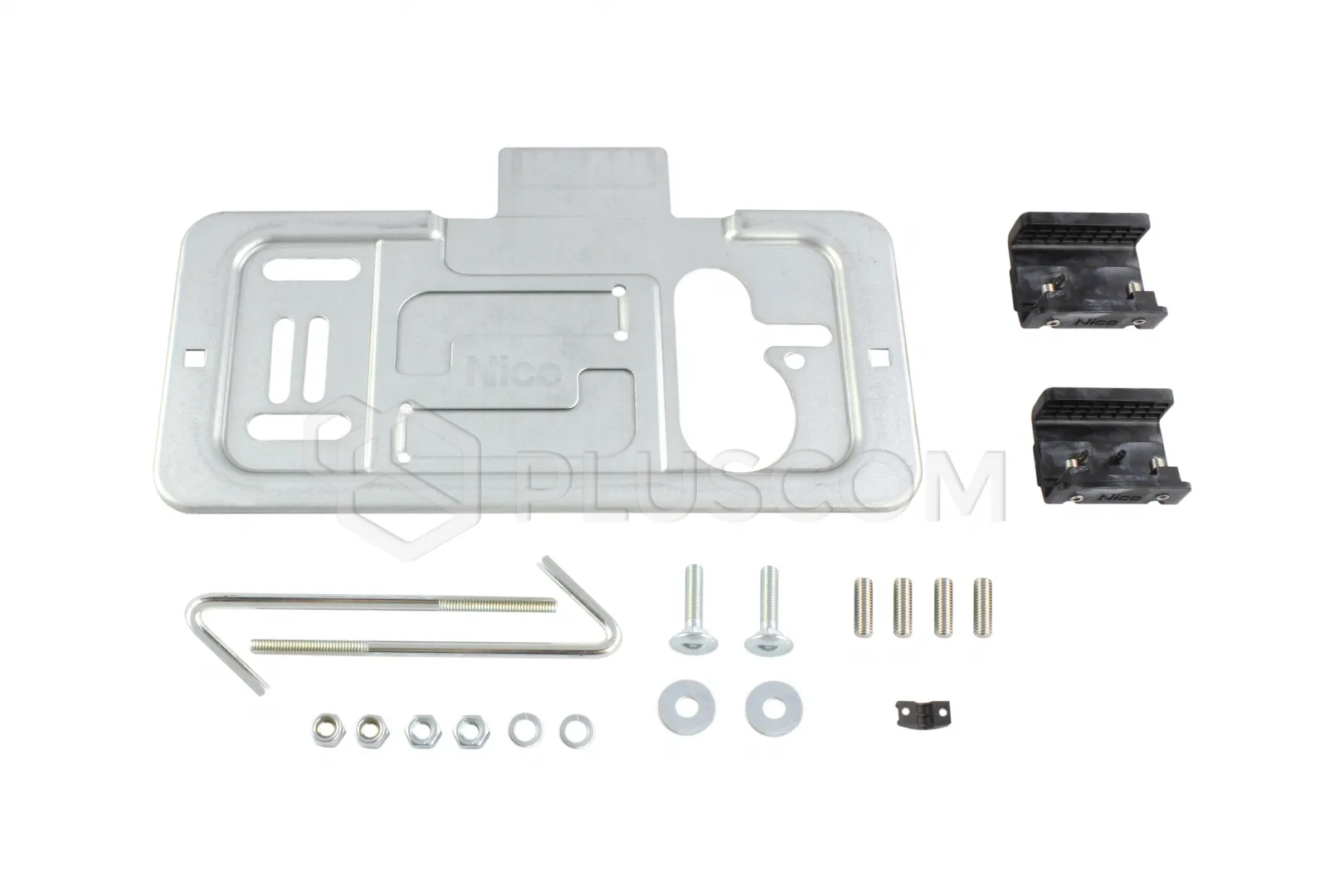

KIT INCLUDES
|
Nice ROBO1500KLTR00 Kit for sliding gates up to 1500kg
|

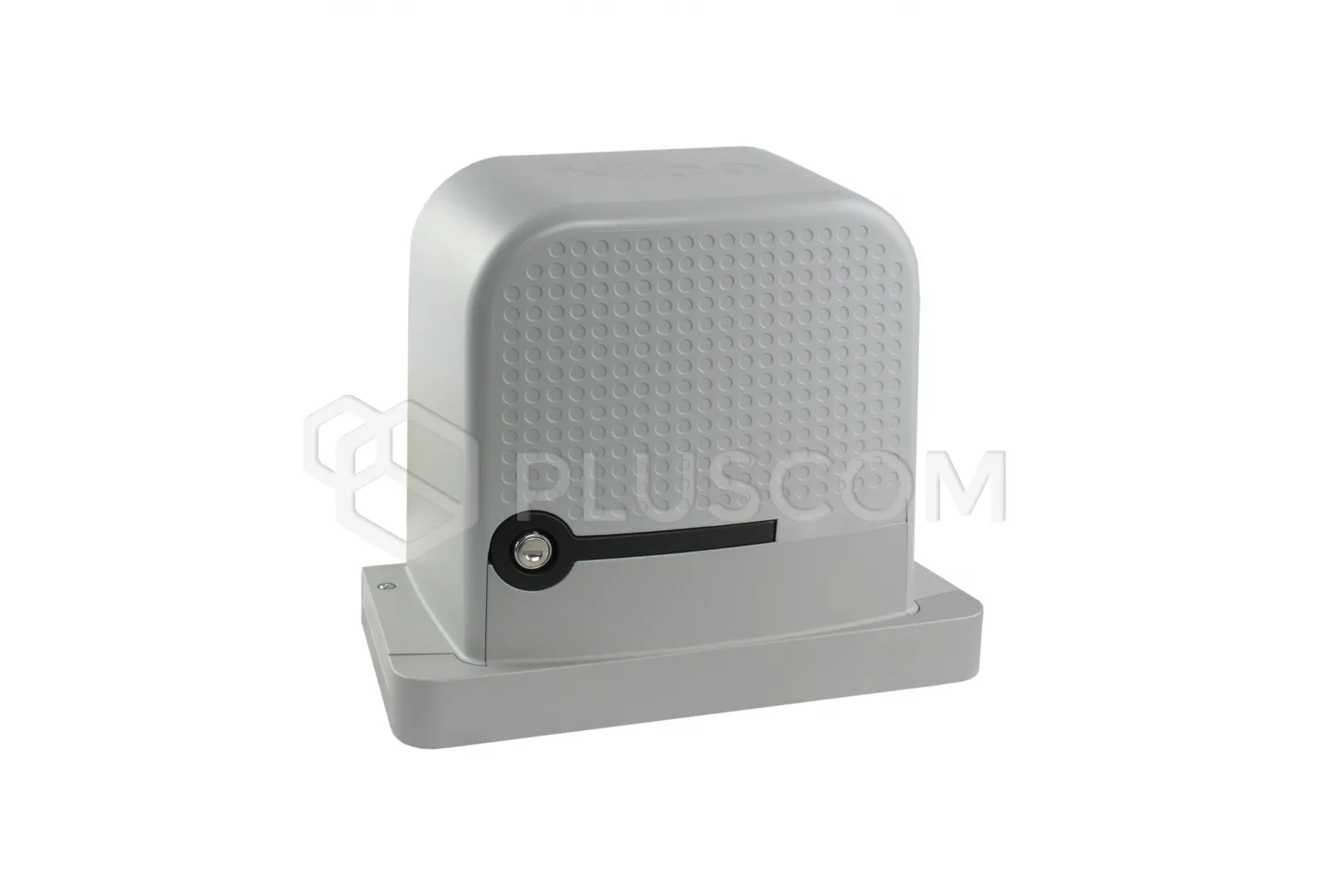

The ROBO 1500 is an irreversible electromechanical gearmotor designed
for the automation of sliding gates. It features an electronic control unit
containing a 433.92 MHz radio receiver with O-CODE coding.
It is distinguished by ease of installation, aesthetic design, excellent
performance, and reliability. This efficient, practical, and fast operator
features a minimalist design with exceptionally clean lines, shapes, and

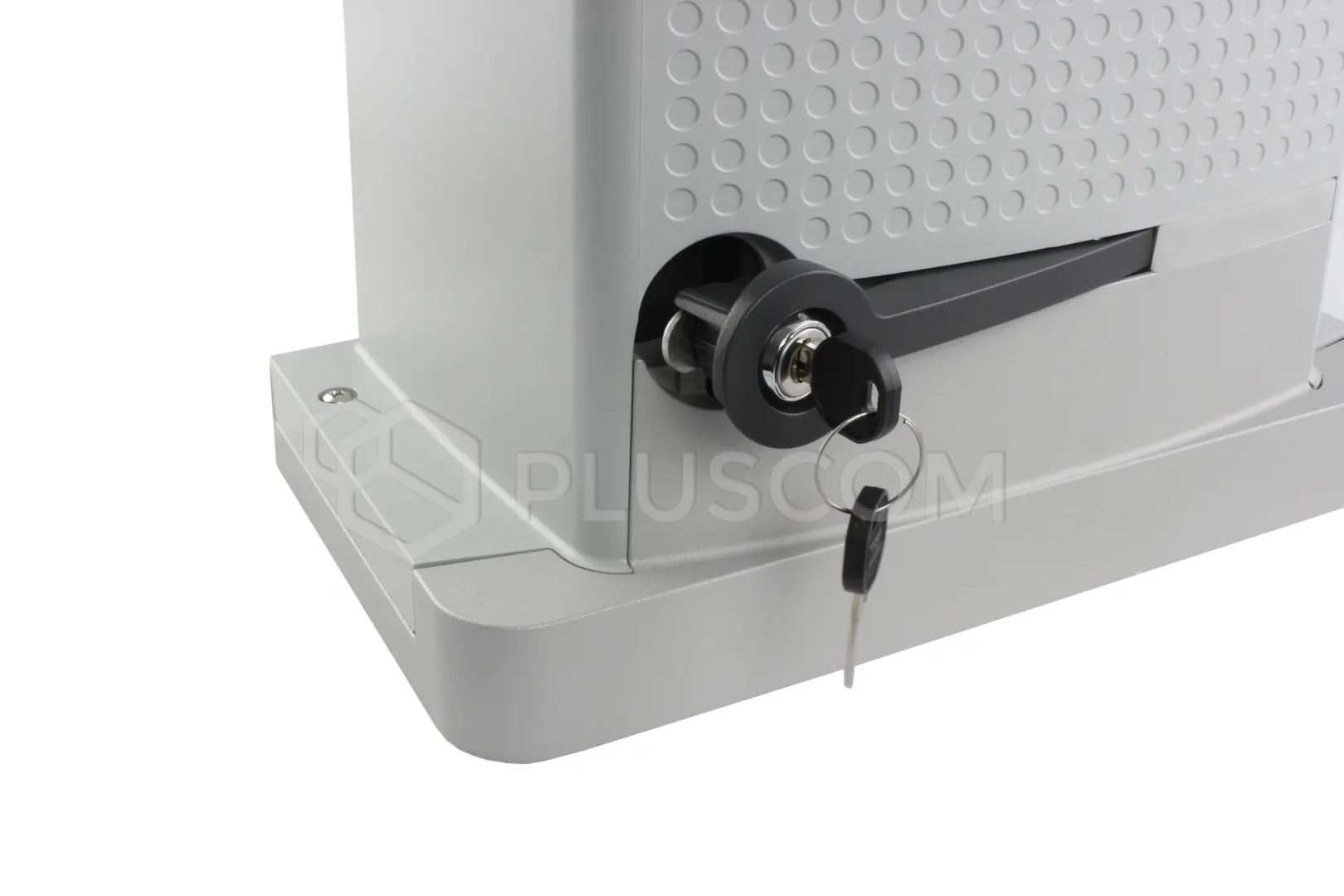

colors. An easy-to-use release lever allows for easier unlocking of the gate in
the event of a power loss. The new, 50% longer release lever provides a better
grip, allowing the user to manually open the gate with significantly less
force.
The drive is equipped with an ROA42 control unit and a built-in 433.92 MHz
O-CODE radio receiver, which allows programming of up to 100 transmitters.
Thanks to the BiDi Z-Wave module, the ROBO 1000 actuator can be integrated with
smart home systems using Z-Wave communication.
FEATURES:
- Ease of installation and use: Quick and intuitive
configuration using the MyNice Pro app, manual programming directly on the
control board, and clear motor wiring and a simplified assembly process
reduce on-site time and increase the efficiency of each installation.
- Design: Ergonomic release lever – 50% longer for a
better grip and less effort when unlocking – a redesigned anti-theft system
that locks the housing directly to the base, and a refreshed design
consistent with the entire Nice range.
- Performance: Based on the global Nice platform, the
motor guarantees consistent quality, greater compatibility across markets,
and more efficient spare parts management.
- Connectivity: Seamless integration with the Yubii Home
ecosystem allows users to manage their automation from anywhere, with full
remote control via the MyNice app or voice assistants. Installers gain access
to remote diagnostics and real-time notifications via the MyNice Pro app,
ensuring faster support and easier maintenance.
- Economical: Designed with efficiency in mind, the drive
features a standby power consumption of less than 0.45 W, fully compliant
with the latest EU energy standards. The product enters Standby Mode 5
minutes (configurable) after a successful operation.

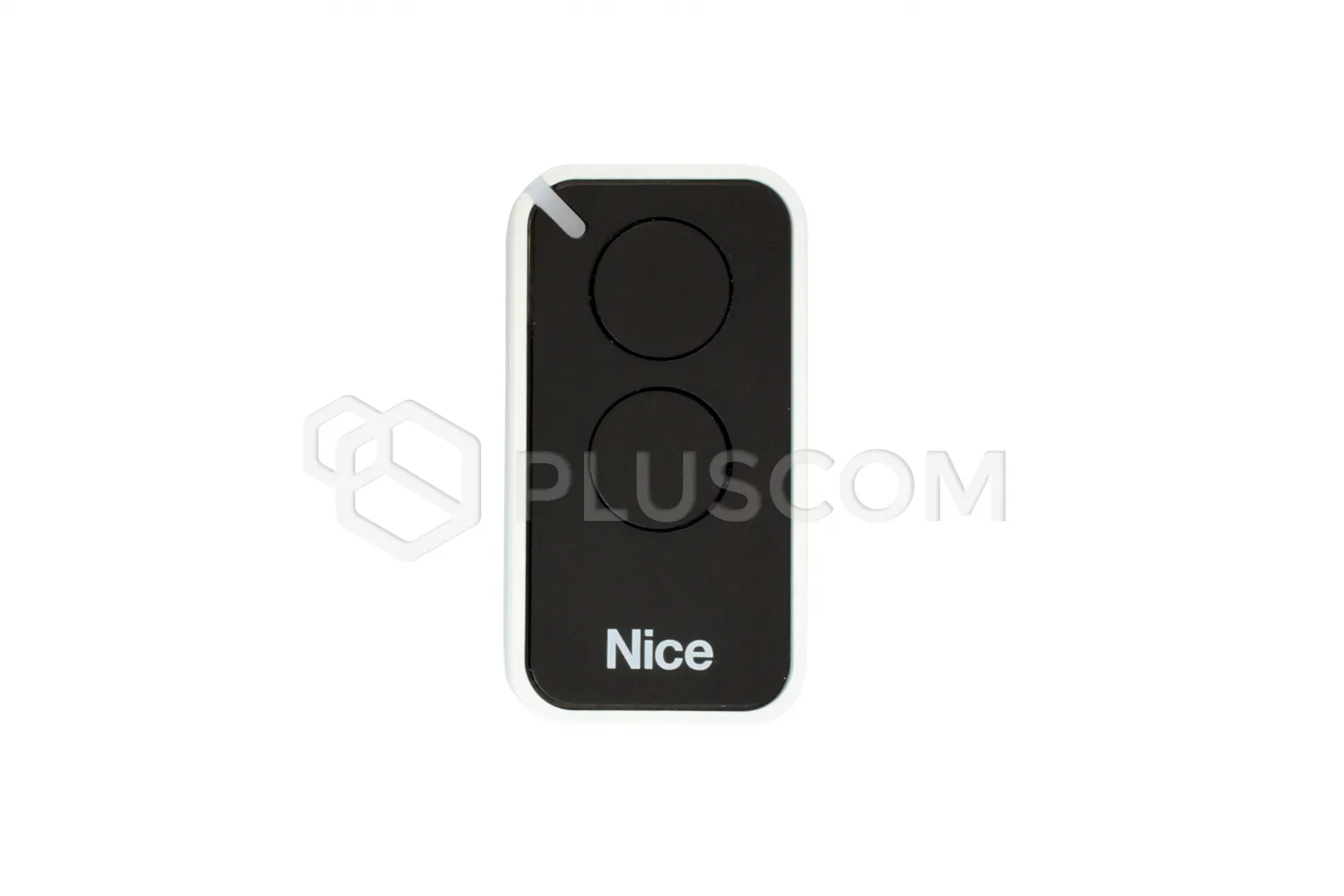

The Nice INTI2 2-channel remote control is a 2-channel remote control
compatible with other Nice remote controls, such as One and Flor, but is not
compatible with the Smilo system. It is made of high-quality materials and
features an aesthetically pleasing, timeless design.
Transmission security is ensured by a 72-bit dynamically changing code; each
transmission is unique. Only the control unit into which the transmitter has
been programmed "knows" which code will be transmitted.
TECHNICAL DATA:
- Maximum gate weight: 1500 kg
- Maximum leaf length: 12 m
- Power supply: 230V
- Motor power supply: 230V
- Power consumption: 350W
- Current consumption: 1.7A
- Speed: 0,16 m/s
- Maximum starting torque: 23.4 Nm
- Maximum force: 780 N
- Nominal torque: 12 Nm
- Nominal force: 400 N
- Duty cycle with a 4 m leaf: 22 cycles/hour
- Duty cycle with an 8 m leaf: 8 cycles/hour
- Control unit type: ROA42
- Built-in radio receiver: yes
- Receiver frequency: 433.92 MHz
- Coding system: O-CODE
- Maximum number of transmitters: 100
- Protection rating: IP44
- Operating temperature: -20°C to +55°C
- Drive dimensions: 363 × 364 × 238 mm
- Tooth module: 4
- Weight: 13 kg
