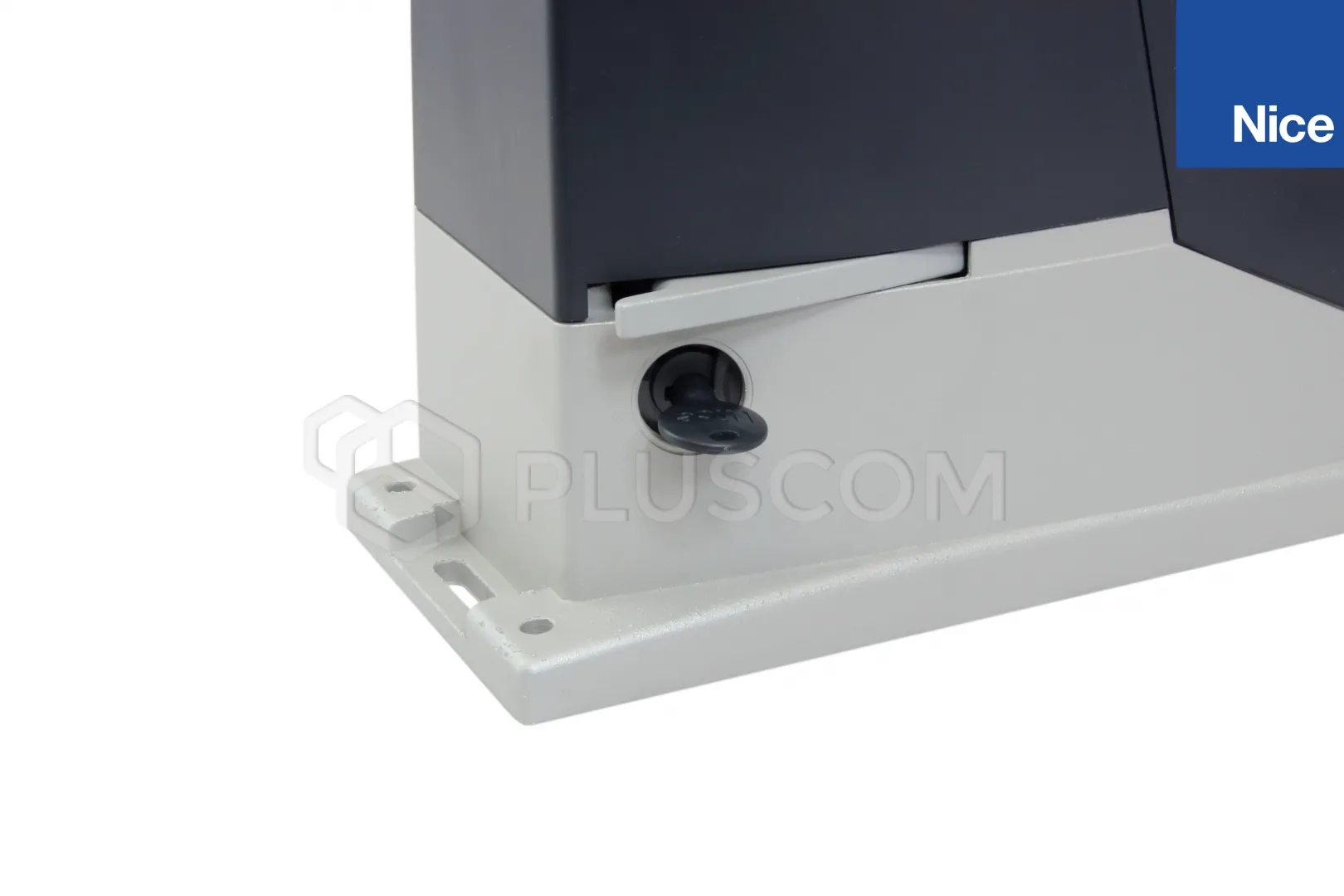

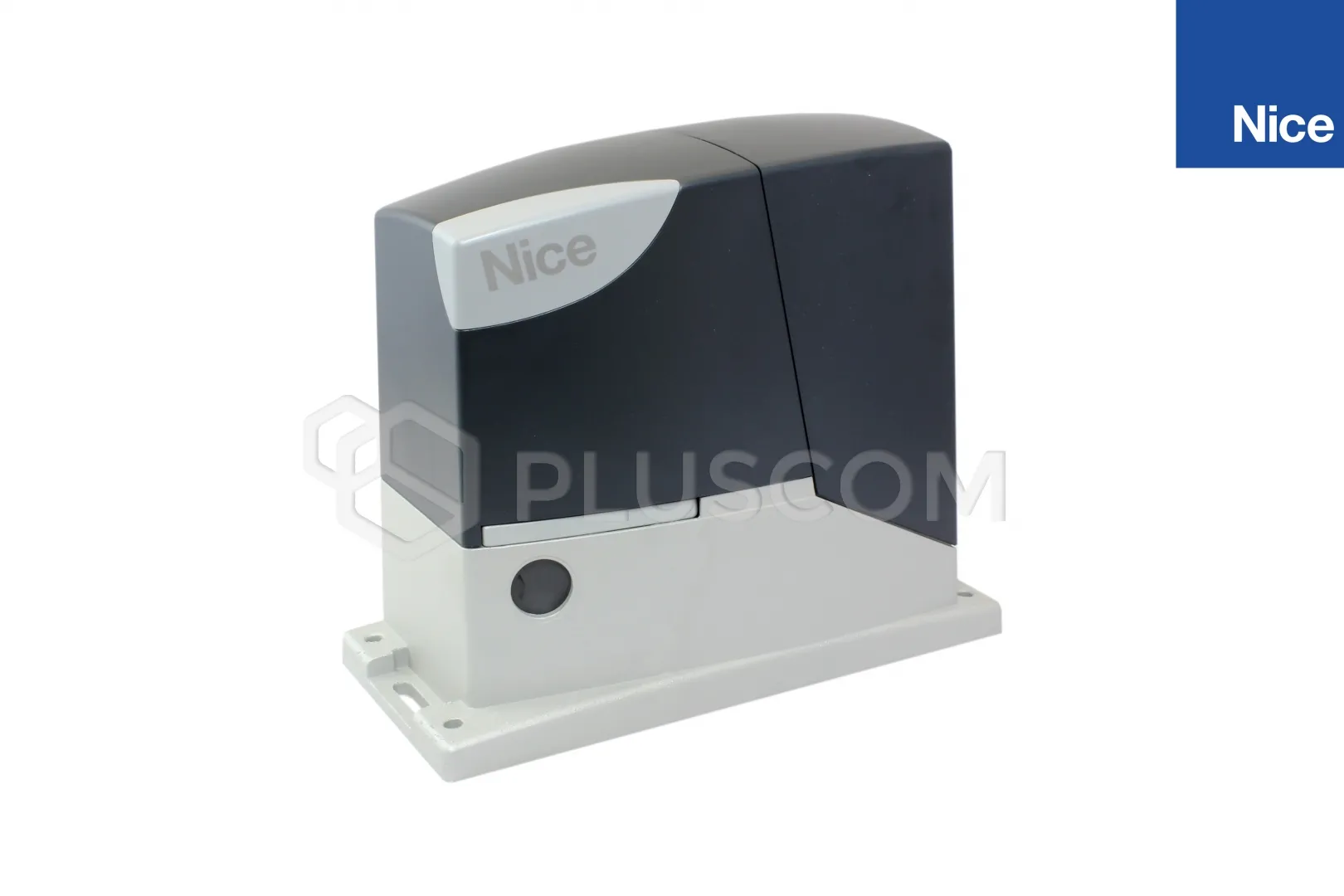

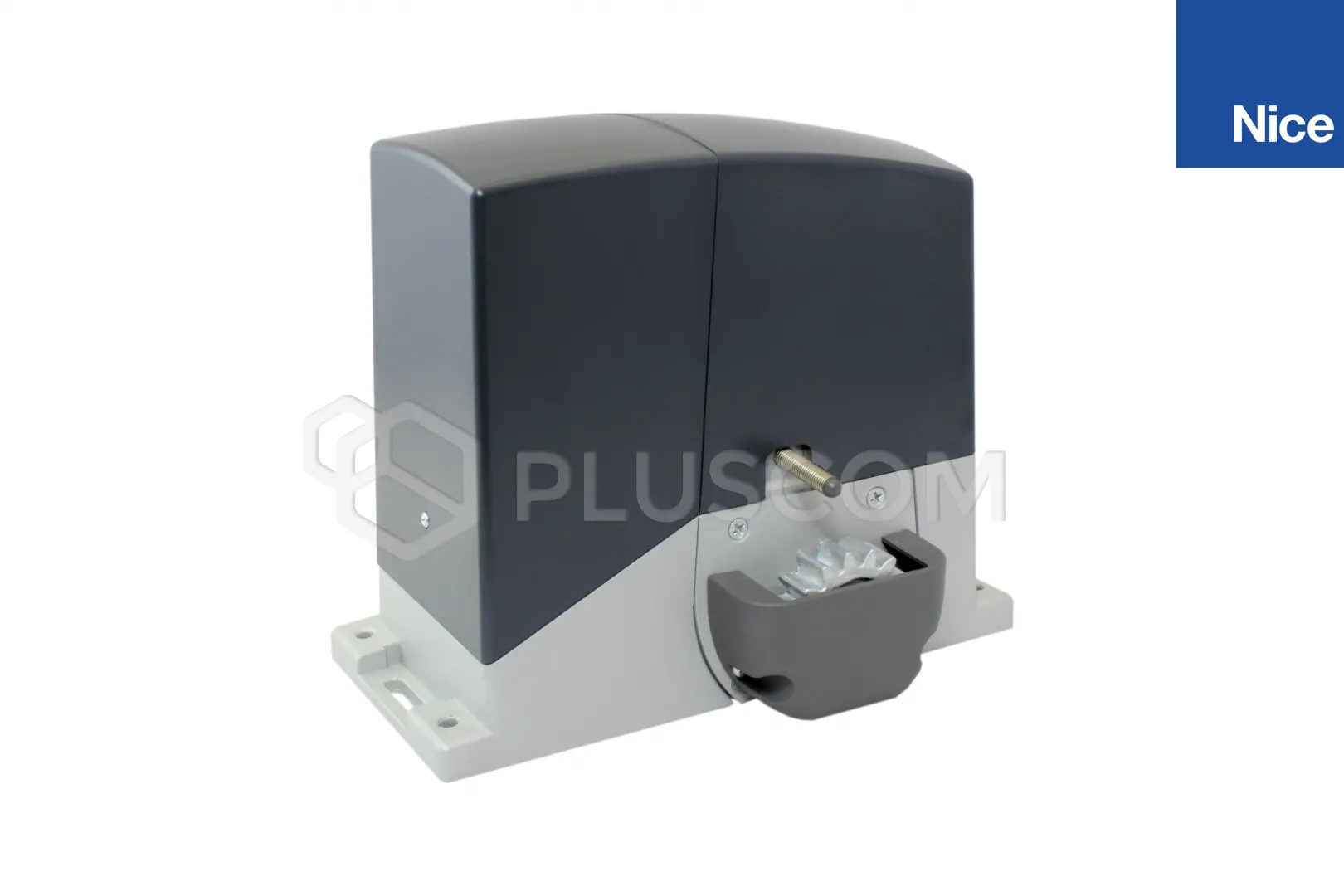

Nice ROAD400R30 ROAD400 actuator for sliding gates up to 400 kg

Nice ROAD400R30 ROAD400 operator for sliding gates up to 400 kg

GATE PARAMETERS: Gate weight up to 400 kg Maximum number of cycles per hour: 20

Nice ROAD400R30 ROAD400 actuator for sliding gates up to 400 kg

Road 400 is able to automate a gate weighing up to 400 kg and length up to 8m. However, please note the limitations on the maximum number of cycles per time and the number of cycles immediately following each other and allowed travel speed.
The motor ensures comfortable operation of the sliding gate. Its speed of up to 0.25 m/s allows for quick opening and closing, which is particularly convenient during everyday use.

The drive is easy to configure. It has three programming buttons and removable plugs for connecting additional devices. It automatically remembers the gate's end positions during programming.
Amperometric obstacle detection monitors the gate's movement during opening and closing. When the drive encounters resistance, it stops the gate and reverses its movement, increasing the safety of users and vehicles.
The soft start and slowdown functions in the final phase contribute to smoother automation operation and reduce mechanical stress on the entire system.

The Road 400 has an updated control board that complies with European EPD energy efficiency standards. Thanks to the advanced Stand-by mode, the device's idle state is characterized by drastically reduced power consumption.

Main differences compared to older versions of the control unit:

• Main difference – Implementation of Solemyo and Opera technologies
• Standby mode – The MCU1R30 is characterized by significantly lower power consumption in standby mode, which is important when powering the system with a solar panel.
• Smoothness – The software in this version better handles motor braking and acceleration, extending the life of the drive's mechanical parts.
• Backward compatibility – The MCU1R30 fully replaces older versions of the MCU1 and SPMCU1.

TECHNICAL DATA:

• Maximum gate weight: 400 kg
• Maximum gate length: 8 m
• Power supply: 230V AC
• Motor power: 24V
• Motor power: 210 W
• Gate speed: 0.25 m/s
• Operating temperature range: -20°C to +50°C
• Protection rating: IP44
• Dimensions: 330 × 195 × 277 mm
• Weight: 8 kg
