Nice ROAD400R10 KCE Set up to 400kg with lamp and photocell
GATEWAY PARAMETERS:
- gate weight up to 400kg
- leaf length: 8m
Road 400 is able to automate a gate weighing up to 400 kg and length up to
8m. However, please note the limitations on the maximum number of cycles per
time and the number of cycles immediately following each other and allowed
travel speed.

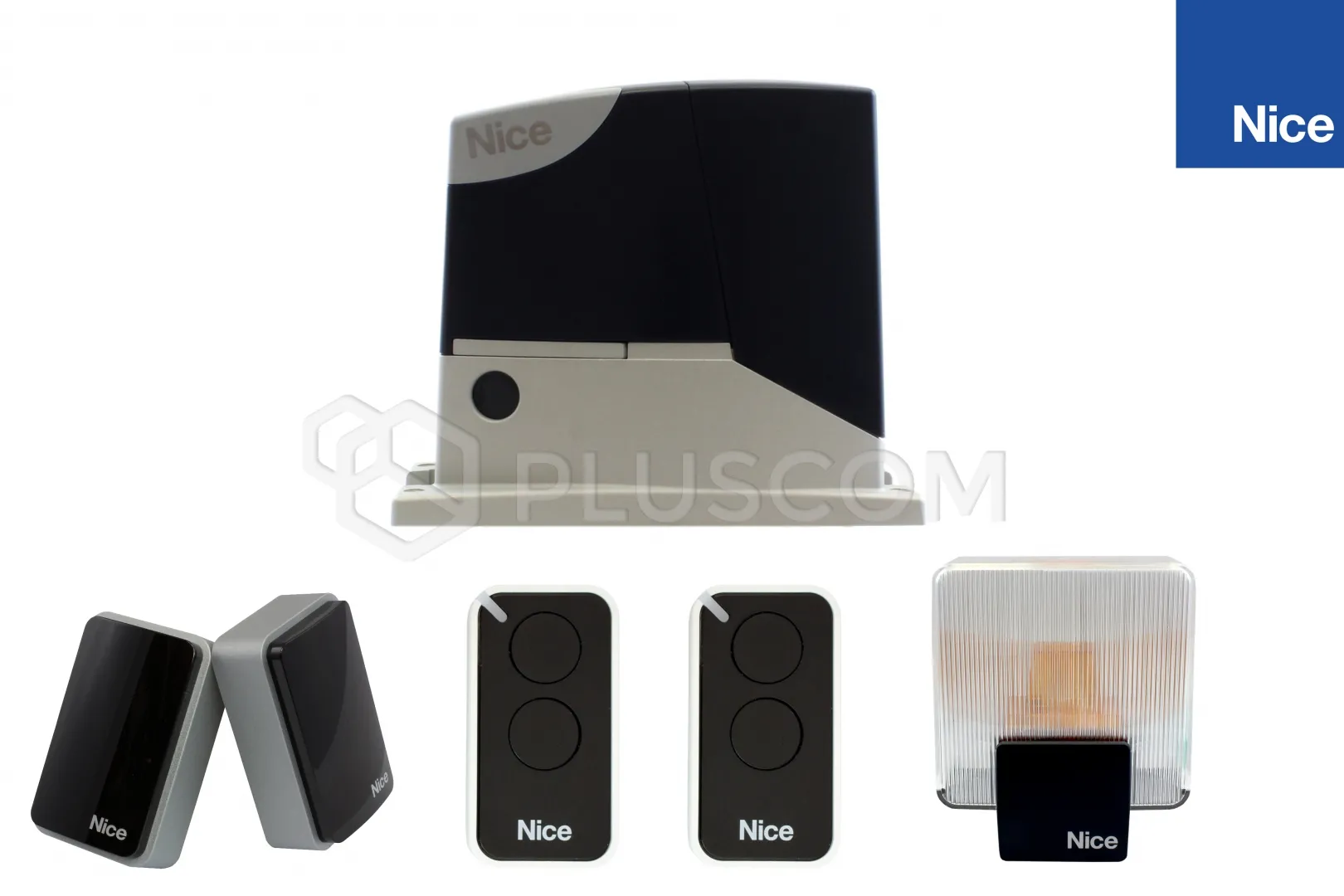

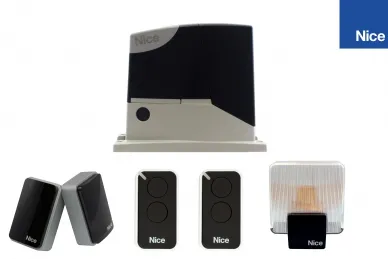

SET INCLUDES
|
Nice ROAD 400 R10 KCE Set up to 400 kg with lamp and photocell
|
NEW RBA4R10 CONTROL UNIT - NEW FUNCTIONS
The control unit marked R10 meets the new standard requirements safetyof
automatic gates introduced by the European Union.
The most important change is the adaptation of the R10 control panel for
connection Oviewprogrammer. Configuration of control panel parameters using The
Oview programmer is particularly appreciated by installers. Programmer we
connect using the IBT4N interface.
The control unit has a multi-system radio integrated with the board (FLO, FLOR,
SMILO, OPERA) allowing for loading up to 100 remote controls. What's new is
the ability operating all systems simultaneously. SMILO and OPERA remote
controls can work together at the same time.
MOST IMPORTANT FEATURES AND FUNCTIONS:

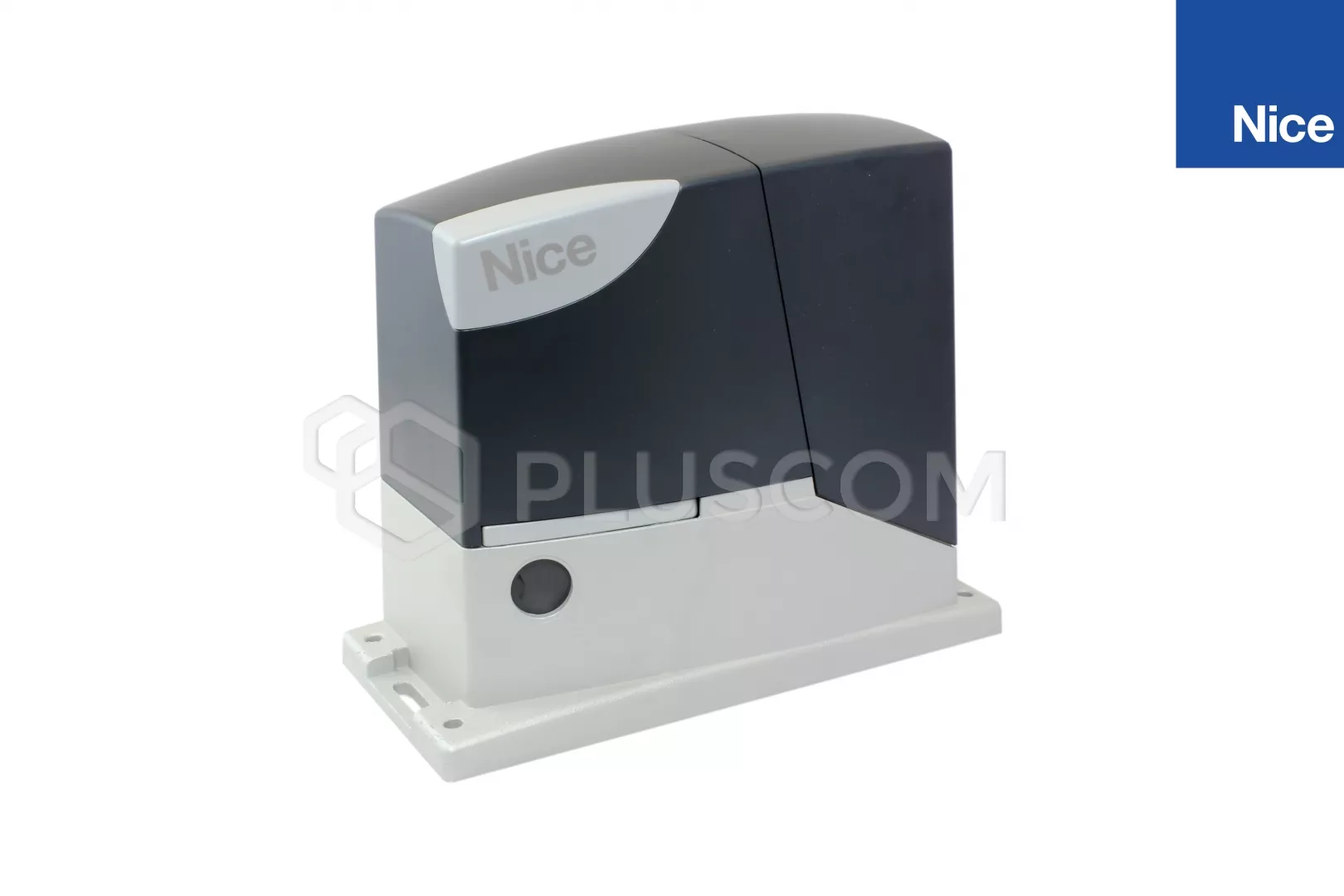

- Nice ROAD 400 is a reliable drive for sliding gates with a 24V motor in
The set includes all the necessary elements needed for a comfortable stay use
of bama.
- Actuators whose motors are powered by 24V voltage are characterized by
greater efficiency work culture.
- The control panel with a built-in 433MHz radio receiver (multicode)
supports up to 100 FLO/FLOR/SMILO/NICEWAY/INTI/OPERA remote controls.
- The set includes 2 two-channel INTI2 remote
controls.
- Safety of use is ensured by an amperometric detection system obstacles.
When it encounters an obstacle, the actuator stops the gate and changes the
direction of its movement.
- Self-locking drive, after finishing work the drive locks the gate making
it impossible to open it manually. There is no need to install additional
ones locks or bolts. However, in the event of a power failure, the drive can
be easily restored disengage with the key and open the gate manually.
- Simple and quick programming
- The first start is the start of the auto-programming function during
which the actuator determines the end points of the gate and remembers them.
After a few minutes the actuator is ready for operation.
- Access to the remaining functions and parameters is obtained using three
buttons.

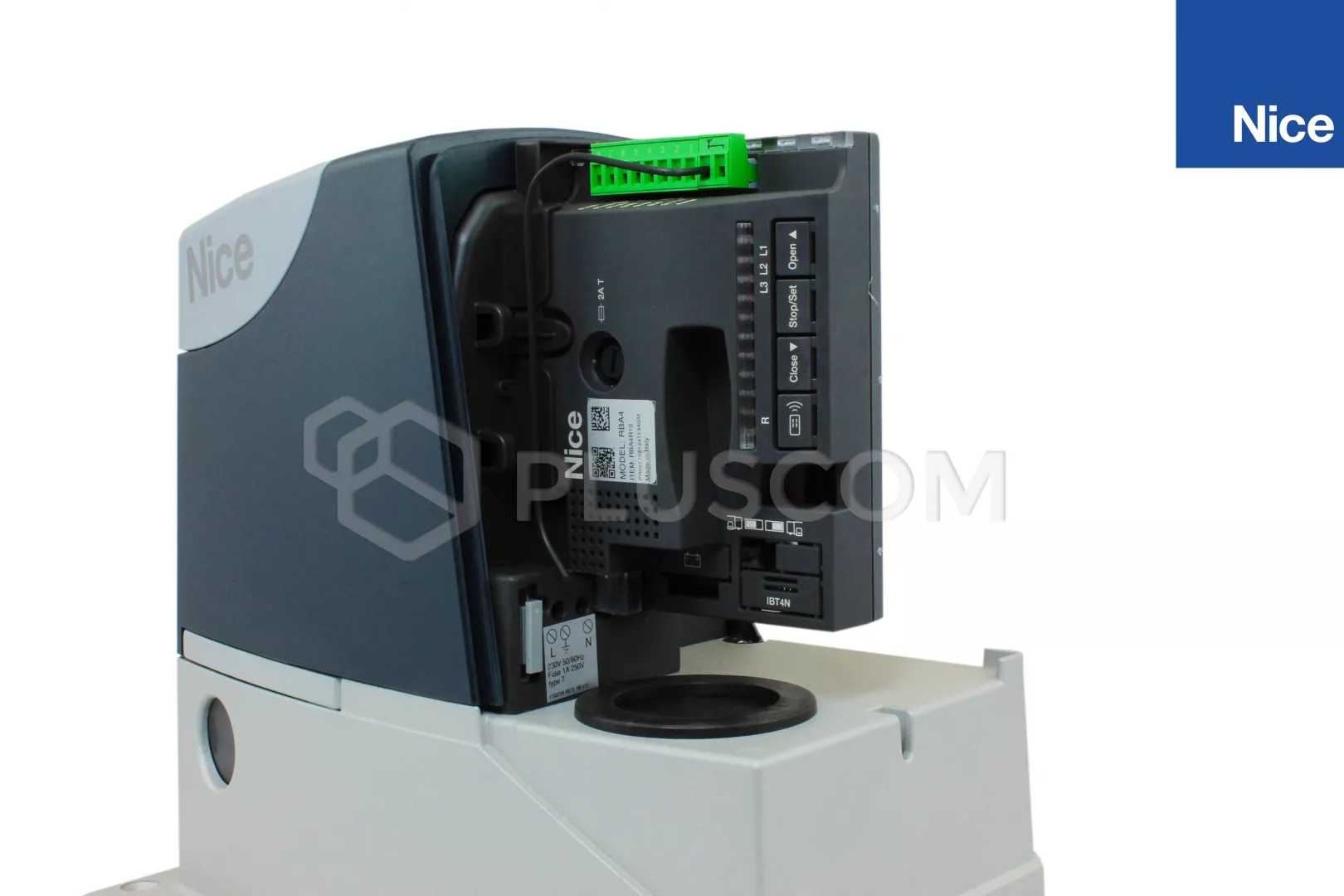

Control panel Nice RBA4R10:

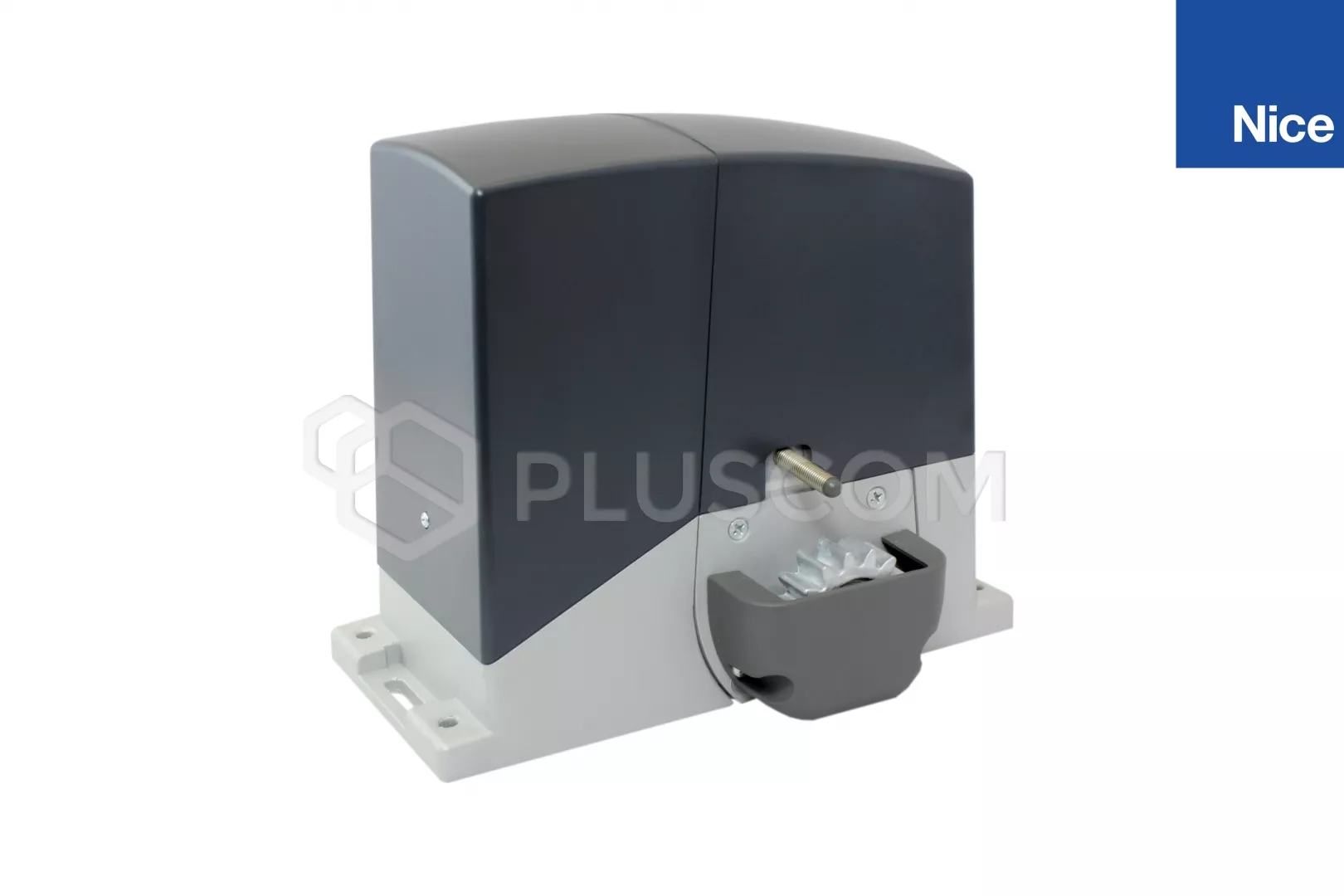

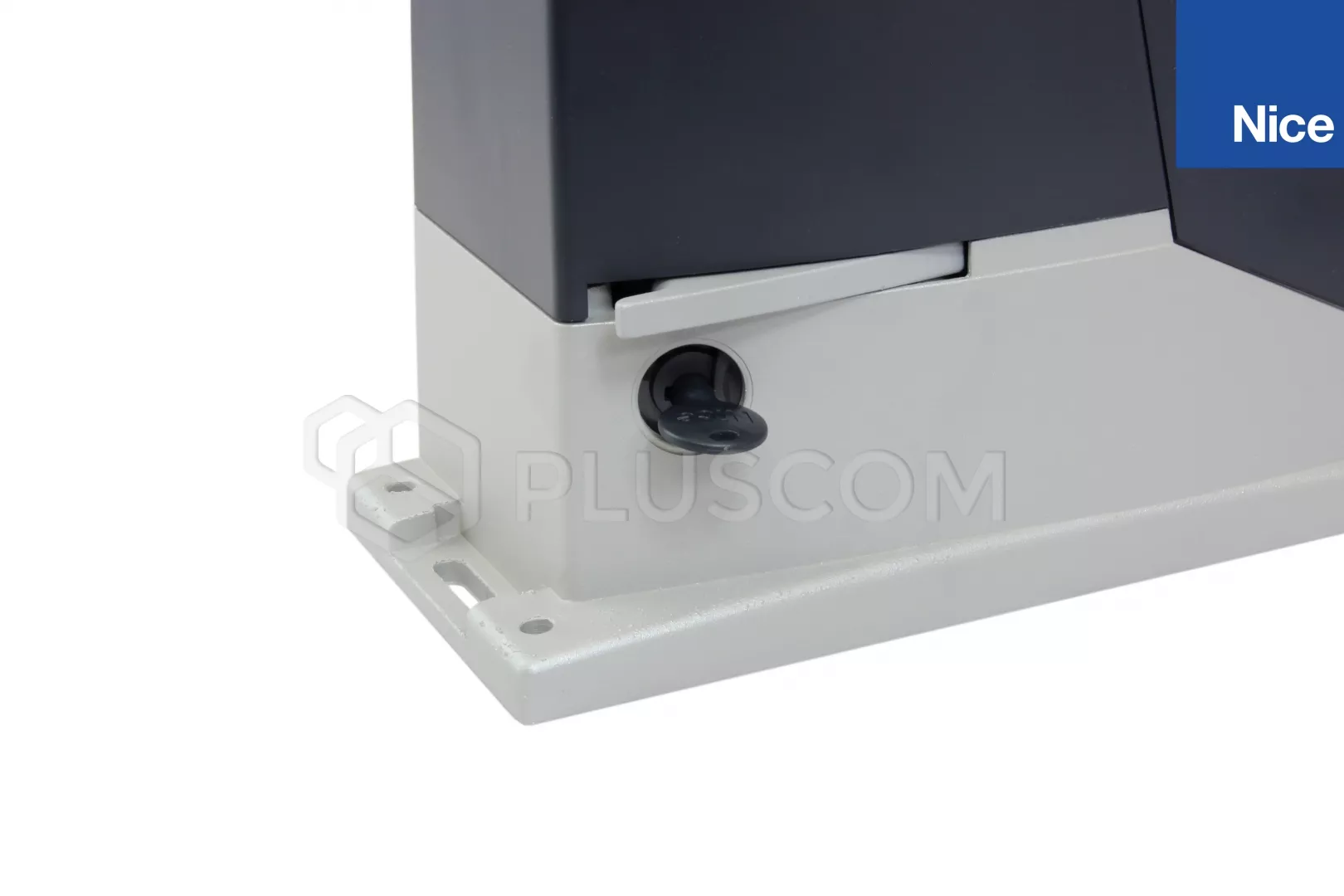

Unlocking lever:
CHANGE FUNCTIONS
- automatic, semi-automatic operation
- soft start
- soft closing
- PHOTO TEST, checking the correct operation of photocells at the beginning
cycle
- pause time adjustment
- speed adjustment
- amperometric sensitivity adjustment
- built-in 433MHz receiver (multicode)

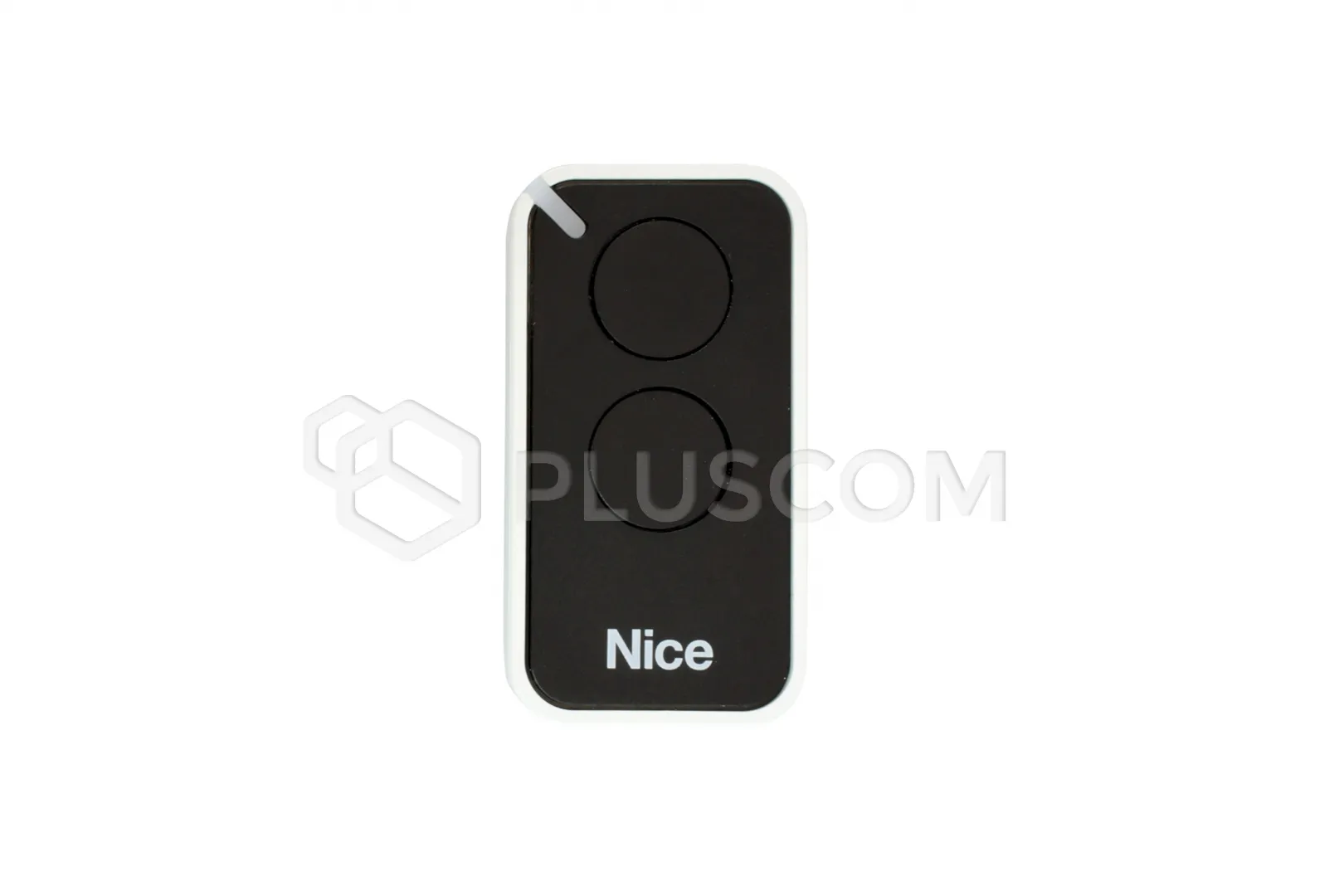

INTI2 2-channel remote control compatible with other
remote controls from the Nice range, such as One, Flor, but is not compatible
with the Smilo system. Transmission security is ensured by a 72-bit dynamically
changing code, each transmission is different. Only the control unit to which
the transmitter was loaded "knows" what code will be transmitted.
Modern and unique solutions used in INTI remote controls and Nice receivers
make the automation response time faster and the transmission safer.

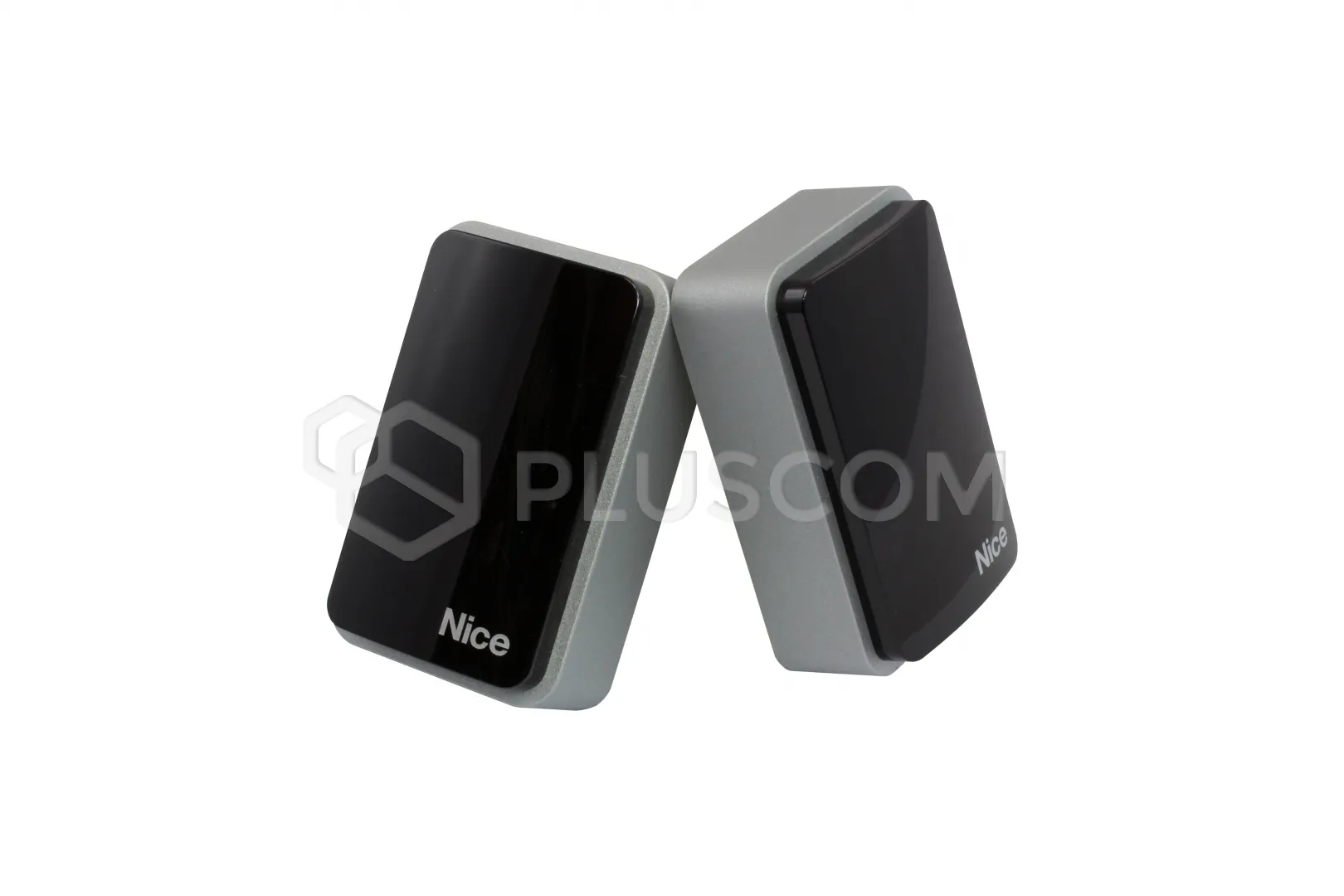

The
EPM Photocell is intended to operate in Nice home
automation systems.
EPM photocells cannot adjust the inclination angle. Therefore, it is important
that they are mounted vertically and parallel to each other each other's
walls. Aluminum columns with a height of 50 can be used for installation or 100
cm PPH3, PPH4

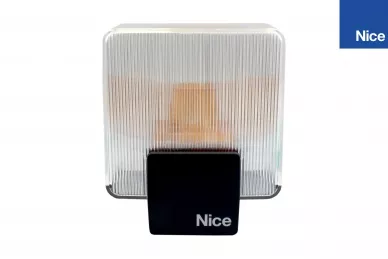

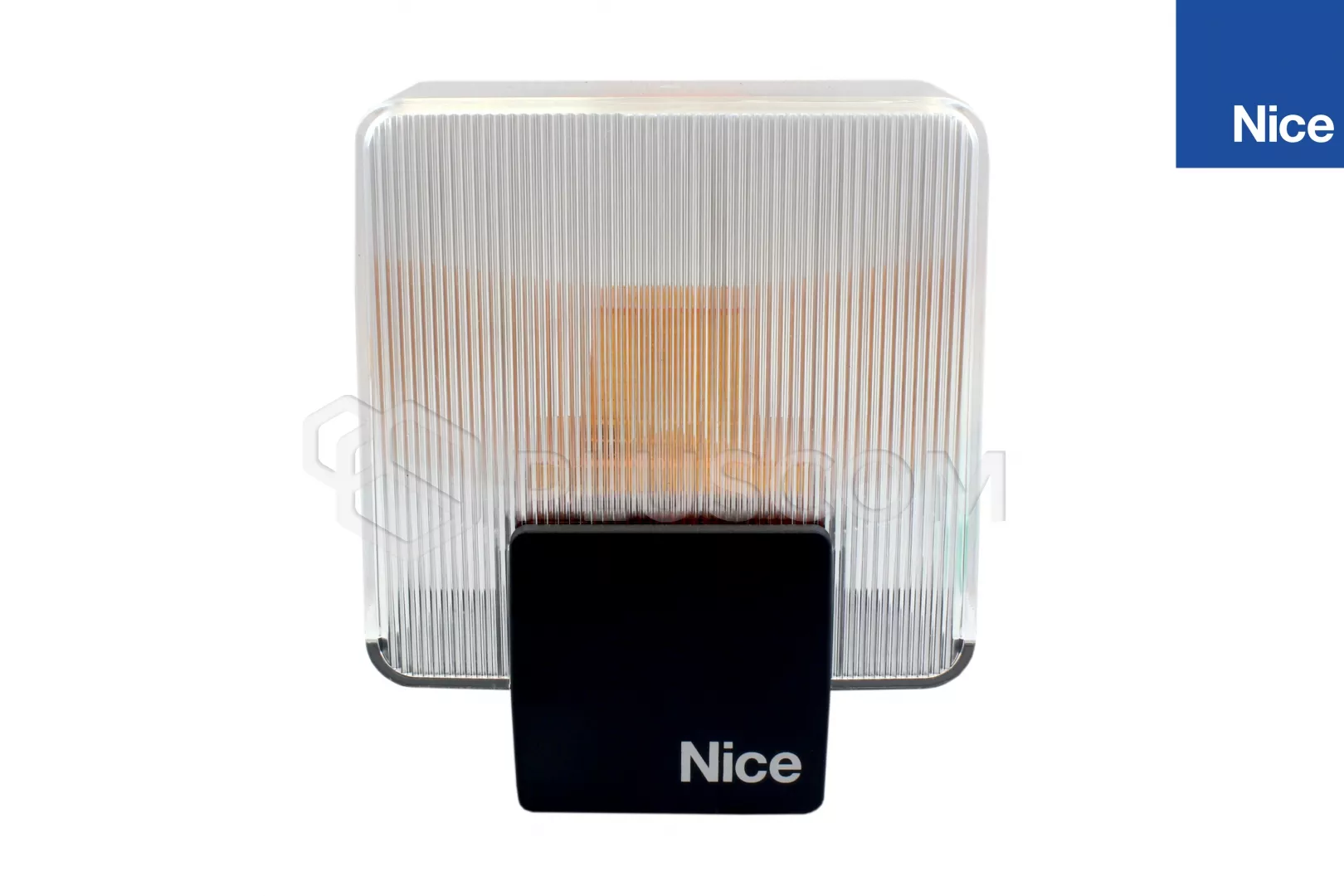

Nice ELDC signal lamp works with control panels that output
the warning lamp supplies 12/24V voltage.
The light source is a super
bright LED emitting white light. An orange lampshade was installed
above it, which diffuses light light. The LED is energy-saving, reliable and
shock-proof source of the world.
It stayed in the lamp housing
integrated 433.92MHz antenna
using 50 Ohm coaxial cable type RG58 which we connect to the control
panel's antenna output significantly increases remote control range.
