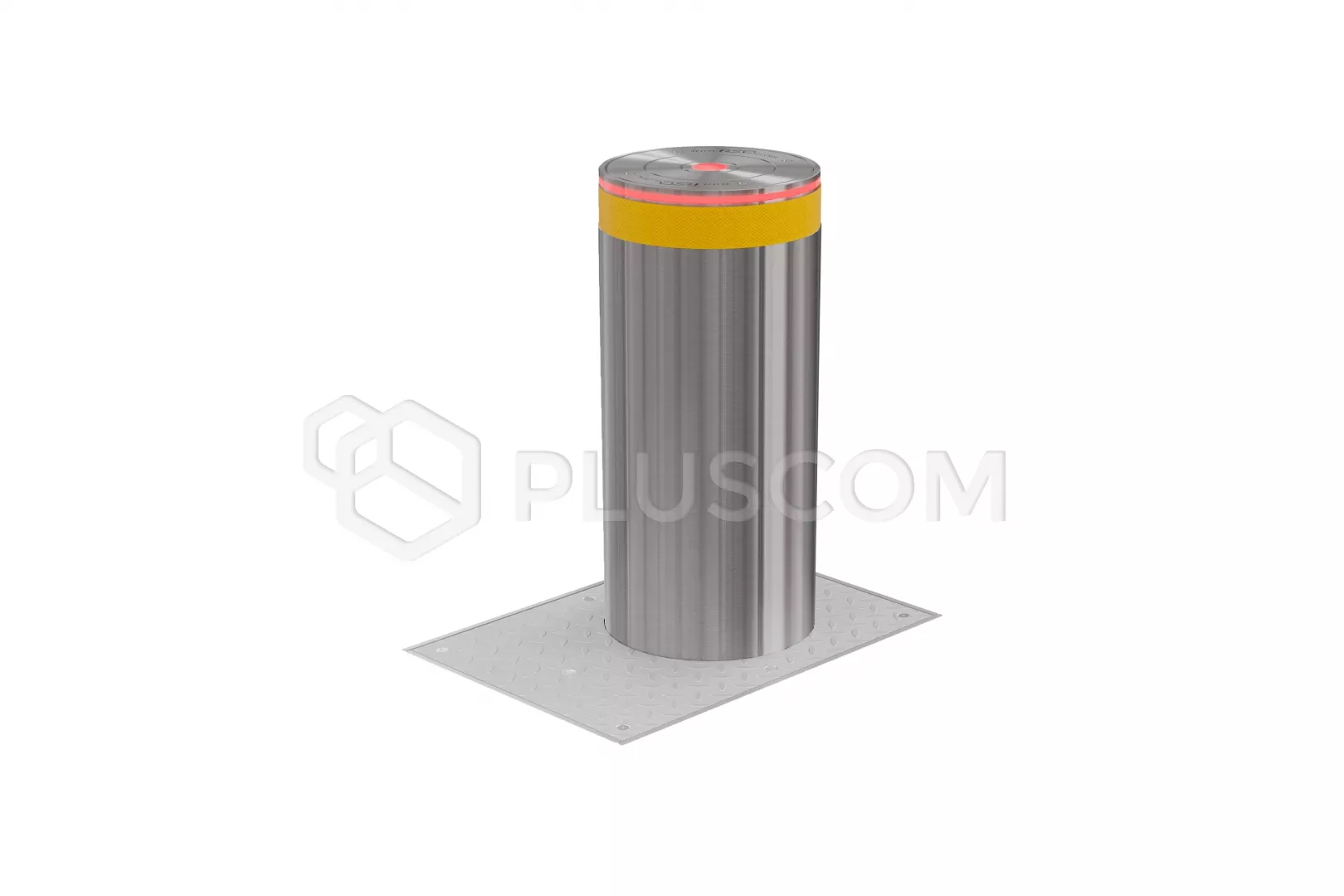

Nice RBAP 220-6 automatic parking bollard diameter 220mm, height 600mm

4981,92 EUR including 23.00% VAT
Product code: #22537
Manufacturer: Nice
  • Height: 600mm
  • Diameter: 220mm
  • Well depth: 1280 mm
  • Drive: Hydraulic
  • Lifting/Retracting Speed: 82/90mm/s
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
52,62 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

NICE RBAP 220-6 Automatic parking bollard with a built-in unit hydraulic, 600mm


An automatic parking bollard with a built-in hydraulic unit is perfect access control solution for vehicles in areas with no security requirements against terrorism, such as:
  • government institutions
  • military bases
  • nuclear power plants
  • production sites (industrial plants)
  • commercial space
  • financial institutions
  • airport rooms
  • business center (office)
  • hotels
  • sports complexes and recreation areas
  • educational institutions
  • urban areas
RBAP 220-6 is equipped with a reflective tape and LED signaling ensuring very good visibility of the bar and the displayed color, the current state of the bollard.

A PLC1 control controller (for one bar) is required for the bar or PLC2 (for post assemblies) and heater.
The main advantage of automatic parking bollards is the built-in pump hydraulic which is the perfect solution when in between the post and the control unit is a long distance. This is also an advantage when difficult weather conditions.

The post is made of brushed stainless steel and is classy IP67 tightness, ensuring operation even when the pole is under water, therefore it is characterized by reliability, durability and functionality.
Ideally suited for high intensity work.

TECHNICAL SPECIFICATIONS:
  • power supply: 230 V
  • drive: Hydraulic
  • cylinder height: 600mm
  • cylinder diameter: 220mm
  • cylinder wall thickness: 4mm
  • well depth: 1280mm
  • lifting speed: ~ 82mm / s
  • retract speed: ~ 90mm / s
  • maximum load: 15t
  • tightness class: IP67
  • working temperature: -40 ° C - + 50 ° C (for temperatures lower than -10 ° C a heater should be used)
  • material: AISI 304 brushed stainless steel
  • dimensions:
    • 610x760x980mm (unfolded foundation anchors)
    • 460x608x980mm (folded foundation anchors)
  • dimensions of the assembly chamber: 700x850x1280mm
  • weight: 110kg

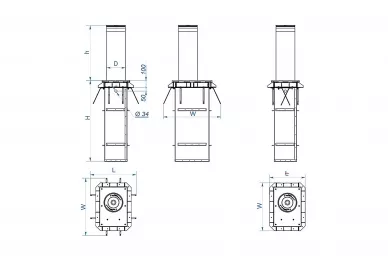

Dimensions:

Dimensions:

Additional options
  • sound signal
  • remote control panel
  • forced drainage
  • hand pump
  • radio receiver with 2 remote controls
  • semaphore
  • heating device
  • induction loops
  • any color from the RAL palette
