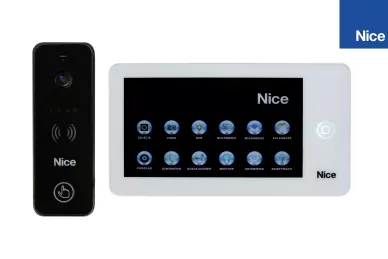

Nice PRO WB Video intercom set

Out of stock. Archived Product.

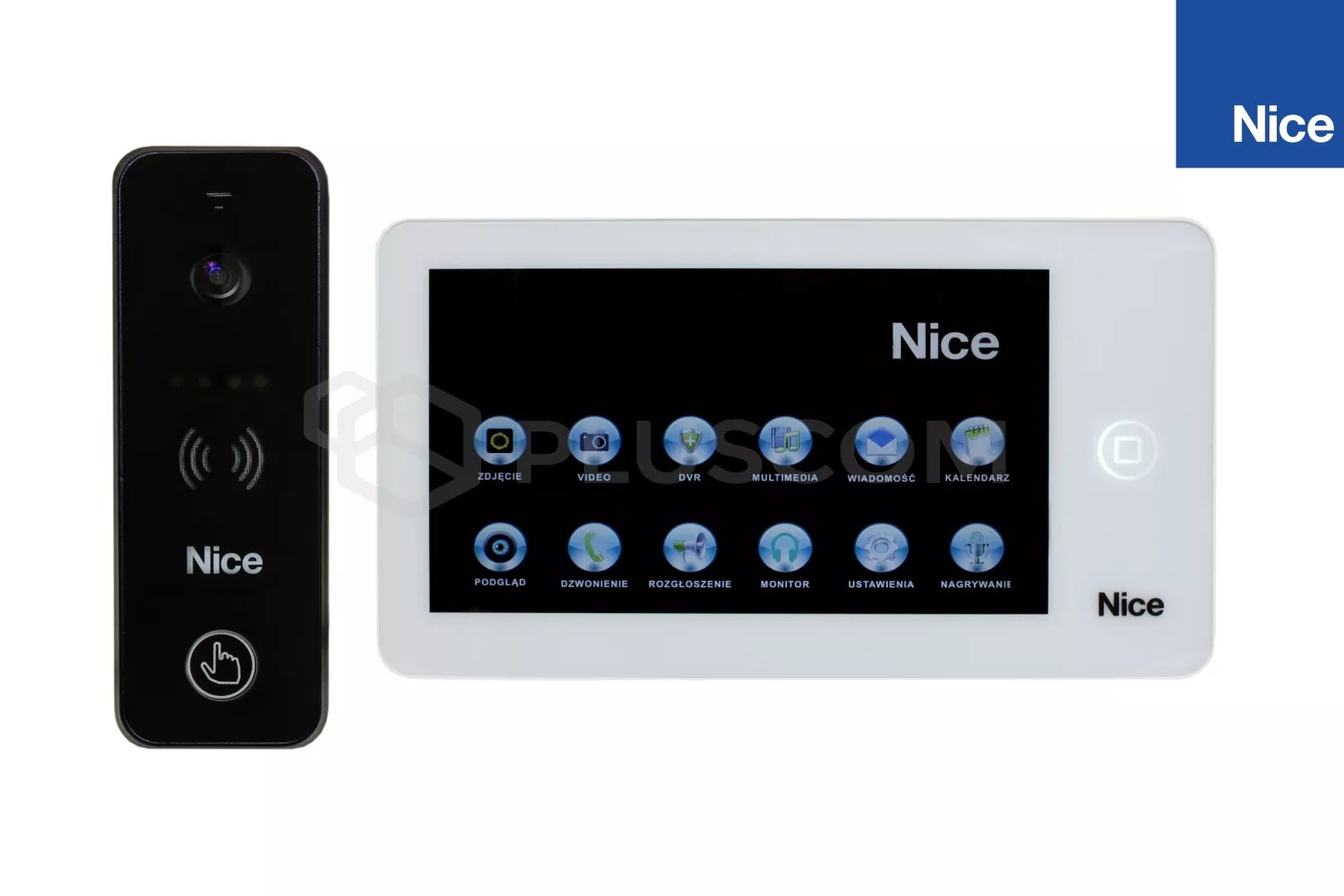

Nice PRO WB Video intercom for the home single-family

The set consists of:
  • Nice Eye B Talking panel, doorphone in black
  • Nice Pro W 7'' black hands-free video monitor with touch screen
A simple to use, functional set for single-family homes. stands modern design, easy installation and use.

Functions performed by the system:
  • hands-free video monitor, conversation without using the handset
  • control of the electric strike and gate automation
  • real-time preview from the doorphone camera and additional cameras without active calling
  • intercom call, the ability to talk between monitors
  • the ability to listen to sounds from another monitor
  • "privacy" function do not disturb, mute monitor
  • DVR with motion detection
  • registration of photos of people calling from the external panel
  • additional multimedia functions, music, movies, photo frame, voice recorder recording the sound from the room
  • answering machine (leaving a message for the tenant)
ROZBUDOWA SYSTEMU:

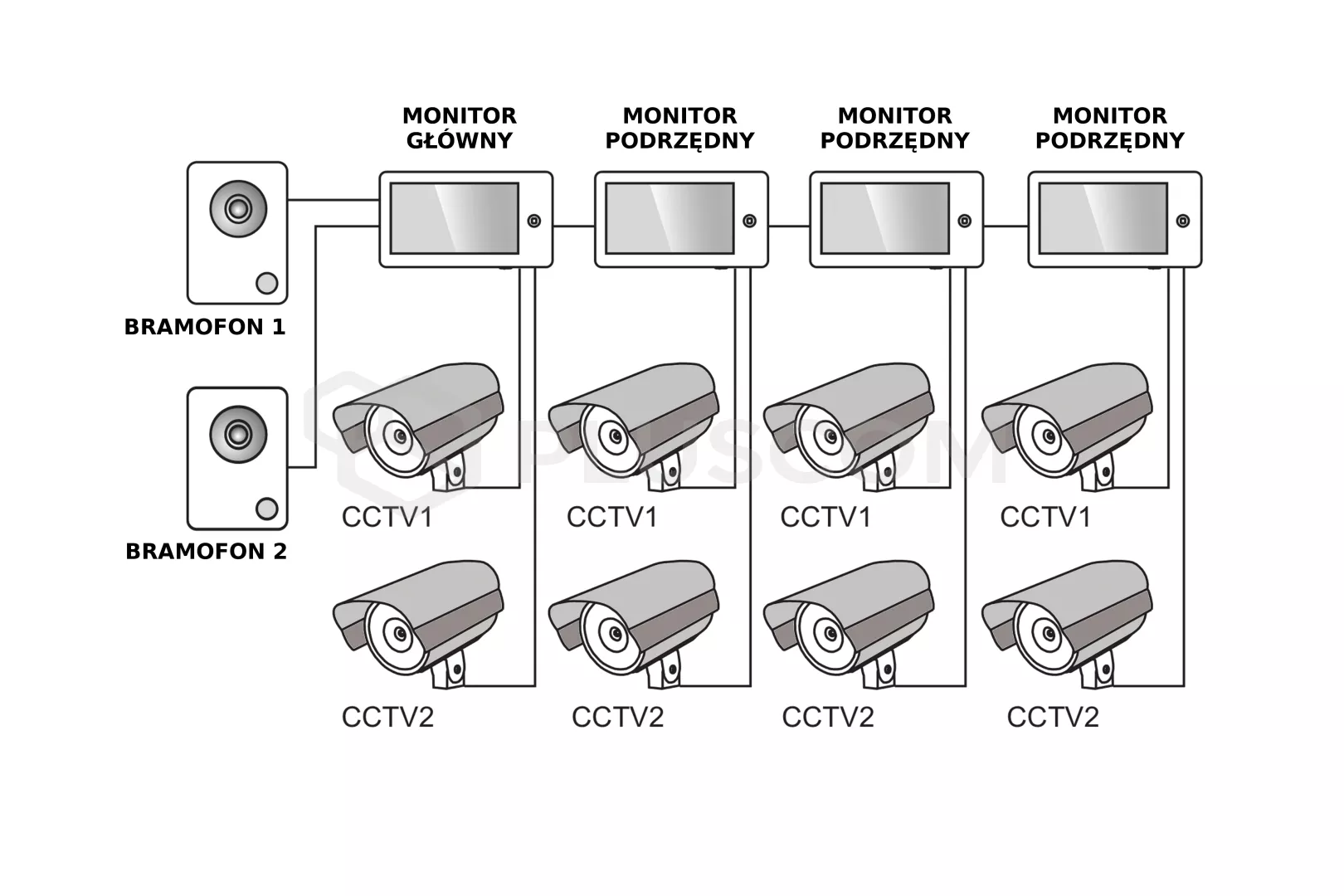

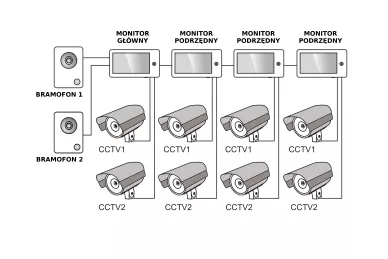

The basic set can be extended with additional talk panels and monitors. Connecting additional CCTV cameras enables wider observation area in front of the house. Possible system expansion options are shown below scheme:
System diagram:

System diagram:

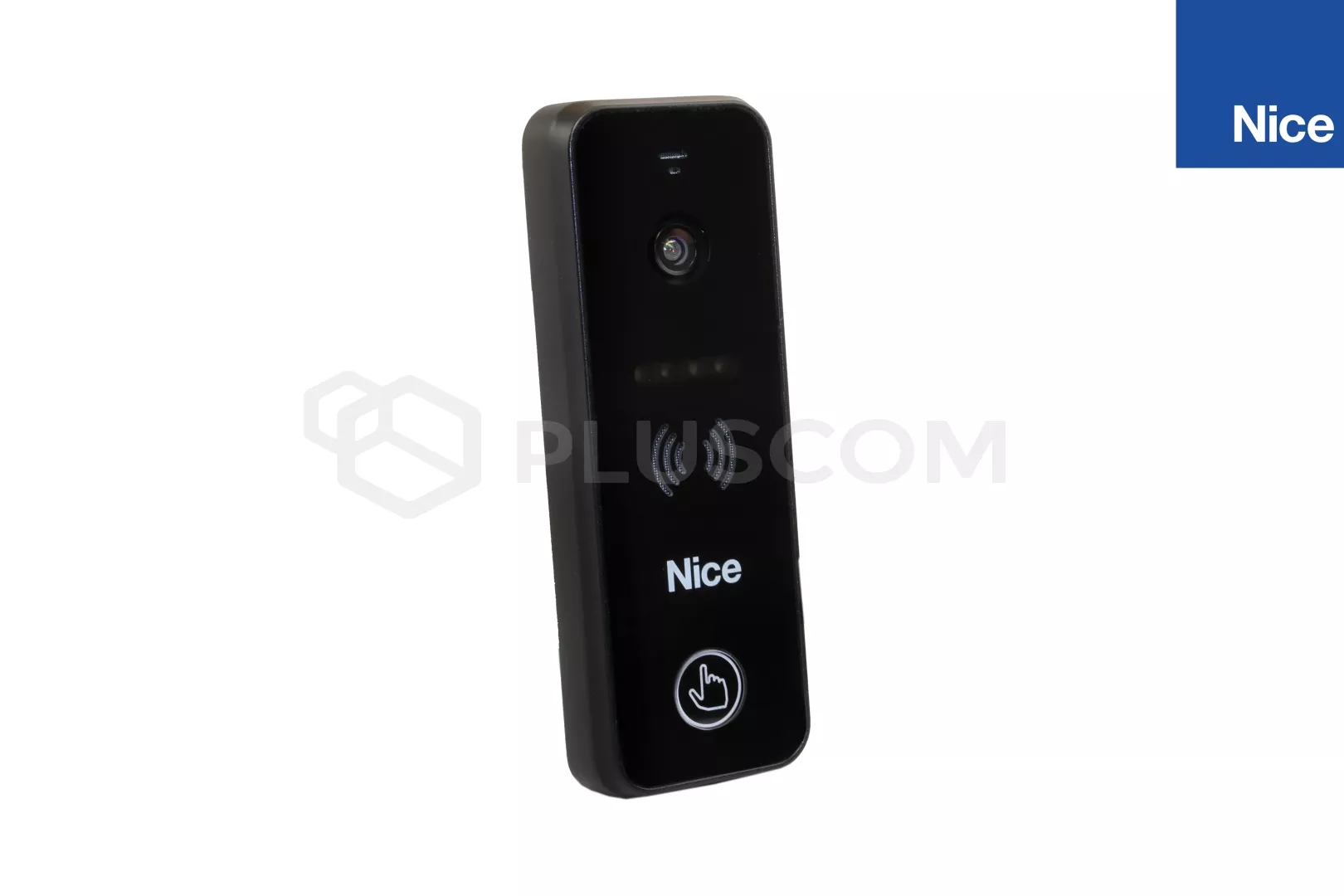

Nice Eye B Door station:

Nice Eye B Door station:


BRAMOFON Nice Eye B
Equipped with one call button wide-angle camera and LED illuminator. Small dimensions of the panel (width less than 50mm, depth only 15.5mm) allow you to perform an aesthetic installation on narrow metal posts. The aluminum sealed IP66 housing ensures high durability mechanical damage and resistance to adverse conditions weather.
.

PARAMETRY:
  • Camera: 1/4'' Color CMOS 800 linii TV
  • viewing angle: 110°
  • installation: surface mounting
  • power: DC 10-15V
  • power consumption: 2,5W
  • tightness class: IP66
  • working temperature: -30°C...60°C
  • dimensions: 133,2x48x15,5mm

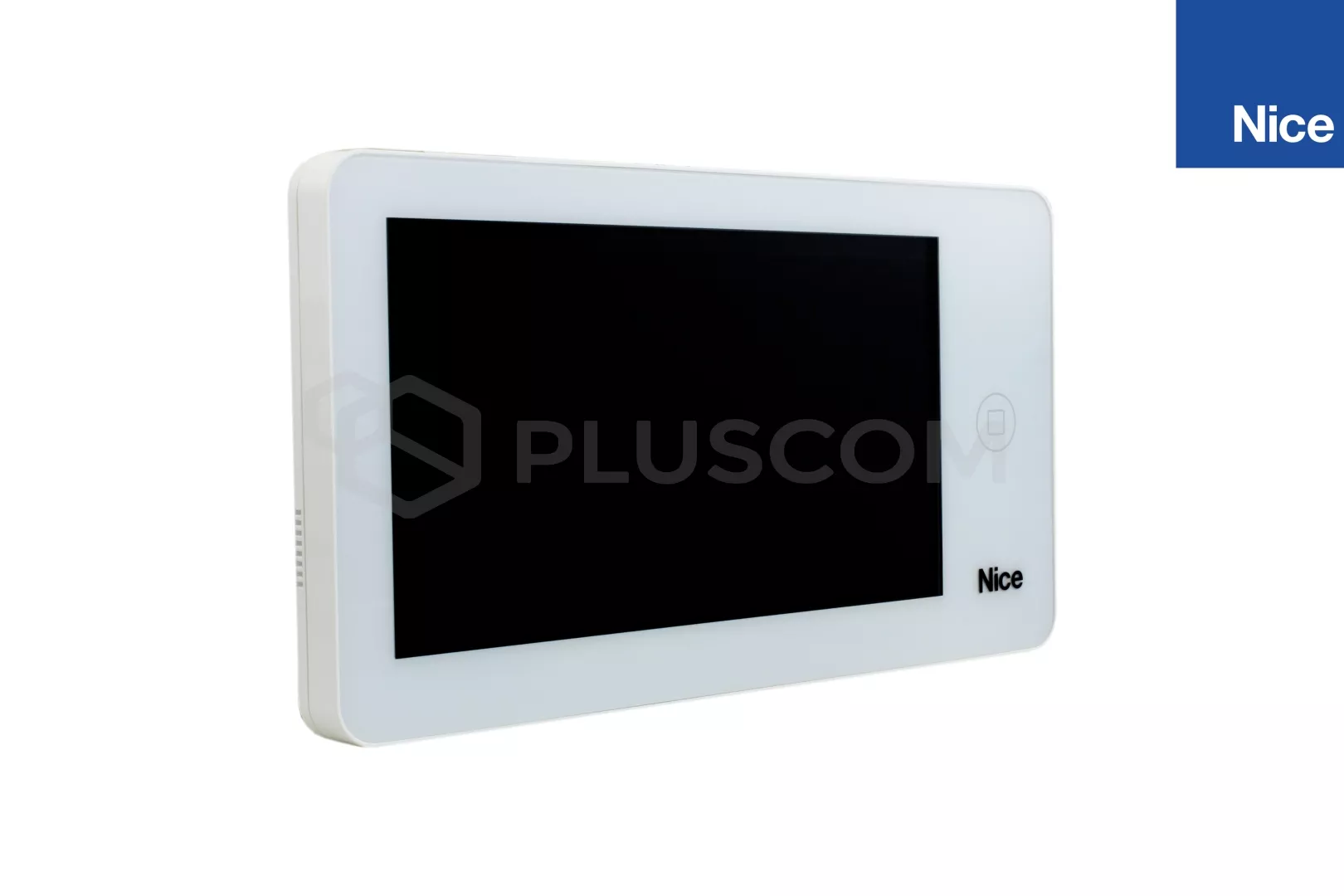

Nice PRO W Videomonitor:

Nice PRO W Videomonitor:


Video intercom Nice Pro W
Modern reliable 7 '' hands-free video monitor with touch screen screen. Simple and intuitive to use.

FEATURES AND PARAMETERS:
  • >7'' color LCD 640x480 resolution
  • touch screen allows comfortable handling of calls and all monitor functions
  • 7 polyphonic ringtones

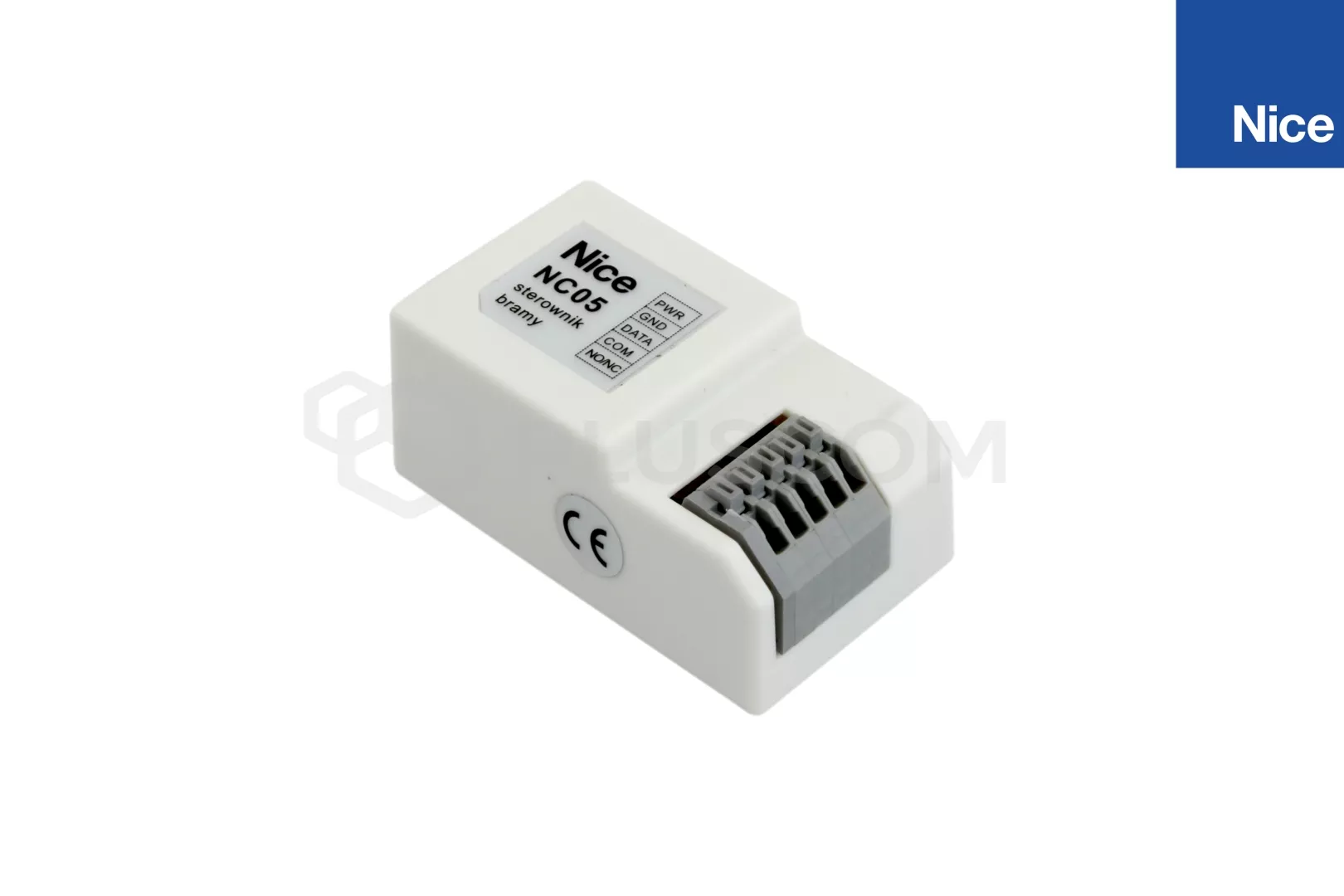

  • electric strike and gate automation control (additional module NC05)
  • adjustment of contrast and brightness of the display volume
  • "privacy" function mute the video monitor
  • intercom call
  • listening to another monitor

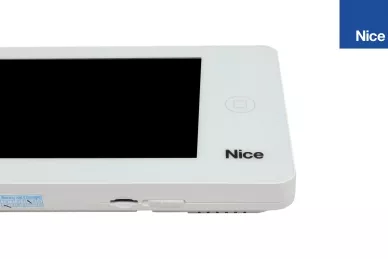

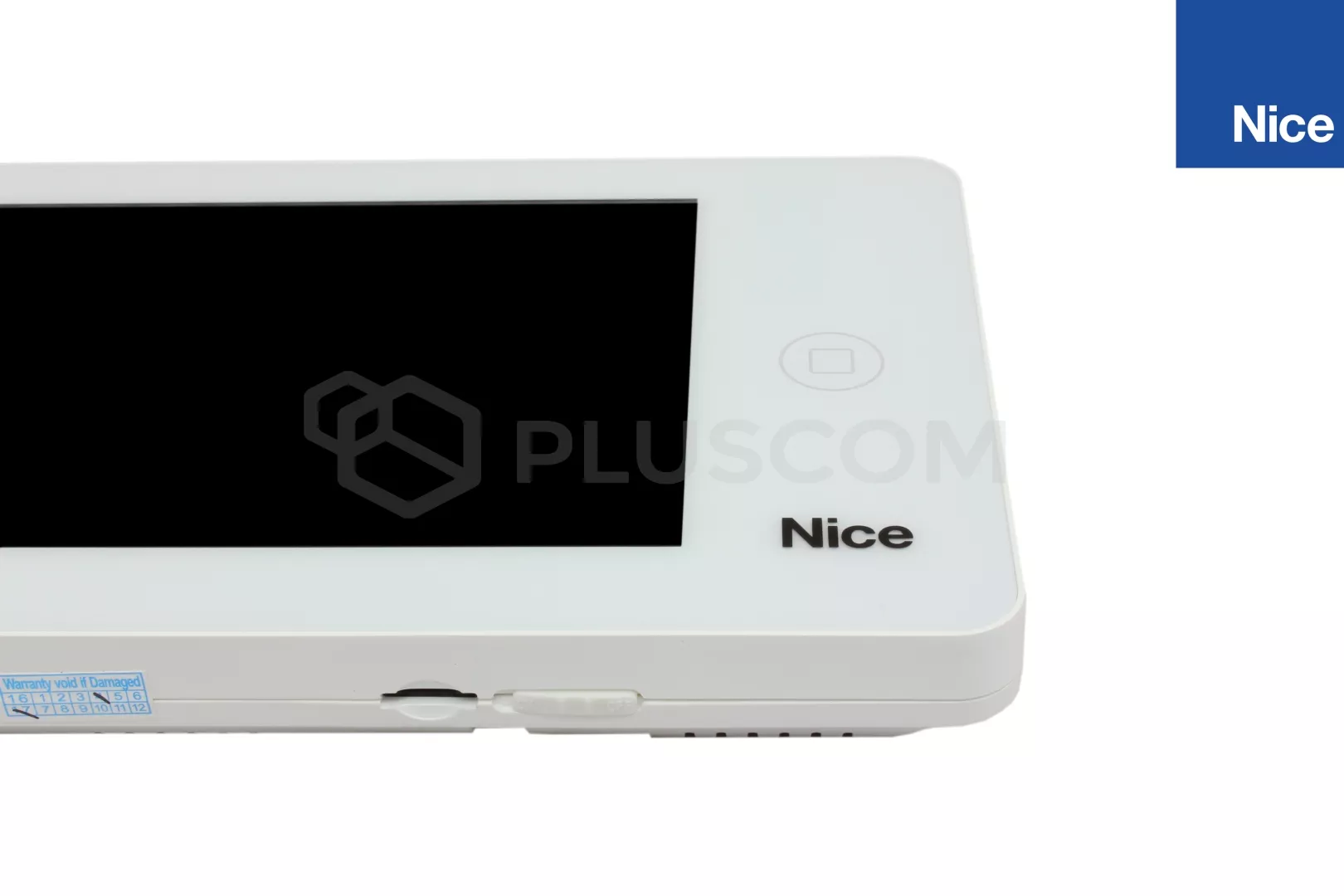

  • built-in microSD card slot
  • DVR with motion detection
  • registration of photos of people calling from the external panel
  • multimedia functions
INSTALLATION:
Recommended mounting height of the video monitor is 1.5-1.6m. The set includes wall frame on which we hang the monitor.

CONTENTS OF THE SET:
  • Talking panel Nice Eye B
  • Monitor Nice Pro W
  • Wall frame
  • DC power supply
  • cwall plugs and fixing screws
  • set of connectors for connections

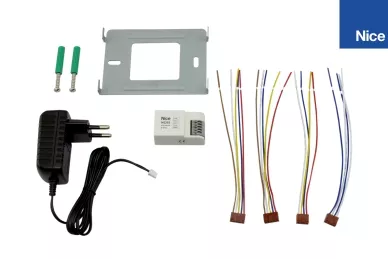

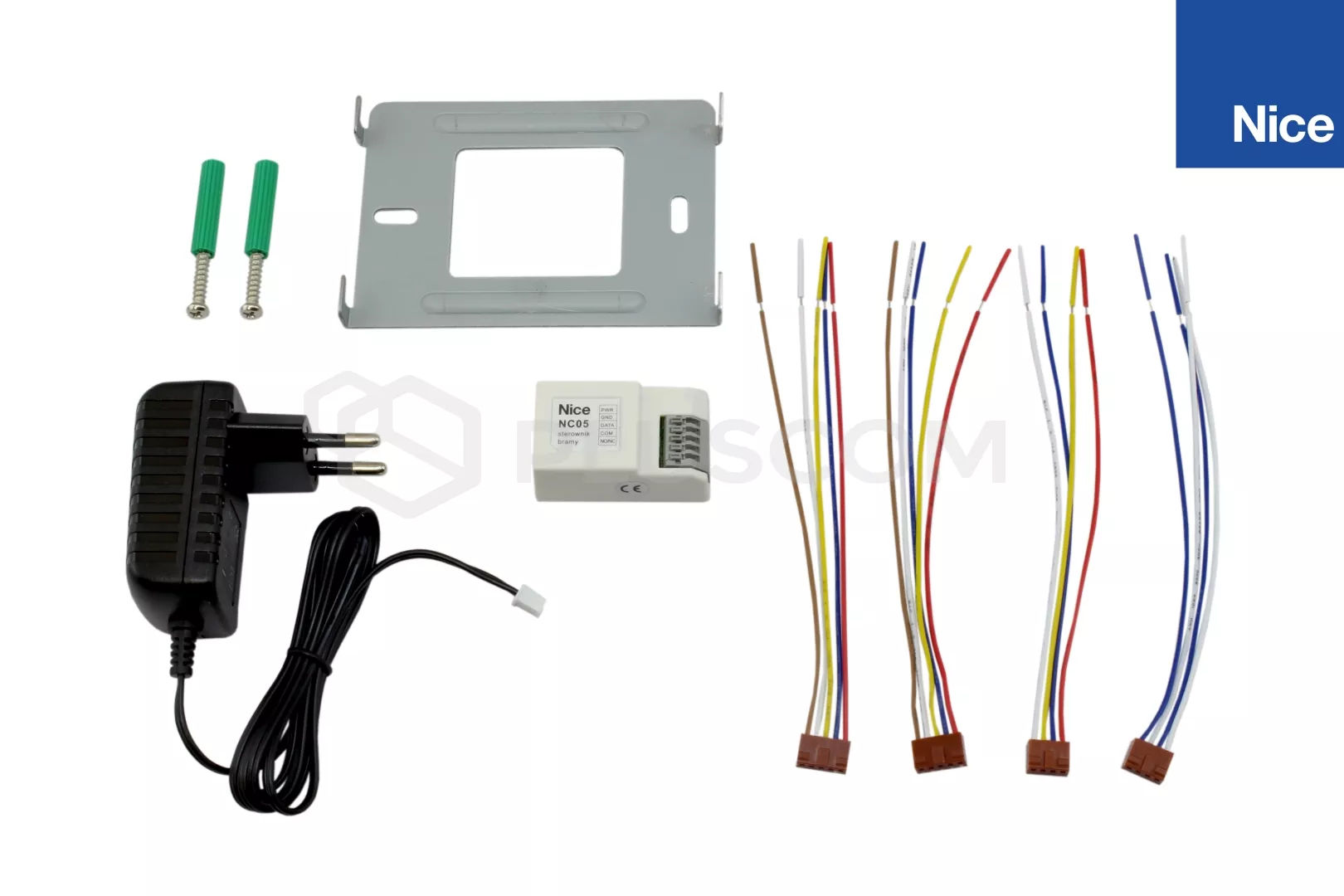

Accessories supplied with videomonitor:

Accessories supplied with videomonitor:

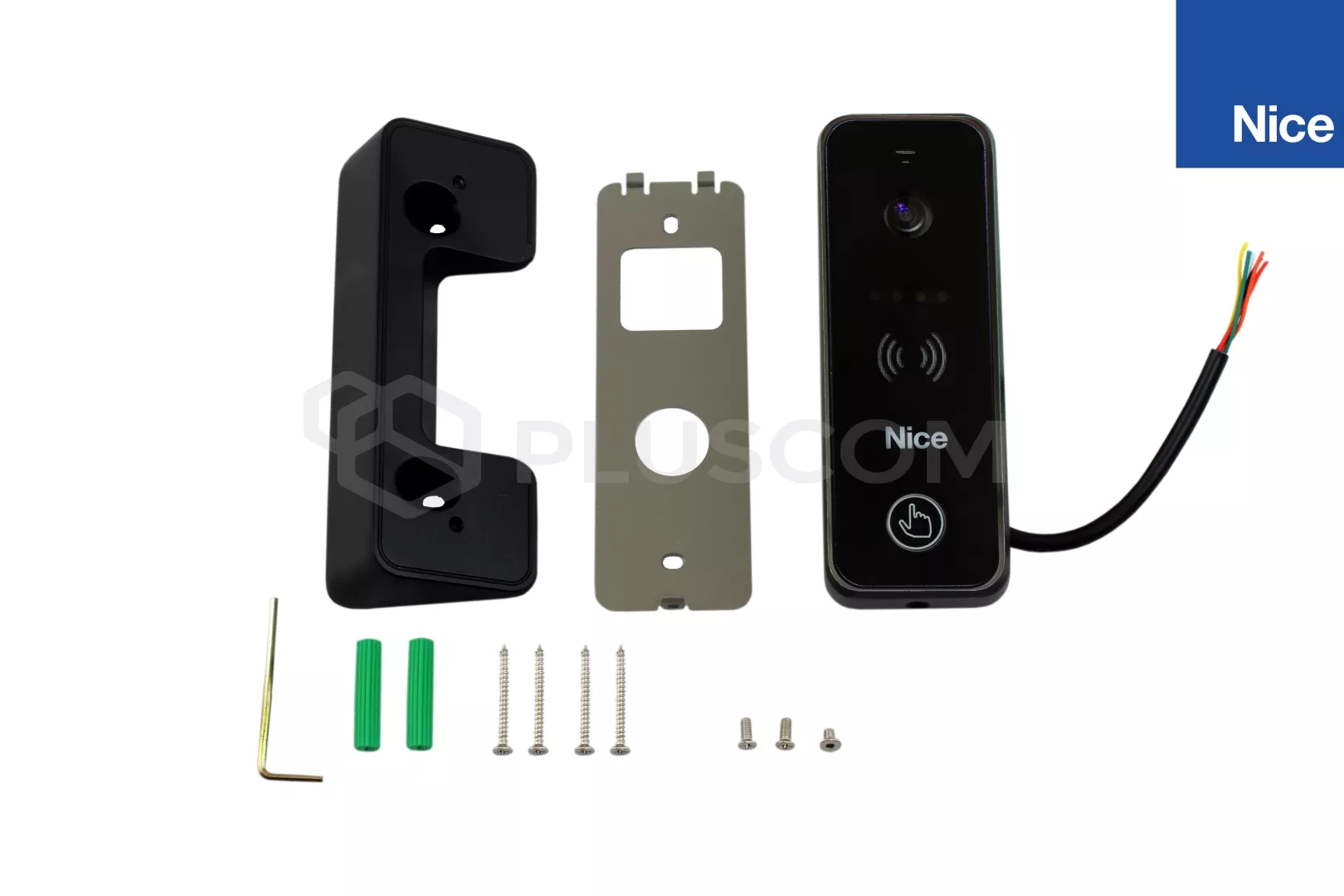

Accessories supplied with door station:

Accessories supplied with door station:

Specification
RFID reader: Brak
Touchscreen: Tak
