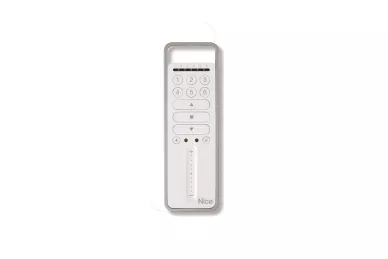

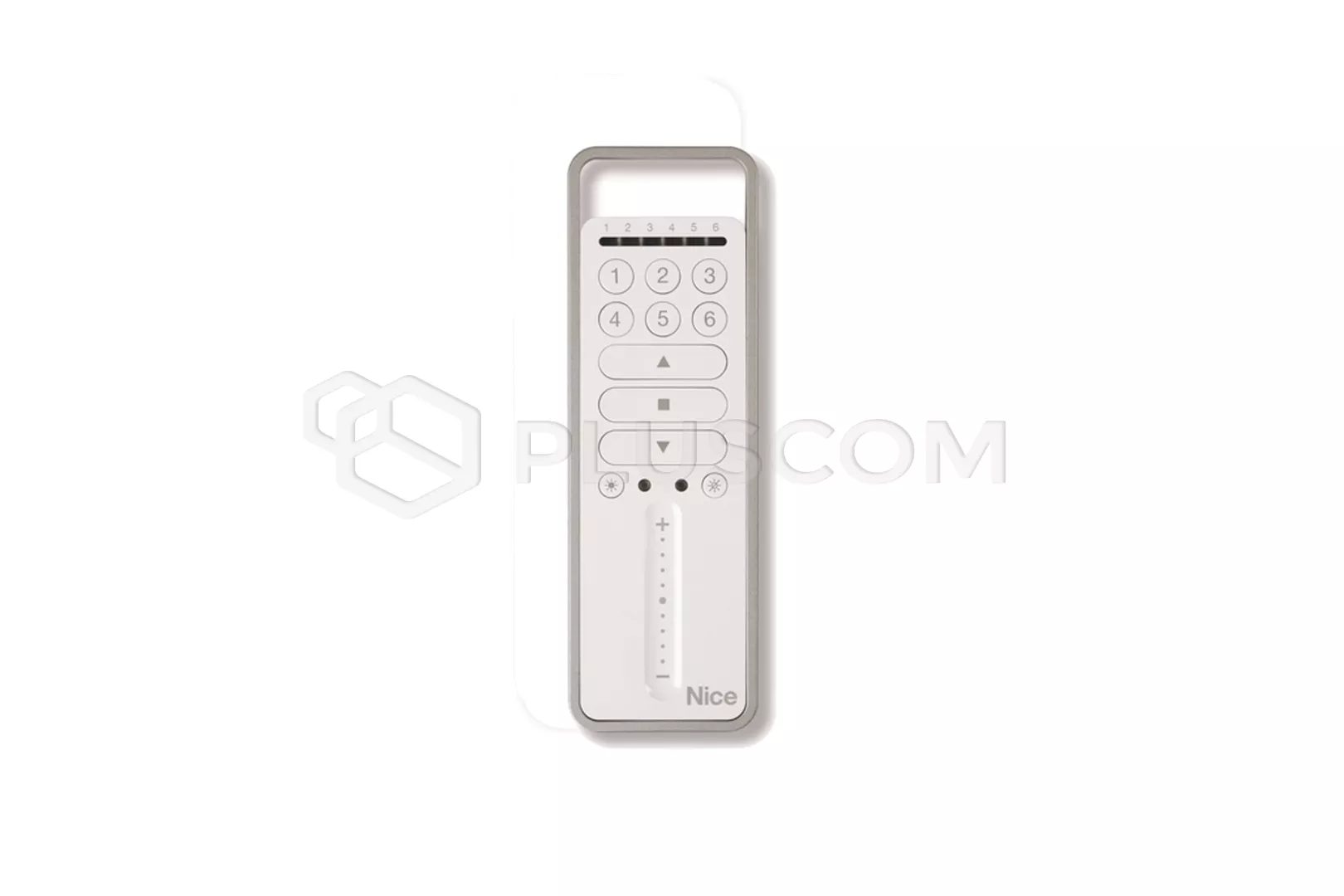

P6SV Pilot Six-channel roller shutter
P6SV is a 6-channel roller shutter ideal for controlling roller blinds,
awnings or blinds, which can also be combined into groups (MemoGroup function).
The memory function allows you to return to the last group called.
FLOR radio control with dynamically variable code 433.92 MHz, 4.5 billion
combinations.
The remote has built-in support for the climate sensor. With one press, we
activate the climate sensor, which will automatically react to atmospheric
changes, eg in the case of high insolation, the awning will be developed on the
terrace.
ERA-P remotes can be loaded using traditional methods or by means of special
buttons placed on the back of the remote control under the battery cover.
This system allows you to play next pilots even without the presence of an
installer (roller motors ERA-MAT series).
ERA-P remotes can be downloaded to:
- Nice roller blind motors with a built-in control unit and radio
- central TT series and A01 / A02 central
- 433.92 MHz radios from the FLOR and ONE series
New remote controls can be programmed remotely, all you need to do is
place a new remote next to the old one and press one button.
P6SV has a long range:
- up to 200 m in open area
- up to 35 m inside the building
It is powered by two AAA alkaline batteries.
TECHNICAL PARAMETERS:
- Power supply: 2x AAA battery
- Frequency: 433.92 MHz ± 100 KHz
- Protection class: IP40
- Range: 200 m (in open area), 35 m (inside)
- Coding: Code dynamically variable
- Operating temperature: -5° - +55°
- Dimensions: 49x150x14mm
- Weight: 85g
