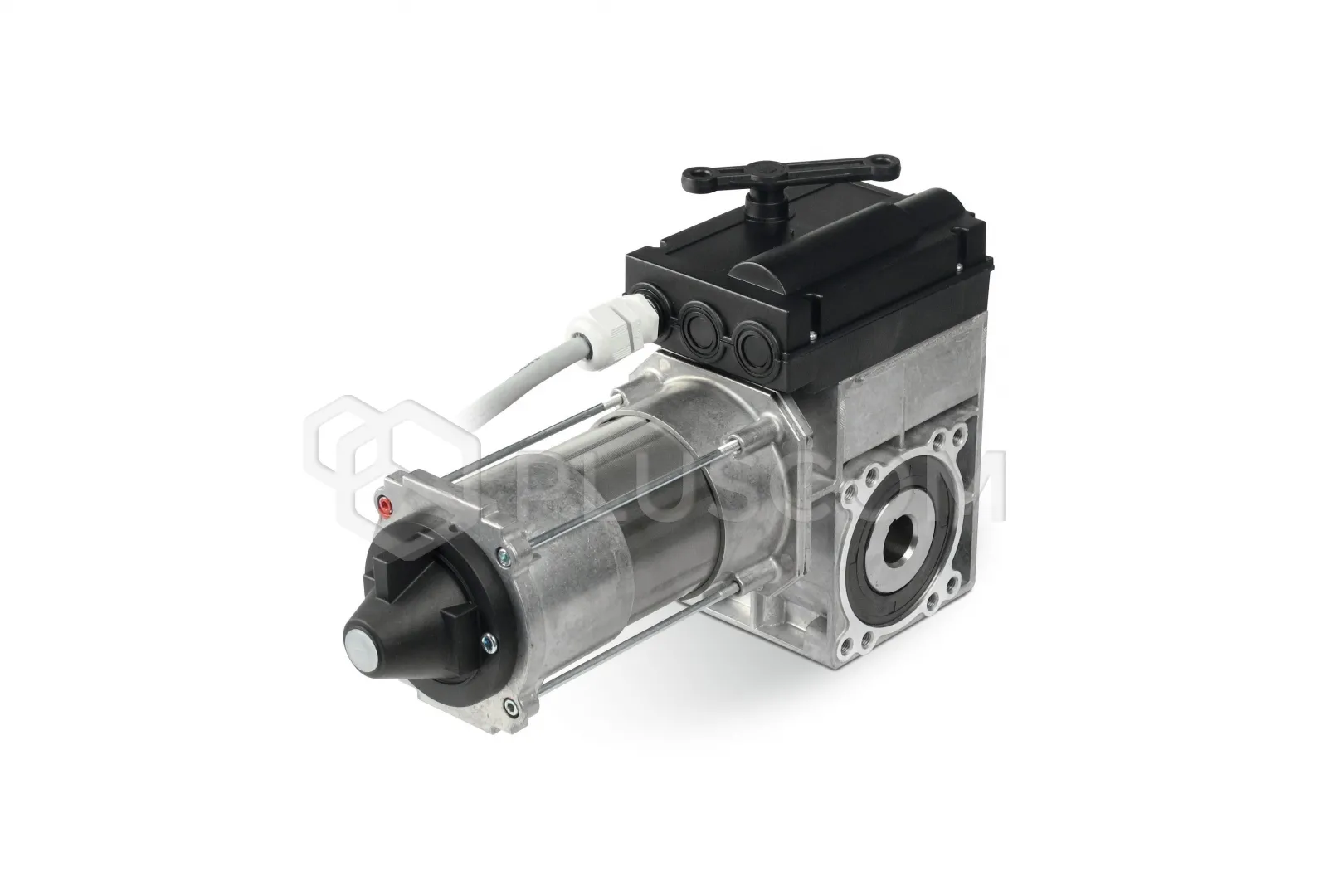

NICE NDCM1122A Actuator for industrial gates up to 24m2

Nice NDCM1122A Industrial Operator SDN-70-24 EL15 KEL-5, 3x400V, 70 Nm, 24 rpm, electronic limit switches, IP54 chain

Nice NDCM1122A electromechanical operator for industrial sectional doors up to 24m² with emergency opening via chain. Three-phase operator with 3x400V power supply, 70Nm torque, speed up to 24 rpm, and electronic limit switches.
Emergency operation via chain. The operator can be installed directly on the sectional door shaft.

FEATURES:

• Compact and powerful: torque up to 70 Nm; Speed ​​up to 24 rpm
• Safe: automation compliant with current standards and European directives regarding technology and safety
• Easy programming: thanks to electronic limit switches, programming, adjustments, and limit position settings are performed from the control unit
• Quick installation in any conditions: the operator can be installed directly on the sectional door shaft (shaft diameter 25.4 mm)
• Easy and quick installation: quick connectors and numbered sockets in the control unit facilitate cable connections; installation and start-up become extremely easy
• Pre-assembled cables connecting the motor to the control unit are equipped with appropriate plugs. Robust: oil-bath reducer and bronze gears.


  TECHNICAL DATA:

  • Maximum gate weight: 300 kg.
  • Gate area: up to 24 m².
  • Power supply: 3x400V.
  • Gate shaft hole diameter: 25.4 mm.
  • Torque: 70 Nm.
  • Static torque: 500 Nm.
  • Speed: 24 rpm.
  • Power consumption: 0.37 kW.
  • Operating temperature: -5°C to +40°C.
  • Protection rating: IP54.
