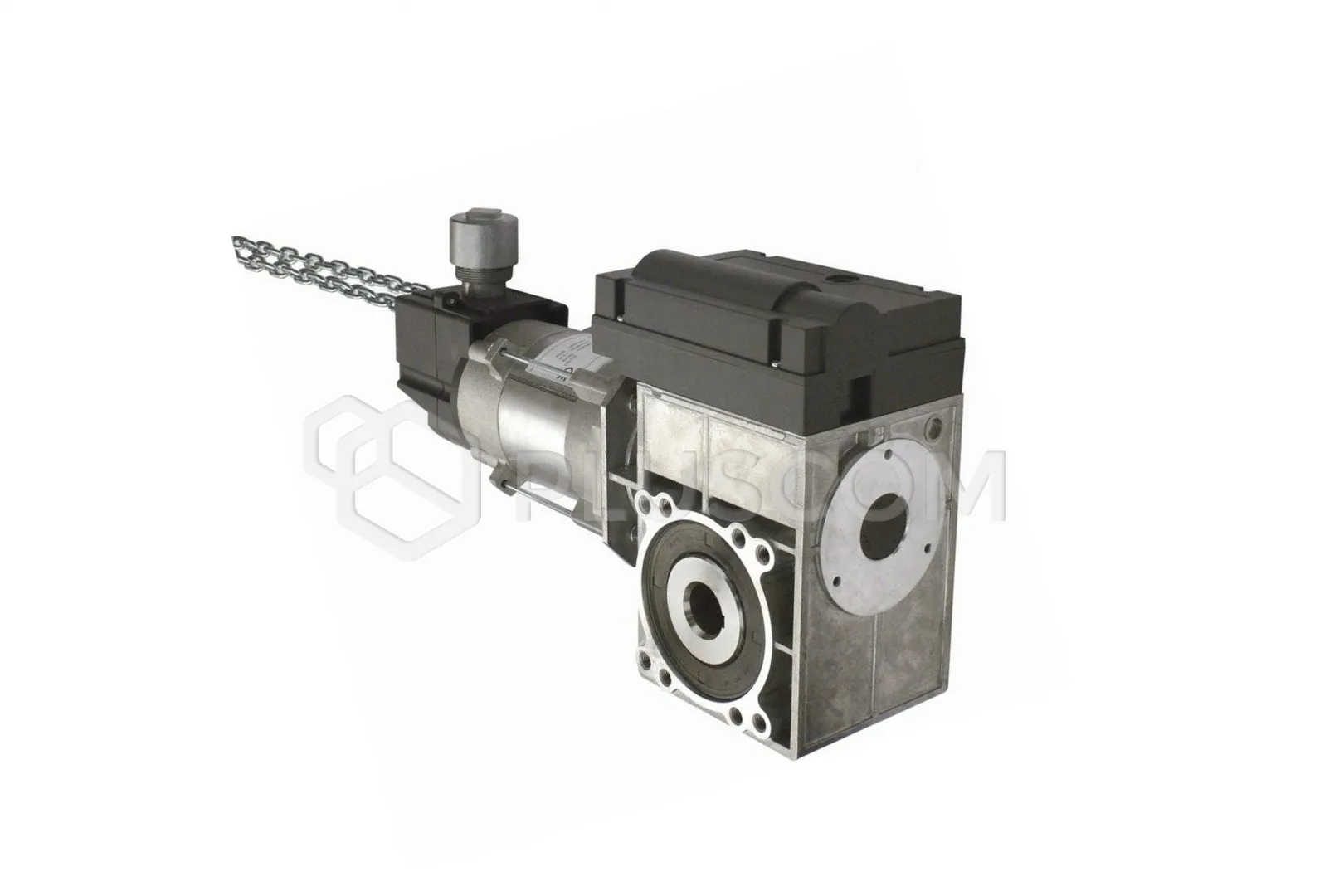

NICE NDCM0199A Actuator for industrial gates up to 30m2

Nice NDCM0199A SD-100-24 EL15 E Industrial Operator, 3x400V, 100 Nm, 24 rpm, electronic limit switches, ED 60% chain

Nice NDCM0199A electromechanical operator for industrial doors up to 30m² with emergency opening via cable. Three-phase operator with 3x400V power supply, 100Nm torque, speed up to 24 rpm, and electronic limit switches.
The operator can be installed directly on the shaft of a sectional door.

FEATURES:

• For industrial sectional doors
• Electromechanical self-locking operator with electronic limit switches
• Compact and powerful
• Safe: automation compliant with current European standards and directives regarding technology and safety
• Quick installation in any conditions: the operator can be installed directly on the sectional door shaft
• Easy and quick installation: quick connectors and numbered sockets in the control unit simplify cable connections; installation and commissioning are extremely easy.
• Pre-assembled cables connecting the motor to the control unit, equipped with appropriate plugs.
• Robust: Oil-bath reduction gear and bronze gears. SBA sensor: the sensor for adjusting the door's lower position automatically remembers the new door position (optional).

TECHNICAL DATA:

• Maximum gate weight: 300 kg
• Gate area: up to 30m²
• Power supply: 3x400V
• Gate shaft hole diameter: 25.4 mm
• Torque: 100 Nm
• Static torque: 600 Nm
• Speed: 24 rpm
• Power consumption: 0.37 kW
• Operating temperature: -5°C to +40°C
• Protection rating: IP54
