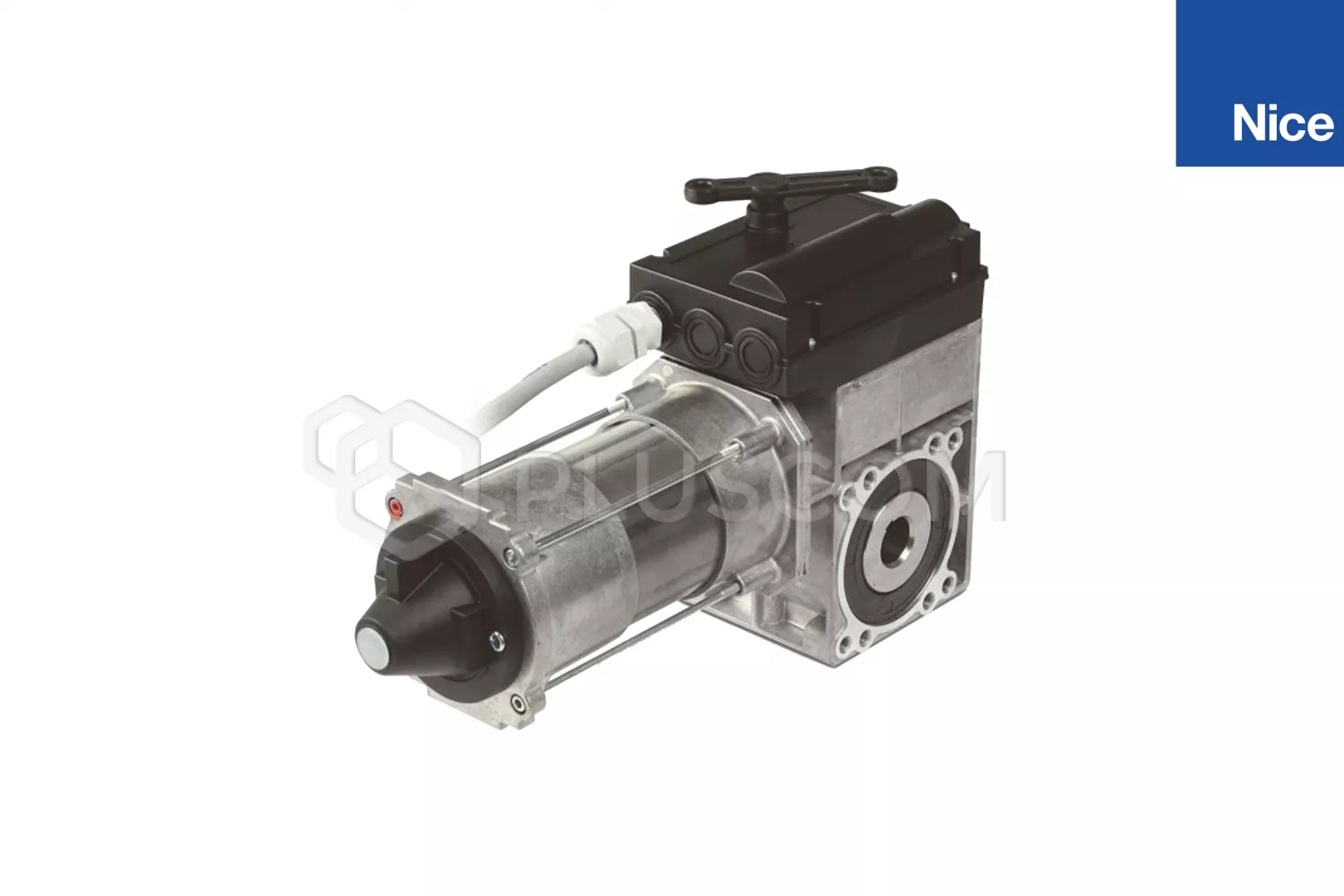

NICE_NDCM0074 Gear motor for sectional doors for industrial use SD-100-24

607,55 EUR including 20.00% VAT
Product code: #21468
Manufacturer: Nice
  • Gate weight up to 300kg
  • Door area up to 30m²
  • 3x400Vpower supply
  • Electronic limit switches
  • Emergency opening by means of a rope
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Nice NDCM0074 Operator for industrial gates up to 30m² with electronic limit switches and motion control with an encoder



NDCM0074 is a drive that complies with the latest European safety standards and technology.
It is solidly made. Bronze gears that are constantly lubricated (oil bath reducer), make the engine reliable. Moment rotating up to 100Nm and rotational speed 24 rpm, give very high efficiency.
The use intensity is 60%.

EASY TO INSTALL:

The motor gear can be mounted directly on the drive shaft of a sectional door (for shafts with a diameter of 25.4 mm) and the connecting cables are equipped with appropriate plugins. Additionally, the control panel has numbered sockets and quick couplings, which means that the installation and starting of the engine is extraordinary easy.

PROGRAMMING:

The actuator is equipped with an electronic limit switch, which makes it programming, adjustments and end position settings are made from control panel.

When the engine stops, the gate stops automatically. using SBA sensor, new gate position, will be automatically saved. In emergency cases, emergency gate opening will be done with rope
Download
User Manual 8.06 MB
