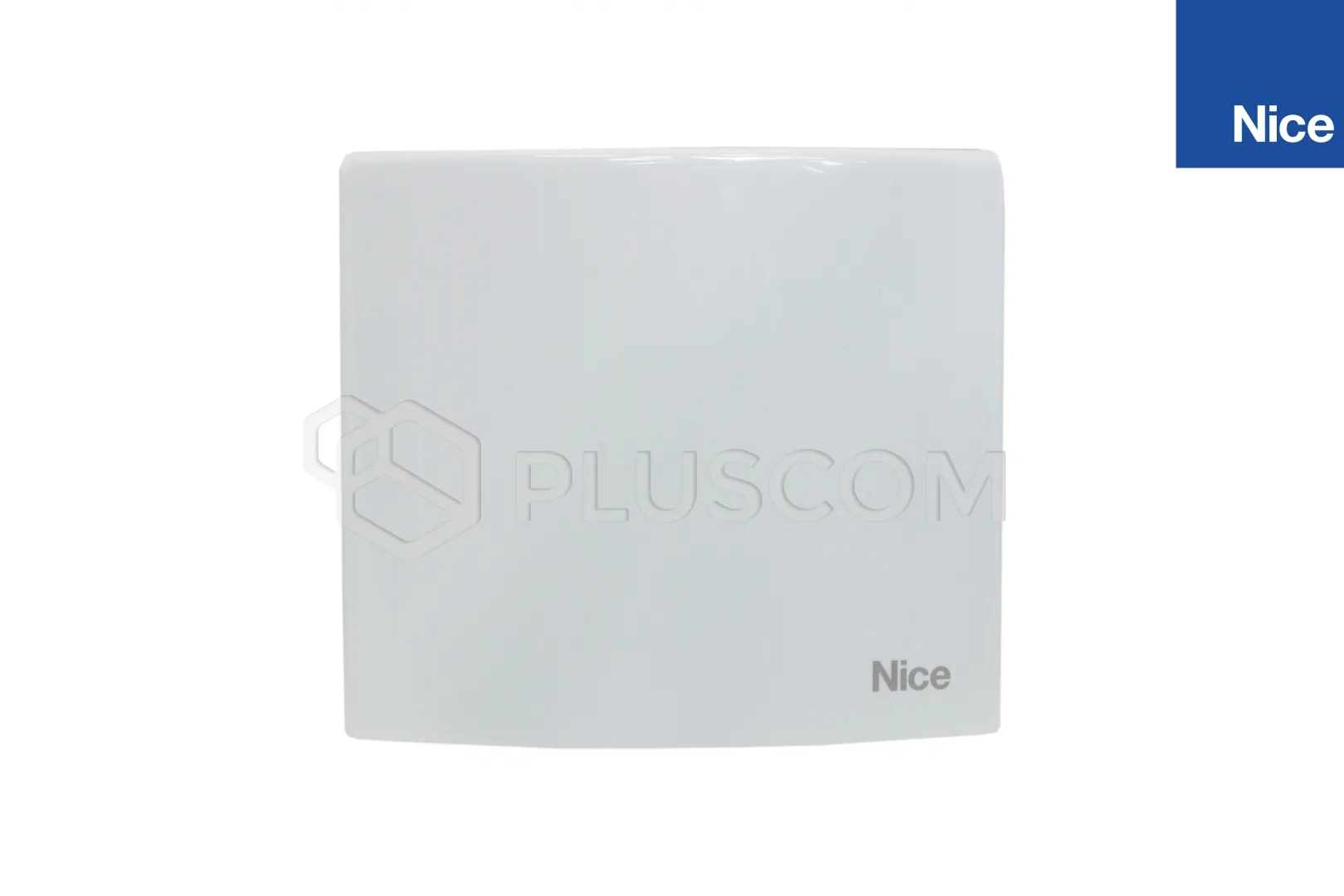

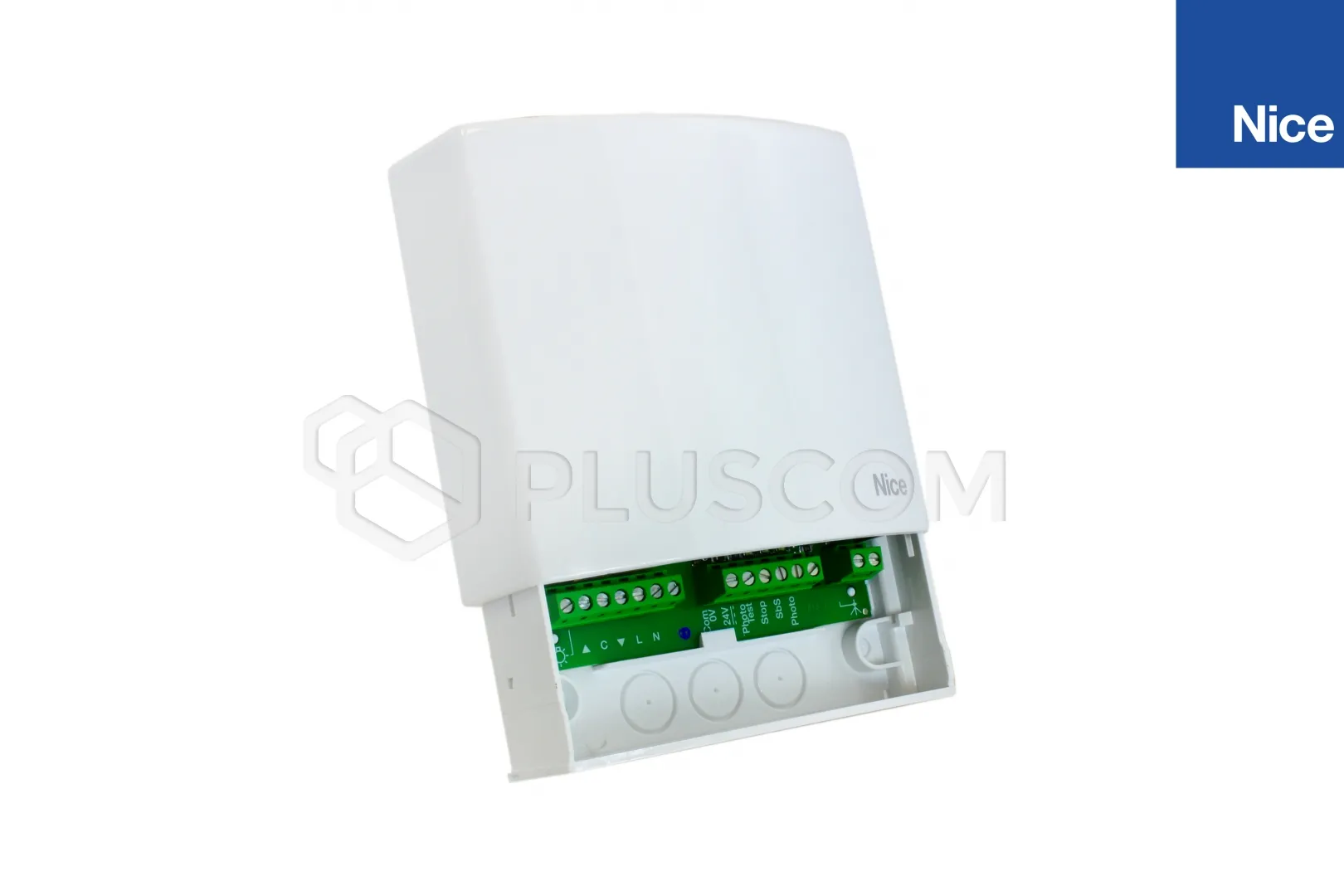

Nice MC200R30 Control unit for one 230V actuator

123,98 EUR including 23.00% VAT
Product code: #44358
Manufacturer: Nice
  • For one 230V actuator
  • Built-in multicode radio /flor/smilo/opera
  • Inputs: PHOTO, STOP, STEP BY STEP
  • Auto close mode
  • The control panel in the latest specification
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,46 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Nice MC200R30 control unit for one 230V asynchronous motor


The Nice MC200R30 is a new electronic control unit designed to control the operation of one single-phase asynchronous motor with a power of up to 950W. It allows for the control and operation of a roller shutter motor, swing gate, sectional gate, or other similar applications.
The control unit is equipped with a multi-system radio receiver (FLOR, OPERA, SMILO) integrated into the electronics board, which can be used to program up to 192 transmitters (remote controls). It is supplied with the latest specifications provided by the manufacturer for a given quarter (firmware-optimized version), maintaining identical connection diagrams, electrical parameters, and full functionality of the BlueBUS system and Yubii device support.
The latest version of the electronics features updated firmware, improved overload characteristics (amperometrics), and improved native compatibility with new accessories from the Nice ecosystem (e.g., OXIBD receivers and Smart Home systems). automatyczne zamykanie 230V

CONTROL UNIT FEATURES AND FUNCTIONS:
  • Compatible with the O-View programmer, which is connected via the IBT4N interface
  • Compatible with the IT4WIFI module.
  • Has a 230V AC warning light output.
  • Has a PHOTOTEST output that can be reprogrammed to a Gate Status Indicator.
  • Allows for deleting a single remote control.
  • Allows for blocking the radio receiver.
  • Has a "Residential Complexes" function. This function is useful when using the control unit to control gates in housing communities or parking lots.
  • Automatic closing function (programmable pause time 5-120 seconds)
The control unit provides the following inputs:
  • STOP input (NO, NC, or 8.2KOhm) configurable
  • SbS input (NO) - a classic "step-by-step" input
  • PHOTO input for connecting photocells
  • Relays with an NC output or connecting a NO button and using it as a closing command
Configuration of the control unit and radio functions is performed using a switch DIP-SWITCH and two buttons T1, T2.

TECHNICAL PARAMETERS:

  • Power supply: AC 230V
  • Maximum connected motor power: 950W
  • Voltage of control signals: approximately 24V DC
  • Voltage at the service output, powering additional devices: approximately 24V DC 100mA
  • Safety input: in a fixed resistance configuration, it must be approximately 8.2kΩ
  • Operating temperature: -20°C...+55°C
  • Dimensions: 118x52x147mm
  • Weight: 300g
  • Ingress protection class: IP 44
  • Radio receiver: 433.92MHz
  • Radio coding: FLOR, O-CODE, SMILO
