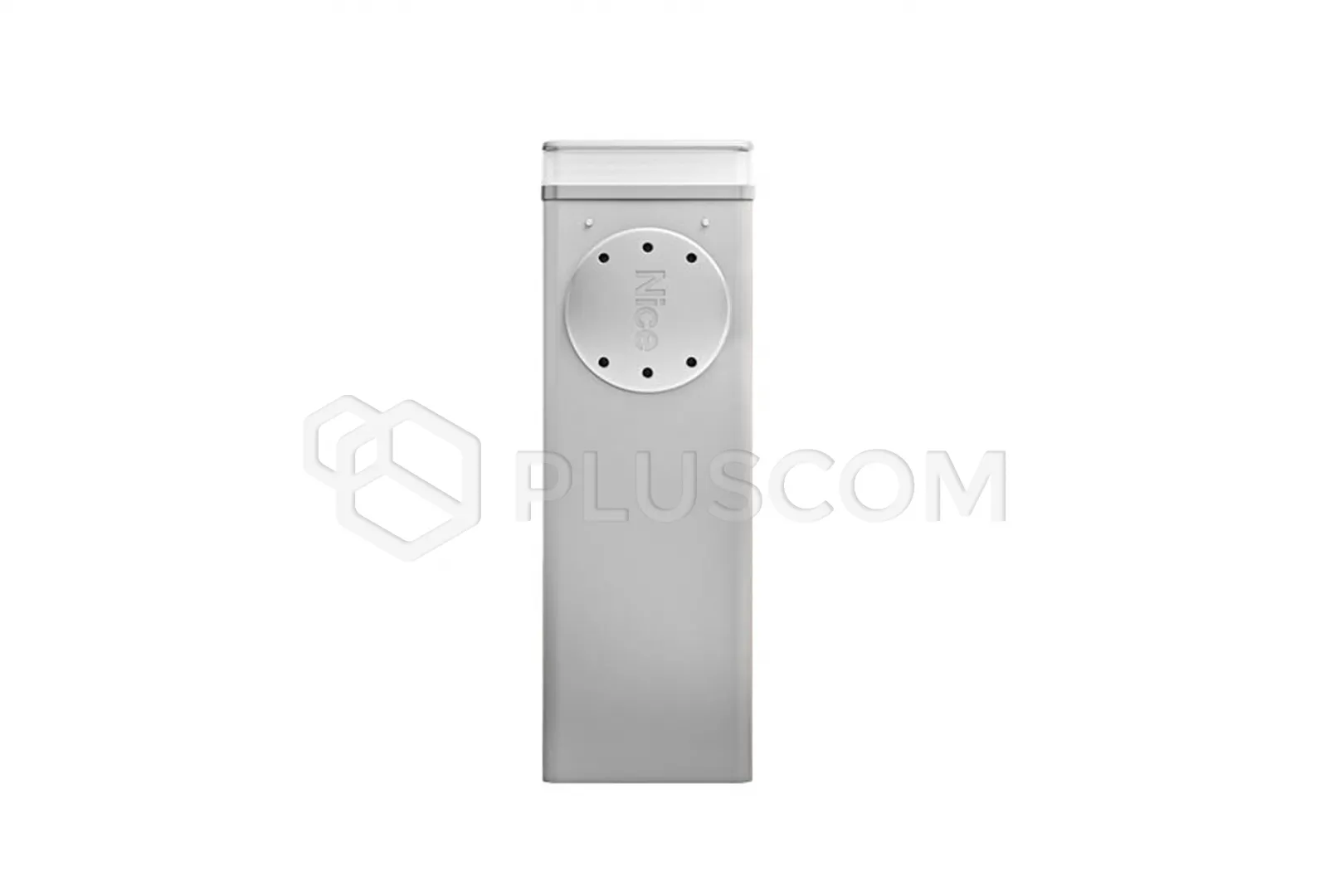

NICE M-BAR M7BARR10 CENTRAL UNIT FOR ARM UP TO 7m IN STAINLESS STEEL HOUSING
The electromechanical barrier as an access control element works perfectly in
all guarded parking lots, at universities, offices, housing communities
and other industrial facilities. The solid construction of NICE barriers
makes them suitable for intensive work and guarantees up to one million
cycles. The modular construction of the arms and a very large number of additional accessories
allow for unique adjustment of the NICE barrier to a specific
installation location.
PARAMETERS
- arm length max 7m
- work intensity: 200cycles/h
- minimum opening time: 6s
- master / slave function - synchronous operation of two barriers next to each other
- ''HP SbS'' – Step by Step ''High
Priority''
WE SUPPLY
- 24V gear motor with housing
- BCU1 control unit
- oval arm mounting bracket
- anchors and base plate
The Nice M7BAR central unit allows for the installation of an arm with a maximum length of 7m. The 24V motor with a 110W encoder has a torque of 300Nm. The built-in BCU1 control unit with
Bluebus technology does not have factory-built loop detectors. The radio receiver socket contains a set of Dip-Switches (factory set) that match the characteristics
of the control unit to the model of barrier in which it is installed.

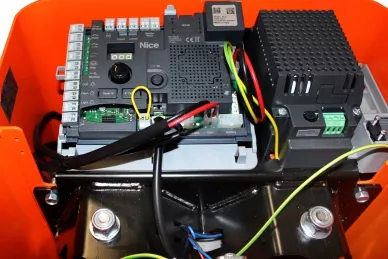

Control unit BCU1:
DISCRIMINATING FEATURES OF NICE BARRIERS
DURABILITY AND RELIABILITY
Steel construction, durable balancing springs, elliptical arms resistant to strong wind.
SAFE
In the central unit housing, using special optional brackets,
photocells can be installed to protect the area directly under the working
barrier arm. During operation, the control unit controls the current drawn by the
engine, and if an obstacle is detected, it immediately stops the movement
and performs a programmed reaction, e.g. (reversing, short reversing, stop). Optionally,
the arm can be equipped with red rubber protective strips or a resistive strip (8.2KOhm).
ECONOMICAL AND ALWAYS READY TO WORK - POWER SUPPLY
As standard, the drive is powered by 230V. You can also use the
optional SOLEMYO system. The additional PS224 battery provides
emergency power supply in the event of power outages, which means the barrier
is always working. In standby mode, the control unit reduces energy consumption
by switching to the 'Stand by' mode
SOPHISTICATED, PROGRAMMING AND SERVICE
Separate zones in the housing for electronics and mechanics significantly facilitate
operating the drive. The control unit is located in the upper part of the barrier,
which gives the installer easy access to settings and plugs.
The self-diagnosis function detects irregularities in the barrier's operation and
determines the type of error using the lamp flashes.
The built-in modular BCU1 control unit retains all the advantages
of BLUEBUS and Opera technologies. It has previously unknown ''HP
SbS'' – Step by Step ''High Priority' input,
thanks to which we gain the ability to assign it one of 18 different
functionalities. In addition, it is possible to control a blocked control panel.
The control panel has OPEN, CLOSE buttons, a large, convenient programming knob
and a 3-segment display placed above it.
The 24 VDC power supply output with a load capacity of 500 mA is also clearly marked, thanks to which we have a wide range of possibilities for powering various accessories.
BCU1 has limit switches in the form of mechanical limiters isolated from the mass of the screw system.
Below are some useful functions:
- opening angle adjustment with an accuracy of 1°
- release adjustment in the final opening phase
- additional reactions in the event of an alarm on the photo: e.g. stop and
reversal, stop and short reversal, momentary stop
- setting hours for authorization of control remotes
