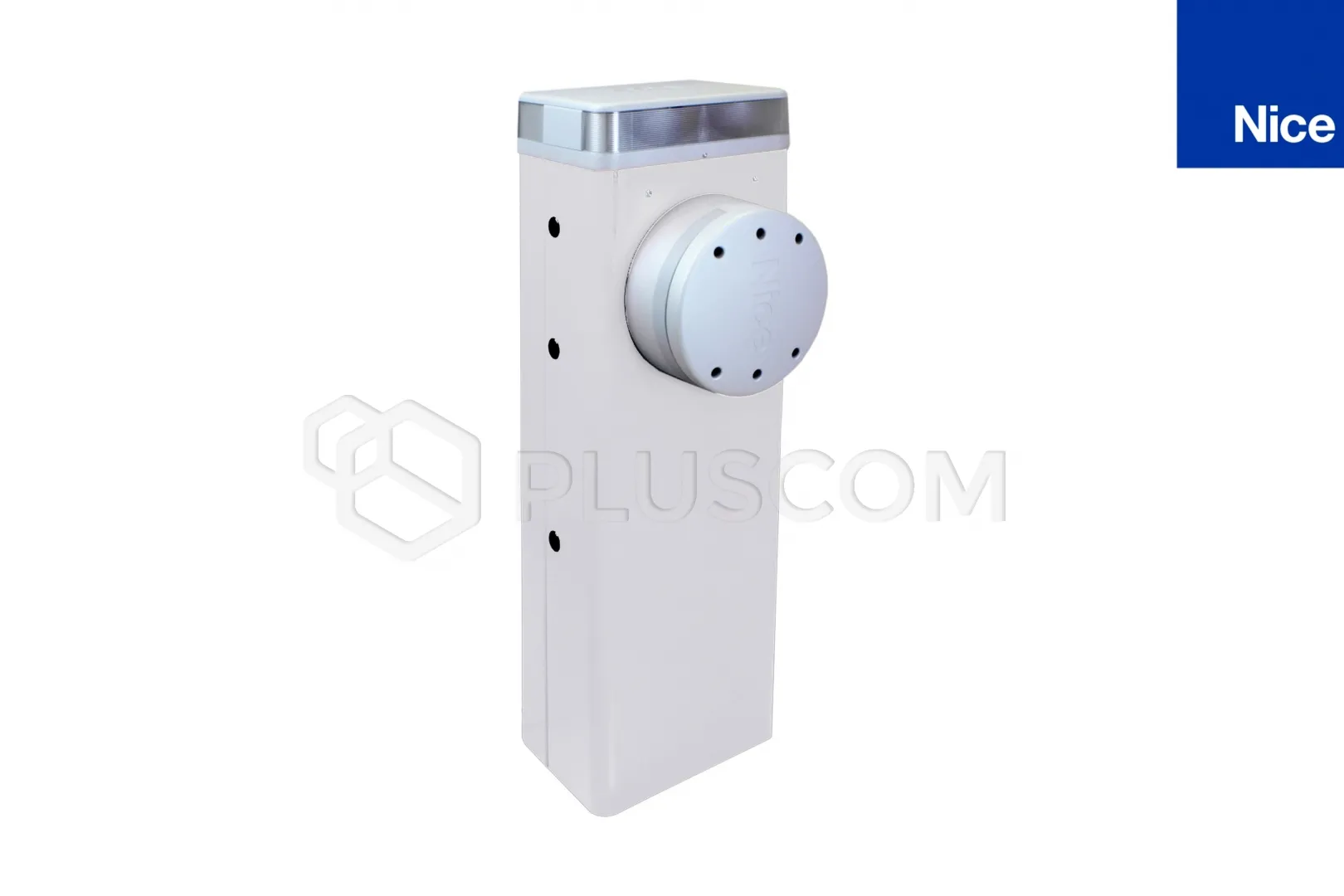

NICE M-BAR M5BARWH1R10 Central unit for arm up to
5m, in white casing
The electromechanical barrier as an access control element is perfect for all
guarded parking lots, at universities, offices, housing communities and other
industrial facilities. The solid construction of NICE barriers makes them
suitable for intensive work and guarantees up to one million cycles. The
modular construction of the arms and a very large number of additional
accessories allow for unique adjustment of the NICE barrier to a specific
installation location.
PARAMETERS
- arm length max 5m
- work intensity: 350cycles/h
- minimum opening time: 3s
- master / slave function - synchronous operation of two barriers next to
each other
- ''HP SbS'' – Step by Step input ''High
Priority''
WE DELIVER
- 24V gear motor with white housing Color white RAL9010
- BCU1 control unit
- oval arm mounting bracket
- anchors and base plate
The Nice M5BARWH1R10 central unit allows for the installation of an arm with
a maximum length of 5m. The 24V motor with a 110W encoder has a torque of
200Nm. The built-in BCU1 control unit with Bluebus technology does
not have factory-built loop detectors. The radio receiver socket
contains a set of Dip-Switches (factory set), which adjust the
characteristics of the control unit to the model of the barrier in which it
is installed.
DISCRIMINATING FEATURES OF NICE BARRIERS
DURABILITY AND RELIABILITY
Steel construction, durable balancing springs, elliptical arms resistant to
strong wind.
SAFE
In the central unit housing, using special optional brackets, photocells can be
installed to protect the area directly under the working barrier arm. During
operation, the control unit controls the current drawn by the engine, and in
the event of detecting an obstacle, it immediately stops the movement and
performs a programmed reaction, e.g. (reversing, short reversing, stop).
Optionally, the arm can be equipped with red rubber protective strips or a
resistance strip (8.2KOhm).
ECONOMICAL AND ALWAYS READY TO WORK - POWER SUPPLY
As standard, the drive is powered by 230V. You can also use the optional
SOLEMYO system. The additional PS224 battery provides emergency power supply in
the event of power outages, so the barrier 's always working'. In
standby mode, the control unit limits energy consumption by switching to
'Stand by' mode
SOPHISTICATED, PROGRAMMING AND SERVICE
Separate zones in the housing for electronics and mechanics significantly
facilitate operating the drive. The control unit is located in the upper part
of the barrier, which gives the installer easy access to settings and plugs.
The self-diagnosis function detects irregularities in the barrier's
operation and uses the lamp's flashes to determine the type of error.
The built-in modular BCU1 control unit retains all the advantages of BLUEBUS
and Opera technologies. It has the previously unknown ''HP
SbS'' – Step by Step 'High Priority' input, thanks to which
we gain the ability to assign it one of 18 different functionalities. In
addition, it is possible to control a blocked control unit.
The control unit has OPEN, CLOSE buttons, a large, convenient programming
knob and a 3-segment display placed above it.
The 24 VDC power supply output with a load capacity of 500 mA is also clearly
marked, thanks to which we have a wide range of possibilities for powering
various accessories.
BCU1 has limit switches in the form of mechanical limiters isolated
from the mass of the screw system.
Here are some useful functions:
- opening angle adjustment with an accuracy of 1°
- release adjustment in the final opening phase
- additional reactions in the event of an alarm on the photo: e.g. stop and
reversal, stop and short reversal, momentary stop
- setting the hours of authorization of control remote controls
