Nice M5BAR R30 Set with oval arm up to 4m, passage 386cm

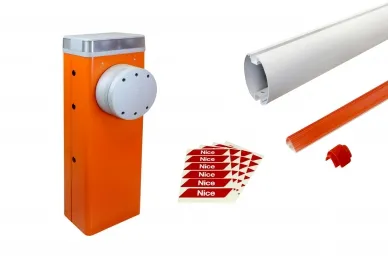

The set includes:
Nice M5BARR30 set with oval arm up to 4m
NICE M5BAR CENTRAL UNIT FOR ARM UP TO 4m
An electromechanical barrier works perfectly as an access control element
occurs in all guarded parking lots, at universities, offices and communities
residential and other industrial facilities. Solid construction of the barriers
NICE makes them suitable for intensive work and guarantees up to a million
cycles. Modular structure of the arms and a very large number of additional
accessories they allow the NICE barrier to be uniquely adjusted to a specific
location installation.
PARAMETERS
- arm length max 4m
- work intensity: 100 cycles/h
- minimum opening time: 4s

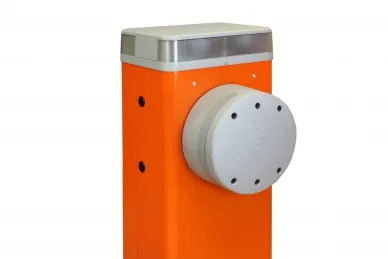

Nice M5BAR central unit with a 4 m long arm. 24V motor with 110W encoder
has a torque of 200Nm.

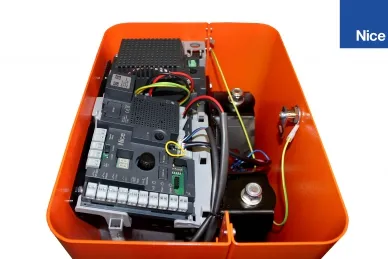

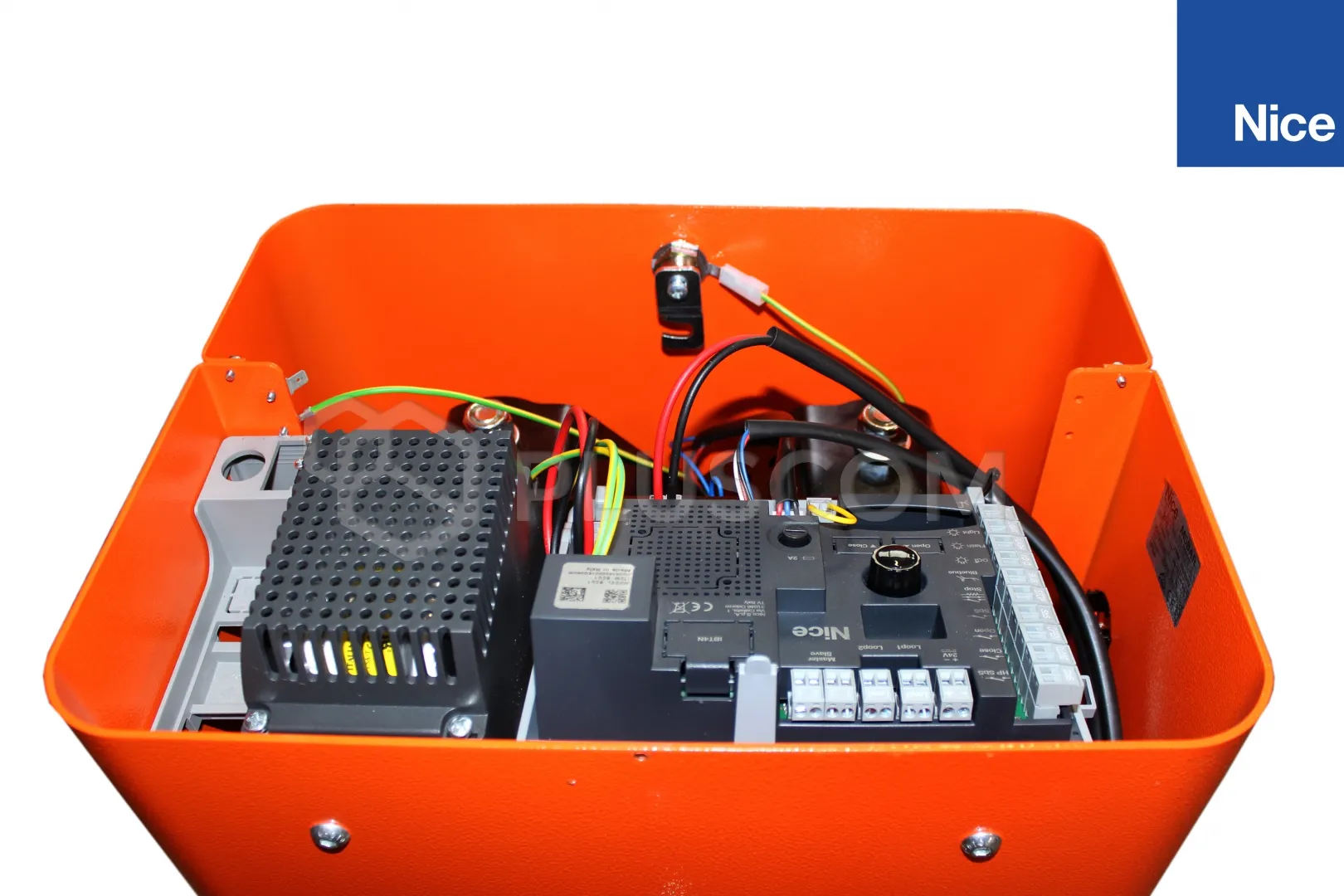

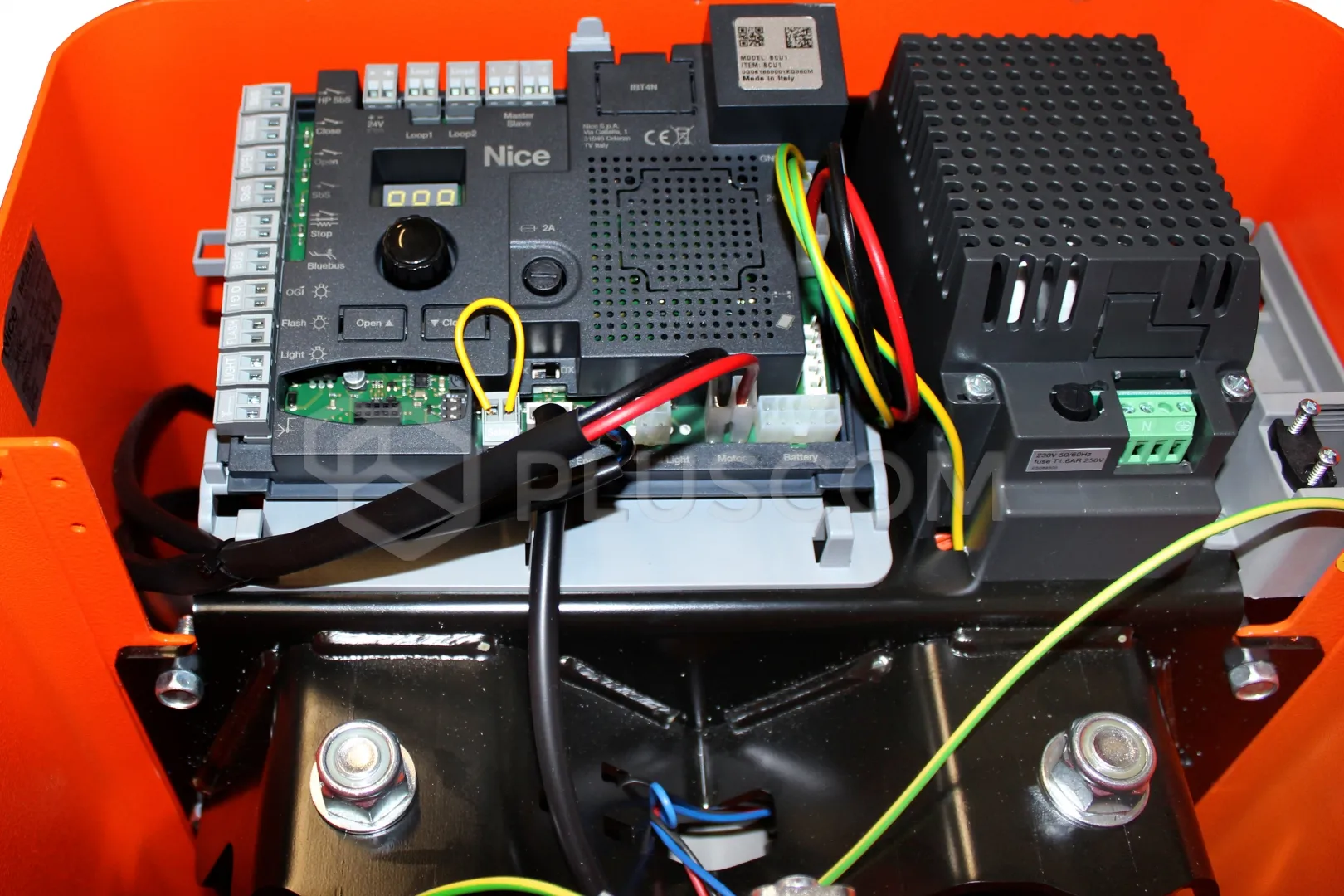

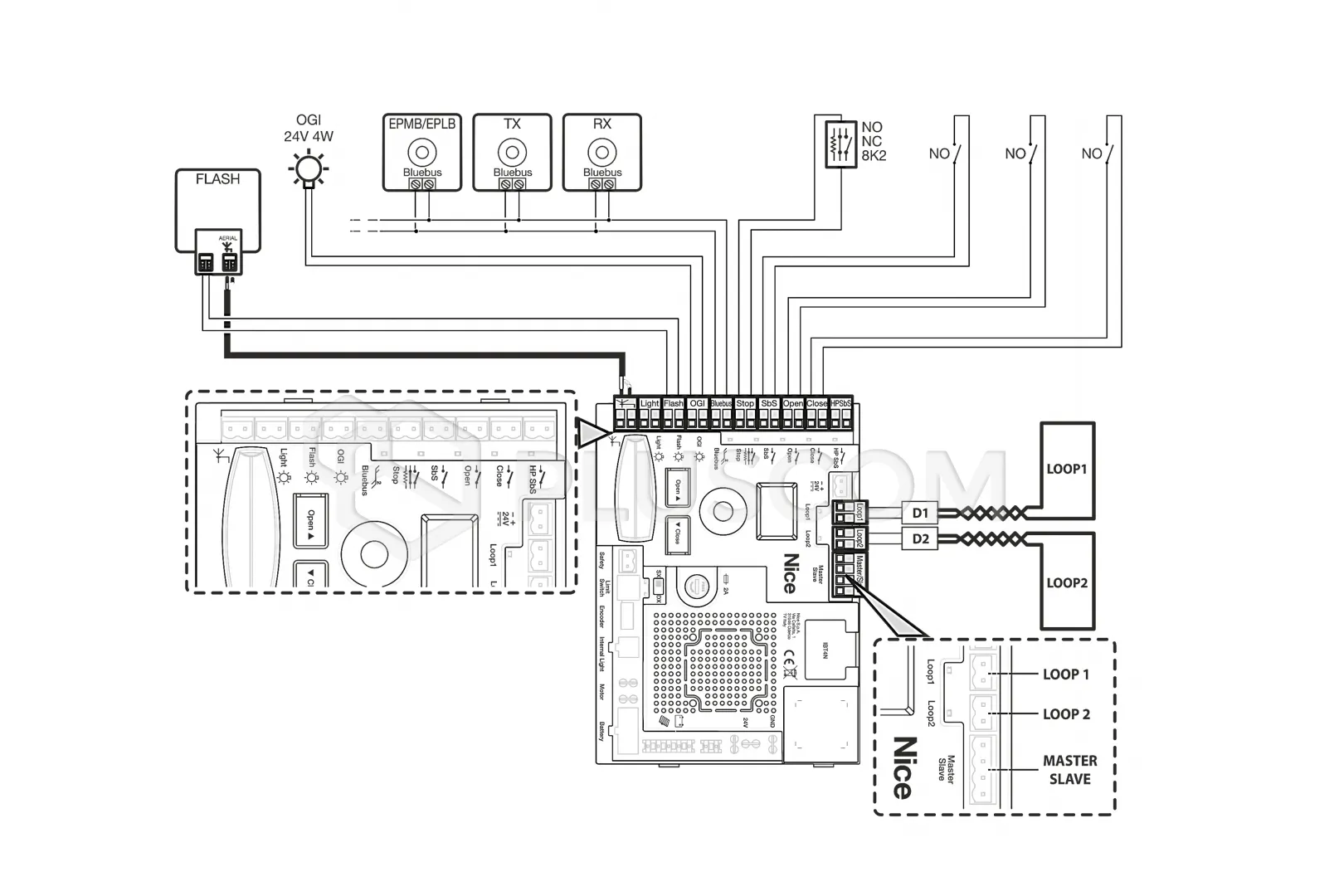

Built-in control panel BCU1 control unit with
Bluebus technology does not have factory built-in ones loop
detectors.There is a set in the radio receiver slot Dip-Switches
(factory set) that adjust characteristics of the control panel depending on the
barrier model in which it is installed.
DISTINGUISHING FEATURES OF NICE BARRIERS
DURABILITY AND RELIABILITY
Steel construction, durable balancing springs, elliptical arms cross-section
resistant to strong wind.
VISIBLE
Distinctive
orange
color,optional LED lighting in the unit cover and LED warning
lights on the arm (option), semaphore operation and the possibility of
attaching warning stickers means that next to the NICE barrier no you can
ignore it.
SAFE
In the central unit housing using special, optional handles photocells can be
installed to protect the area directly under the worker barrier arm. During
operation, the control panel controls the current consumed by If an obstacle is
detected, the engine immediately stops the movement programmed reaction, e.g.
(reverse, short retraction, stop). Optional the arm can be equipped with red
rubber protective strips or a strip resistive (8.2KOhm).
COST-EFFICIENT AND ALWAYS READY TO WORK - POWER SUPPLY
As standard, the drive is powered by 230V. Can also be used optional SOLEMYO
system. An additional PS224 battery provides power emergency in the event of
interruptions in electricity supply, which causes a barrier ''always
working''. In the idle state, the control panel limits the consumption
energy by switching to ''Stand by''
SOPHISTICATED, PROGRAMMING AND SERVICE

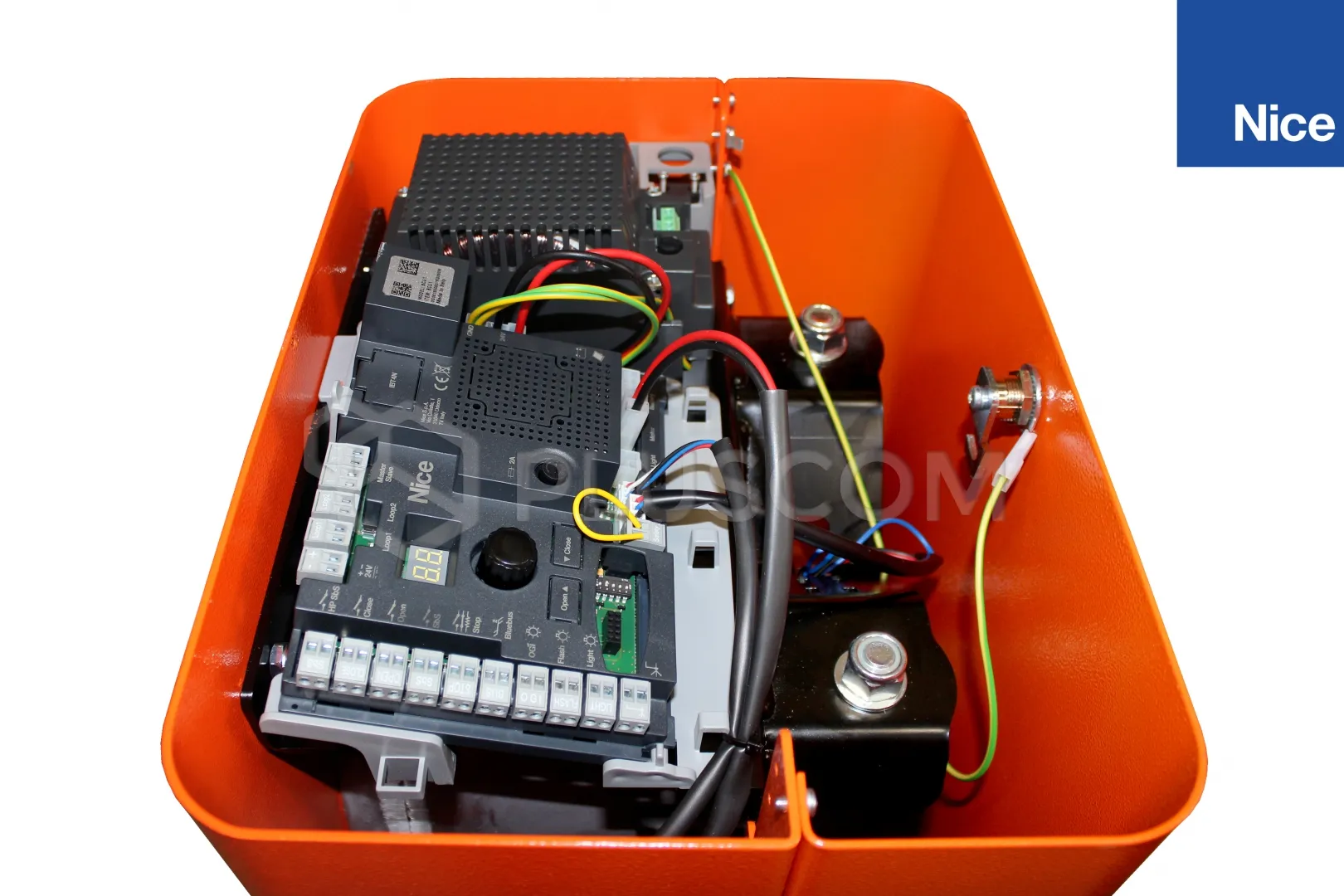

Separate zones in the housing for electronics and mechanics make things much
easier drive operation. The control unit is located at the top of the barrier
so the installer has easy access to settings and plug-ins.
The self-diagnosis function detects irregularities in the operation of the
barrier and its use flashes indicate the type of error.
