Nice L-BAR set up to 8m, passage 799cm

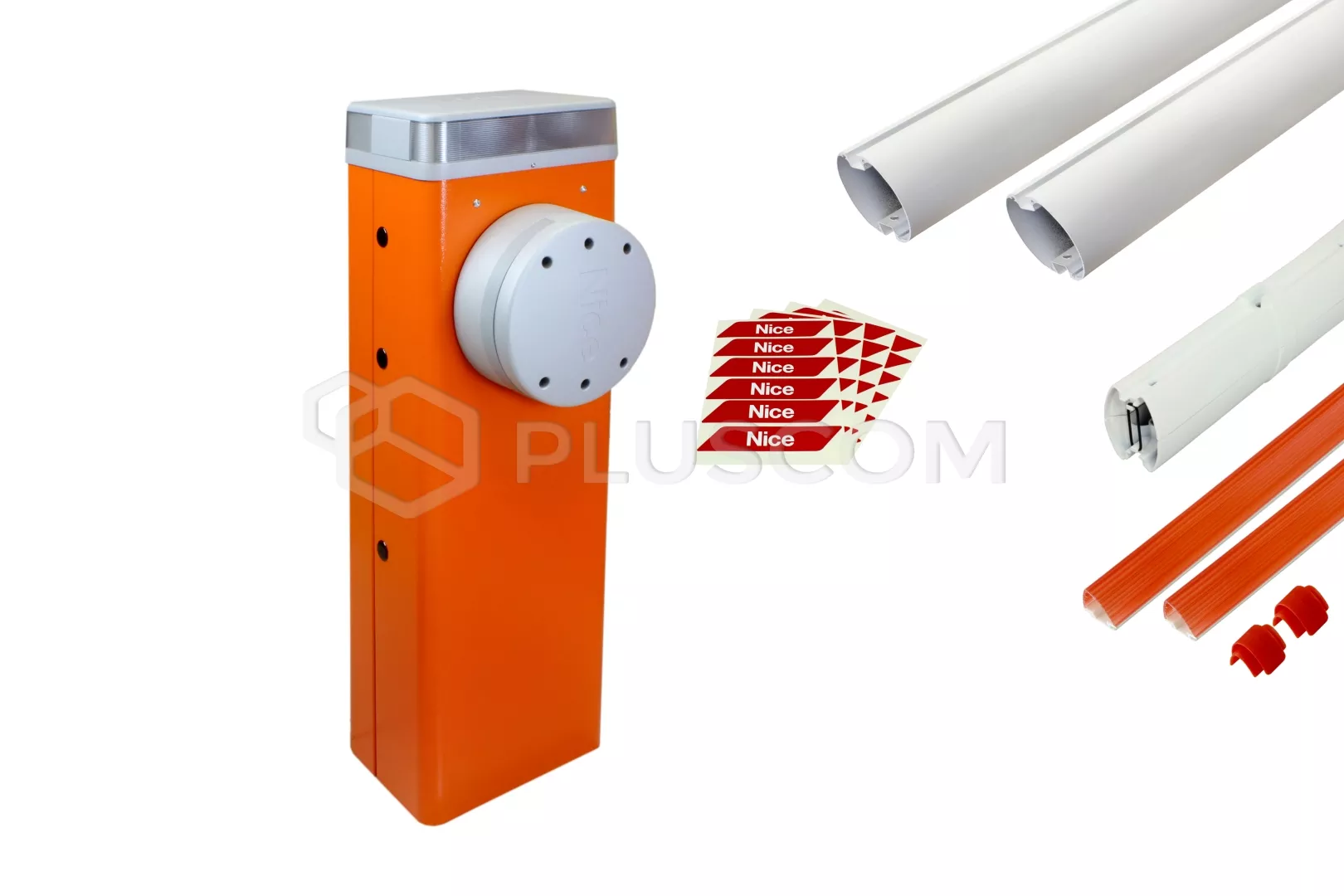

The set includes:

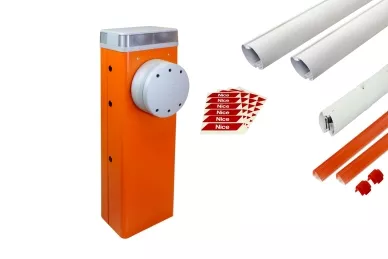

Nice Set L-BAR to 8m

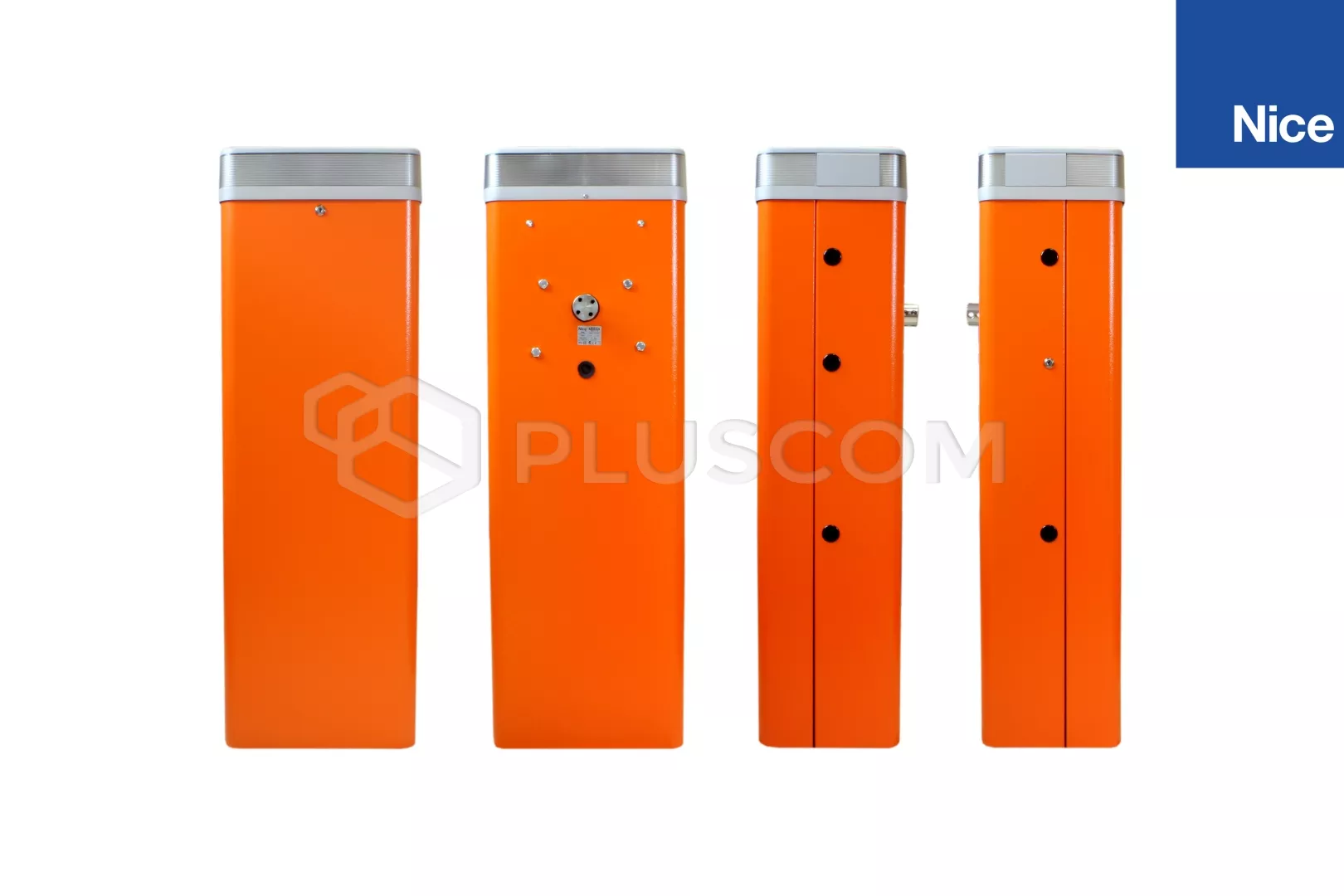

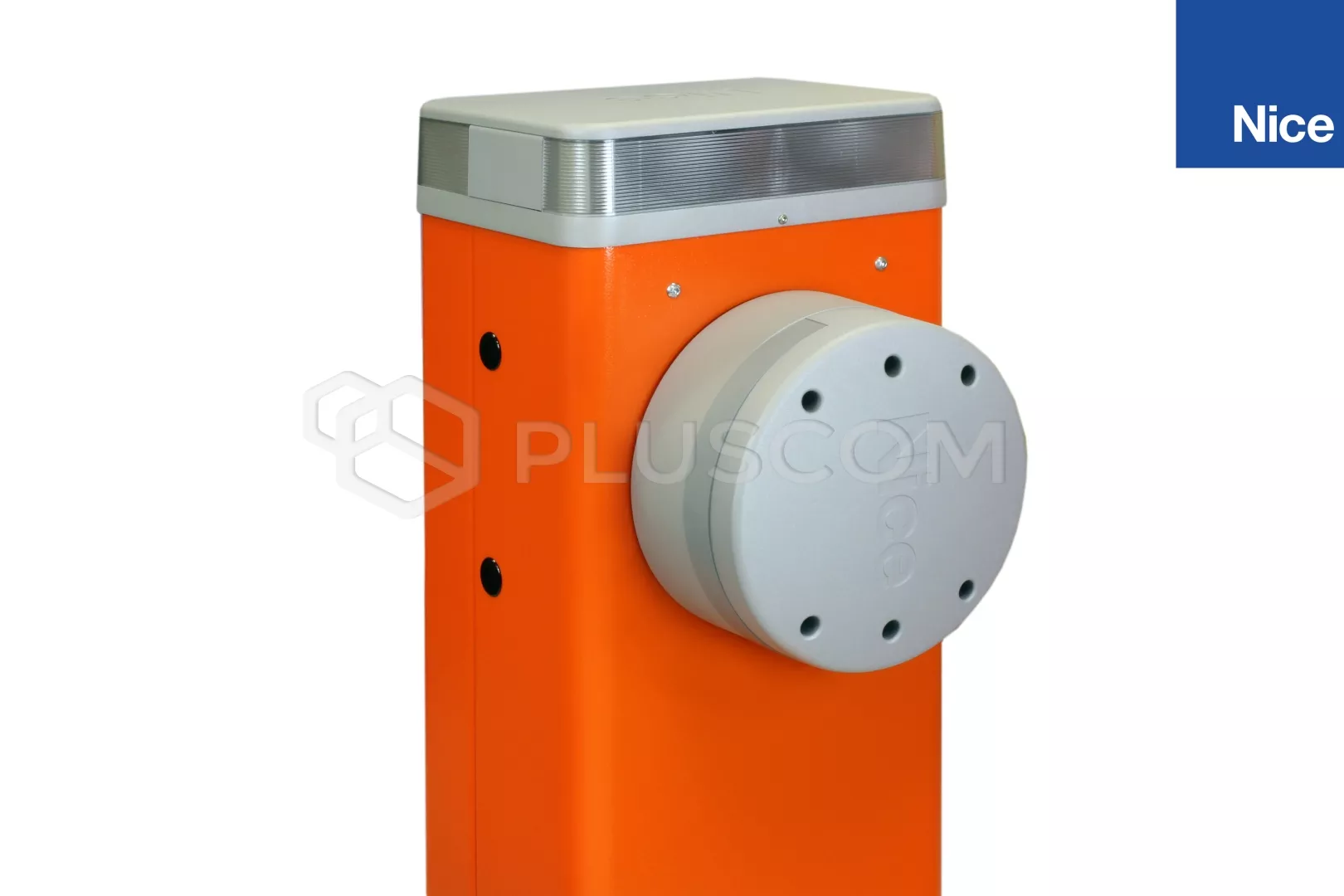

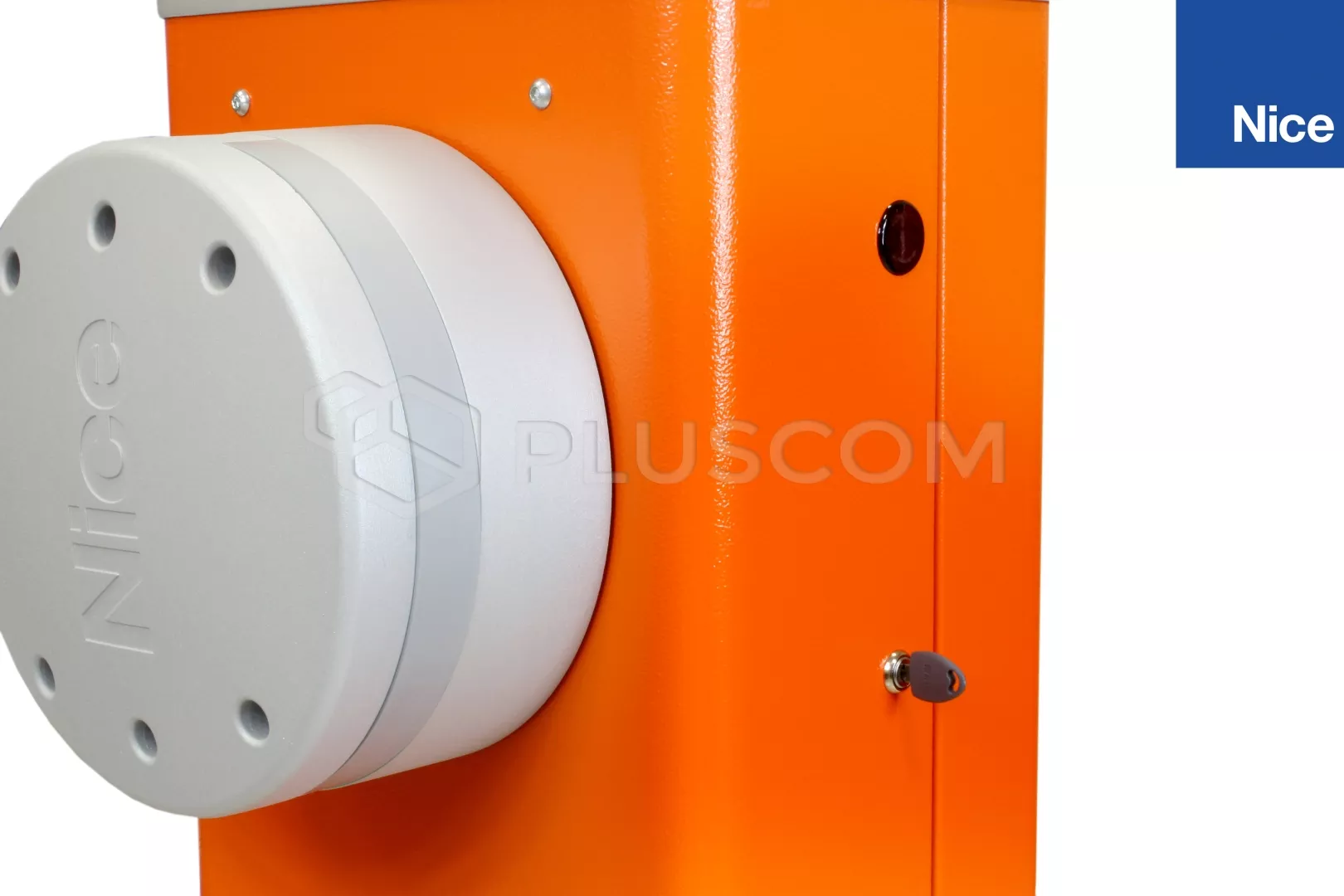

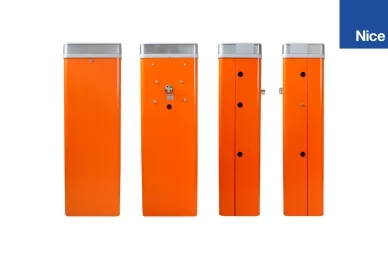

NICE L-BAR CENTRAL UNIT FOR ARM UP TO 8m
The electromechanical barrier as an element of access control is perfect for
all guarded car parks, at universities, offices, communities residential and
other industrial facilities. Solid construction of the barriers NICE makes them

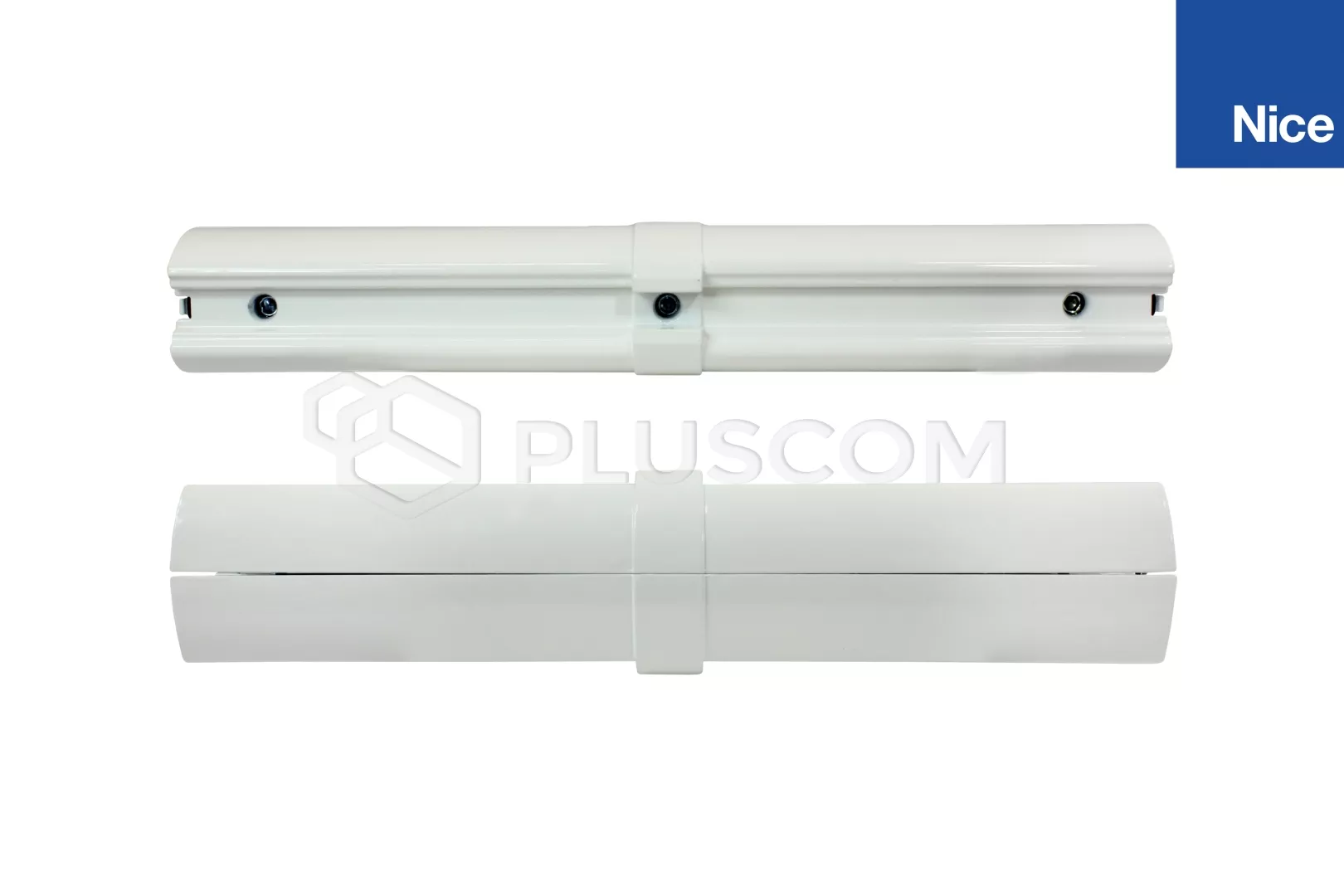

suitable for intensive work and guarantees up to a million cycles. Modular
construction of the arms and a large number of additional accessories allow for
unique adjustment of the NICE barrier to a specific place installation.
PARAMETERS
- arm length max 8m
- work intensity: 150 cycles/h
- minimum open time: 8s
- master / slave function - synchronous operation of two barriers
next to each other yourself
- ''HP SbS'' – Step by Step ''High entrance
Priorit''
The Nice L
-BAR central unit allows the installation of an
o maximum length of 9m. 24V motor with 160W encoder has torque 400Nm.

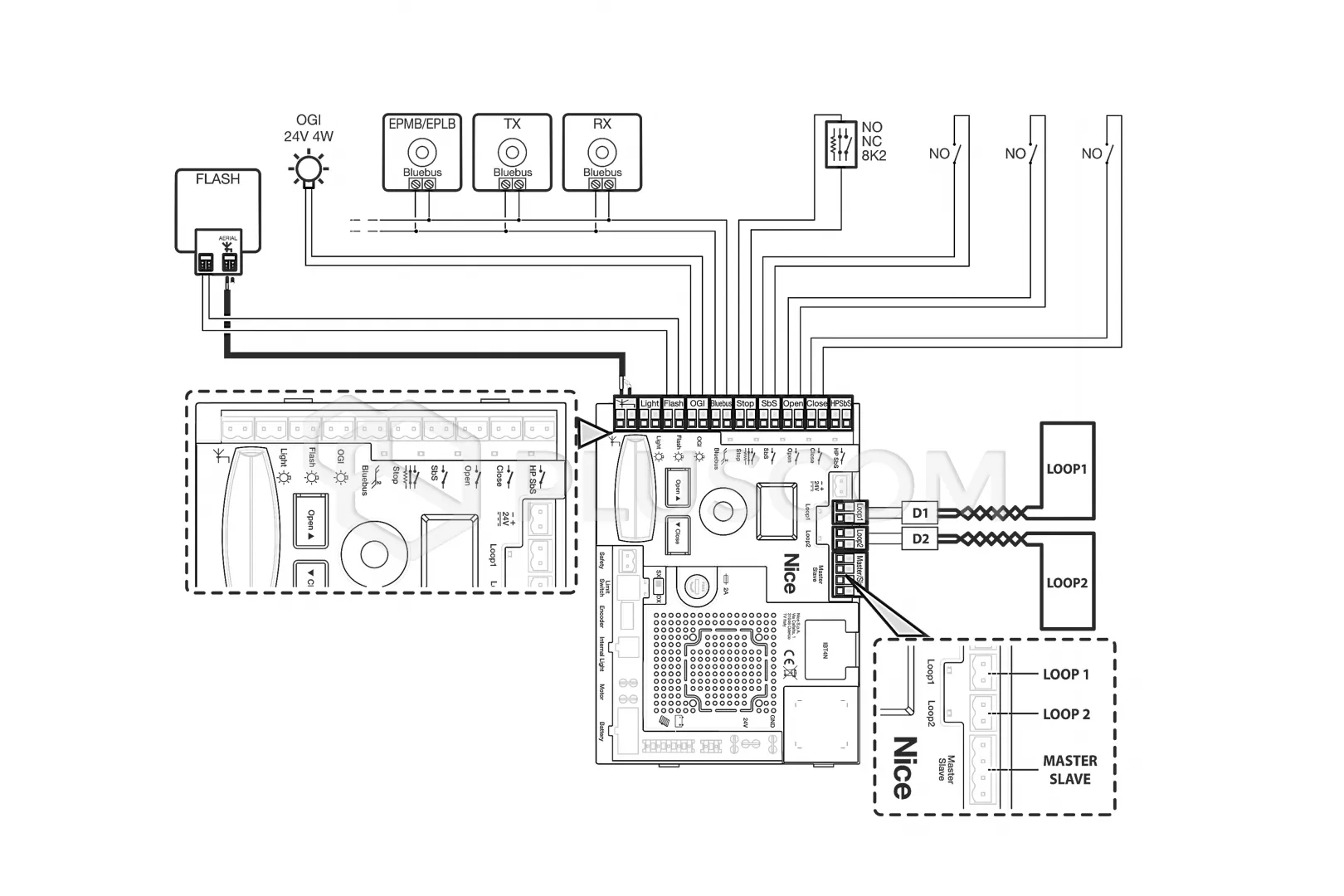

Built-in control panel BCU1 with Bluebus technology does not have
factory-built loop detectors. In the radio receiver socket there is
a set of Dip-Switches (factory set) that adjust the characteristics of the
control panel to the model of the barrier it is in installed.
DISTINGUISHING FEATURES OF NICE BARRIERS
DURABILITY AND RELIABILITY

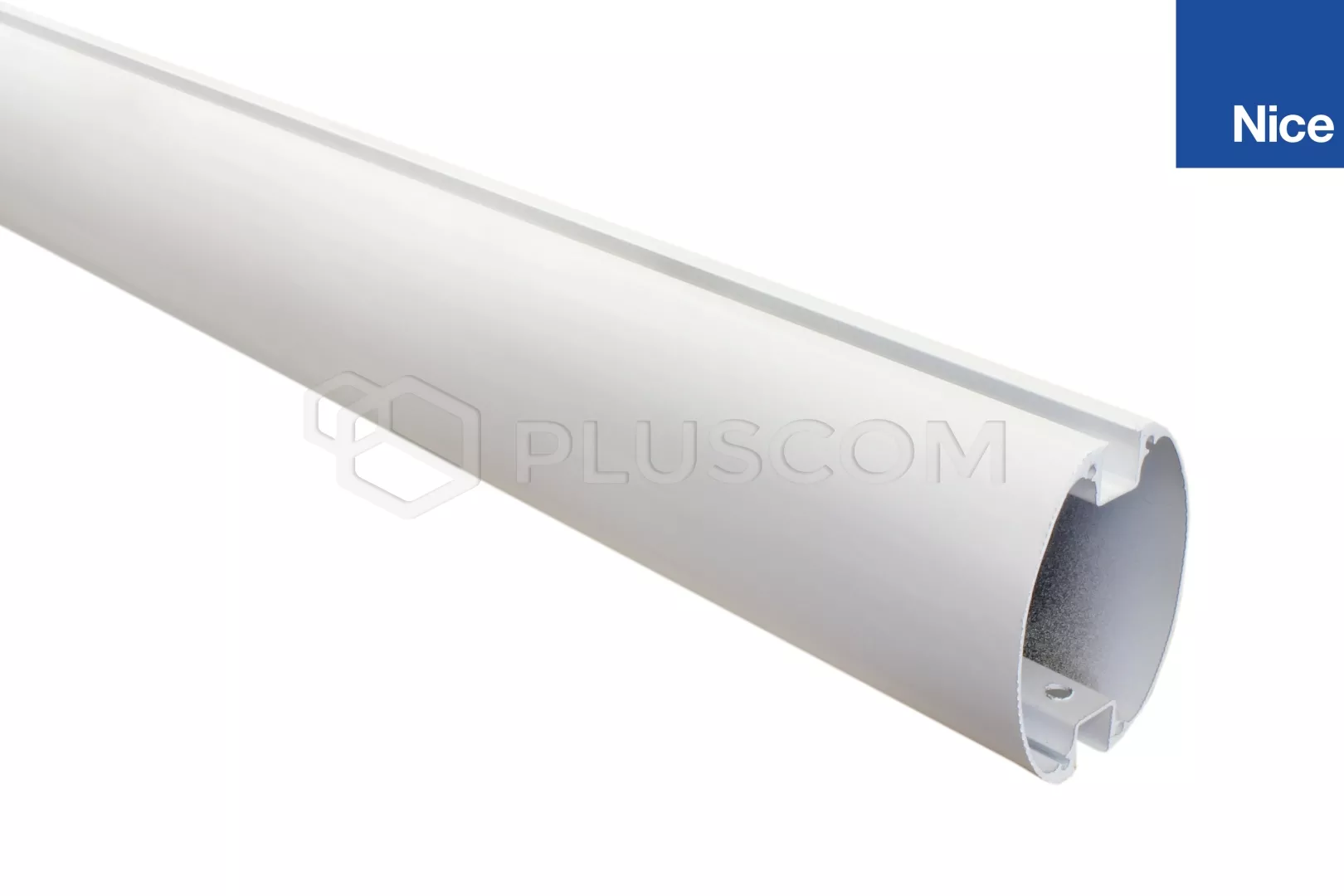

Steel construction, durable balancing springs, elliptical arms resistant to
strong winds.
VISIBLE
Distinctive
orange
color, optional LED lighting in the unit cover and LED lighting
warning lights on the arm (option), operation of semaphores and the possibility

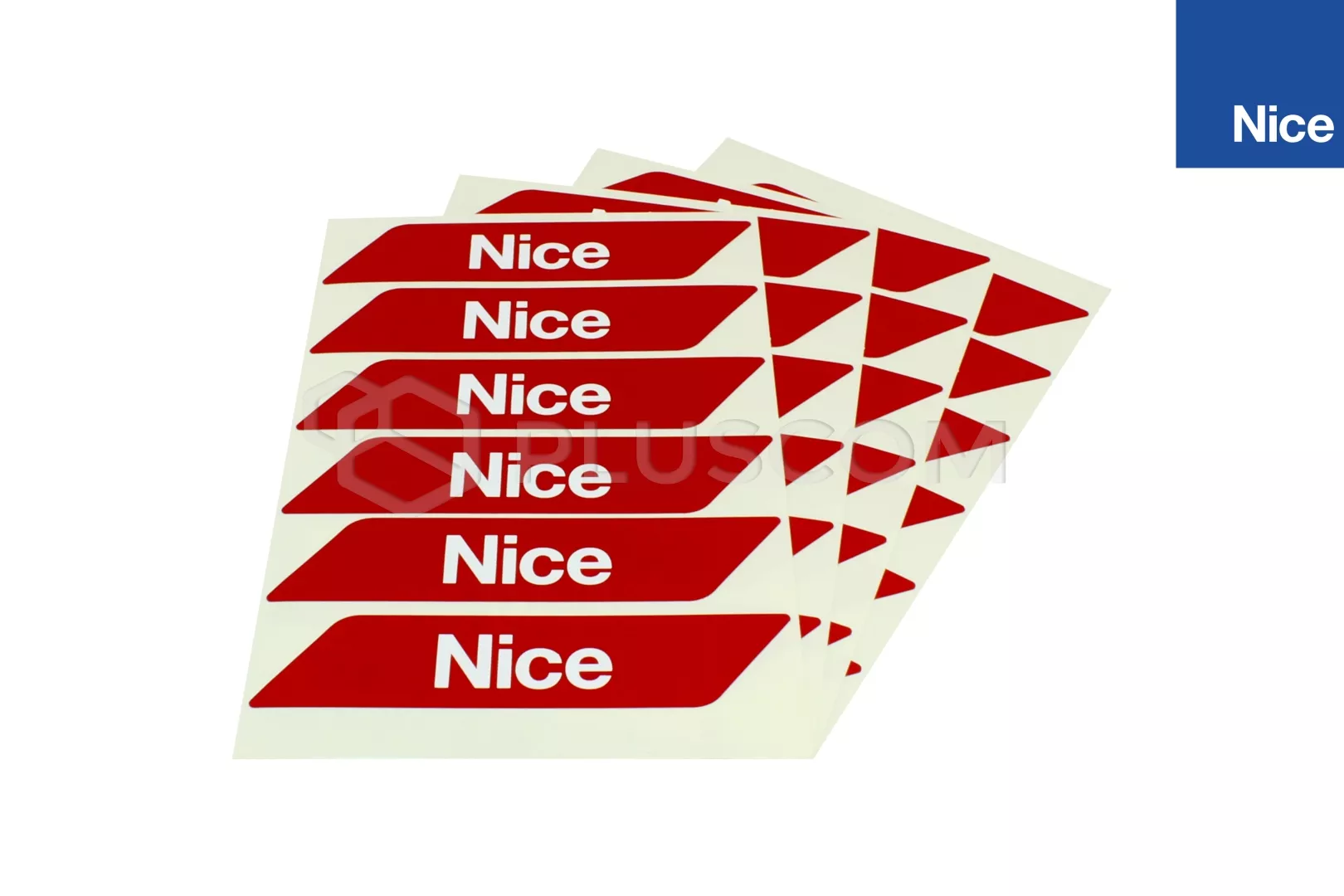

sticking warning stickers makes it impossible to go next to the NICE barrier
pass by indifferently.
SAFE
In the housing of the central unit using special optional holders photocells
can be installed to protect the area directly below the working area barrier
arm. During operation, the control panel controls the current drawn by when an
obstacle is detected, the motor immediately stops its movement programmed

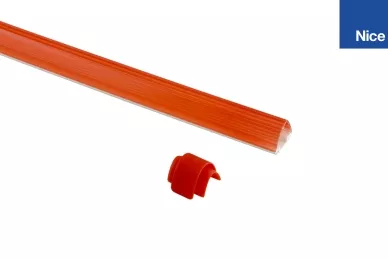

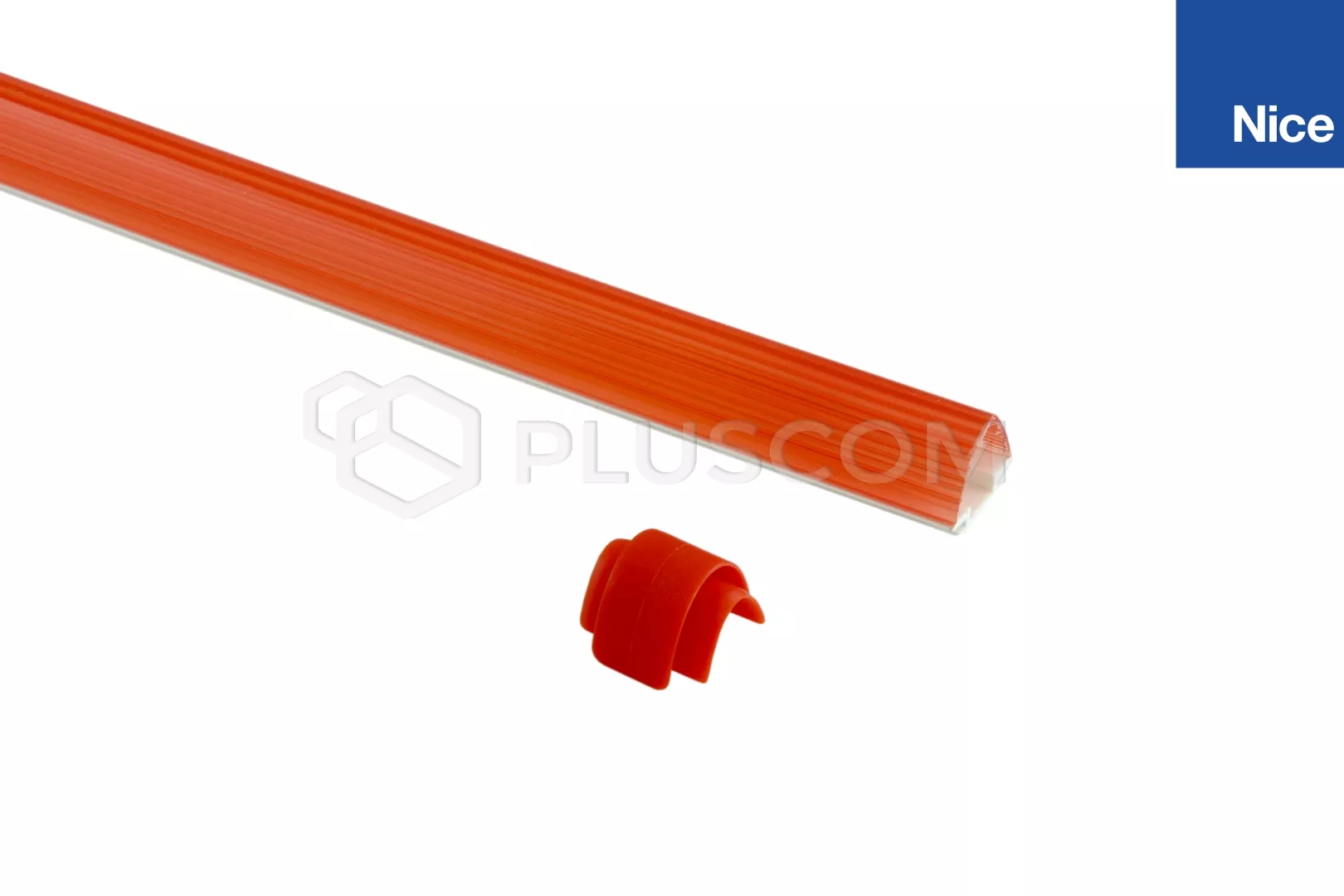

reaction, e.g. (retraction, short retraction, stop). Optional the arm can be
equipped with red rubber protection strips or a strip resistive (8.2KOhm).
ECONOMICAL AND ALWAYS READY TO WORK - POWER
As standard, the drive is powered by 230V. Can also be used optional SOLEMYO
system. An additional PS224 battery provides power emergency in case of
interruptions in electricity supply, which makes it a barrier ''always
working''. In the standby mode, the control panel limits the power
consumption energy by switching to "Stand by"
PROGRAMMING AND SERVICE
Separate zones in the housing for electronics and mechanics make it much easier
drive operation. The control unit is located at the top of the barrier through
every installer has easy access to settings and plugins.
The self-diagnosis function detects malfunctions in the operation of the
barrier and with flashes indicates the type of error.
The built-in modular control panel CBU1 retains all the advantages BLUEBUS
and Opera technologies. Has a previously unknown ''HP SbS'' –
step by step "High Priority" entry, thanks to which we can assign
it one of 18 different ones functionalities. In addition, it is possible to
control a blocked control panel.
The control panel has OPEN, CLOSE buttons, a large convenient programming
knob and a 3-segment display above it.
The 24 VDC power output with load capacity is also clearly marked 500 mA
thanks to which we have a wide range of power supply options for various
accessories.
BCU1 has limit switches in the form of bolts isolated from the ground
mechanical stops.
Here are some useful functions:
- adjustment of the opening angle with an accuracy of 1°
- regulation of release in the final phase of opening
- additional reactions in the event of an alarm on a photo: e.g. stop i
retraction, stop and short retraction, temporary stop
- setting the hours of authorization of control pilots
