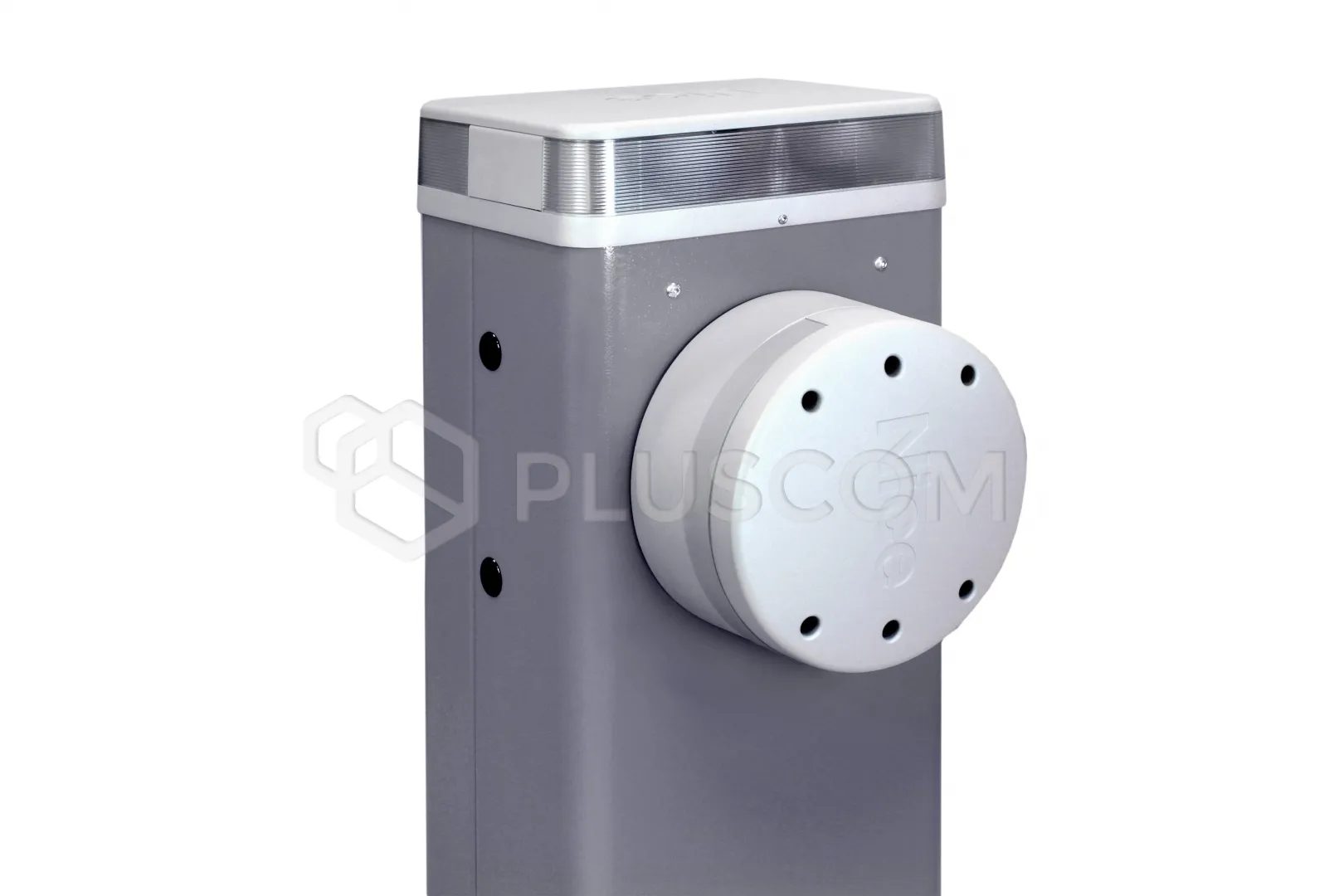

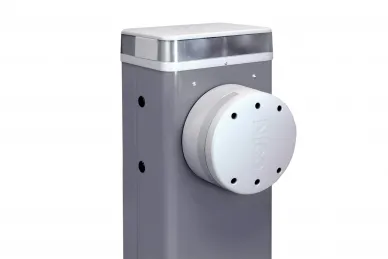

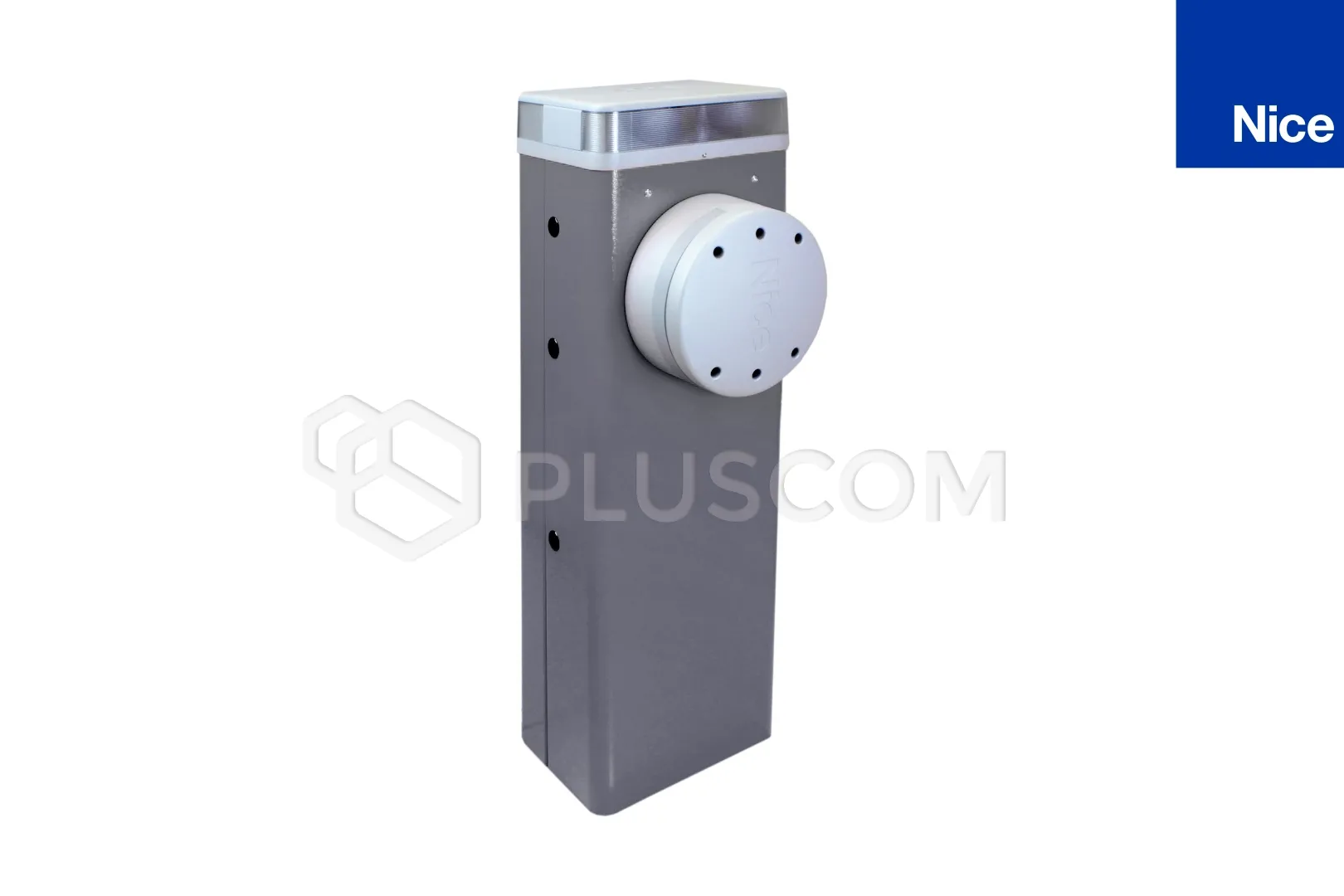

NICE LBARGR1 Central unit for arm up to 9m, in grey housing
The electromechanical barrier as an access control element works perfectly in
all guarded parking lots, at universities, offices, housing communities and
other industrial facilities. The solid construction of NICE barriers makes them
suitable for intensive work and guarantees up to one million cycles. The
modular construction of the arms and a very large number of additional
accessories allow for unique adjustment of the NICE barrier to a specific
installation location.
PARAMETERS
- arm length max 9m
- work intensity: 150cycles/h
- minimum opening time: 8s
- master / slave function - synchronous operation of two barriers next to
each other
- ''HP SbS'' – Step by Step ''High
Priority''
WE SUPPLY
- 24V gear motor with housing
- BCU1 control unit
- oval arm mounting bracket
- anchors and base plate
The Nice LBARGR1 central unit allows the installation of an arm with a
maximum length of 9m. The 24V motor with 160W encoder has a torque of 400Nm.
The built-in BCU1 control unit with Bluebus technology does not have
factory-built loop detectors. The radio receiver socket contains a
set of Dip-Switches (factory set), which adjust the characteristics of the
control unit to the model of the barrier in which it is installed.
DISTINGUISHING FEATURES OF NICE BARRIERS
DURABILITY AND RELIABILITY
Steel construction, durable balancing springs, elliptical arms resistant to
strong wind.
SAFE
Photocells can be mounted in the central unit housing using special optional
brackets to protect the area directly under the working barrier arm. During
operation, the control unit controls the current drawn by the engine. If an
obstacle is detected, it immediately stops the movement and performs a
programmed reaction, e.g. (retraction, short retraction, stop). Optionally, the
arm can be equipped with red rubber protective strips or a resistive strip
(8.2KOhm).
ECONOMICAL AND ALWAYS READY TO WORK - POWER SUPPLY
As standard, the drive is powered by 230V. You can also use the optional
SOLEMYO system. The additional PS224 battery provides emergency power in the
event of power outages, which means the barrier 's always working'. In
standby mode, the control unit limits energy consumption by switching to the
'Stand by' mode.
PROGRAMMING AND SERVICE
Separate zones in the housing for electronics and mechanics significantly
facilitate operating the drive. The control unit is located in the upper part
of the barrier, which gives the installer easy access to settings and plugs.
The self-diagnosis function detects irregularities in the barrier's
operation and uses light flashes to determine the type of error.
The built-in modular BCU1 control unit retains all the advantages of BLUEBUS
and Opera technologies. It has previously unknown ''HP SbS''
– Step by Step ''High Priority' input, thanks to which we gain
the ability to assign it one of 18 different functionalities. In addition, it
is possible to control a blocked control unit.
The control unit has OPEN, CLOSE buttons, a large, convenient programming
knob and a 3-segment display placed above it.
The 24 VDC power supply output with a load capacity of 500 mA is also clearly
marked, thanks to which we have wide possibilities of powering various
accessories.
BCU1 has limit switches in the form of a mechanical limiter system insulated
from the mass of the screw system.
Below are some useful functions:
- opening angle adjustment with an accuracy of 1°
- release adjustment in the final opening phase
- additional reactions in the event of an alarm on the photo: e.g. stop and
reversal, stop and short reversal, momentary stop
- setting hours for authorization of control remotes
