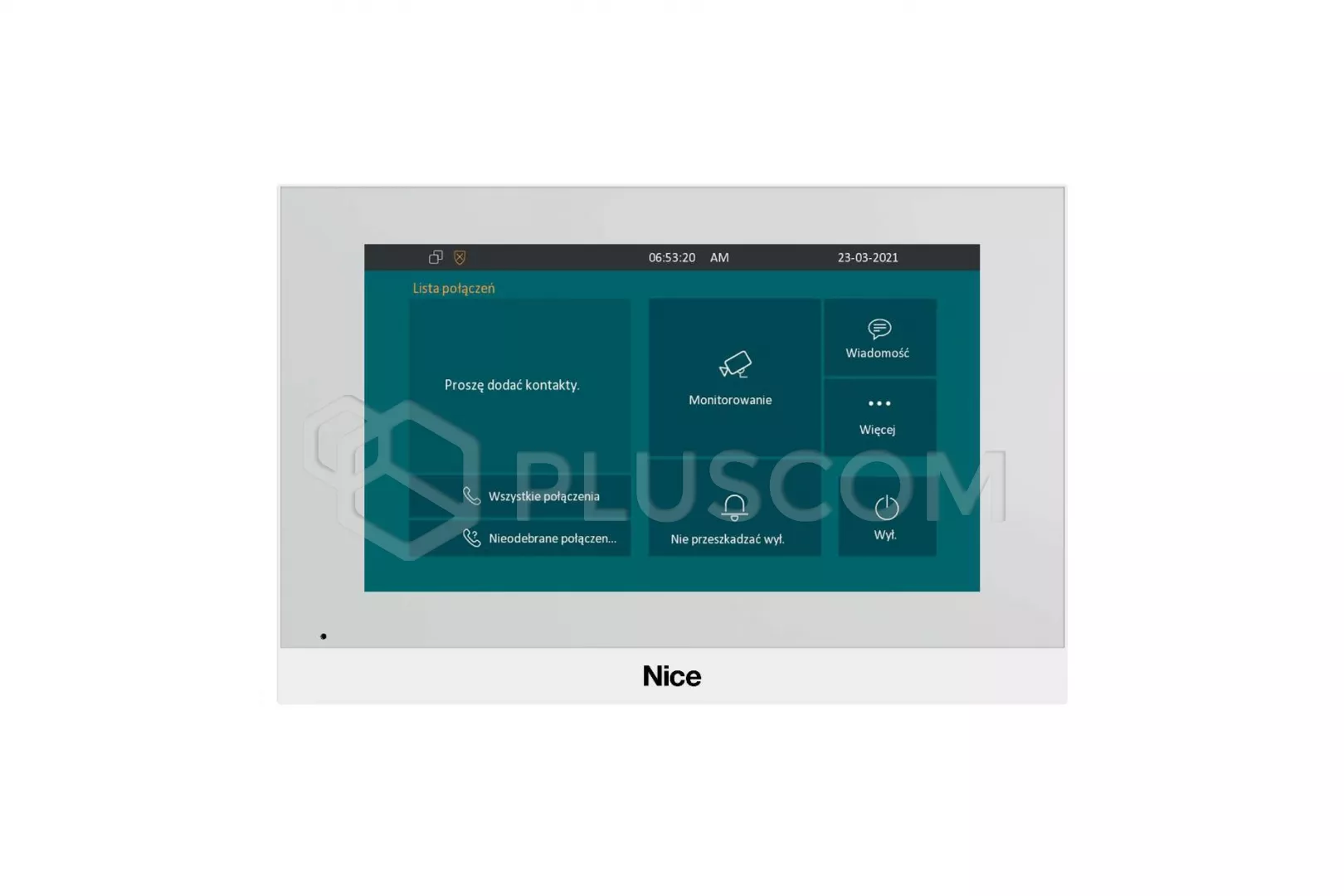

Nice Indoor IP BLUE VIEW monitor

Nice BLUE VIEW multi-function indoor monitor, with screen 7 ''

The monitor is part of the Nice designed video intercom system for multi-family and single-family houses, housing estates and houses with automation. 7 '' touch, capacitive screen with energy-saving mode, provides the picture high-quality. Modern, easy to use and reliable, it stands out with the following features and functions:

• automatic configuration when connected to a router and added to clouds
• advanced configuration via a web browser
• backup and restore
• export log of inputs
• software update
• system logs (including access logs)
• audio-video communication
• answer calls and open on smartphone
• opening the door / gate / wicket
• image capture

The monitor has SIP support (integration with any SIP server) and ONVIF support, which allows you to connect the image from the camera to the monitoring system.
The Linux operating system ensures audio and video communication with the talk panel via SIP 2.0 protocol.

TECHNICAL PARAMETERS:

• power supply: 12V DC, PoE
•

• screen: touch 7 '' TFT
• RAM / ROM memory: 64MB / 128MB
• resolution: 800x480
• network ports: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
• network interface: RJ45, 10 / 1000Mbps, PoE: 802.3af
• kmcommunication: RS480, Ethernet (PoE), Wi-Fi IEEE802.11 b / g / n, 2.4GHz
•

• housing: plastic
• inputs: 1 x for exit button
• outputs: 1 x NO / NC relay
• alarm connection: x 8
• microphone: -58dB with background reduction
• speaker: 40 / 2W
•

• installation: surface mounted
• tightness class: IP65
• working temperature: -10 ° C - 45 ° C
• dimensions: 200.2 x 132.2 x 27.2mm
