Nice HYKEBDKCER30 HYKE BiDi Kit for swing gates
weighing up to 330 kg

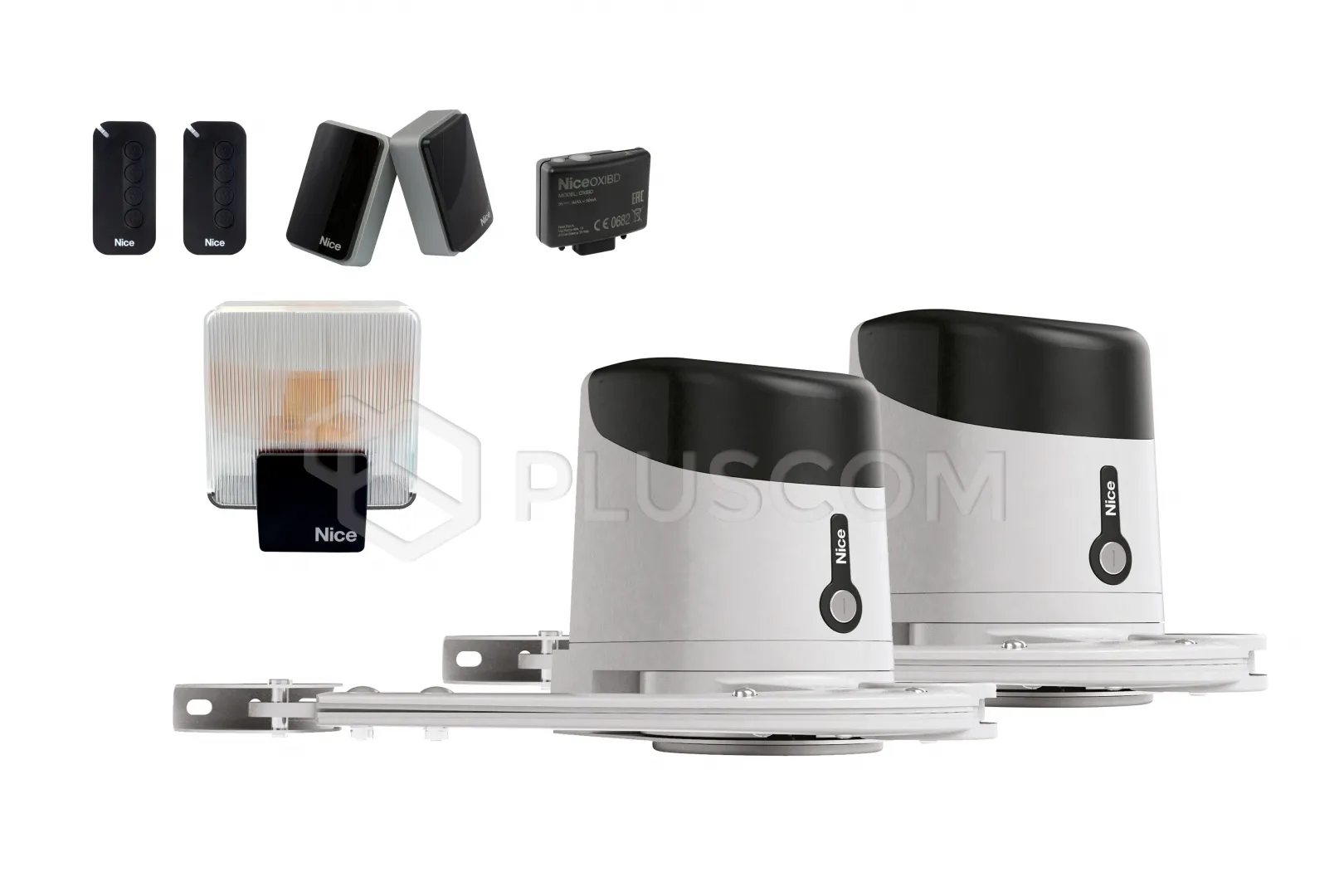

KIT INCLUDES:
|
Nice HYKEBDKCE 30 HYKE BiDi Set
|
A set consisting of an HK7124 actuator with an HKA2 control unit and an
HK7224 (without the control unit) for installation on very wide posts, up to 40
cm deep.
Advanced articulated arm actuators powered by 24V, integrated with the modern
Nice HKA2 control unit.
Designed for demanding installation conditions, including installation on very
wide masonry posts.
Key Features:
- Technical Purpose: Supports gate leaves up to 3.5 m long and weighing up
to 330 kg.
- Deep Hinge Mounting: The arm design allows for installation on wide
posts, where the distance from the hinge axis to the post edge is up to 40
cm.
- Enormous Power: Output torque of up to 500 Nm, achieved thanks to a
unique 3-stage gearbox (worm, gear, and satellite).
- Operation Intensity: Designed for intensive use with a performance of 40
cycles per hour.
The HKA2 control unit built into the drive is responsible for
intelligent gate operation management.
- Technology BLUEBUS: Allows you to connect accessories (photocells,
keypads) using just two non-polarized wires, dramatically speeding up
installation.
- Safety: Features amperometric obstacle detection and a photocell input
with a phototest function before each gate movement.
- Opera and Solemyo Systems: Compatible with programmers for advanced
parameter setting (Opera) and allows for solar panel power supply
(Solemyo).
OXIBD two-way radio receiver for mounting directly in the
drive unit.
The receiver can memorize up to 750 bidirectional transmitters or 1024
unidirectional ones.
The bidirectional radio protocol offers many advantages
(function
available only with ON3EBD remotes):
- Extended radio range up to 500 m (max. 10 jumps)
- Confirmation of correct command reception by the automation
- Ability to check the automation status at any time
- High security thanks to encrypted communication
- Low power consumption in standby mode
provides radio control with a
dynamically changing code at a frequency of 433.92 MHz, which ensures a high
level of user safety and prevents the code from being tampered with. to be
copied.
MYGO4 has a secret code called the "SWITCHING CODE." By transferring
this code from a memorized transmitter to a new transmitter, the latter is
recognized (and remembered) automatically by the receiver.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with radio coding
"O-Code."
The Nice ELDC warning light works with control units that
supply 12/24V voltage to the warning light output. The light source is a
super-bright LED emitting white light. An orange diffuser is installed above it
to diffuse the light. The LED is an energy-saving, reliable, and
shock-resistant light source.
The light housing incorporates an integrated 433.92MHz antenna. Using a 50-ohm
RG58 coaxial cable, which is connected to the control unit's antenna
output, the remote controls' operating range is significantly increased.
EPMB photocells, for outdoor installation, combine excellent
technical parameters and exquisite design. The operating range of the devices
is up to 30 m.
They are equipped with modern BlueBus technology, thanks to which connection to
the control unit is made using a 2-wire cable, which significantly simplifies
installation and significantly reduces installation time.
The photocell housing protects against dust and rain, allowing them to be
installed outdoors and operate in the temperature range of -20°C...+50°C.
