Nice HOPPBDKCER30 HOPP ONE kit for swing gates
weighing up to 500 kg

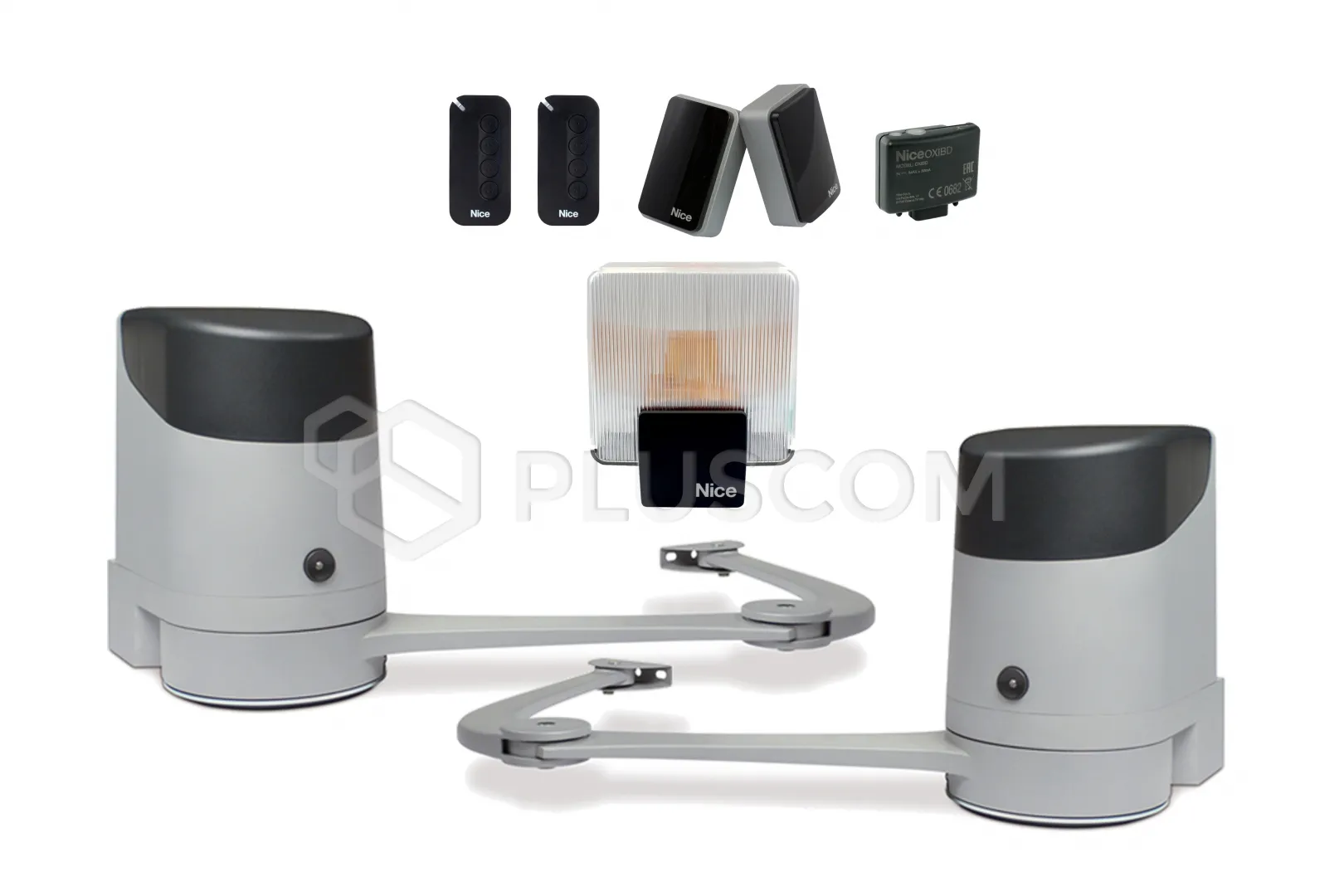

KIT INCLUDES:
|
Nice HOPPBDKCE 30 HOPP ONE Set
|
The set, consisting of the HO7124R30 actuator with a built-in BLUEBUS
control unit and the HO7224 (without the control unit), is the perfect solution
for automating entrance gates up to 4.8 m long. It is suitable for installation
on wide brick posts where the hinge depth can be up to 25 cm.
The durable aluminum actuator body and powerful planetary gear provide the
actuator with a torque of 250 Nm. The control unit is located within the drive,
eliminating the need to find additional mounting space. This also simplifies
the power connection process and the number of cables required.
FEATURES:
- New revision of the Nice POA3 control unit
- Direct socket for the IBT4N interface
- Integrated multi-system receiver
- Full automatic compatibility with Yubii / BiDi
- 1:1 installation compatibility with the previous model
- Modern connectivity standard - the R30 version eliminates the need for
adapters when connecting modern Wi-Fi modules or the IBT4N interface
- Easy and quick installation, no welding required
- Durable and compact design
The built-in POA3 control unit introduces the following
improvements over the older generation (R10):
- Full integration with Yubii: Native support for the
modern Nice/Yubii Smart Home ecosystem and advanced two-way BiDi remote
controls
- Direct IBT4N connector: Enables instant connection of
the O-View programmer and Wi-Fi/Bluetooth modules without the use of
additional adapters
- Optimized radio module: Integrated multi-system receiver
ensures greater range and more stable management of remote control codes
(Flor, One, Smilo, Inti, BiDi)
The control unit automatically memorizes the gate's end positions
during the first programming cycle (auto-programming function). Integrated
mechanical end stops for opening and closing eliminate the need to install
stops in the ground.
MYGO4 is a practical and elegant 4-channel remote control,
compatible with receivers that use one-way radio coding "O-Code." It
provides radio control with a dynamically changing code, at a frequency of
433.92 MHz.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with "O-Code" radio
coding.
The Nice ELDC warning light works with control units that
supply 12/24V voltage at the warning light output. The light source is a
super-bright LED emitting white light. Above it, an orange diffuser is
installed to diffuse the light. The LED is an energy-saving, reliable, and
shock-resistant light source.
The lamp housing has an integrated 433.92 MHz antenna. Using a 50 Ohm RG58
coaxial cable, which is connected to the control unit's antenna output, we
significantly increase the remote control's operating range.
EPMB photocells, for outdoor installation, combine excellent
technical parameters with a stylish design. The operating range of the devices
is up to 30 m.
They are equipped with modern BlueBus technology, which allows connection to
the control unit using a 2-wire cable, significantly simplifying installation
and significantly reducing installation time.
The photocell housing protects against dust and rain, allowing them to be
installed outdoors and operate in the temperature range of -20°C...+50°C.
TECHNICAL DATA:
- Control unit power supply: 230 V AC
- Motor power supply: 24 V DC
- Current consumption: 1.3 A
- Power consumption: 280 W
- Maximum torque: 250 Nm
- Nominal torque: 110 Nm
- No-load rotation speed: 1.68 rpm
- Rotation speed at nominal torque: 1.05 rpm
- Operating intensity: 35 cycles per hour (intensive use)
- Maximum gate leaf length: 2.4 m
- Maximum gate leaf weight gate load: 250 kg
- Maximum hinge depth (post back dimension): up to 250 mm (25 cm)
- Housing protection class: IP54
- Operating temperature: -20°C to +55°C
- Built-in mechanical limit switches
- Actuator dimensions: 252 x 180 x 290 mm
- Actuator weight: 9.0 kg
