For swing gates with leaves
up to 2.4 m, ideal for large
columns.Irreversible electromechanical
24 Vdc gear motor with articulated
arm, surface mounted.
Ideal for intensive use.

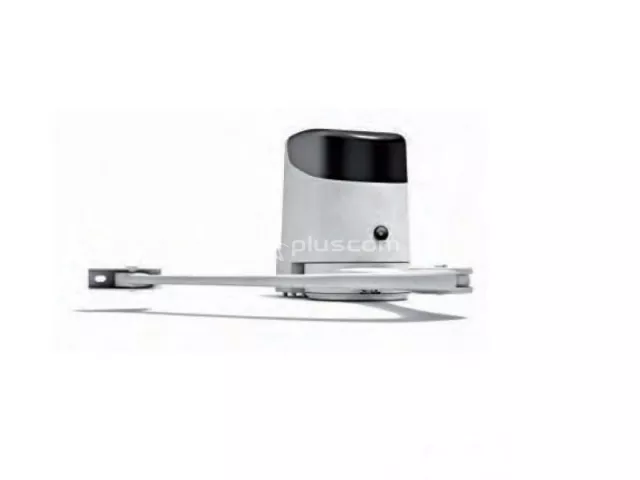

Nice HO7124 electromechanical 24 Vdc gear motor with articulated arm and built-in control unit
Irreversible 24 V DC actuator with
micrometric adjustment mechanical stops on opening and closing with built-in
control unit (HO7124)
Powerful thanks to the 250 Nm torque.
Resistant and compact: 180 mm in width,
ideal for any kind of post. Small shockproof body with aluminium base.
Sturdy, aluminium anti-shearing arm.

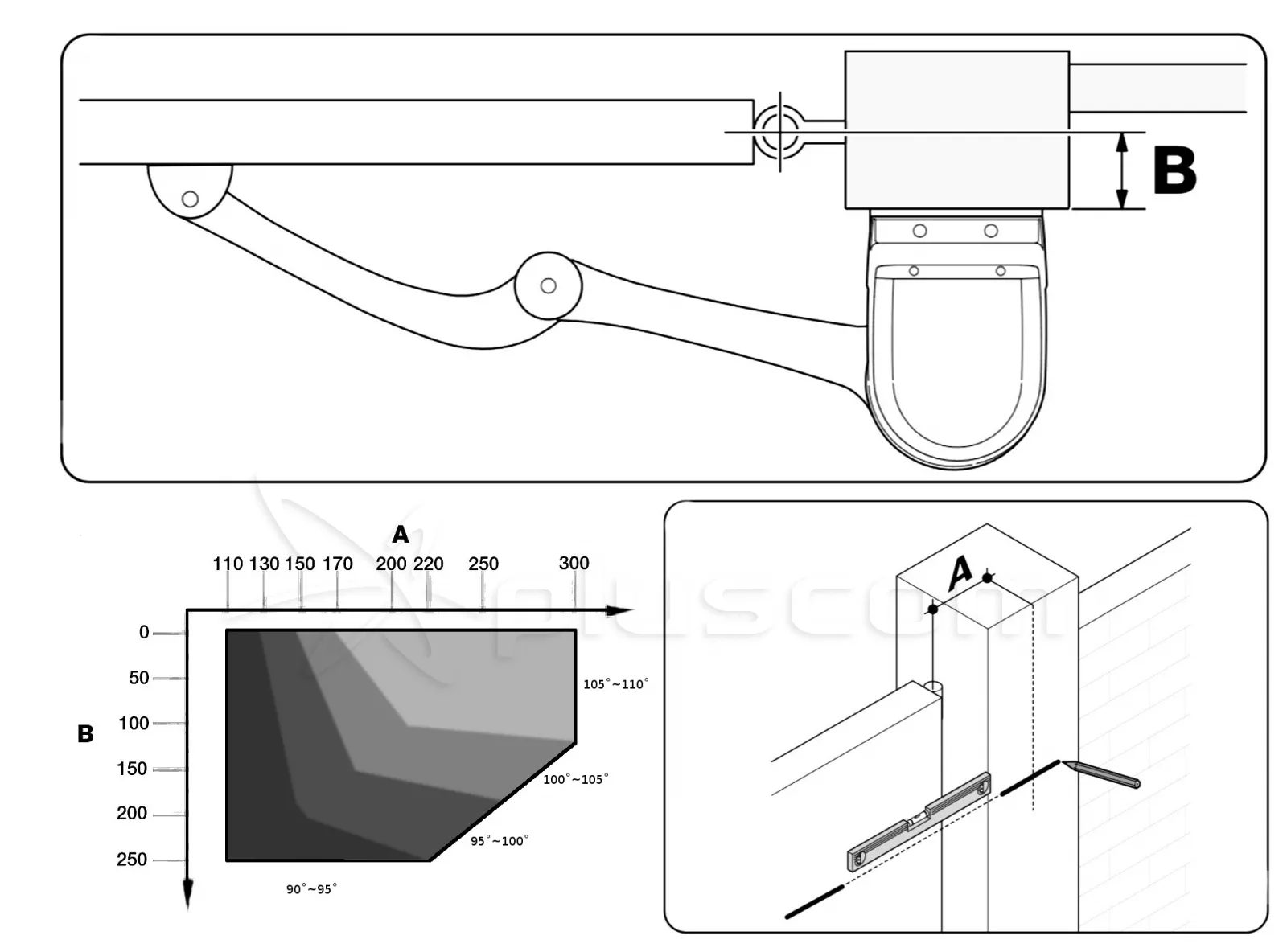

Nice HO7124 mounting

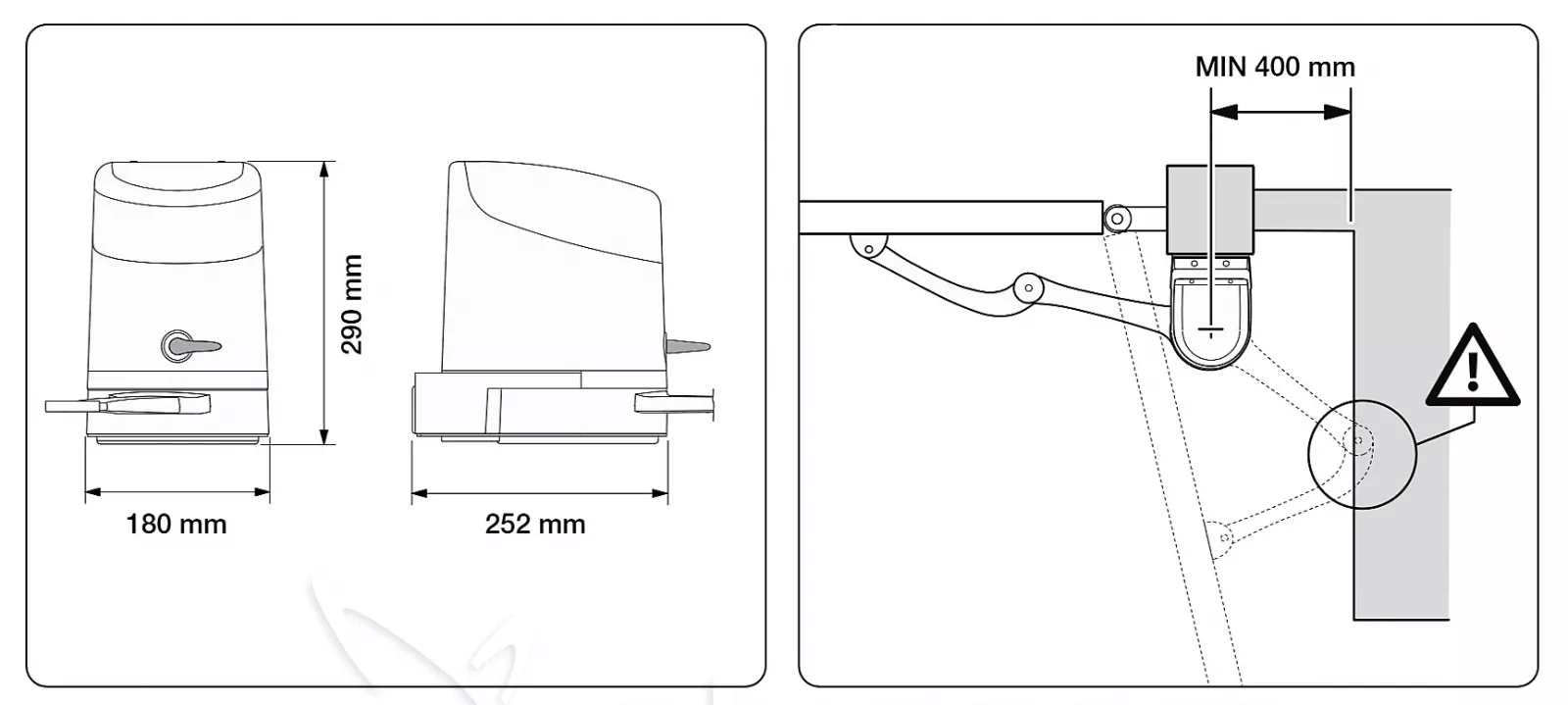

Nice HO7124 dimensions and mounting
Easy to install:
thanks to the new fixing bracket with quick connector for the motor. No
welding.
Sophisticated electronics with the built-in control unit, just 3 keys to
manage all programming operations:
• obstacle detection and possibility of connecting to 8.2 KΩ sensitive edge,
fototest;
• automatic fault diagnostics;
• memorisation of opening and closing travel limits in self-learning mode;
• possibility of con fi guring the stop input in self-learning mode, NO, NC
and the latest generation 8.2 KΩ resistive sensitive edges:
• deceleration on opening and closing;
• simple connection of pairs of additional photocells, foto2;
• programming of pause time;
• pedestrian open and partial open;
• clutch with anti-crushing safety mechanism.
Energy saving with no black outs: 3 standby modes to reduce mains consumption,
or battery power consumption if connected to the Solemyo kit.
Operation in the event of a power failure thanks to the optional batteries
(PS124).
Everything under control: thanks to
compatibility for operation with Opera system BUS T4, the unit can be used to
expand the options of programming, control and diagnostics of the automation on
site and remotely.
