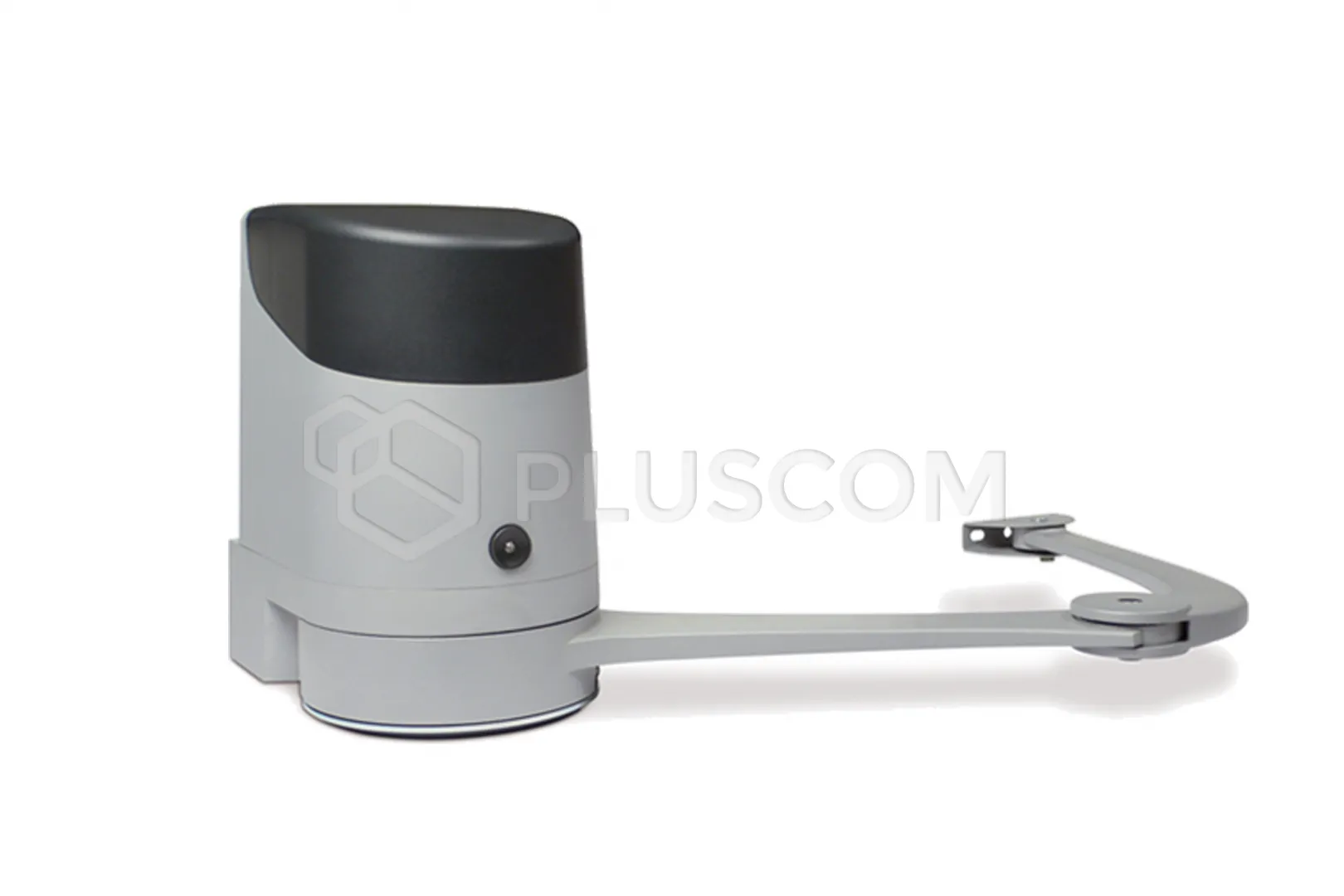

Nice HO7124R30 Single actuator HO7124 with built-in control unit

659,62 EUR including 23.00% VAT
Product code: #44350
Manufacturer: Nice
  • Maximum leaf width 2.4m
  • Maximum leaf weight 250kg
  • Power supply/Motor 230V/24V
  • New modernized headquarters
  • Direct socket for IBT4N interface
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,49 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice ELDC LED flashing signal light 12/24V Photocell Nice EPMB ERA Medium BLUEBUS Nice PS124 24 V battery with integrated battery charger Nice OVIEW/A R01 Display programmer +IBT4N interface Nice OXIBD 4-channels receiver two-way Nice PLA10 Electric lock vertical Nice PLA11 Electric lock horizontal

Nice HO7124R30 Single Operator HO7124 for Swing Gates 2.4m/250kg


PURPOSE OF THE DRIVE

The Nice HOPP swing arm operator is designed to automate gates with:
  • leaf length up to 2.4m
  • leaf weight up to 250kg
Ideal for installation on wide brick posts where the hinge depth can be up to 25cm.

FEATURES:
  • New revision of the Nice POA3 control unit
  • Direct socket for the IBT4N interface
  • Integrated multi-system receiver
  • Full automatic compatibility with Yubii / BiDi
  • 1:1 installation compatibility with the previous model
  • Modern connectivity standard - the R30 version eliminates the need for adapters when connecting modern Wi-Fi modules or the IBT4N interface
  • Quick and easy installation, no welding required
  • Durable and compact design
Built-in POA3 control unit, and compared to the older generation (R10), the new version (R30) introduces:
  • Full integration with Yubii: Native support for the modern Nice/Yubii Smart Home ecosystem and advanced two-way BiDi remote controls.
  • Direct IBT4N connector: Enables instant connection of the O-View programmer and Wi-Fi/Bluetooth modules without the use of additional adapters.
  • Optimized radio module: Integrated multi-system receiver ensures greater range and more stable management of remote control codes (Flor, One, Smilo, Inti, BiDi).

TECHNICAL DATA:

  • Control unit power supply: 230 V AC
  • Motor power supply: 24 V DC
  • Current consumption: 1.3 A
  • Power consumption: 280 W
  • Maximum torque: 250 Nm
  • Nominal torque: 110 Nm
  • No-load rotation speed: 1.68 rpm
  • Rotation speed at nominal torque: 1.05 rpm
  • Operating intensity: 35 cycles per hour (intensive use)
  • Maximum gate leaf length: 2.4 m
  • Maximum gate leaf weight gate load: 250 kg
  • Maximum hinge depth (post back dimension): up to 250 mm (25 cm)
  • Housing protection class: IP54
  • Operating temperature: -20°C to +55°C
  • Built-in mechanical limit switches
  • Actuator dimensions: 252 x 180 x 290 mm
  • Actuator weight: 9.0 kg

The item is available in the following sets:

Nice HOPPBDKCE 30 HOPP ONE Set Nice HOPPBDKCE 30 HOPP ONE Set
Download
User Manual 2.26 MB
