Nice HK7024 single actuator 24V with built-in HKA2 BLUEBUS control unit

Self-locking actuator with a folding arm, 24V motor and built-in BLUEBUS HKA1 control unit

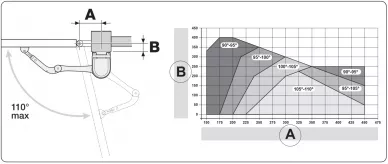

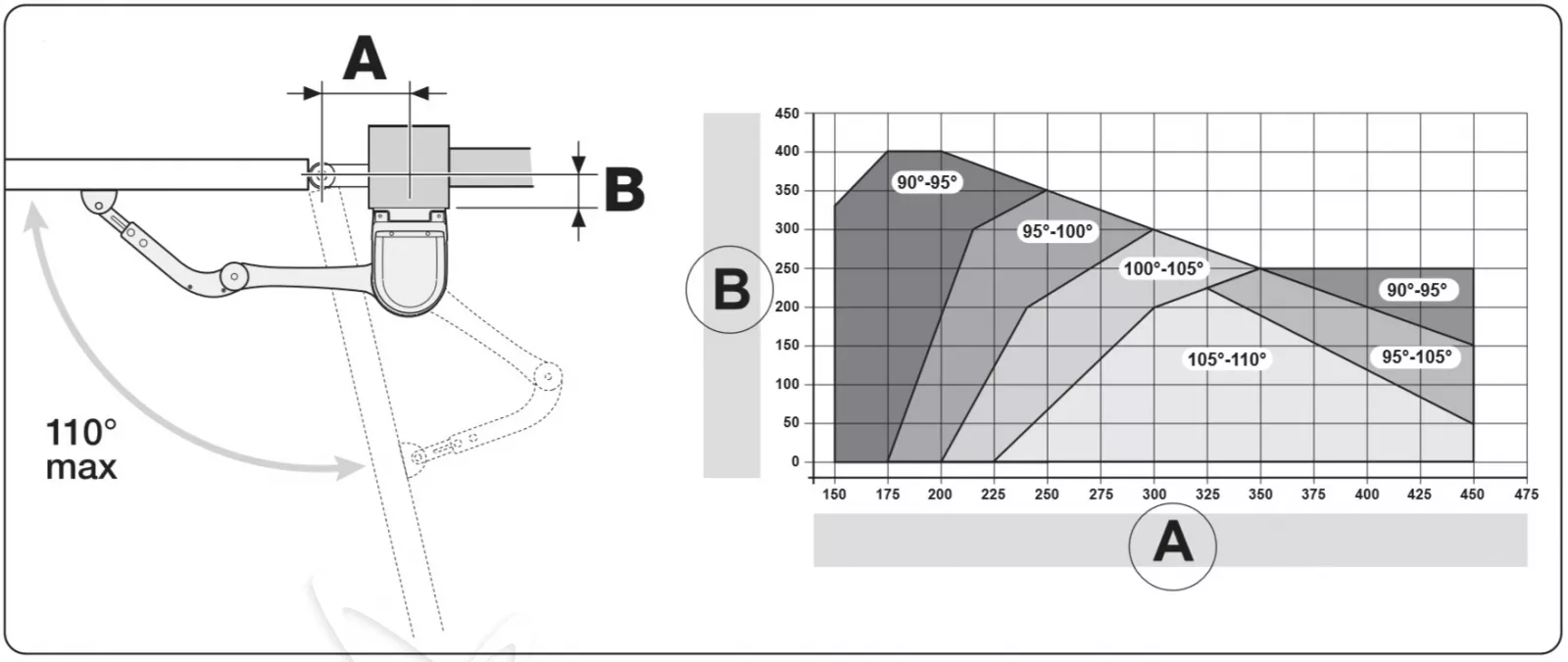

The drive is designed for installation on very wide posts, up to 40 cm hinge depth.

Hyke 7024 has an automated emergency unlocking mechanism in the event of a power failure, with a metal key and patent insert.
The new drive transmission design is an actuator gear with a 3-speed ratio. The first one has a worm gear, the second one has a pair spur gears, and at the drive output - a satellite gear. This together gives a huge output torque of up to 500Nm.
Built-in mechanical opening and closing limit switches with very precise adjustment.

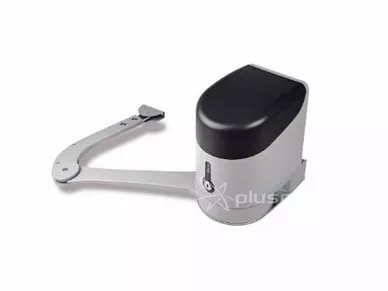

Easy assembly without welding is certainly a big advantage of the drive. The handles are screwed to the post and the gate leaf. The foldable arm, consisting of a straight and a curved part, is adjustable in length, which allows (after shortening) the actuator to be installed in a tight corner of the property.

Built-in HKA1 control unit with the following features:

• BLUEBUS technology
• auto programming - the actuators automatically remember the gate end positions during programming
• advanced: only three programming buttons, adjustment of operating mode, opening time, etc.
• partial gate opening function (gate function)
• always working: thanks to the PS124 battery (option), the actuators will open and close the gate, even in the absence of power
• control panel compatible with OPERA and SOLEMYO systems

TECHNICAL DATA

• Power supply: 230 Vac
• Motor power supply: 24V
• Maximum power input: 300 W
• Maximum torque: 500 Nm
• Rated torque: 120 Nm
• No load speed: 2.25 RPM
• Speed at rated torque: 2.00 RPM
• Maximum cycle frequency: 40 cycles/hour
• Maximum working time without interruptions: approximately 7 minutes
• Warning light output: one LUCYB warning light (12V, 21W bulb)
• Electric lock output: one electric lock 12 Vpp max 15VA
• BLUEBUS input
• STOP input
• P.P. input
• Radio ANTENNA input: 50 Ω for RG58 cable or similar
• Programmable functions: 8 ON-OFF functions (Table 3) and 8 functions
• regulated (Table 5))
• Radio connector: SM type connector intended for SMXI, OXI and OXIFM family receivers
• Operating temperature: from -20°C to +50°C
• Protection level: IP 54

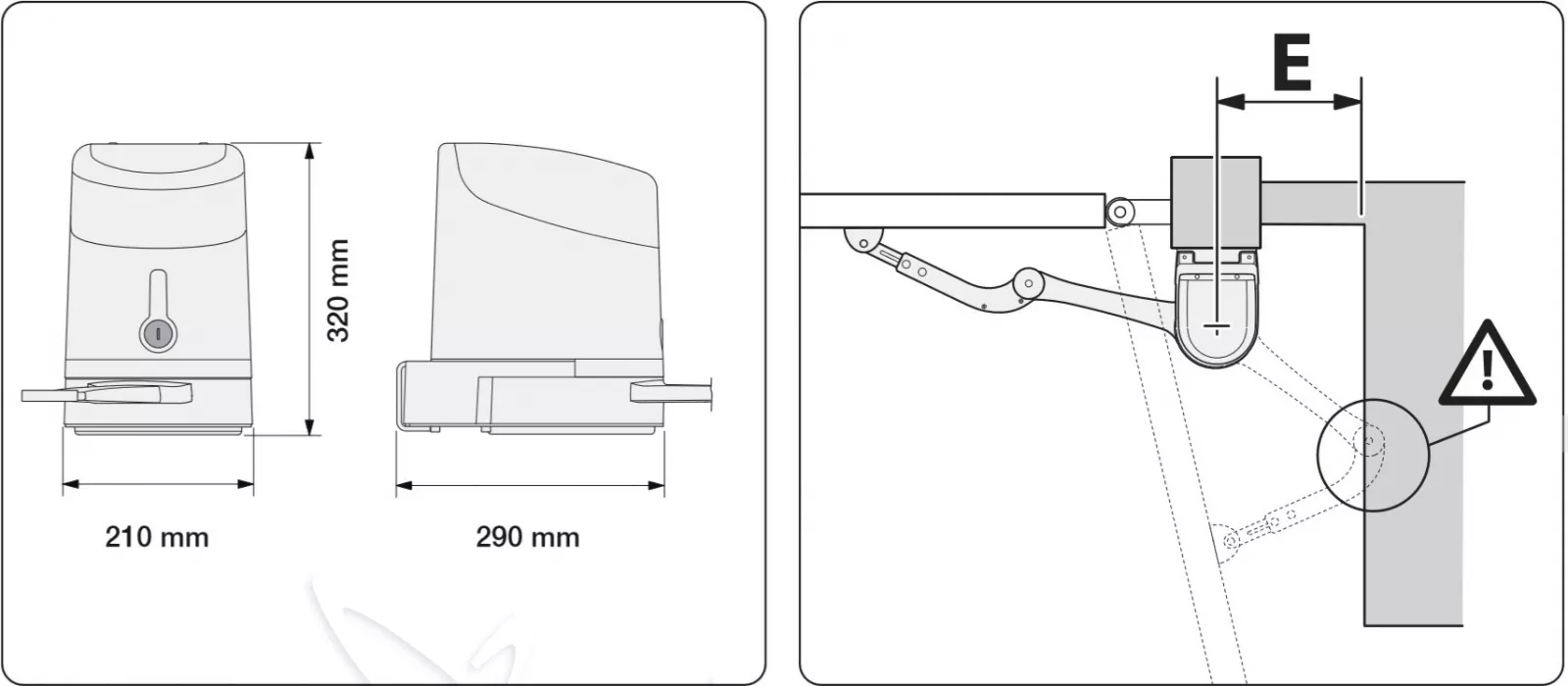

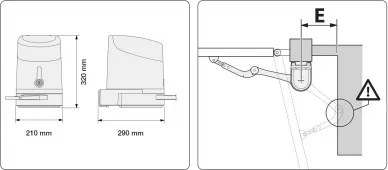

• Dimensions: 210 x 290 x 320 mm
• Weight: 10.5 Kg
