Nice FGSD-002 ZW5 Smoke-Control

114,48 EUR including 19.00% VAT
Product code: #36655
Manufacturer: Fibaro
  • Compatibility: Z-Wave and Z-Wave Plu
  • 3 sensitivity levels
  • Built-in temperature sensor
  • Alarm signaled optically and acoustically
  • Battery powered
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fibaro Yubii Home EU YH-001 Fibaro Home Center 3 Lite HC3L-001 (1) EU Fibaro Yubii Home YH-001 and HubPowerbank set Fibaro Kit Home Center 3 Lite HC3L-001 (1) EU 868.4 Mhz with HubPowerbank

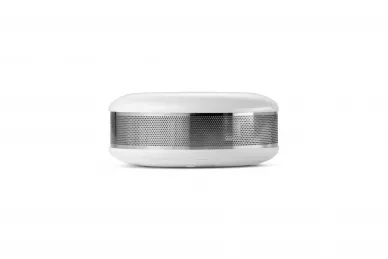

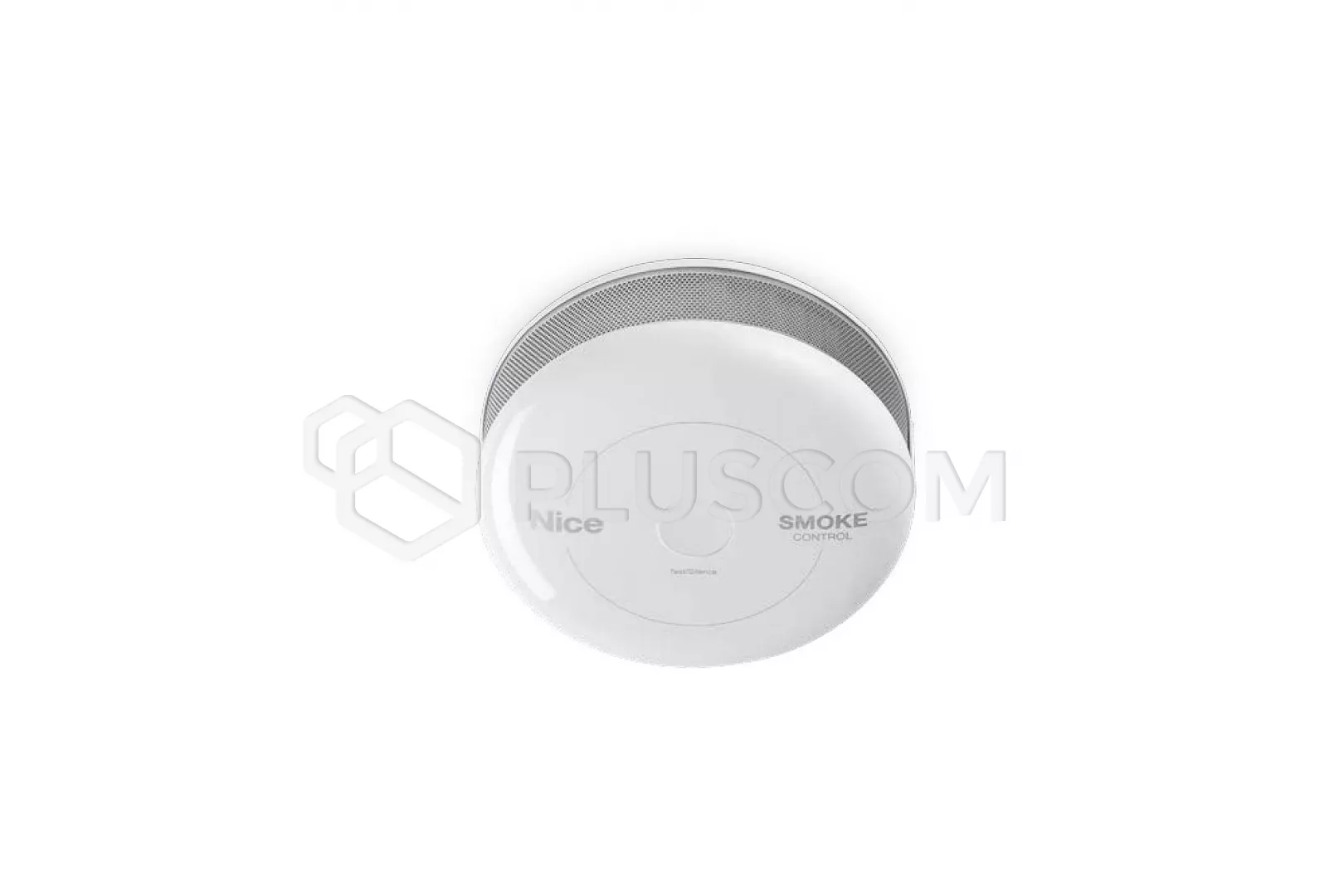

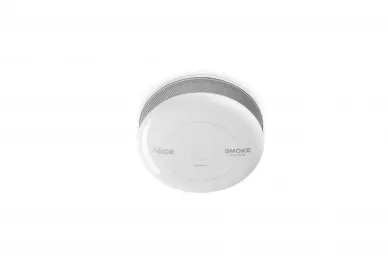

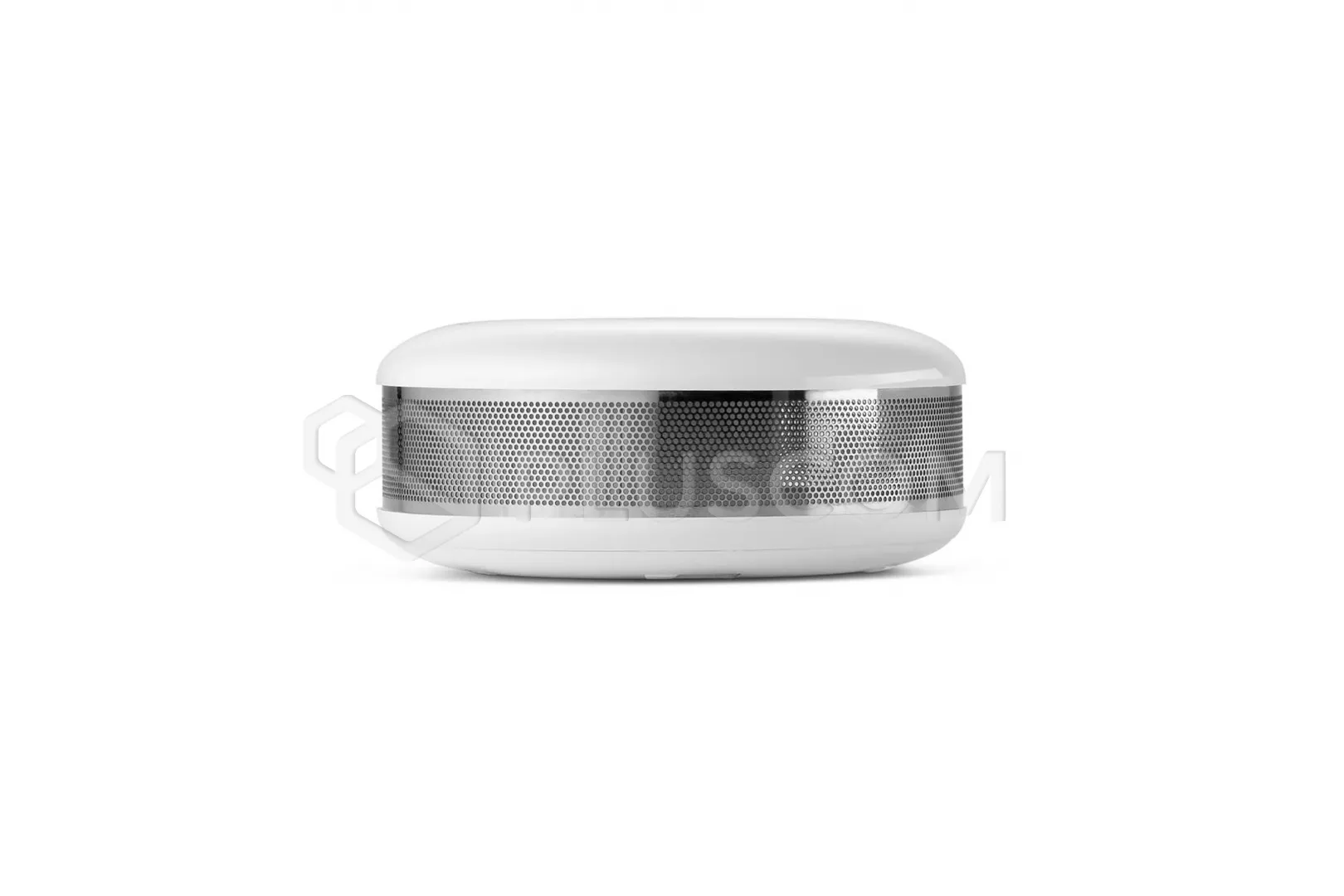

NICE FGSD-002 ZW5 Smoke-Control Smoke and temperature sensor

Smoke-Control is a universal, battery-powered, optical smoke detector, compatible with the Z-Wave PlusTM standard. It has been designed to be placed on the ceiling or wall (min. 40 cm from the corner).

Smoke detection is indicated by a sound signal, LED flashing and appropriate information sent to the Z-Wave network. If the smoke detector detects a dangerous situation, it can trigger an alarm scenario. In this case, the user will immediately receive an alert on their phone, regardless of where they are. The device has a built-in temperature sensor that can trigger an alarm in the presence of high temperature.
The smoke alarm is signaled acoustically, by blinking the LED and by sending control commands to Z-WaveTM network elements. Moreover, the device can warn about exceeding a certain temperature threshold thanks to the built-in sensor.

FEATURES:

  • Compatibility with Z-Wave and Z-Wave Plus controllers
  • 3 sensitivity levels according to EN 14604:2005
  • Built-in opening detector
  • A safety mechanism prevents the case from closing without inserting the battery
  • The alarm is signaled by a loud sound, flashing LED and sending a message to the Z-Wave network
  • An additional function signals an increase in temperature above the set threshold
  • Diagnostic health check, automatically performed every 10 seconds, prevents faults
  • The self-test function can be activated manually
  • All temperature and smoke readings are saved in internal memory

TECHNICAL DATA:

  • Battery power: CR123A 3.0V DC (included)
  • Operating temperature range: 0°C-55°C
  • Operating humidity: 0%-93%
  • Temperature measurement range: -20°C to +100°C
  • Precise temperature measurement: 0.5 °C (range from 0 °C to 55 °C)
  • Smoke sensitivity:
    • level 1: 1.20 +/- 0.5% darkening per foot
    • level 2: 1.80 +/- 0.5% darkening per foot
    • level 3: 2.80 +/- 0.5% darkening per foot
  • Sound intensity level: 85 dB / 3 m
  • Radio protocol: Z-Wave (500 series)
  • Radio frequency (MHz): 868.4 or 869.8 (EU) / 908.4, 908.42 or 916.0 (US) / 921.4 or 919.8 (AUS and NZ) / 869, 0 (RU)
  • Radio range: up to 40 m (depending on the building structure)
  • Dimensions: 65 x 28mm
