Nice EYE Plus Two Door station

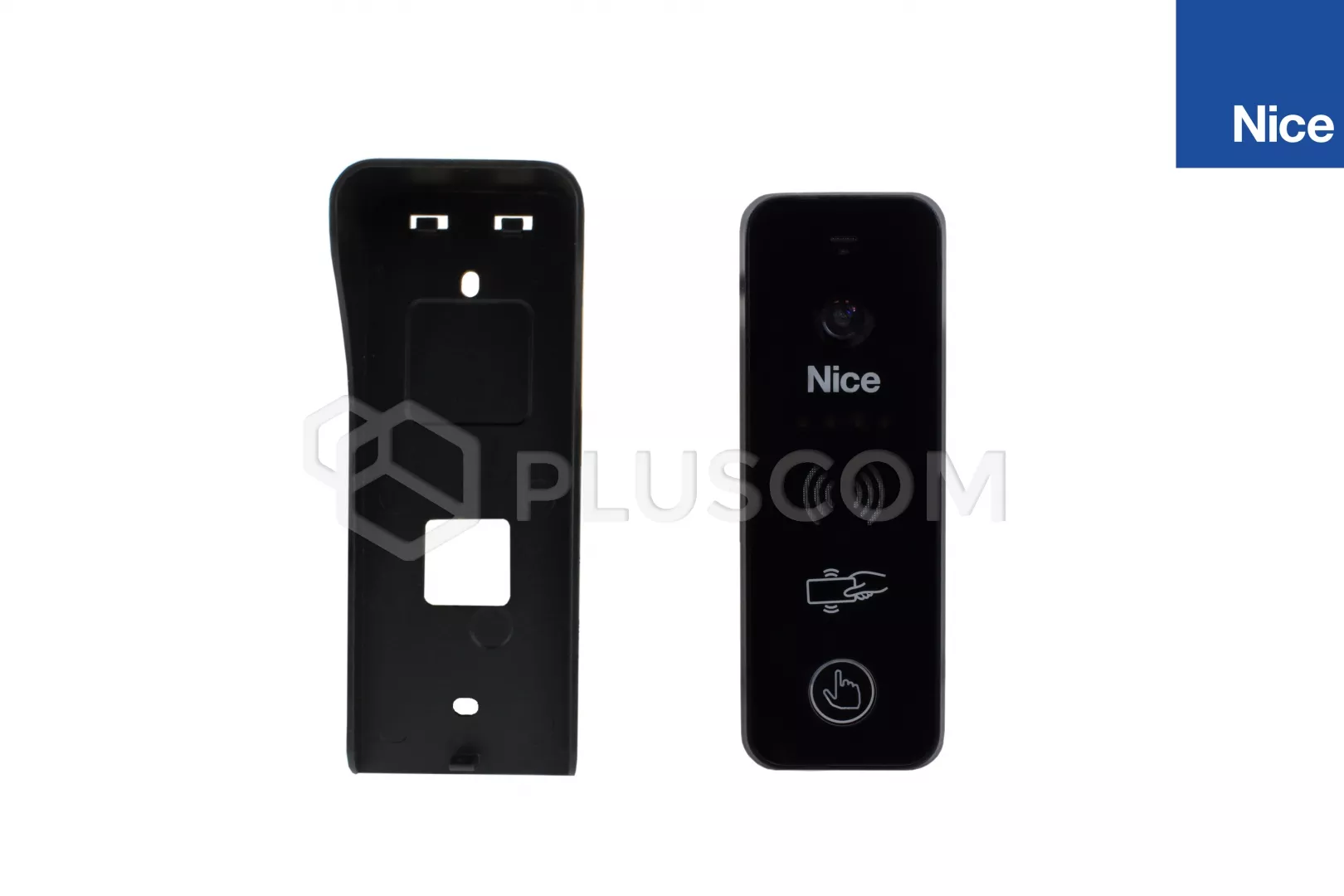

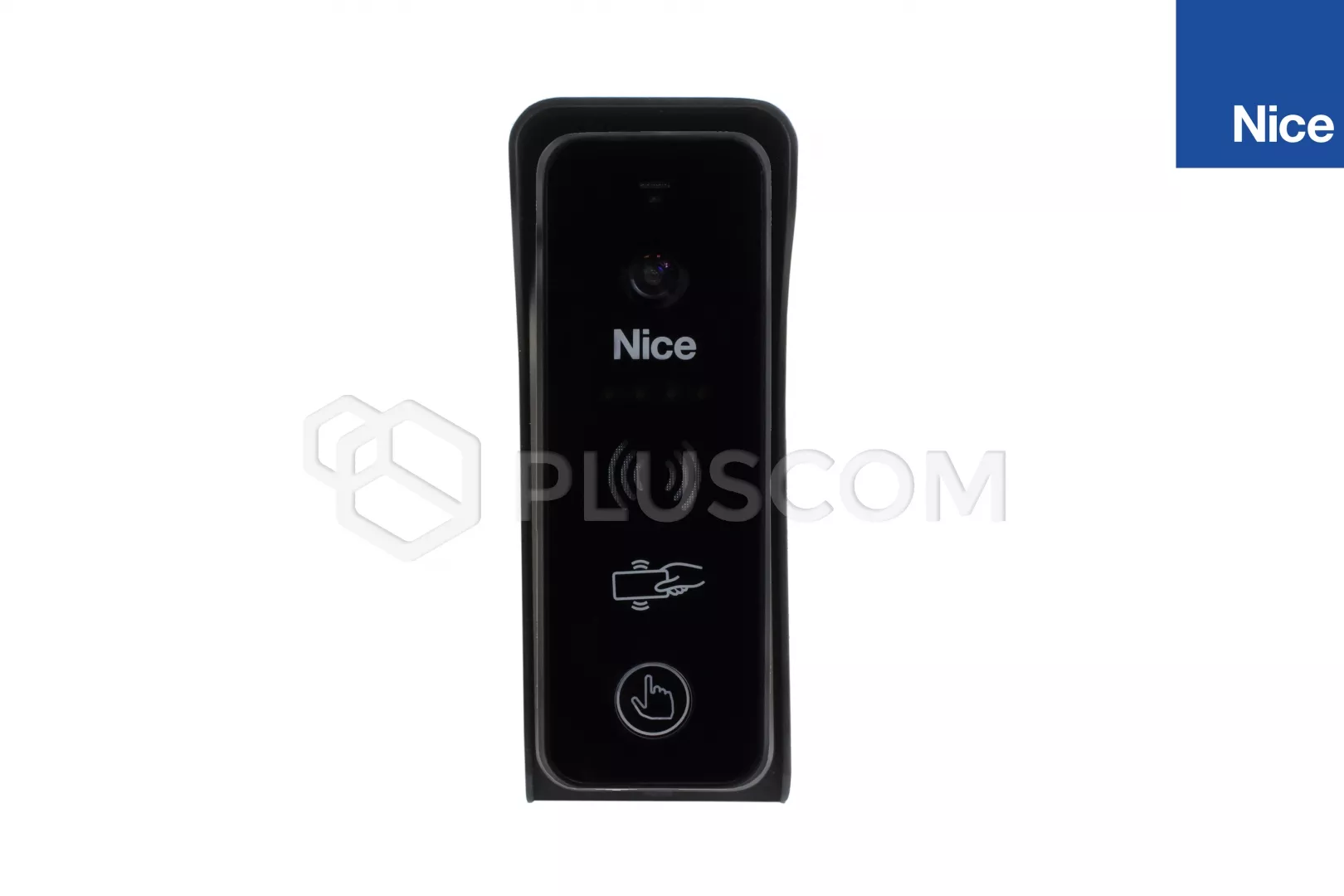

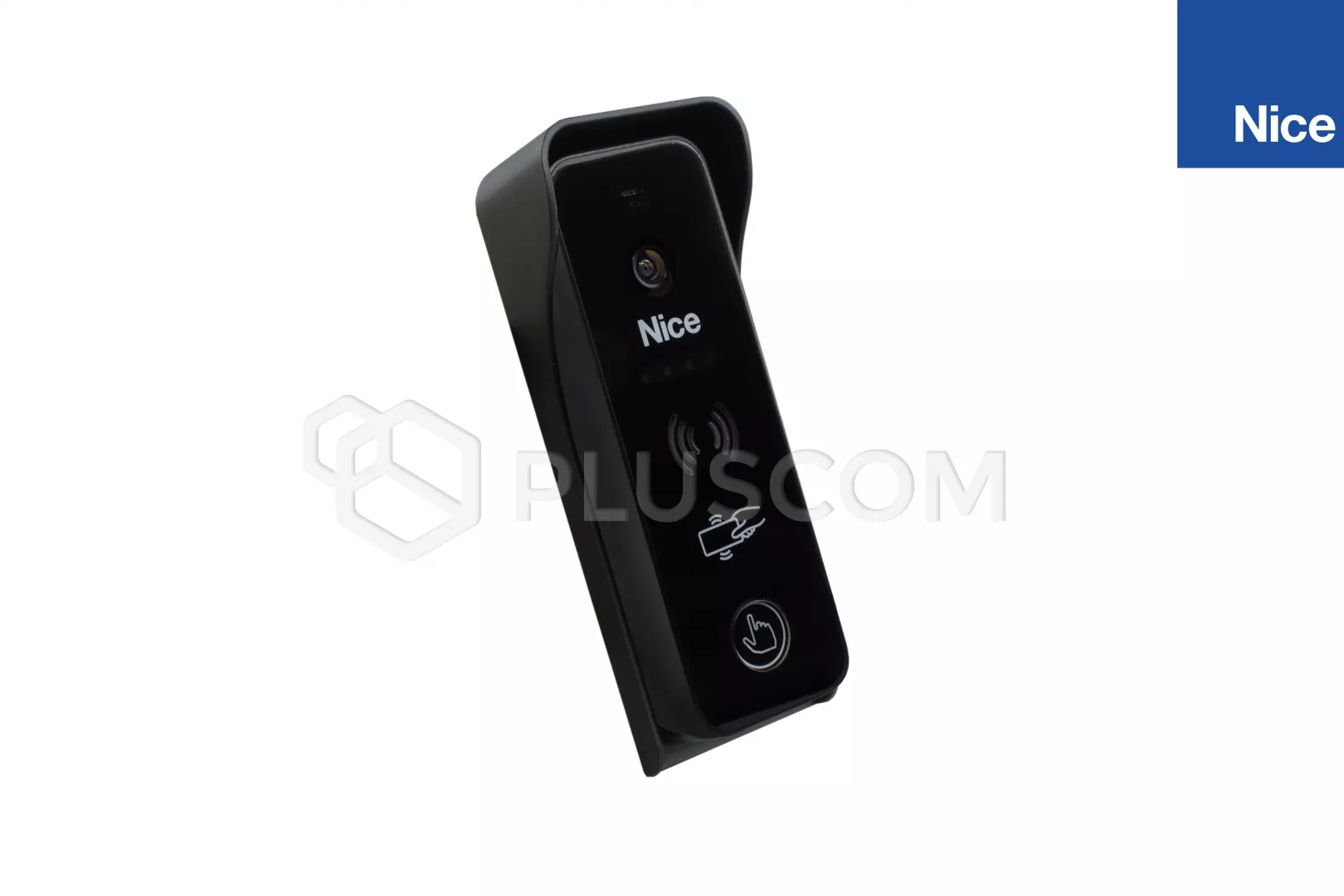

Talk panel, doorphone Nice EYE Plus Two for a single-family house with a proximity card reader

The modern, solid gate panel Nice Eye Plus Two is the perfect solution for single-family houses. It is equipped with 1 call button, a camera wide-angle and IR illuminator.
Eye Plus Two has an integrated RFID reader.

Small panel dimensions (width less than 50mm, depth only 15.5mm) allow installation on narrow metal posts. Compact dimensions result in that the installation in places with limited space looks very much aesthetically.

The aluminum sealed IP66 housing ensures high resistance to damage mechanical and resistance to adverse conditions atmospheric.

MOUNTING AND WIRING:

The panel is designed for surface mounting.
The recommended mounting height is 1.5-1.6 m.
The panel is connected with the videomonitor using a 2-core cable.

Product features and main functions

• RFID card reader
• IR backlight
• 2-wire digital bus
• controlling the gate without a power supply
• gate control
• door open sensor
• to connect the exit button
• rain canopy

SPECIFICATION

• communication: digital two-wire
• number: subscribers 1
• audio: digital two-way
• camera: 1080p HD color CMOS camera
• night illumination: Infrared LEDs with automatic adjustment intensity
• effective distance (by lux): 0.5 meters
• camera angle: 110 ° horizontally, 50 ° vertically
• button: mechanicaly
• working voltage: 12-24V DC, 0.3A max
• power consumption: 3W
• electric lock support:
• • NC - 12V DC, 0.35A
  • NO - 12V DC, max 2A
• gate control: potential-free contact, load capacity
• • AC - 125V, max 1A
  • DC - max 30V, max 4A
• card type: RFID 125KHz
• card reading: up to 20 mm
• card reader memory: up to 1000 pcs
• working temperature: -25 ° C + 60 ° C
• dimensions
• • without visor: 136x49x20 mm
  • with visor: 142x56x34 mm
• protection class: IP 66
• strength class: IK 07
