Nice EYE Family Two Door station

Out of stock. Archived Product.

Items bought with this product:
Nice Pro Two 7” Videomonitor

Talk panel, doorphone Nice EYE Family Two for single-family home

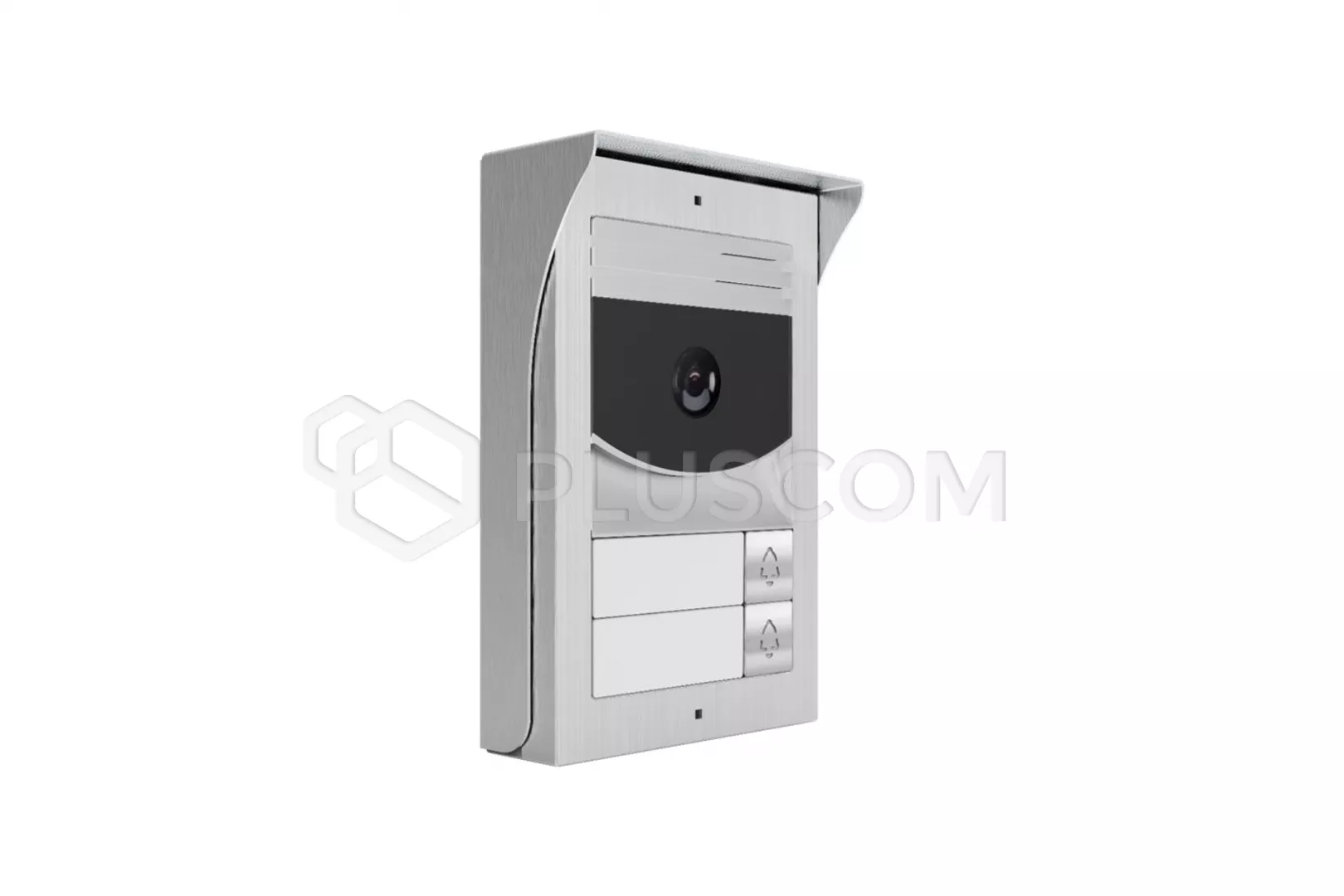

The modern, solid Nice Eye Family Two door panel is the perfect solution for single-family houses. It is equipped with 2 call buttons, a camera wide-angle and IR illuminator. The small dimensions of the panel allow for assembly in places with limited space, an additional angular panel allows for point the camera in the desired direction.

Aluminum vandal-proof (IK07) and sealed IP55 housing ensures high resistance to mechanical damage and resistance to operation unfavorable weather conditions. A protective canopy will provide extra protection against water.

The panel has a built-in RFID reader, which allows the use of encoded cards or magnetic chips to open the door.

MOUNTING AND WIRING:

The panel is designed for surface mounting.
The set includes a bracket to be screwed to the wall. On which we are embedding panel.
The recommended mounting height is 1.5-1.6 m.
The panel is connected with the videomonitor using a 2-core cable.

Product features and main functions
  • two call buttons for two houses
  • 2 locks support (door and gate)
  • 110 ° wide angle of view
  • 1080P HD color CMOS camera
  • night backlight with automatic light intensity adjustment
  • surface mounted with rain cover or with the help of an angle bar 30
  • slim design, suitable for installation on a narrow post
  • Wiegand access control support
  • it is possible to connect an exit button
  • it is possible to connect a door status sensor
SPECIFICATION
  • communication: digital two-wire
  • number: subscribers 2
  • audio: digital two-way
  • camera: 1080p HD color CMOS camera
  • night illumination: Infrared LEDs with automatic adjustment intensity
  • effective distance (by lux): 0.5 meters
  • camera angle: 110 ° horizontally, 60 ° vertically
  • buttons: mechanical
  • working voltage: 15-24V DC, 0.3A max
  • power consumption: 3W
  • electric lock support:
    • NC - 12V DC, 0.35A
    • NO - 12V DC, max 2A
  • gate control: potential-free contact, NO / NC
  • card type: RFID 125KHz
  • card reading: up to 20 mm
  • card reader memory: up to 1000 pcs
  • working temperature: -25 ° C + 60 ° C
  • dimensions
    • without visor: 151x100x28 mm
    • with visor: 153.5x103x59.4 mm
  • protection class: IP 55
  • strength class: IK 07
