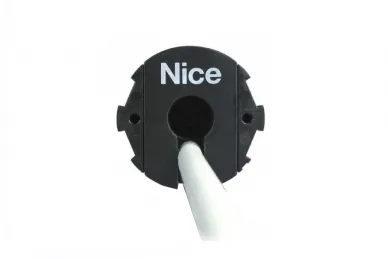

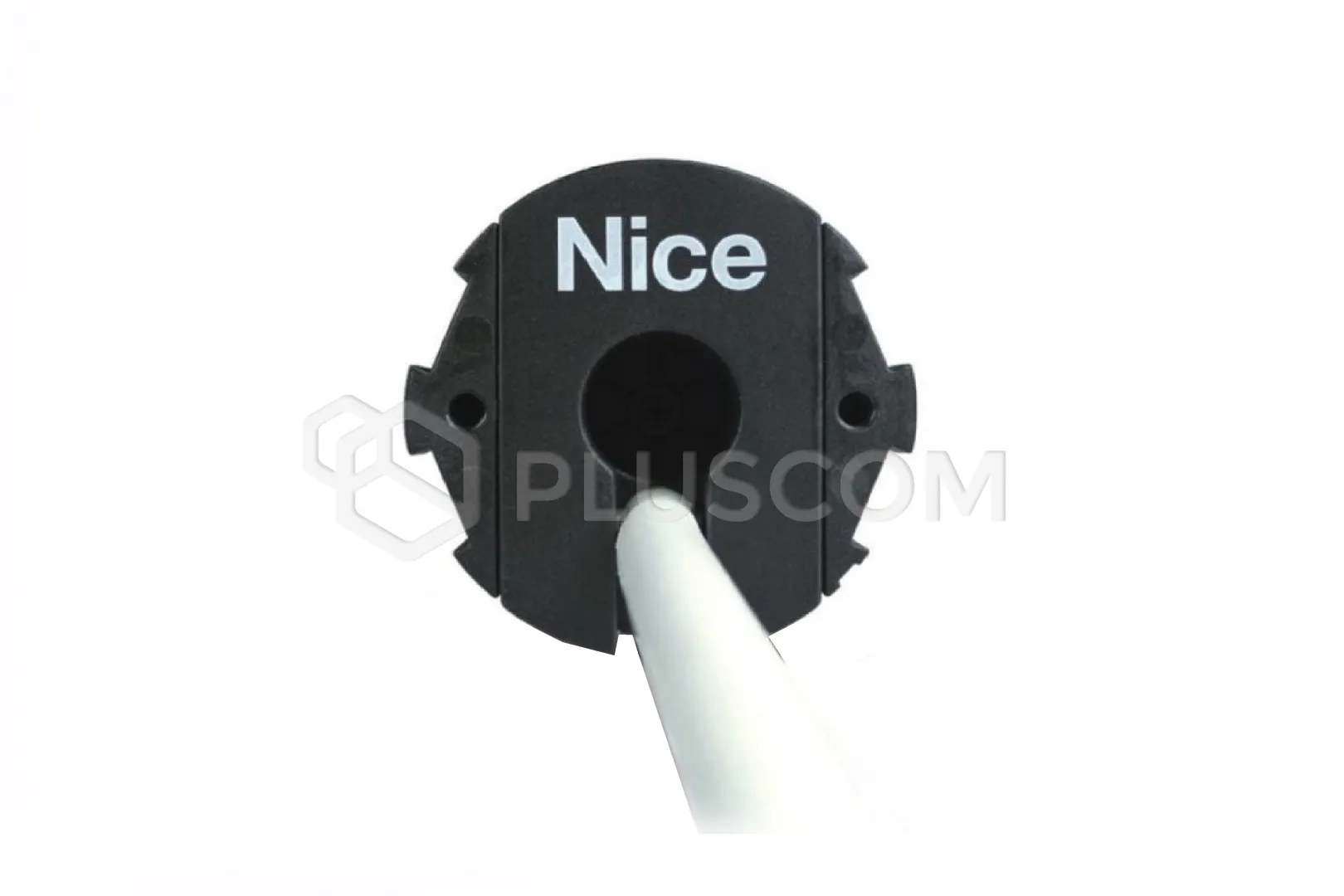

Nice Era Star SA 611 35mm Roller Shutter Motor with Electronic Limit
Switch
Roller shutter motors with electronic limit switches and obstacle detection.
Ideal for roller shutters and window coverings.
Size S Ø35 mm.
Complete and intuitive programming
Programming is even more complete
and intuitive.
Easy adjustment of limit positions with a few simple operations, performed
using the control buttons or the TTU programmer, without having to open the
window box.
Three different programming modes:
Automatic, semi-automatic, and
manual mode.
The roller shutter will confirm the correct settings with short movements of
the roller shutter.
Possibility of movement even when encountering an obstacle
Thanks to
precise, continuous force monitoring by the control unit.
This minimizes the risk of damage to the roller shutter if it encounters an
obstacle or if the roller shutter curtain freezes.
Obstacle detection:
If it encounters an obstacle, the roller shutter
will stop and briefly move in the opposite direction.
The amperometric sensitivity can be adjusted.
For ERA STAR SA, the use of locking brackets is recommended.
Maximum precision
When locking the roller shutter in the up and down
end positions, dynamic, automatic updating of the position limiters (only for
automatic and semi-automatic modes) allows for compensation over time for any
expansion or contraction of the roller shutter structure caused by material
aging or changing climatic conditions.
Intelligent encoder technology
Guarantees millimeter precision,
reliability, and retention of set end position values, programmed force, and
other settings over time.
Built-in control unit
Enables parallel connection of motors and control
from a single point without the need for additional control devices.
Time-saving and simple electrical connections:
Double insulation
eliminates the need for grounding.
Low power consumption in stand-by mode (less than 0.5 W).
Technical Specifications:
- Power Supply: 230V/50Hz
- Current Consumption: 0.40 A
- Power: 90 W
- Power Consumption in Stand-by Mode: Less than 0.5 W
- Torque: 6 Nm
- Speed: 11 rpm
- Lifted Load: 12 kg
- Number of Rotations: Over 100
- Continuous Operation Time: 4 min
- Length: 496 mm
- Motor Weight: 1 kg
- Packaging Dimensions: 90x90x530 mm
- Cable lenght: 2.5m
