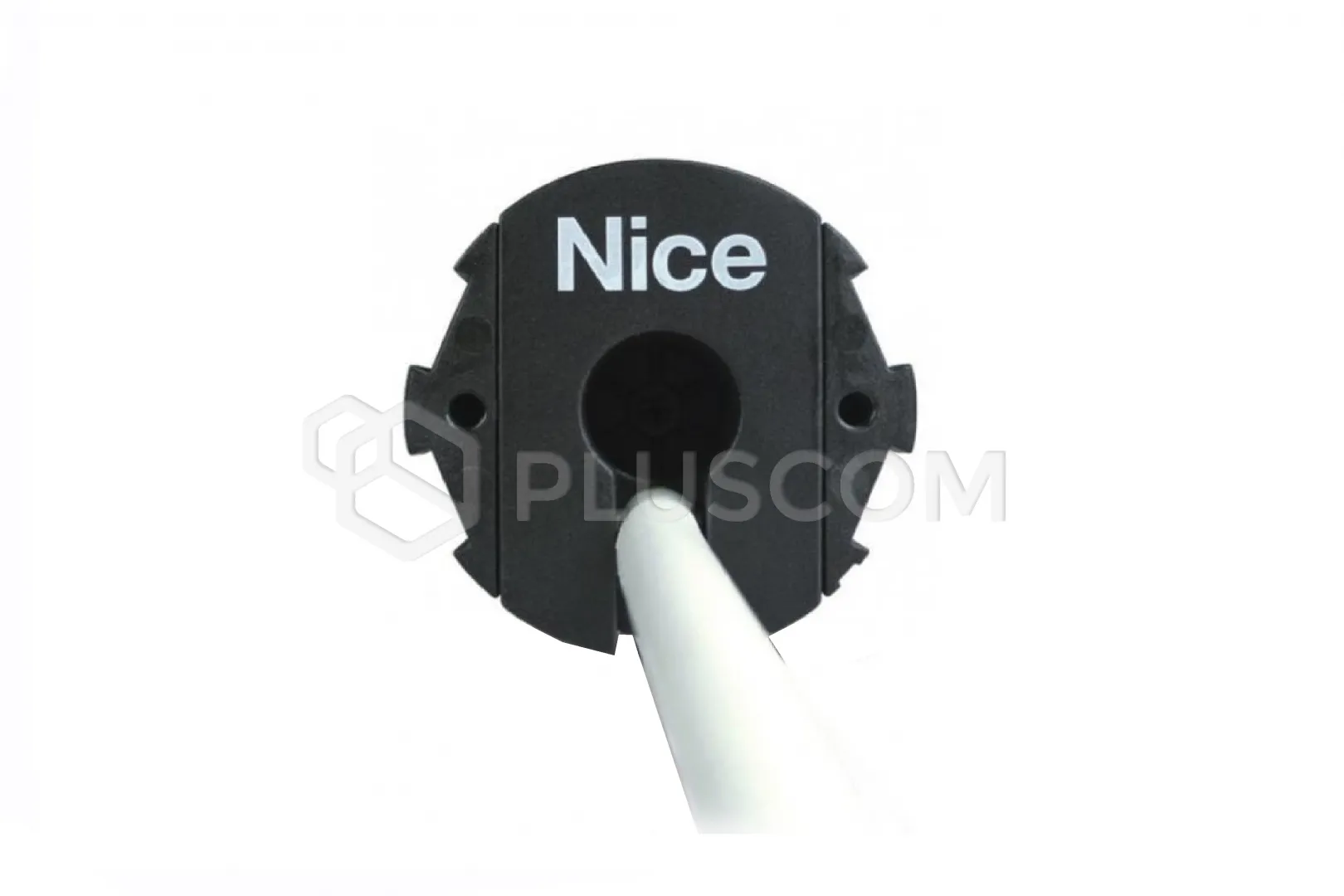

Nice Era Star SA 1011 35mm Roller Shutter Motor with Electronic Limit
Switch
Roller shutter motors with electronic limit switches and obstacle detection.
Ideal for roller shutters and window coverings.
Size S Ø35 mm.
Complete and intuitive programming
Programming is even more complete
and intuitive.
Convenient adjustment of limit positions with a few simple operations,
performed using the control buttons or the TTU programmer, without the need to
open the window box.
Three different programming modes:
Automatic, semi-automatic, and
manual.
The roller shutter will confirm the correct settings with short movements of
the roller shutter.
Possibility of movement even when encountering an obstacle
Thanks to
the precise, continuous force control by the control unit.
This minimizes the risk of damage to the roller shutter if it encounters an
obstacle or if the roller shutter curtain freezes.
Obstacle detection:
If it encounters an obstacle, the roller shutter
stops and briefly moves in the opposite direction.
The amperometric sensitivity can be adjusted.
For ERA STAR SA, the use of locking brackets is recommended.
Maximum precision
When the roller shutter is
locked in the raising and lowering end positions, dynamic, automatic updating
of the position limiters (only for automatic and semi-automatic modes) allows
for the reading of the programmed position parameters to compensate for any
elongation or shortening of the roller shutter structure over time, caused by
material aging or changing climatic conditions.
Intelligent encoder technology
Guarantees
millimeter precision, reliability, and retention of set end position values,
programmed force, and other settings over time.
Built-in control unit
Enables parallel
connection of motors and control from a single point without the need for
additional control devices.
Time-saving and simple electrical
connections:
Double insulation eliminates the need for
grounding.
Low power consumption in stand-by mode (less than 0.5 W).
Technical Specifications:
- Power Supply: 230V/50Hz
- Current Consumption: 0.54 A
- Power: 120 W
- Power Consumption in Stand-by Mode: Less than 0.5 W
- Torque: 10 Nm
- Speed: 11 rpm
- Lifted Load: 18 kg
- Number of Rotations: Over 100
- Continuous Operation Time: 4 min
- Length: 496 mm
- Motor Weight: 2.45 kg
- Packaging Dimensions: 90x90x530 mm
- Cable length: 2.5 m
