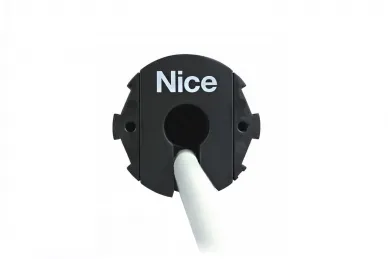

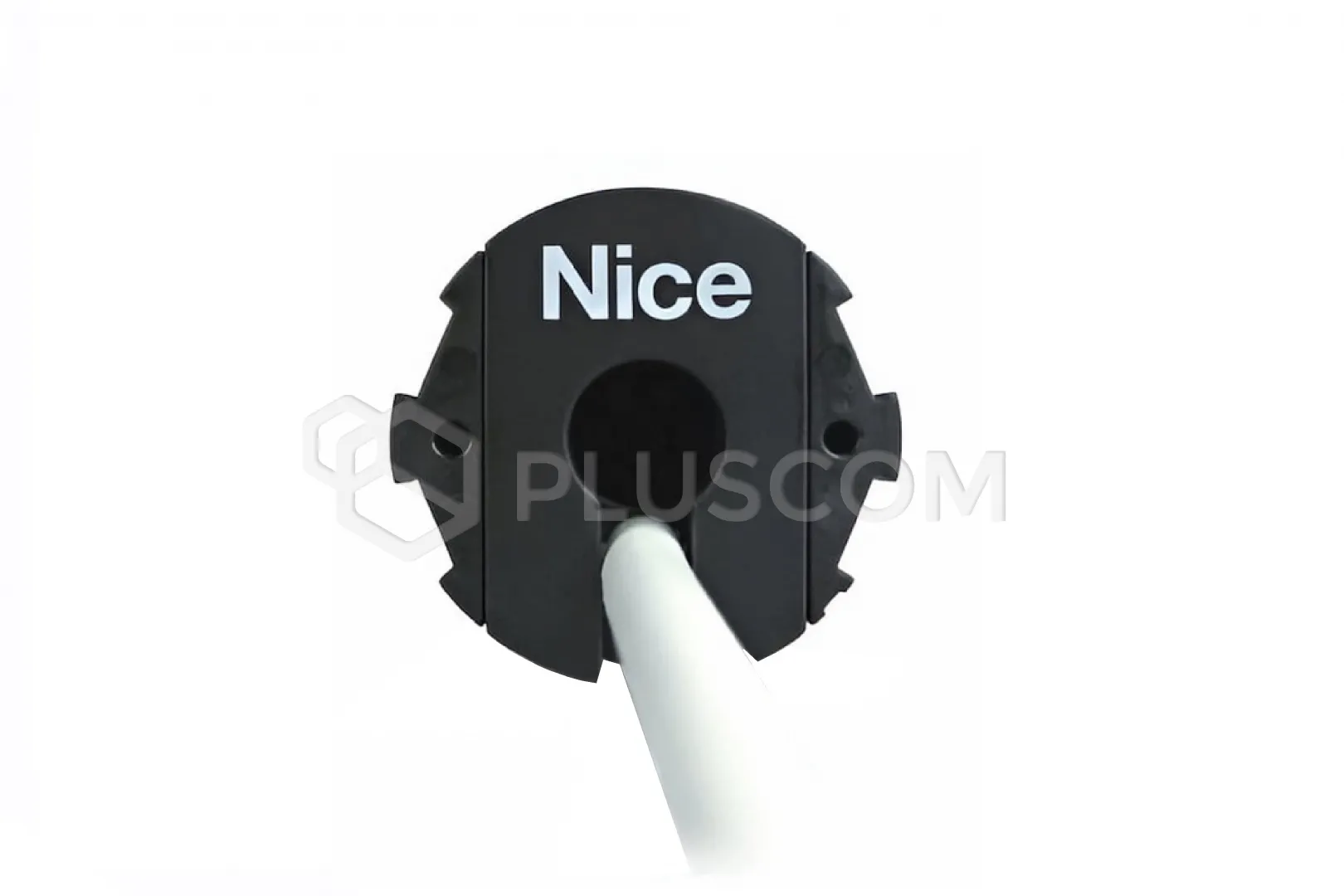

Nice Era S 611 35mm Roller Shutter Motor with Mechanical Switch

87,07 EUR including 23.00% VAT
Product code: #43513
Manufacturer: Nice
  • Diameter: 35 mm
  • Mechanical limit switch
  • Torque: 6 Nm
  • Speed: 11 rpm
  • Lifting weight: 12 kg
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Nice Era S 611 35mm Roller Shutter Motor with Mechanical Switch


Roller shutter motor with mechanical limit switch.
Ideal for roller shutters and sunshades. Size Ø 35 mm.

Available in multiple versions:

3 Nm and 5 Nm with a rotation speed of 24 rpm.

Short actuator:

Motor length only 402 mm. Ideal when a quiet motor is required.

Simple and practical:

Intuitive and simple adjustment of the open and close limit switches.

Easy installation:

Thanks to the compact bracket using a click system.

Climate sensors can be connected wirelessly or via external control units.

Save time and make electrical connections simple:

Thanks to double insulation, there's no need for grounding.

Technical Specifications:

  • Power Supply: 230/50 (Vac/Hz)
  • Current Consumption: 0.40 A
  • Power: 90 W
  • Power Consumption in Stand-by Mode: Less than 0.5 W
  • Torque: 6 Nm
  • Speed: 11 rpm
  • Lifted Load: 12 kg
  • Number of Rotations: 35
  • Continuous Operation Time: 4 min
  • Length: 402 mm
  • Motor Weight: 1 kg
  • Packaging Dimensions: 90x90x440 mm
  • Cable Length: 2.5 m
Download
User manual 1.3 MB
