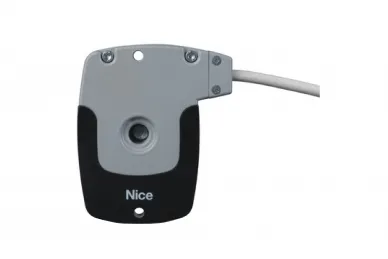

NICE ERA PLUS LH 6517 Roller shutter motor 65Nm, 17 rpm
Roller shutter motors with mechanical limit switches, built-in FLOR radio
receiver and TTBus technology, and NHK manual emergency override.
Ideal for roller shutters, awnings, and roller doors.
Size L Ø58 mm.
Simple and intuitive programming.
Easy programming of limit positions via a push-button. Remote programming of
functions using a roller shutter remote control or the O-Vie TT and TTP
programmer.
During programming, the roller shutter will confirm the correct settings with
short movements of the roller shutter.
Safe and fast programming.
This function allows you to quickly correct incorrect parameters without having
to restore factory settings and start the programming procedure over again.
Thanks to Nice TTBus technology (2-wire), motor movement can be controlled by a
bell button (STEP-BY-STEP) for individual devices or the entire installation.
Connection of 210S photocells and O-View TT and TTP programmers is possible.
Transmitter programming in 2 modes: Mode I (standard, 3 UP, STOP, DOWN buttons)
Mode II (STEP-BY-STEP, with only one button).
Memory for up to 30 remote controls.
Powerful - versatile application thanks to a torque of up to 120 Nm.
Low power consumption in STAND-BY mode (less than 0.5 W).
Possibility of connecting photocells and a resistance strip.
Technical Specifications:
- Power Supply (Vac/Hz): 230/50
- Current Consumption (A): 1.80
- Power (W): 420
- Power Consumption in Stand-by Mode (W): Less than 0.5
- Speed (rpm): 17
- Number of Rotations: 28
- Continuous Operation Time (min): 4
- Length (mm): 910
- Motor Weight (kg): 7.70
- Packaging Dimensions (mm): 144x148x1003
