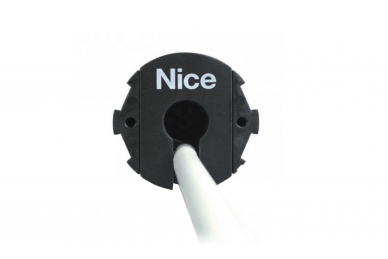

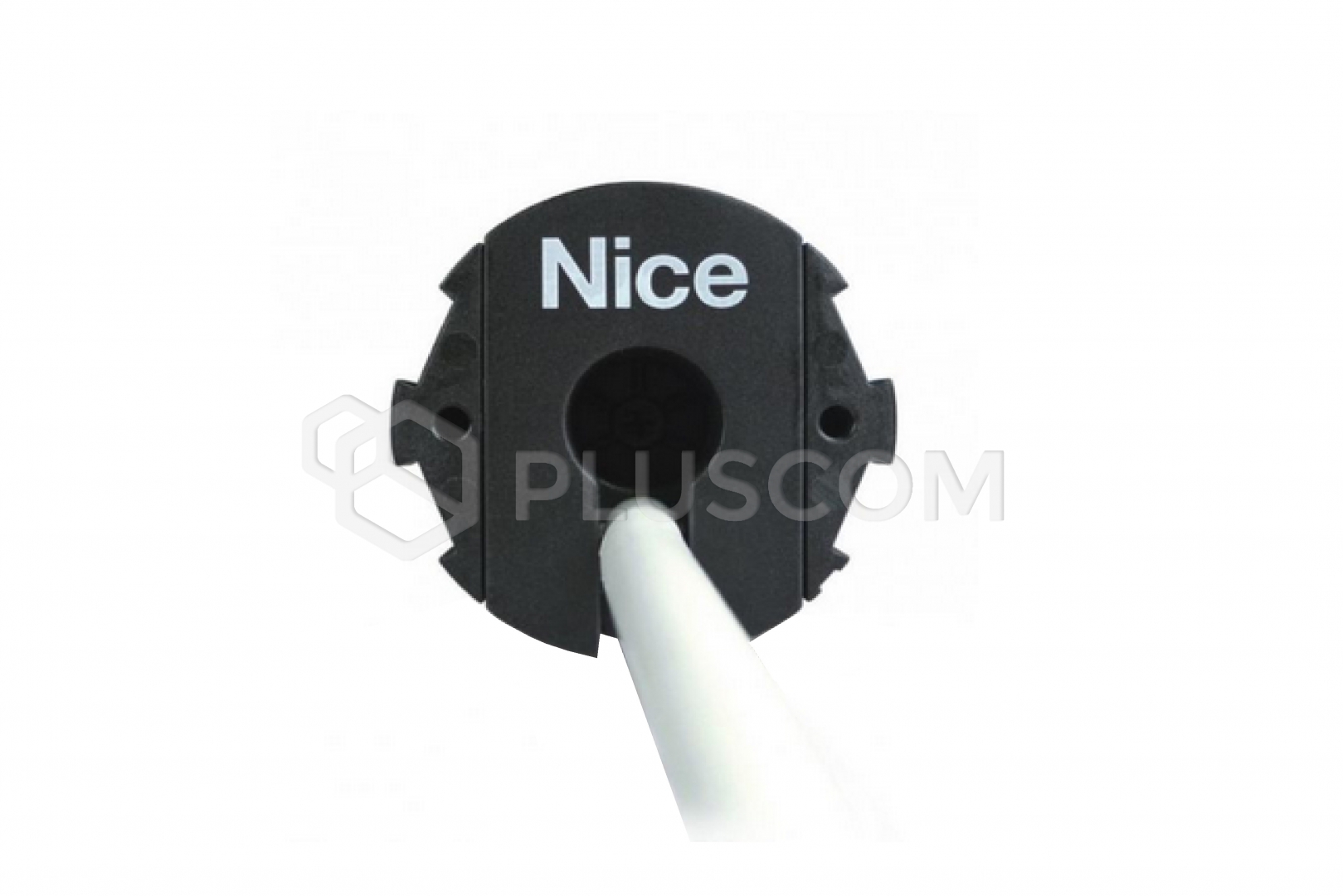

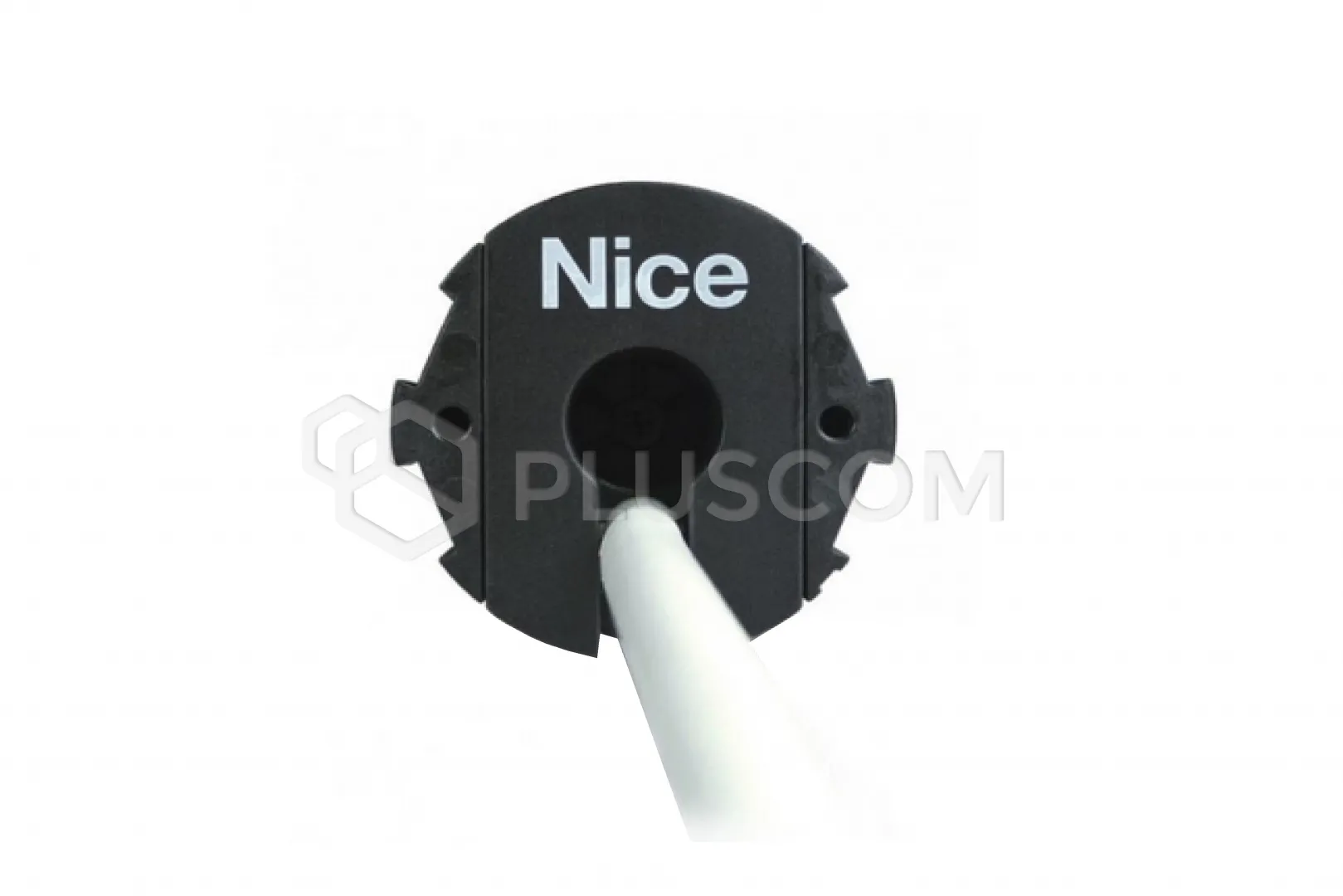

Nice Era Mat SA 1011 Motor for window rolling shutters
Roller shutter motors with electronic limit switches, built-in FLOR radio
receiver, and TTBus technology.
Ideal for roller shutters.
Size S Ø35 mm.
Complete and intuitive programming.
Convenient remote programming of limit positions using a roller shutter remote
control or the O-View TT and TTP programmer.
Three different controllable programming modes: automatic, semi-automatic, and
manual.
The roller shutter confirms the correct settings with short movements of the
roller shutter.
Safe and fast programming.
This function allows you to quickly correct incorrect parameters without having
to restore factory settings and start the programming process over again.
Movement is possible even if it encounters an obstacle, thanks to the precise,
continuous force control by the control unit. This minimizes the risk of damage
to the roller shutter if it encounters an obstacle or if the roller shutter
curtain freezes.
Obstacle detection. If it encounters an obstacle, the roller shutter will stop
and briefly move in the opposite direction. Amperometric sensitivity can be
adjusted.
Thanks to Nice TTBus (3-wire) technology, the motor's movement can be
controlled using a button.
The built-in TTBus control unit allows for parallel connection of motors and
control from a single point without the need for additional control devices.
Built-in radio receiver. Easy remote control learning without having to
disconnect and reconnect the motor after learning the first roller shutter
remote. Programming in two modes. Radio climate sensors can be learned or
connected via wire.
Maximum precision when locking the roller shutter in the up and down end
positions thanks to dynamic, automatic updating of the position limiters (for
automatic and semi-automatic modes only). This, after reading the programmed
position parameters, allows compensation for any expansion or contraction of
the roller shutter structure over time, caused by material aging or changing
climatic conditions.
Intelligent encoder technology guarantees millimeter precision, reliability,
and retention of the set end position values, programmed force, and other
settings over time.
Programmable comfort position for the roller shutter.
Time-saving and simple electrical connections: thanks to double insulation,
there is no need for grounding.
Low power consumption in STAND-BY mode (less than 0.5 W).
Technical Specifications:
- Power Supply (Vac/Hz): 230/50
- Current Consumption (A): 0.54
- Power (W): 120
- Power Consumption in Stand-by Mode (W): Less than 0.5
- Torque (Nm): 10
- Speed (rpm): 11
- Lifted Weight (kg): 18
- Number of Rotations: Less than 100
- Continuous Operation Time (min): 4
- Length (L) (mm): 496
- Motor Weight (kg): 2.45
- Packaging Dimensions (mm): 90x90x530
