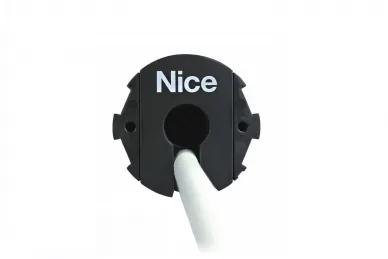

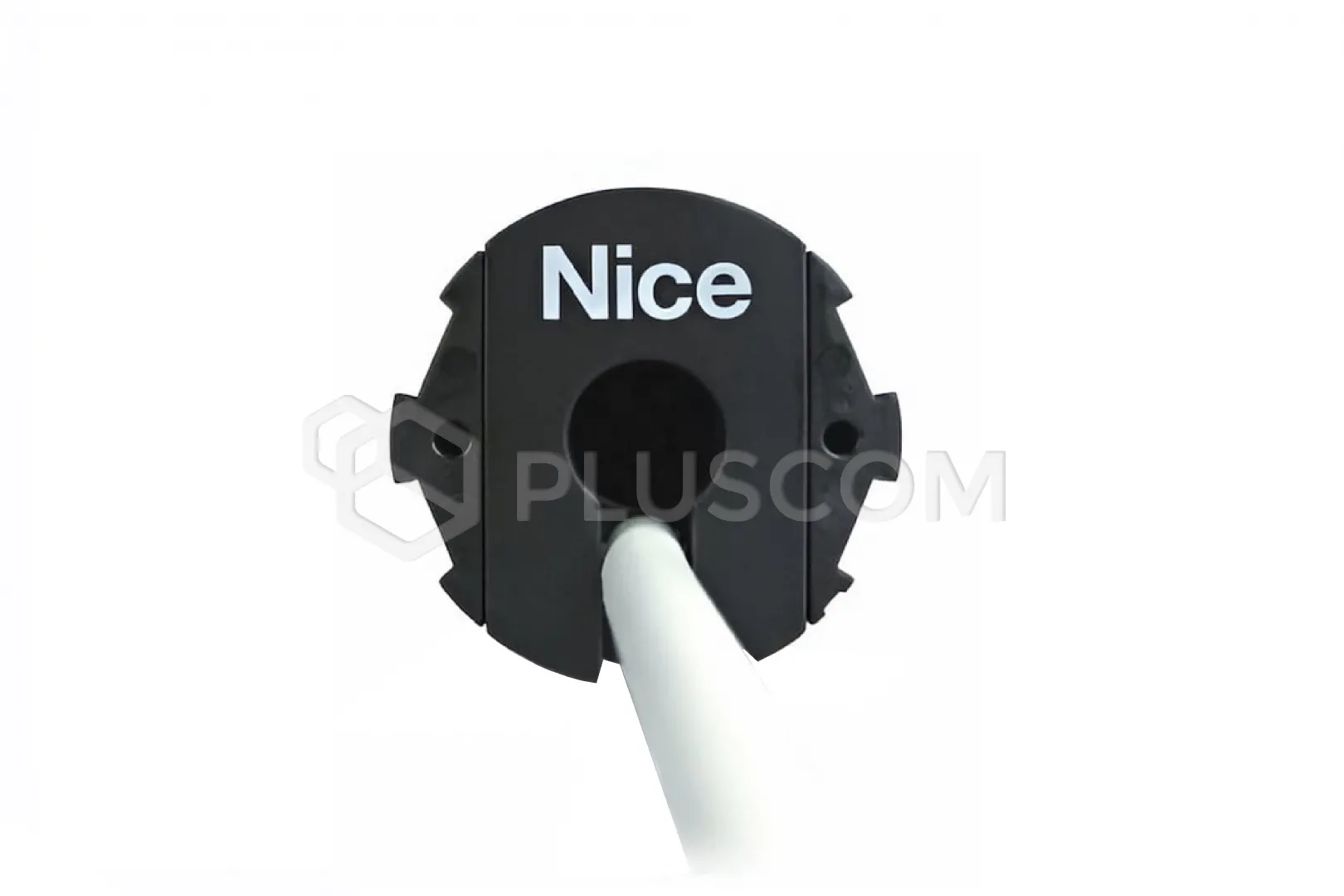

Nice Era Mat MT 426 45mm Roller Shutter Motor with Electronic Limit
Switch
Awning motor with electronic limit switch, built-in FLOR radio receiver, and
TTBus technology.
Size M Ø 45 mm.
Complete and intuitive programming:
Convenient remote programming of
limit positions using a roller shutter remote control or the O-View TT and TTP
programmer.
Three different controllable programming modes: automatic, semi-automatic, and
manual.
The awning will confirm correct settings with short movements.
Safe and fast:
Thanks to the quick programming function, if incorrect
parameters are entered, they can be quickly corrected without having to restore
factory settings and start the programming procedure over again.
Possibility of movement in the event of an obstacle:
Thanks to the
precise, continuous force monitoring by the control unit, the risk of damage to
the awning is minimized.
Ability to program the awning's comfort position.
Thanks to Nice TTBus technology (3-wire), motor movement can be controlled
using a button.
Built-in control unit:
Allows motors to be connected in parallel and
controlled from a single point without the need for additional control devices.
Built-in radio receiver:
Easy remote control memorization without
having to disconnect and reconnect the motor after the first roller shutter
remote control has been memorized.
Programming in two modes and the ability to memorize radio climate sensors or
connect them wired.
Intelligent encoder technology:
Guarantees millimeter precision,
reliability, and retention of set end position values, programmed force, and
other settings over time.
Exceptional features:
- FRT rolls the fabric to a pre-programmed position after
the awning is fully opened, eliminating unsightly fabric slack.
- RDC is a multi-level adjustable function with the TTP
programmer, a system that reduces torque just before closing, preventing
fabric deformation and stretching.
- FTC is a specific function that allows for the
automation of awnings with a locking mechanism and an automatic hook.
- FTA is a function that allows for the automation of
awnings with a locking mechanism and a manual hook. Intermediate positions
can be used using different attachment positions.
Technical specifications:
- Power supply: 230/50 (V AC/Hz)
- Current consumption: 0.5 A
- Power: 108 W
- Power consumption in stand-by mode: less than 0.5 W
- Torque: 4 Nm
- Speed: 26 rpm
- Number of revolutions: 92
- Continuous operation time: 4 min
- Length: 426 mm
- Motor weight: 1.85 kg
- Packaging dimensions: 90x90x465 mm
- Cable length: 2.5 m
