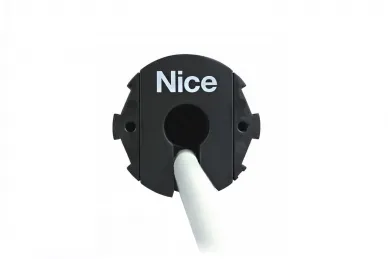

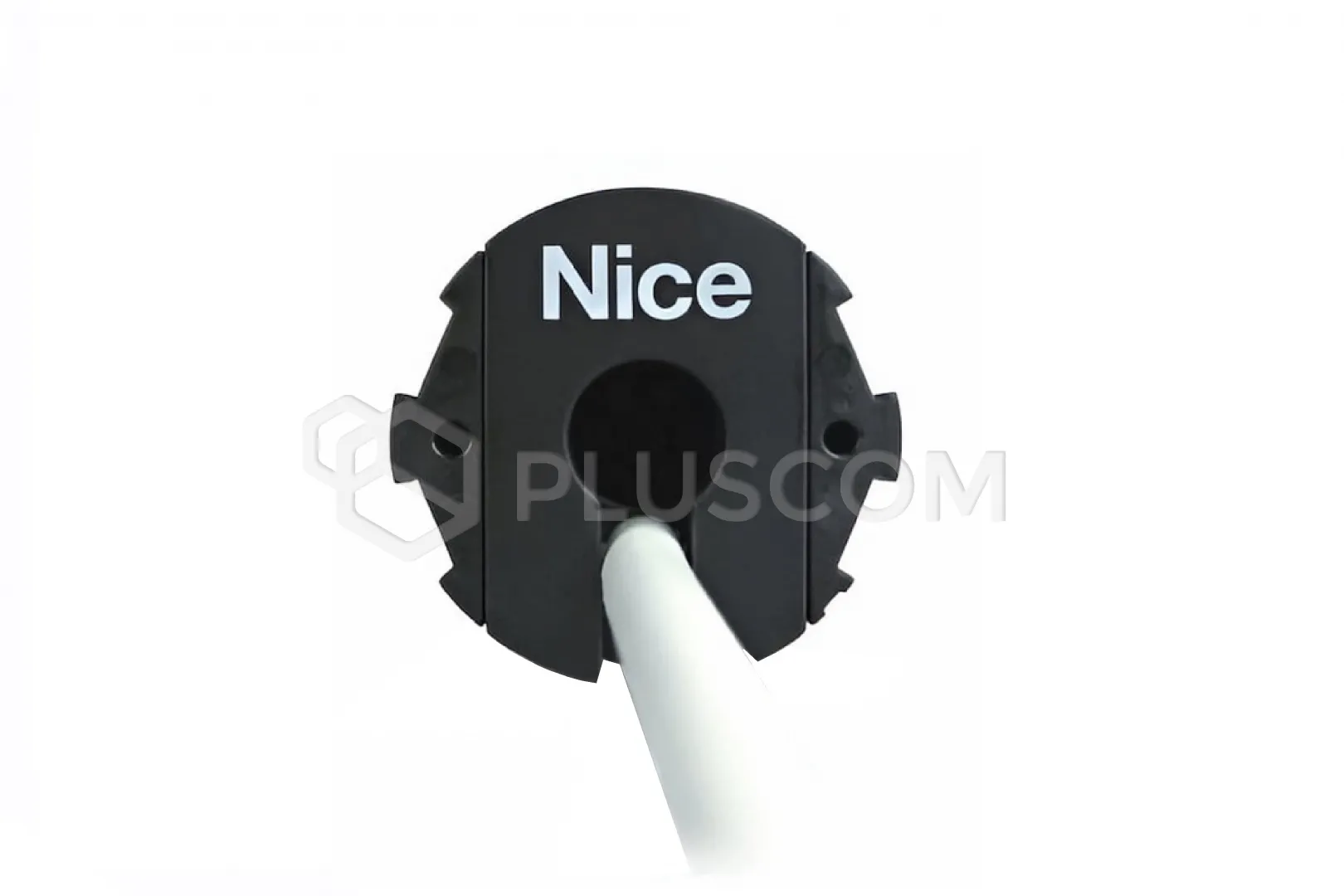

Nice Era Mat MT 1517 Awning motor with electronic limit switch
Awning motor with electronic limit switch, built-in FLOR radio receiver and
TTBus technology.
Size M Ø 45 mm.
Complete and intuitive programming:
Convenient remote programming of
limit positions using a roller shutter remote control or the O-View TT and TTP
programmer.
Three different controllable programming modes: automatic, semi-automatic, and
manual.
The awning confirms the correct settings with short movements.
Safe and fast:
Thanks to the quick programming function, if incorrect
parameters are entered, they can be quickly corrected without the need to
restore factory settings and start the programming procedure from scratch.
Possibility of movement upon encountering an obstacle:
Thanks to the
precise, continuous force control by the control unit, this minimizes the risk
of damage to the awning.
Possibility of programming a comfortable position for the awning.
Thanks to Nice TTBus (3-wire) technology, motor movement can be controlled
using a button.
Built-in control unit:
Enables parallel connection of motors and
control from a single point without the need for additional control devices.
Built-in radio receiver:
Easy remote control memorization without the
need to disconnect and reconnect the motor after memorizing the first roller
shutter remote. Possibility of programming in two modes and the memorization of
radio climate sensors or their wired connection.
Intelligent encoder technology:
Guarantees millimeter precision,
reliability, and retention of set end position values, programmed force, and
other settings over time.
Exceptional features:
- FRT rolls the fabric to a pre-programmed position after
the awning is fully opened, eliminating unsightly slack in the fabric.
- RDC is a multi-level adjustable function with the TTP
programmer, a system that reduces torque just before closing, preventing
fabric deformation and stretching.
- FTC is a specific function that allows for the
automation of awnings with a locking mechanism and an automatic hook.
-
FTA is a function that allows for the automation of
awnings with a locking mechanism and a manual hook. Possibility of using
intermediate positions using different attachment positions.
Technical specifications:
- Power supply: 230/50 (V AC/Hz)
- Current consumption: 0.75 A
- Power: 170 W
- Power consumption in stand-by mode: less than 0.5 W
- Torque: 15 Nm
- Speed: 17 rpm
- Number of revolutions: 92
- Continuous operation time: 4 min
- Length: 451 mm
- Motor weight: 2.45 kg
- Packaging dimensions: 90x90x500 mm
- Cable length: 2.5 m
