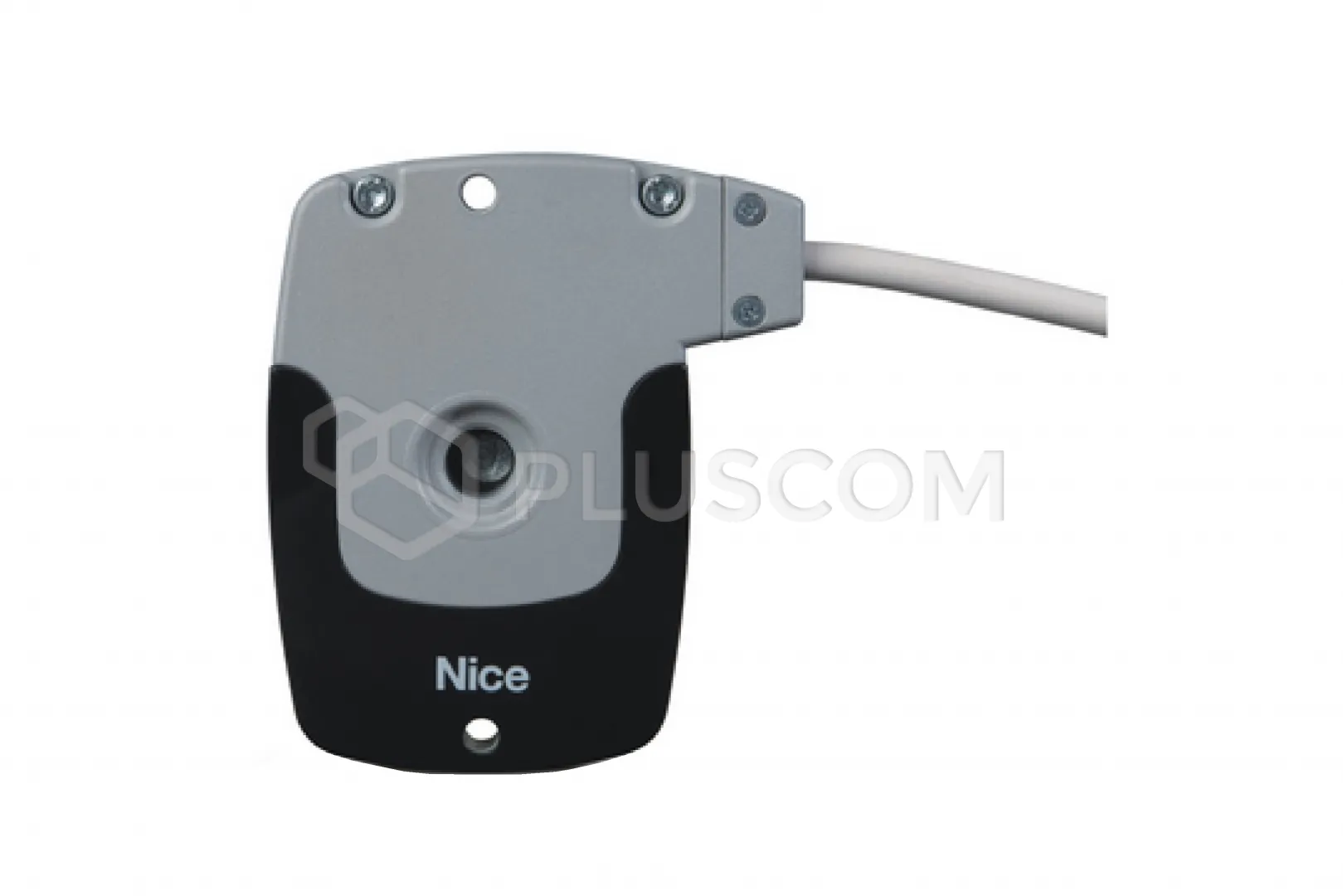

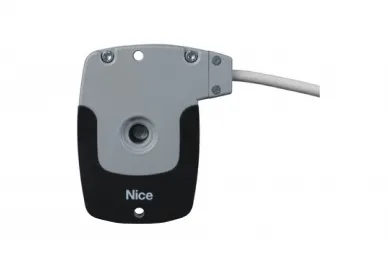

NICE ERA LH 6517 Roller shutter motor

312,92 EUR including 23.00% VAT
Product code: #14836
Manufacturer: Nice
  • mechanical limit switch
  • pipe diameter: 58mm
  • torque: 65Nm
  • speed: 17rot/min
  • maximum weight: 100 kg
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,55 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

NICE ERA LH 6517 Roller shutter motor


Motors for roller shutters, awnings, and roller doors with mechanical limit switches and NHK manual emergency operation.
Ideal for roller shutters, awnings, and roller doors.
Size L Ø58 mm.

Suitable and available in many versions:
  • 55, 65, and 75 Nm with a rotation speed of 17 rpm
  • 80, 100, and 120 Nm with a rotation speed of 12 rpm
Simple and practical - intuitive and simple adjustment of the open and close limit positions.

Powerful - versatile application thanks to a torque of up to 120 Nm.

Climate sensors can be connected via wired or wireless connection via external control units.

Low power consumption in STAND-BY mode (less than 0.5 W).

Technical Specifications:

  • Power Supply (Vac/Hz): 230/50
  • Current Consumption (A): 1.80
  • Power (W): 420
  • Power Consumption in Stand-by Mode (W): 0.5
  • Speed ​​(rpm): 17
  • Number of Rotations: 28
  • Continuous Operation Time (min): 4
  • Length (mm): 832
  • Motor Weight (kg): 7.34
  • Packaging Dimensions (mm): 144x148x1003
Download
Datasheet 0.61 MB
User manual 1.74 MB
