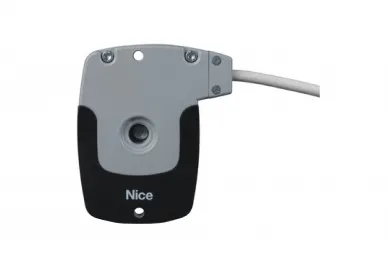

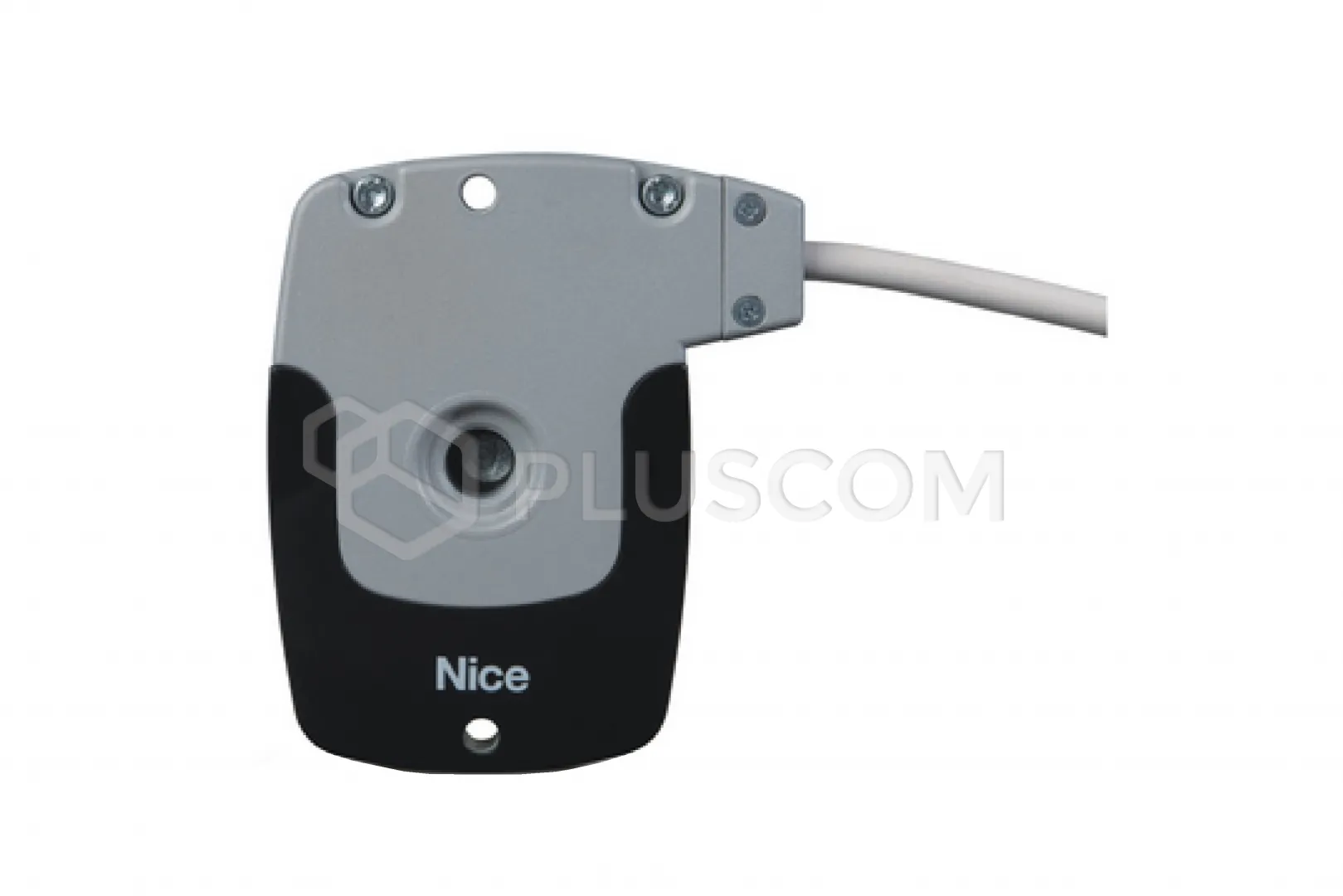

NICE ERA LH 5517 55 Nm Roller shutter motor 17 rpm

NICE ERA LH 5517 55 Nm Roller shutter motor 17 rpm

Motors for roller shutters, awnings, and roller doors with mechanical limit switches and NHK manual emergency operation.
Ideal for roller shutters, awnings, and roller doors.
Dimensions: Ø59 mm.

Suitable and available in many versions:

• 55, 65, and 75 Nm with a rotation speed of 17 rpm
• 80, 100, and 120 Nm with a rotation speed of 12 rpm

Simple and practical - intuitive and easy adjustment of the open and close limit positions.

Powerful - versatile application thanks to a torque of up to 120 Nm.

Climate sensors can be connected via wired or wireless connections using external control units.

Low power consumption in STAND-BY mode (less than 0.5W).

Technical Specifications:

• Power Supply (Vac/Hz): 230/50
• Current Consumption (A): 1.65
• Power (W): 360
• Power Consumption in Stand-by Mode (W): 0.5
• Speed ​​(rpm): 17
• Number of Rotations: 28
• Continuous Operation Time (min): 4
• Length (L) (mm): 832
• Motor Weight (kg): 7.34
• Packaging Dimensions (mm): 144x148x1003
