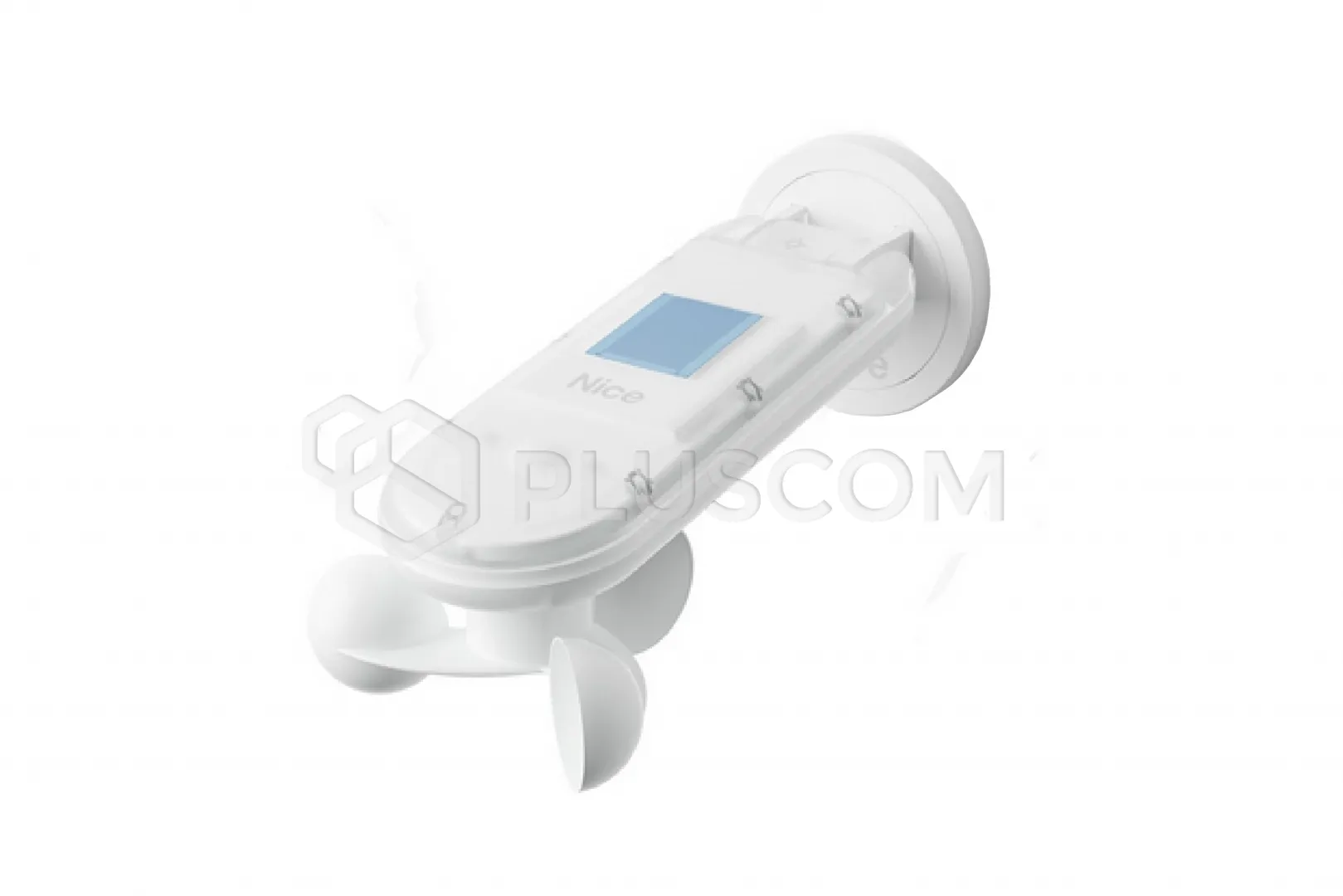

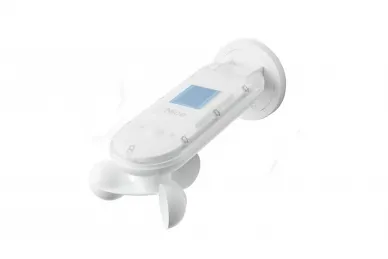

Nice DOMIWSR Domi Climate Sensor
Bidirectional Wind-Sun-Rain sensor, powered by the mains.
Domi sensors are available in three different versions: wind-sun,
wind-sun-rain, and wireless wind-sun. The bidirectional wind-sun and
wind-sun-rain sensors communicate with the control unit via radio and are
powered by the electrical grid.
The solar-powered, bidirectional wind-sun sensor is powered by solar energy.
The photovoltaic cells powering the sensor provide an energy reserve and
guarantee optimal and safe automation management.
Domi series products are easy and intuitive to program. They are compatible
with:
- Nice unidirectional tubular motors,
- Nice bidirectional tubular motors (up to two),
- control units with built-in unidirectional and bidirectional radio
receivers.
The new series of sensors is compatible with the Yubii ecosystem, meaning
users can manage them via the Yubii app, creating dedicated scenarios that
improve comfort in our homes.
Domi sensors have an IP55 protection rating. This means that, thanks to their
durable construction, they have a very long service life and are resistant to
adverse weather conditions, especially water. The wind threshold is now higher
at 120 km/h. Sensitivity to vertical air currents has also been optimized.
With the MyNice Pro app, you can easily change the sensors' factory
settings.
Technical Specifications:
- Power supply (VAC 50/60 Hz): 110/230
- Transmission frequency (MHz): 433
- Radio coding: BiDi/backward compatible with unidirectional
- Radiation power (mW): 1
- Range: 100 m outdoors and 20 m indoors
- Protection class (IP): 55
- Operating temperature range (°C min/max): -20 +60
- Dimensions (mm): 85x225x114
- Weight: 236
WIND SENSOR:
- Measuring range (km/h): 10 - 120
- Resolution (km/h): 1
- Trigger threshold (km/h): 20 - 100
SUN SENSOR:
- Resolution (klux): 0 - 83
- Trigger threshold (klux): 5 - 60
RAIN SENSOR:
- Measuring range: On - Off
