Motor for window rolling shutters ERA XLH 30012

996,64 EUR including 23.00% VAT
Product code: #14943
Manufacturer: Nice
  • mechanical limit switch
  • pipe diameter: 90mm
  • torque: 300Nm
  • speed: 12rot/min
  • lifted weight: 405kg
  • manual emergency override mechanism NHK
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Motor for window rolling shutters ERA XLH 30012



The ERA XLH 30012 tubular motor is the ideal engine for large automation roller shutters, awnings or even rolling gates. It has mechanical limit switches and is in fully compatible with NICE control systems.
The XLH 30012 is a powerful and fast motor with torque up to 300Nm in full comfort and 12 rot/min. It was equipped with a manual mechanism emergency which gives us the guarantee of rolling blind without power. When the handle is used, the manual drive is activated automatically.
Safe, thanks to the possibility of combining safety accessories such as the drop-prevention device and sensitive edge.

Length 3m, 4 wires in cable.

TECHNICAL PARAMETERS:
  • power: 230V AC
  • power: 1250W
  • power consumption: 5.4A

  • torque: 300Nm
  • speed: 12rot/min
  • number of turns: 36
  • work time: 5min
  • lifted weight: 405kg

  • motor weight: 13.8kg
  • length: 639mm
  • IP44

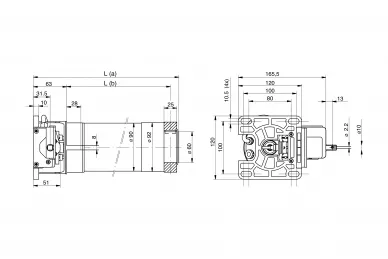

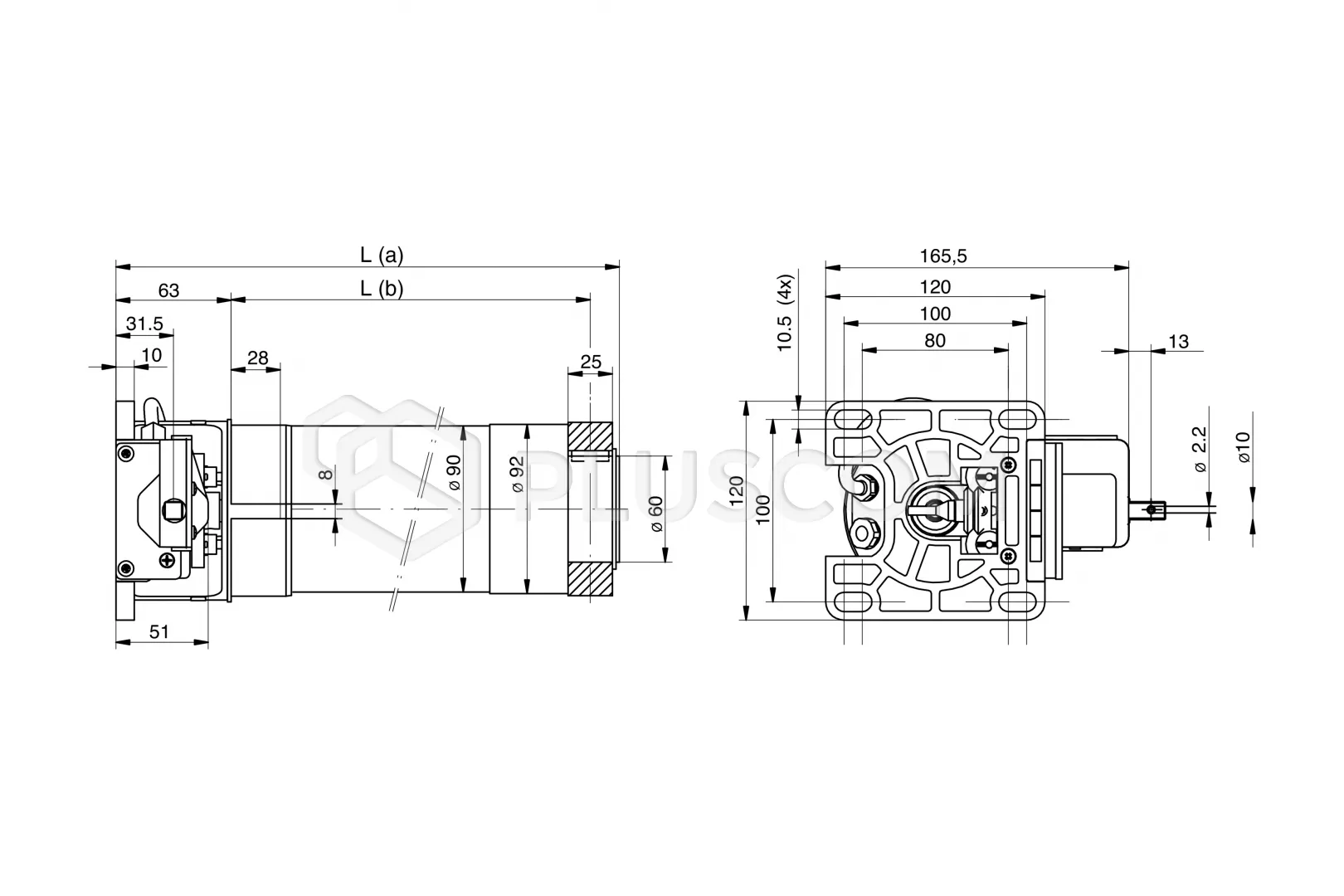

Dimensions:

Dimensions:


Download
Manual 1.7 MB
Datasheet 12.7 MB
