Motor for window rolling shutters ERA STAR MT 4012

196,46 EUR including 23.00% VAT
Product code: #14909
Manufacturer: Nice
  • electronic limit switch
  • pipe diameter: 45mm
  • torque: 50Nm
  • speed: 12rot/min
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

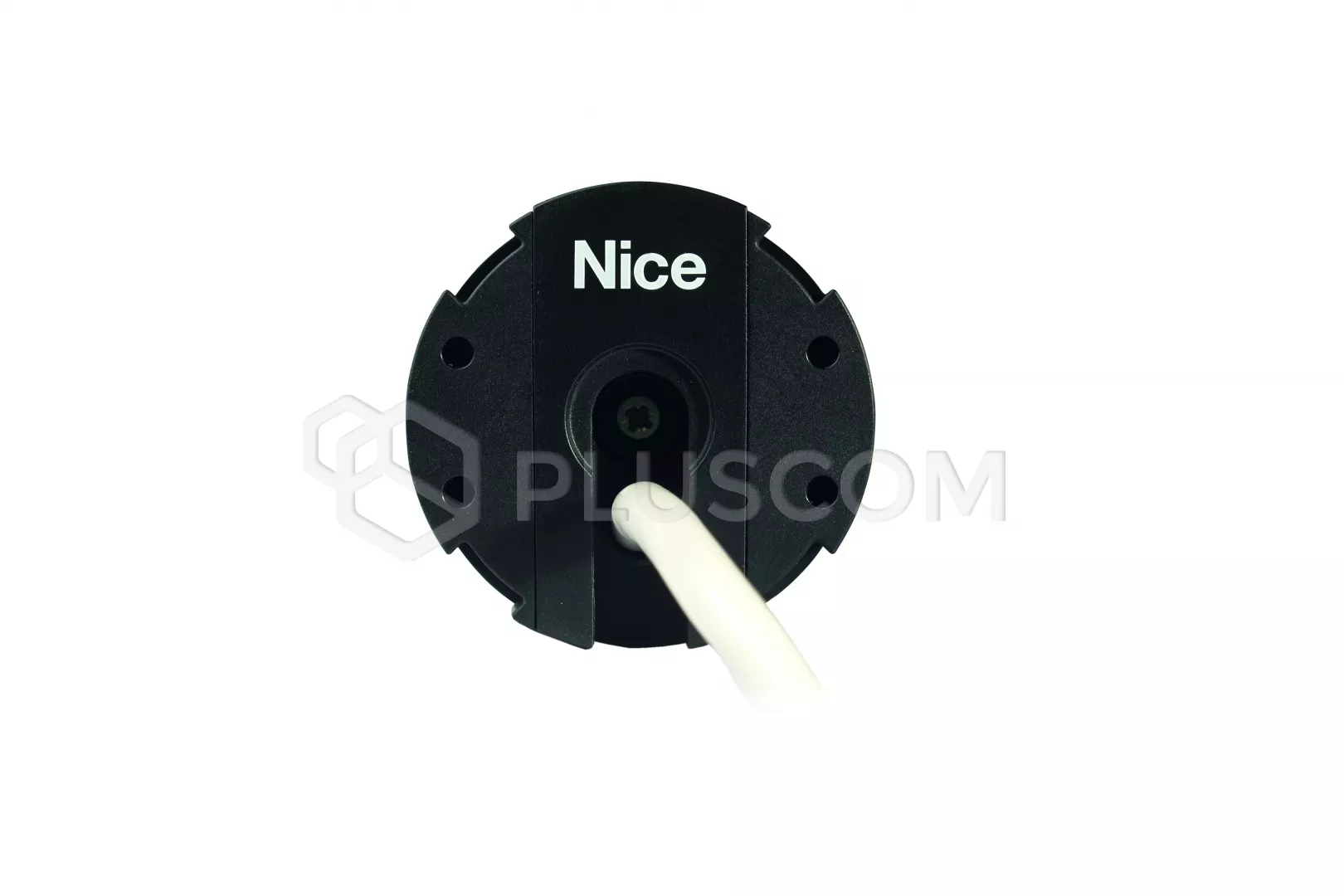

Motor for window rolling shutters ERA STAR MT 4012



The ERA STAR MT 4012 tubular motor is the ideal roller motor for roller shutters. has electronic limit switch and easy and intuitive software. We can set three different controlled programming modes:
  • manual
  • automaic
  • semi-automatic
By using short movements, the blind confirms the correctness of the settings.

Safety for the automation.
Low power consumption in STAND-BY mode (less than 0.5 W).
For-wire cable 2.5m long.

FUNCTIONS:
  • FTC - specific for awnings with locking and manual mechanisms hooking
  • FTA - specific for awnings with locking and manual mechanisms fastening, It guarantees the right tension of the canvas in one or several positions in which the manual locking mechanism is set
  • In automatic and semi-automatic mode the engine retains maximum precision when locking the blind in end positions lifting and lowering thanks to dynamic and automatic updating position limiters


TECHNICAL PARAMETERS:
  • power: 230V AC
  • power: 245W
  • power consumption: 1.10A

  • torque: 40Nm
  • speed: 12rot/min
  • number of turns: 92
  • work time: 4min

  • motor weight: 2.65kg
  • length: 486mm
  • IP44
Download
Instruction 5.42 MB
