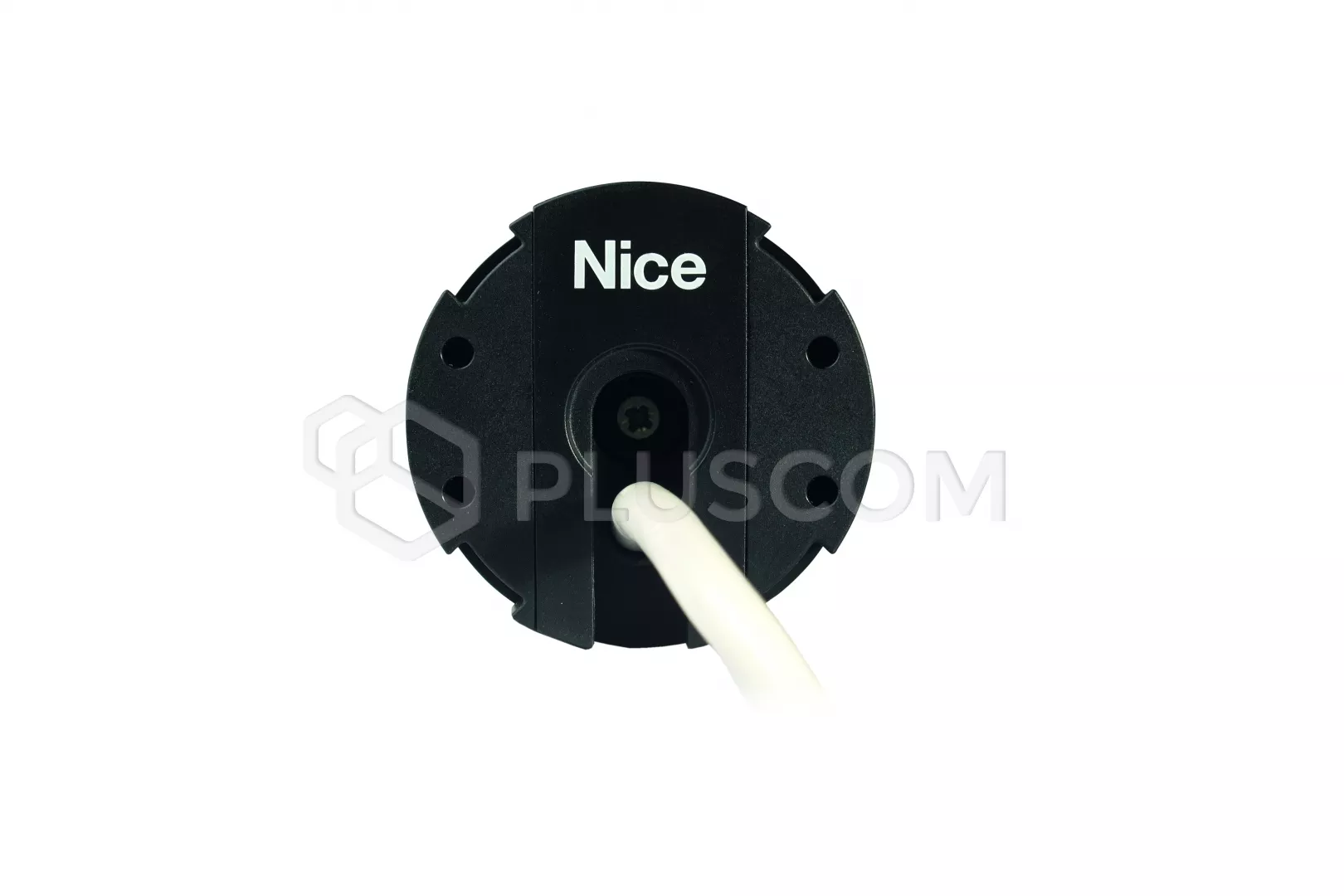

Motor for window rolling shutters ERA STAR MP 817

106,03 EUR including 23.00% VAT
Product code: #14860
Manufacturer: Nice
  • electronic limit switch
  • pipe diameter: 45mm
  • torque: 8Nm
  • speed: 17rot/min
  • obstacle detection, PLUG AND PLAY system

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Motor for window rolling shutters ERA STAR MP 817



The ERA STAR MP 817 tubular motor is the ideal roller motor for roller shutters. has electronic limit switch, motion detection and is equipped with complete and intuitive software. The ERA STAR MP model is an ideal solution for windows that produce windows and blinds, because it can be programmed in the production phase or directly on the assembly. The PLUG AND PLAY system used makes the installation very simple because it is not we must program the extreme positions..

The intelligent encoder technology guarantees us millimeter precision, reliability and preservation of terminal settings over time, programmed force or other settings.

In automatic and semi-automatic mode, the engine retains maximum precision when locking the blind in end positions lifting and lowering thanks to dynamic and automatic updating position limiters.
If an obstacle is detected, the motor reverses the manoeuvre and rewinds the rolling shutter for 50%.
The release function causes that the opening and closing positions are reached the engine stops the movement smoothly, without any effort or jerks.

The control panel gives the possibility to connect motors and controls in parallel one point without the need for additional control devices.
Low power consumption in STAND-BY mode (less than 0.5 W).
Four-wire 2.5m cable.

TECHNICAL PARAMETERS:
  • power: 230V AC
  • power: 120W
  • power consumption: 0.55A

  • torque: 8Nm
  • speed: 17rot/min
  • number of turns: 92
  • work time: 4min

  • motor weight: 2.15kg

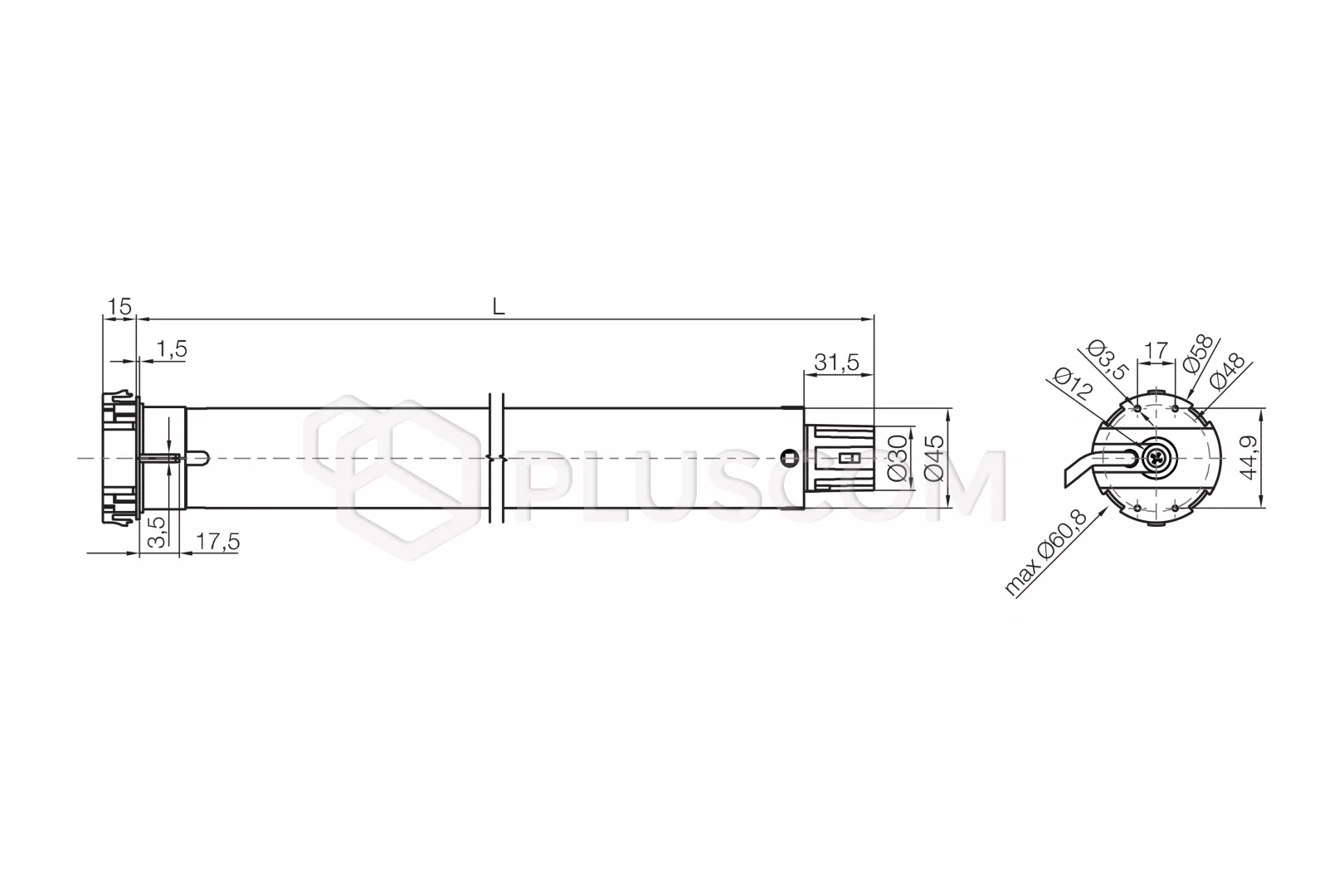

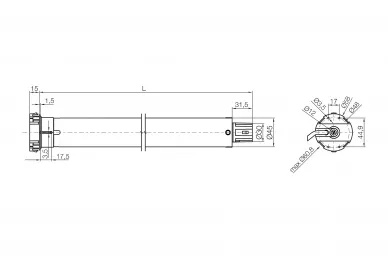

  • length: 426mm
  • IP44
