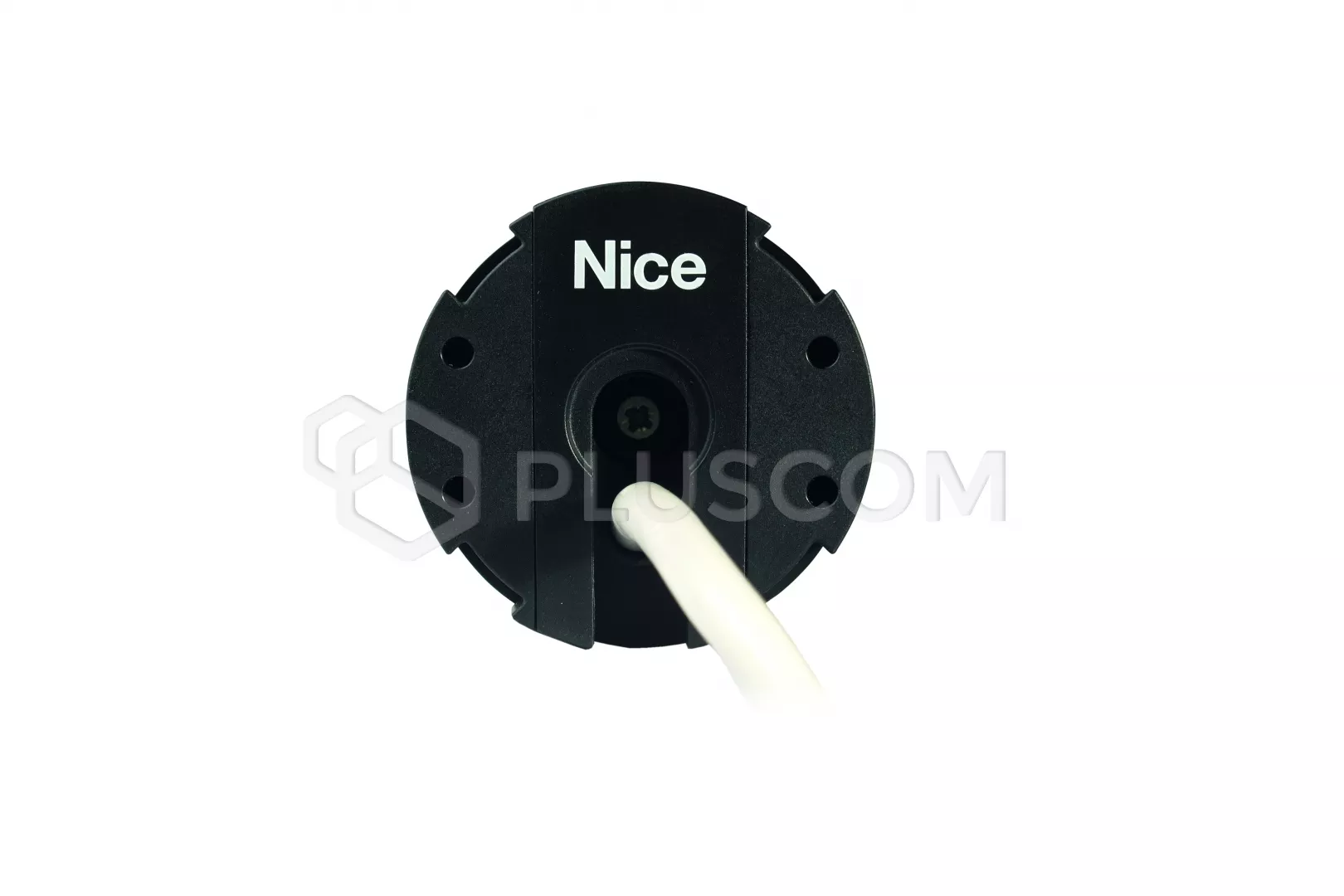

Motor for window rolling shutters ERA STAR MP 1517
The ERA STAR MP 1517 tubular motor is the ideal roller motor for roller
shutters. has electronic limit switch, motion detection and is equipped with
complete and intuitive software. The ERA STAR MP model is an ideal solution for
windows that produce windows and blinds, because it can be programmed in the
production phase or directly on the assembly. The PLUG AND PLAY system used
makes the installation very simple because it is not we must program the
extreme positions.
The intelligent encoder technology guarantees us millimeter precision,
reliability and preservation of terminal settings over time, programmed force
or other settings.
In automatic and semi-automatic mode, the engine retains maximum precision when
locking the blind in end positions lifting and lowering thanks to dynamic and
automatic updating position limiters.
If an obstacle is detected, the motor reverses the manoeuvre and rewinds the
rolling shutter for 50%..
The release function causes that the opening and closing positions are reached
the engine stops the movement smoothly, without any effort or jerks.
The control panel gives the possibility to connect motors and controls in
parallel one point without the need for additional control devices.
Low power consumption in STAND-BY mode (less than 0.5 W).
Four-wire 2.5m cable.
TECHNICAL PARAMETERS:
- power: 230V AC
- power: 170W
- power consumption: 0.75A
- torque: 15Nm
- speed: 17rot/min
- number of turns: 92
- work time: 4min
- Lifted weight: 28kg
- motor weight: 2.15kg

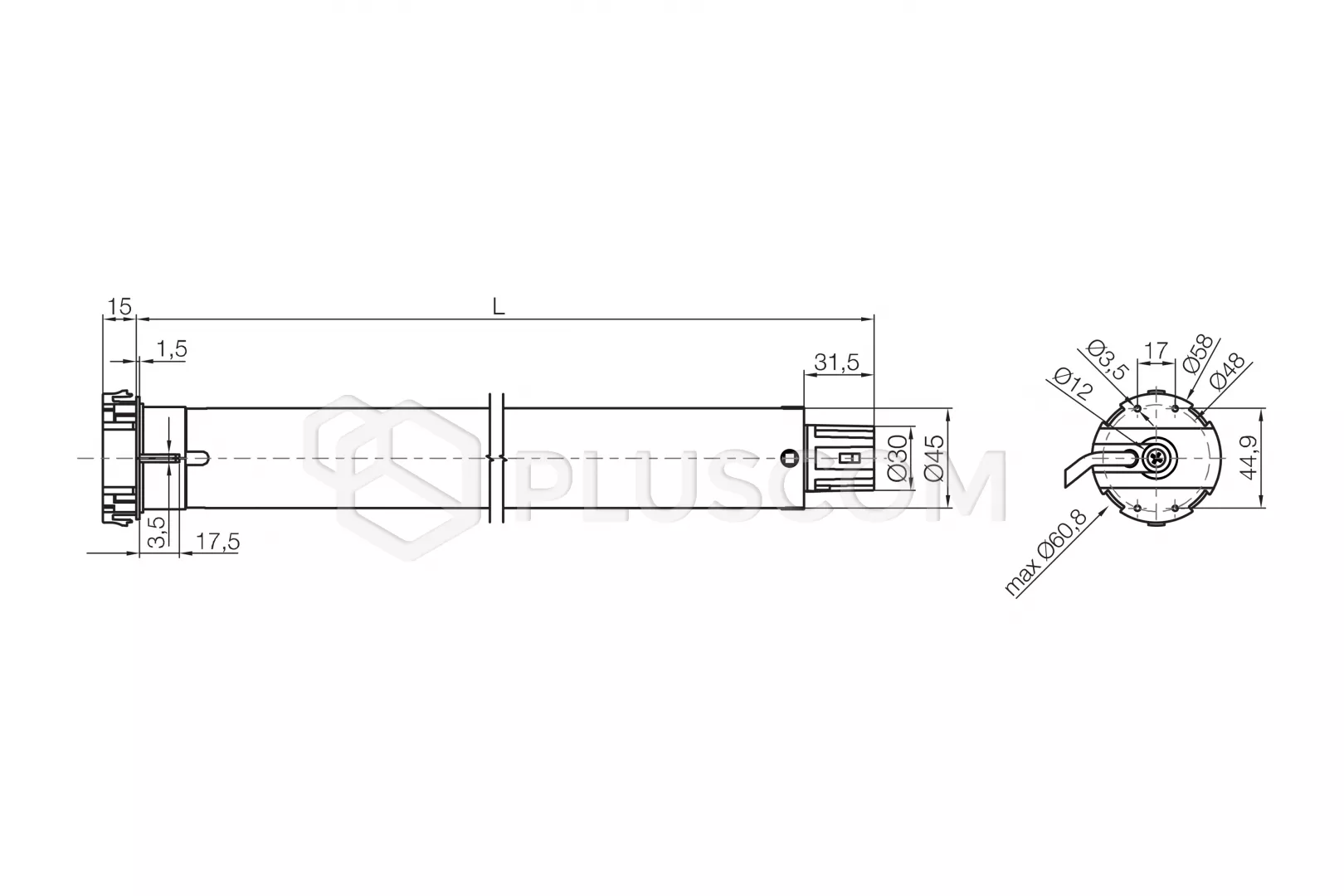

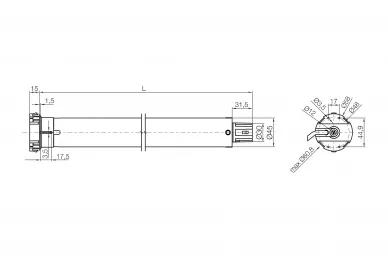

- length: 451mm
- IP44
