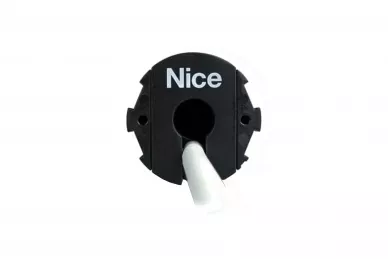

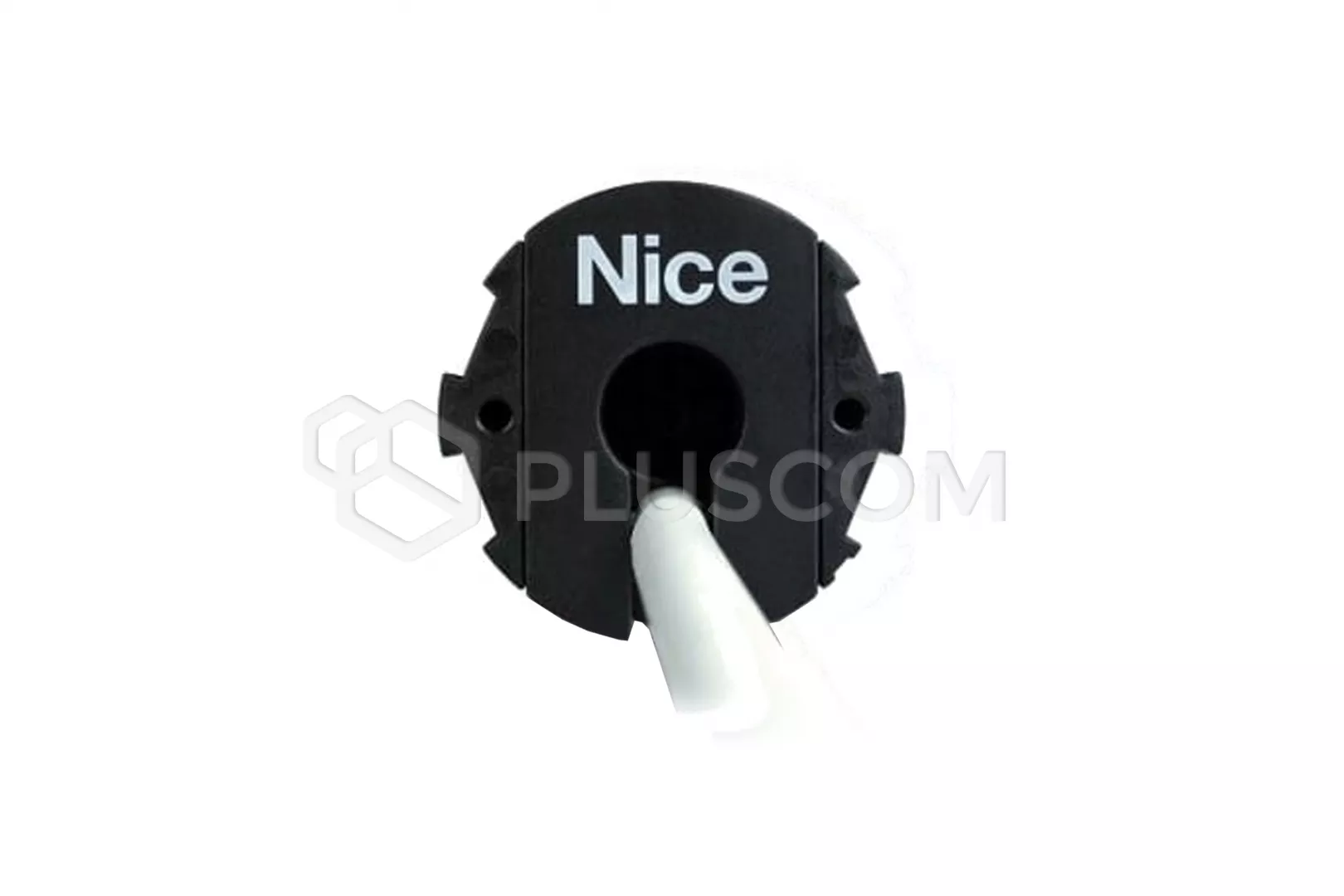

Motor for window rolling shutters ERA STAR MA 517

122,99 EUR including 23.00% VAT
Product code: #14848
Manufacturer: Nice
  • electronic limit switch
  • pipe diameter: 45mm
  • torque: 5Nm
  • speed: 17rot/min
  • obstacle detection
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Motor for window rolling shutters ERA STAR MA 517



ERA STAR MA 517 is the ideal engine for roller shutters and window screens. has electronic position limit switch and is equipped with complete and intuitive software. With a few simple operations, through buttons control or TTU, the adjustment of the end positions is very simple and convenient, there is no need to open the window box.
We have three programming modes:
  • manual
  • automatic
  • semi-automatic
Intelligent encoder technology gives us a millimeter guarantee precision, reliability and preservation over time of connection settings extreme, programmed strength or other settings. Built-in control panel The control system makes it possible to connect the motors in parallel and to try them with one point without having to use additional control devices. Short power consumption in STAND-BY mode (less than 0.5 W). Four-wire cable o 2.5m long.

FUNCTIONS:
  • The ability to move even if you encounter an obstacle - thanks precise, constantly controlling the power by the switchboards. Thanks to that we minimize the possibility of damaging the blind if you encounter it obstacle or freezing of the roller blind
  • Detection of obstacles - when the blind meets an obstacle, will stop and make a short move in the opposite direction. We have the opportunity regulation of amperometric sensitivity
  • Maximum precision when locking the blind in positions extreme lifting and lowering - thanks to the dynamic, automatic update position limiters (only for automatic mode and semiautomatic), which after reading the programmed position parameters allows you to compensate for the elongation or shortening of the structure over time blinds, caused by material aging
TECHNICAL PARAMETERS:
  • power: 230V AC
  • power: 75W
  • power consumption: 0.33A

  • torque: 5Nm
  • speed: 17 rot/min
  • max. number of turns: 92
  • work time: 4min
  • lifted weight: 9kg

  • motor weight: 2.15kg

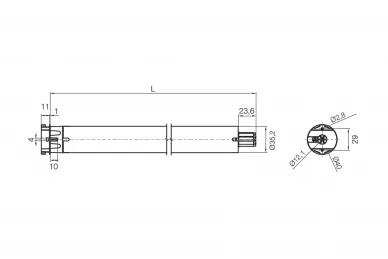

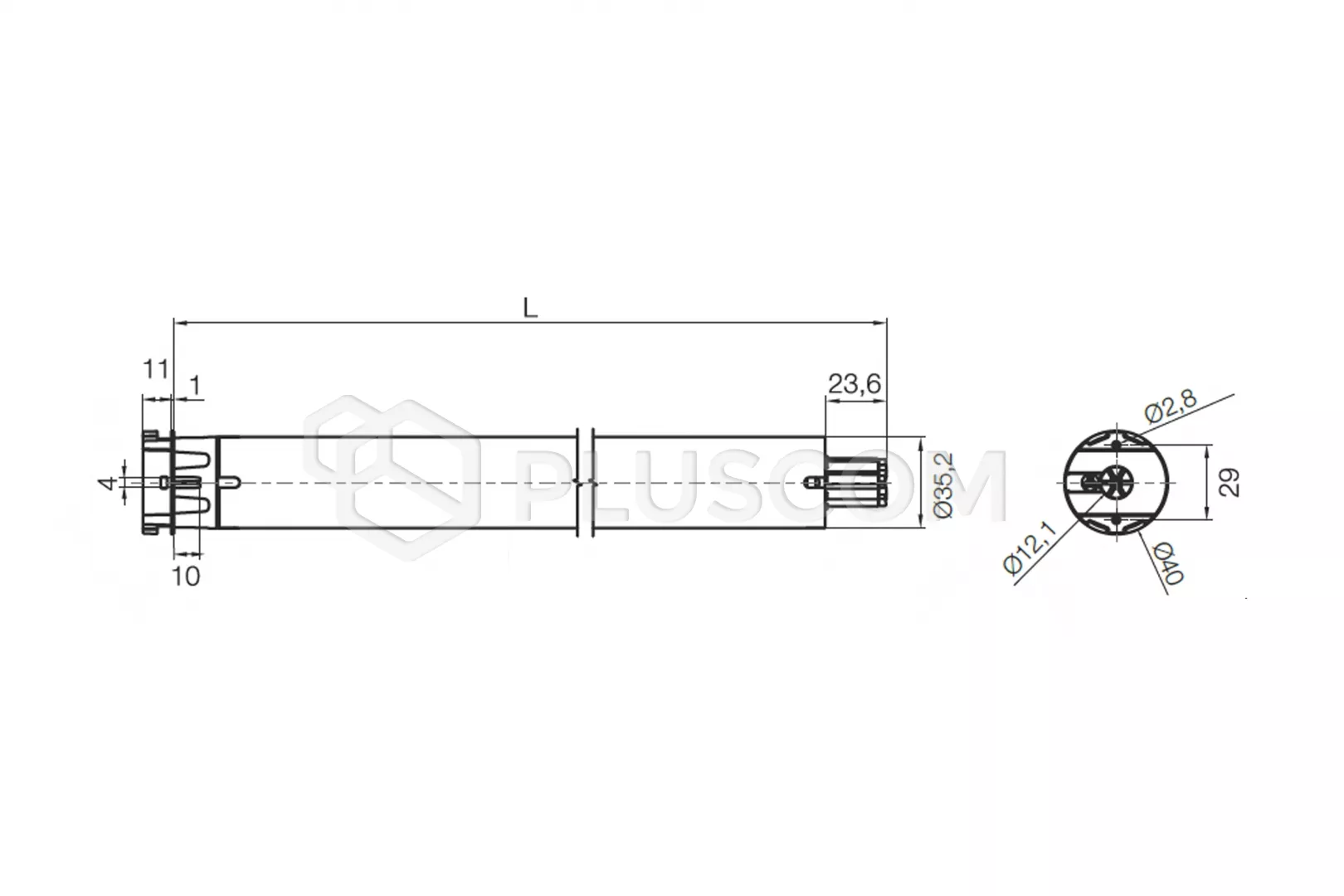

  • length: 426mm
  • IP44
For ERA STAR MA models, it is recommended to use hangers and stoppers.
Download
Instructions 2.96 MB
