Motor for window rolling shutters ERA STAR MA 5012

209,24 EUR including 23.00% VAT
Product code: #14921
Manufacturer: Nice
  • electronic limit switch
  • pipe diameter: 45mm
  • torque: 50Nm
  • speed: 12rot/min
  • obstacle detection
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Motor for window rolling shutters ERA STAR MA 5012



The ERA STAR MA 5012 tubular motor is the ideal engine for roller shutters and guards window. It has an electronic limit switch and is equipped with a complete and intuitive software. Programming can be done with a few operations made from control buttons or using TTU. There is no having to open the window box.

The intelligent encoder technology guarantees us millimeter precision, reliability and preservation of terminal settings over time, programmed force or other settings. We can set three different controlled programming modes:
  • manual
  • automaic
  • semi-automatic
Four-wire 2.5m cable.
The control panel gives the possibility to connect motors and controls in parallel one point without the need for additional control devices. A four-wire cable with a length of 2.5 m.
Low power consumption in STAND-BY mode (less than 0.5 W).

FUNCTIONS:
  • The ability to move even if you encounter an obstacle - thanks precise, constantly controlling the power by the switchboards. Thanks to that we minimize the possibility of damaging the blind if you encounter it obstacle or freezing of the roller blind
  • Detection of obstacles - when the blind meets an obstacle, will stop and make a short move in the opposite direction. We have the opportunity regulation of amperometric sensitivity
  • Safe and fast programming - thanks to this function in if incorrect parameters are entered, they can be quickly corrected without the need to restore factory settings and start the procedure programming from the beginning
  • In automatic and semi-automatic mode the engine retains maximum precision when locking the blind in end positions lifting and lowering thanks to dynamic and automatic updating position limiters
TECHNICAL PARAMETERS:
  • power: 230V AC
  • power: 250W
  • power consumption: 1.10A

  • torque: 50Nm
  • speed: 12rot/min
  • number of turns: 92
  • work time: 4min

  • motor weight: 2.65kg

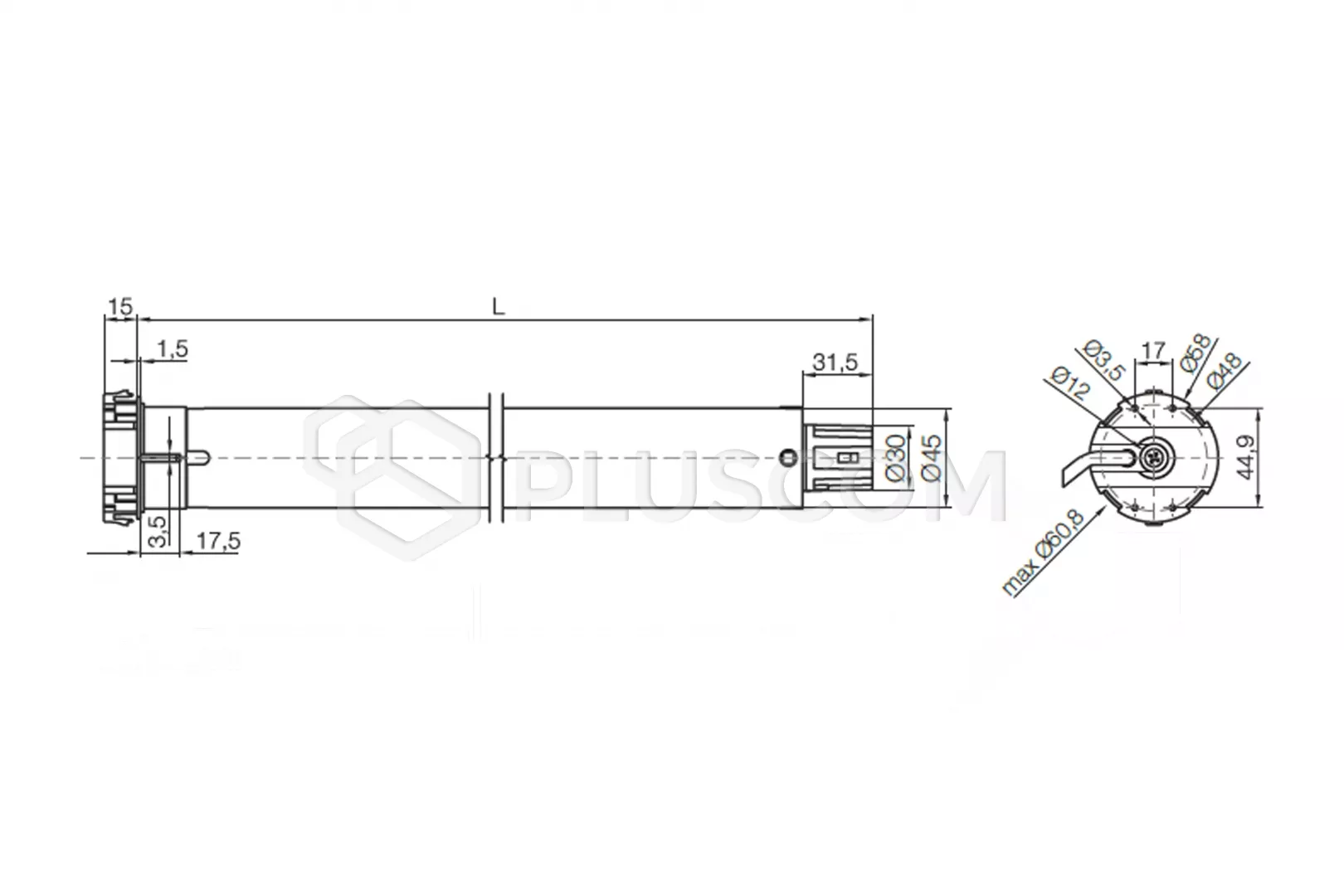

  • length: 486mm
  • IP44
It is recommended to use stoppers and lock hangers.
