Motor for window rolling shutters ERA S 1011

117,70 EUR including 23.00% VAT
Product code: #14934
Manufacturer: Nice
  • mechanical limit switch
  • pipe diameter: 35mm
  • torque: 10Nm
  • speed: 11rot/min
  • lifted weight: 18kg

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

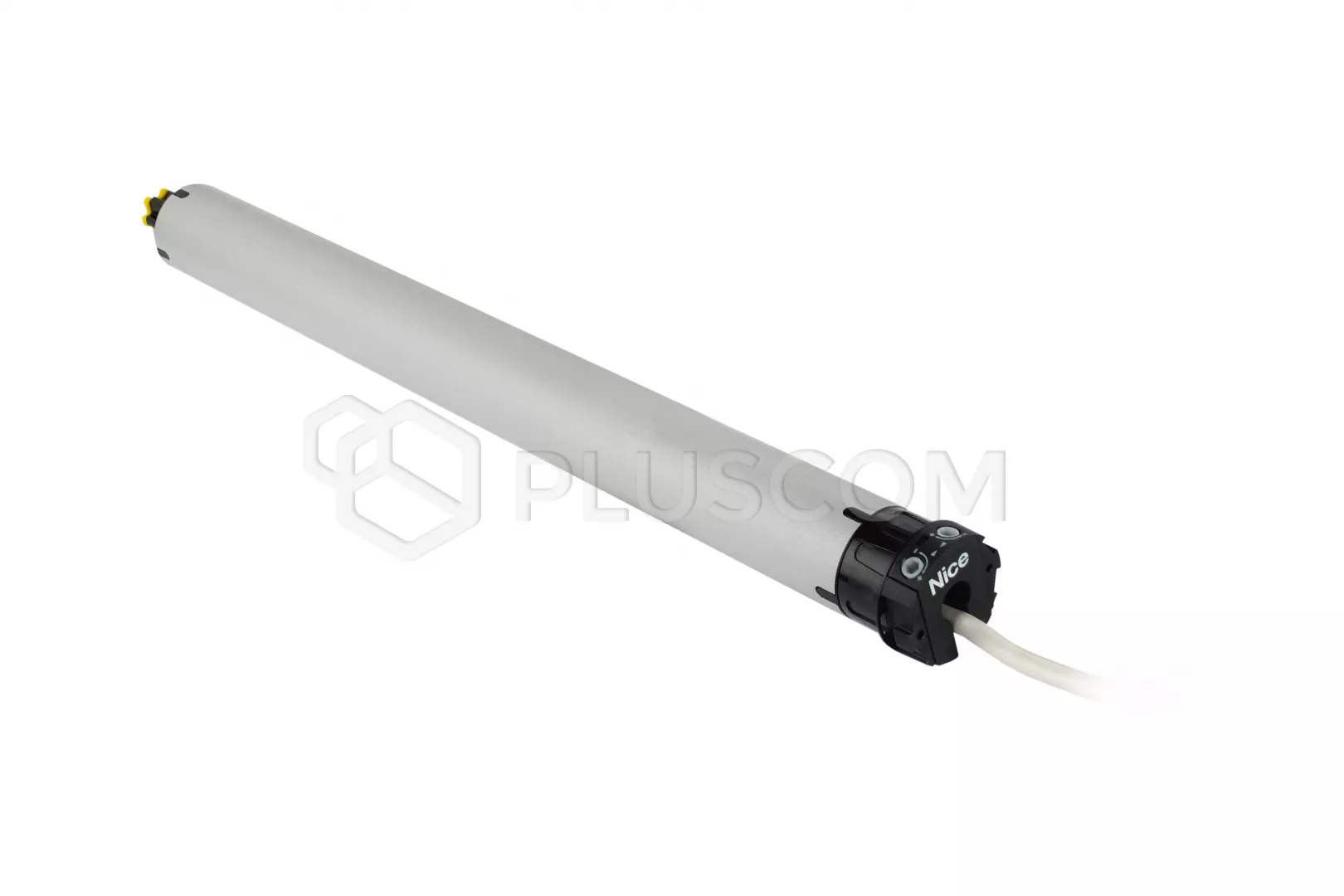

Motor for window rolling shutters ERA S 1011



Tubular motor ERA S 1011 is designed for vertical awnings and roller blinds. The motor has a mechanical position limiter and double insulation, thanks to which there is no need for grounding. Thanks to the mechanical position limiter, the adjustment of the lowering and lifting end positions is very simple and intuitive. Possibility of wired or radio connection, climate sensors, thanks to the external control unit. ERA S 1011 has a 2.5 m three-wire cable.

TECHNICAL PARAMETERS:
  • power: 230V AC
  • power: 120W
  • power consumption: 0.54A

  • torque: 10Nm
  • speed: 11rot/min
  • number of turns: 35
  • lifted weight: 18kg
  • work time: 4min

  • motor weight: 1kg
  • length: 402mm
