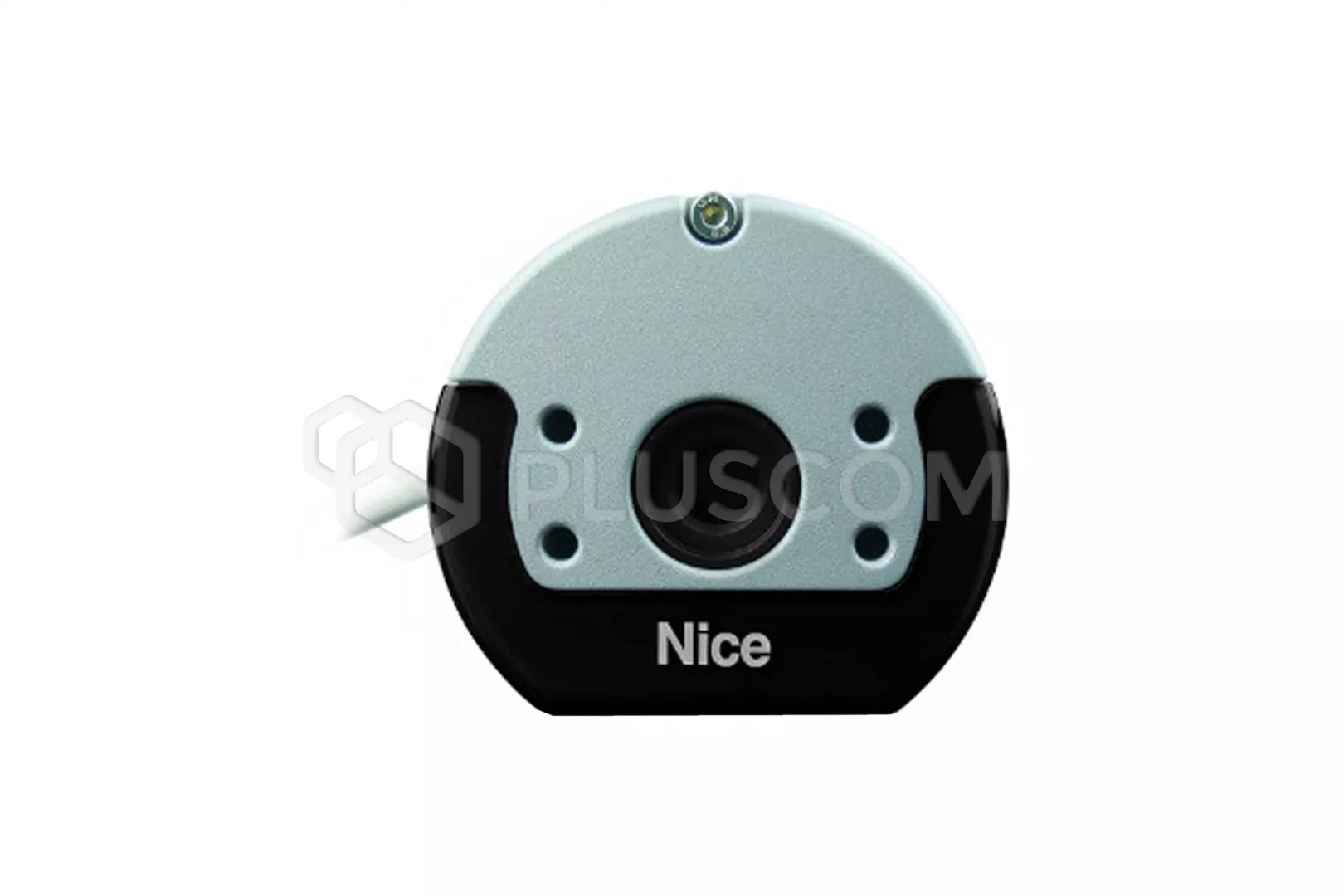

Motor for window rolling shutters ERA PLUS MH 1517

Motor for window rolling shutters ERA PLUS MH 1517

The ERA PLUS MH 1517 motor is an ideal solution for roller shutters, awnings and gates shutters. It is equipped with a mechanical limit switch, it has a built-in FLOR radio with TTBus technology and manual NHK emergency motion. Head The engine is made of zamal (aluminum alloy) and its dimensions have been reduced (head 85mm), which allows the use of the engine in boxes window boxes of small sizes.

The ERA PLUS MH 1517 is a dedicated holder (525.10050) by means of which engine assembly is very easy. The progamination of the end positions is simple and intuitive, by means of a button, while remote programming functions we will make a roller shutter or O-View TT and TTP programmer.

FUNCTIONS:

• Safe and fast programming - thanks to this function in if incorrect parameters are entered, they can be quickly corrected without the need to restore factory settings and start the procedure programming from the beginning
• Possibility to block the memory from accidental deletion
• Nice TTBus technology (2-wire) - we can move the engine control the individual devices by a bell button (step by step) or the entire installation It is possible to connect the F210S and. photocells O-View TT and TTP programmers

Programming the transmitter in 2 modes:

• Mode I (standard, 3 button UP DOWN)
• Mode II (STEP BY STEP, using just one button)

Memory for up to 30 pilots.

Low power consumption in STAND-BY mode (less than 0.5 W).
Five-wire 2.5m cable.
We can connect a resistive strip and photocells to the motor.

TECHNICAL PARAMETERS:

• power: 230V AC
• power: 170W
• power consumption: 0.75A
•

• torque: 15Nm
• speed: 17rot/min
• number of turns: 36
• work time: 4min
• lifted weight: 28kg
•

• motor weight: 3.4kg

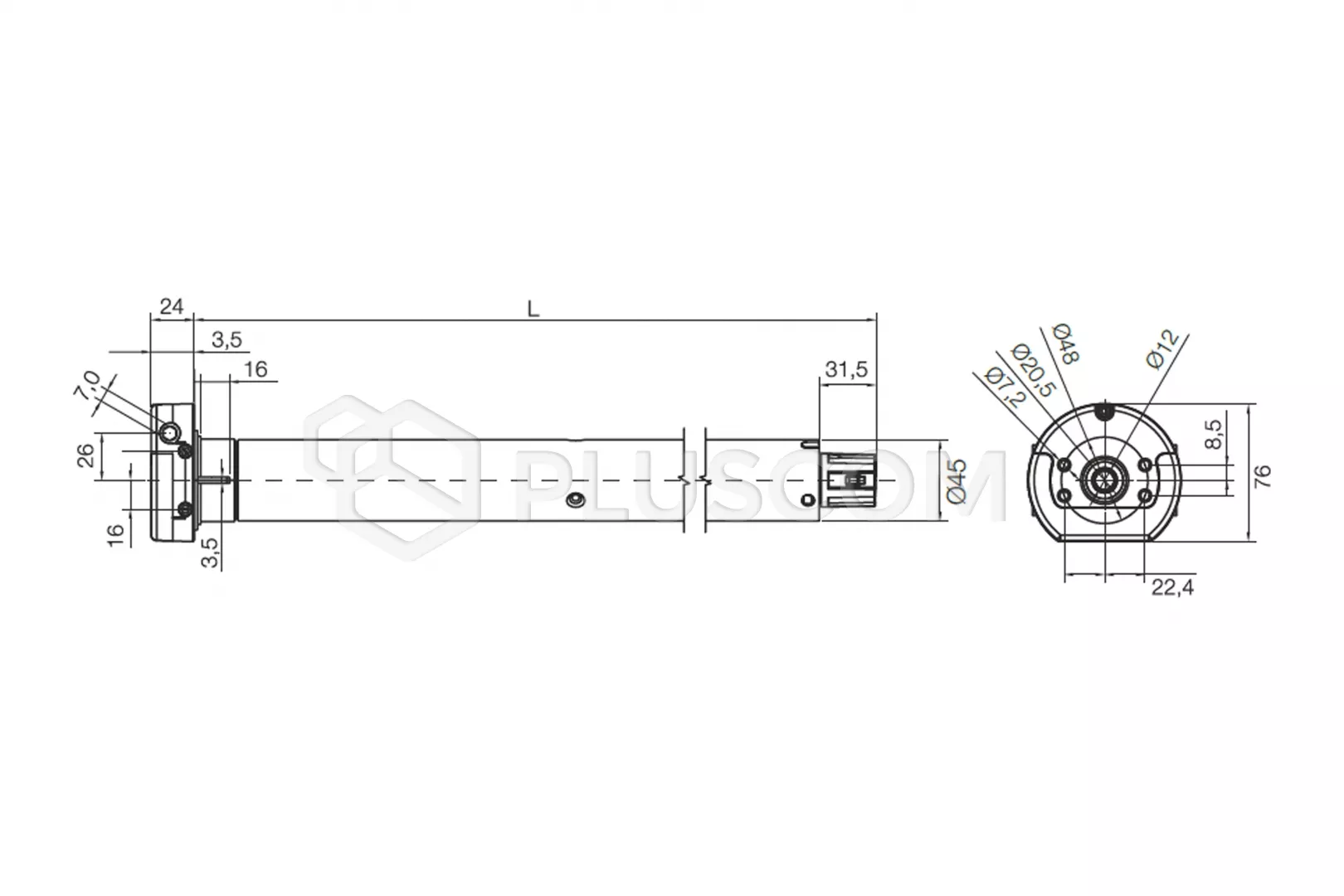

• length: 806mm
• IP44
