Motor for window rolling shutters ERA PLUS M 3017

228,85 EUR including 23.00% VAT
Product code: #14901
Manufacturer: Nice
  • mechanical limit switch
  • pipe diameter: 45mm
  • torque: 30Nm
  • speed: 17rot/min
  • built-in FLOR radio
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Motor for window rolling shutters ERA PLUS M 3017



The ERA PLUS 3017 tubular motor is an ideal engine for roller shutters, awnings and covers. It has a programming button with mechanical limit switch, with built-in FLOR radio receiver and TTBus technology. It is equipped with kproste and intuitive software, and the programming itself, in a convenient way, we can make using the button, remotely using the roller shutter remote control or O-View TT and TTP programmer. By using short movements, the blind will confirm correctness of settings. Six-wire cable 2.5m long.

ADVANTAGES:
  • Anti-icing function
  • Low power consumption in STAND-BY mode (less than 0.5 W)
  • Safe and fast programming - thanks to this function in if incorrect parameters are entered, they can be quickly corrected without the need to restore factory settings and start the procedure programming from the beginning
The built-in radio gives us the ability to load pilots without having to disconnecting and connecting the motor after loading the first roller shutter remote control. We can load radio climate sensors or connect them by wire.

TECHNICAL PARAMETERS:
  • power: 230V AC
  • power: 250W
  • power consumption: 1.10A

  • torque: 30Nm
  • speed: 17rot/min
  • max. number of turns: 92
  • work time: 4min

  • motor weight: 2.65kg

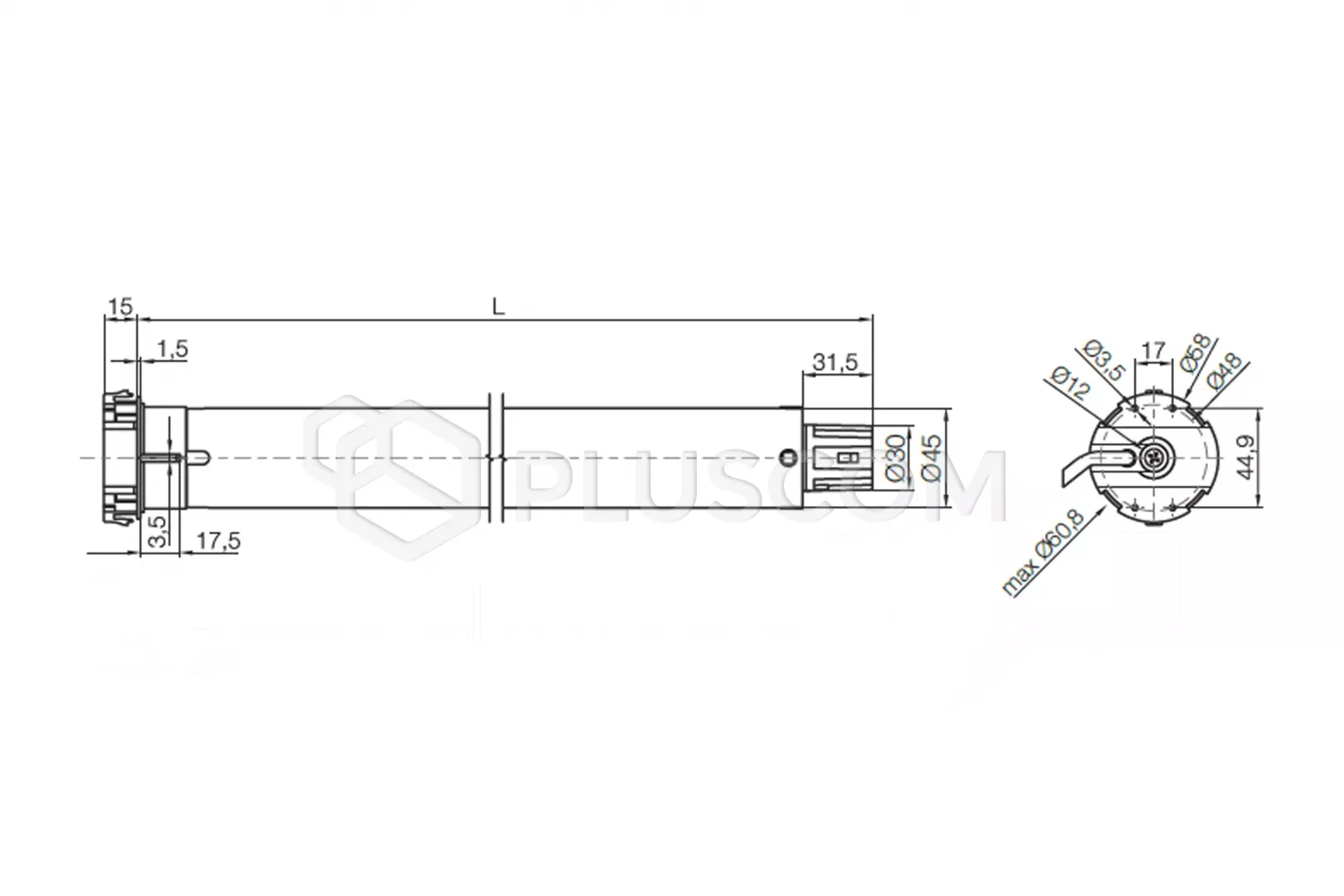

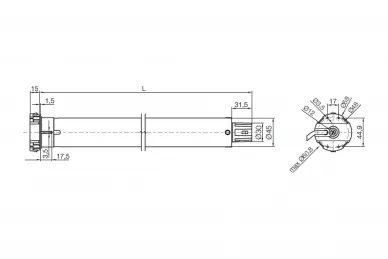

  • length: 486mm
  • IP44
