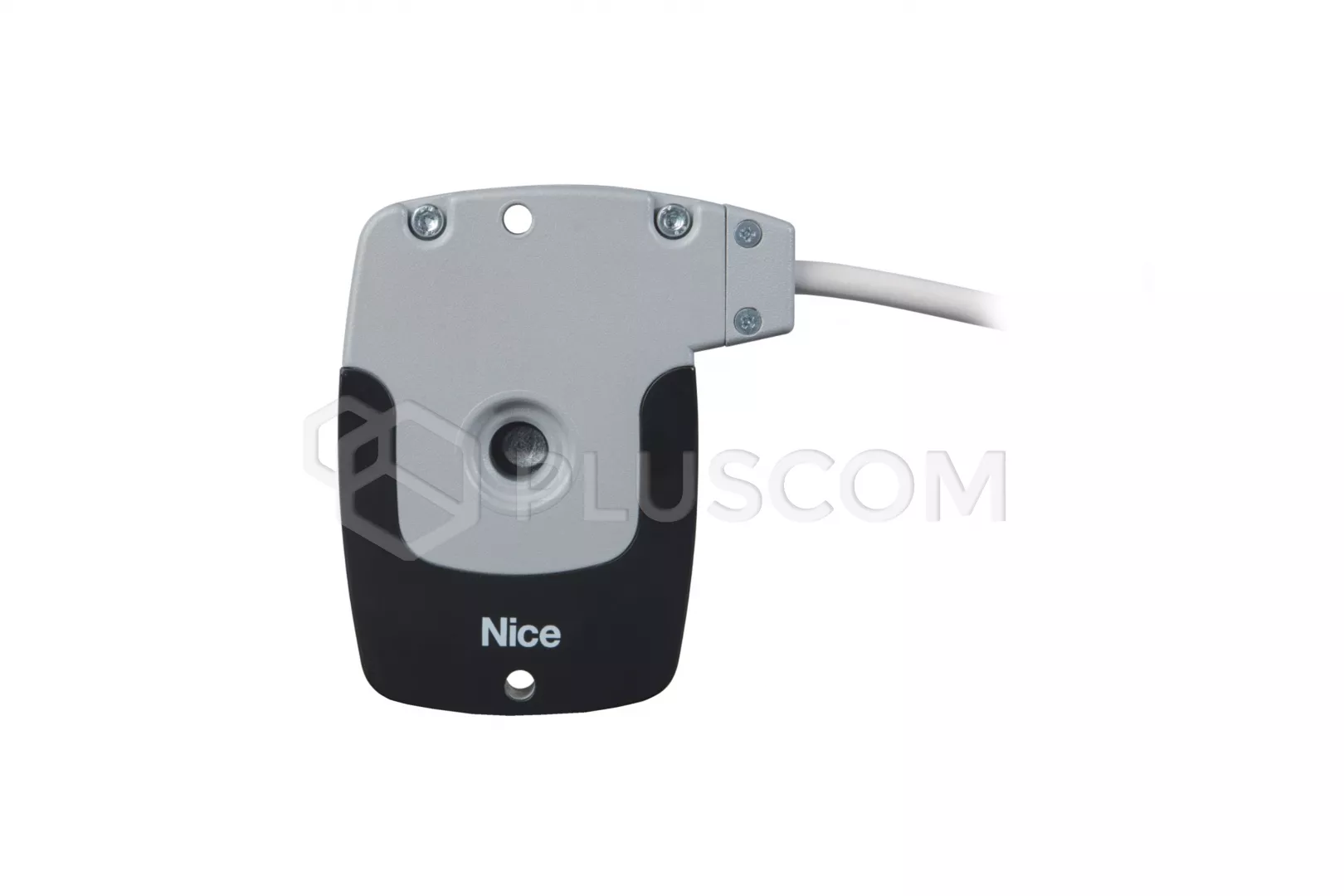

Motor for window rolling shutters ERA PLUS LH 10012
The ERA PLUS LH 10012 motor is an ideal solution for roller shutters, awnings
and gates shutters. It is equipped with a mechanical limit switch, it has a
built-in FLOR radio with TTBus technology and manual NHK emergency motion. The
high engine power, up to 100Nm of torque, makes the ERA PLUS LH 10012 versatile
engine, solid and quiet, giving the user full comfort.
The progamination of the end positions is simple and intuitive, by means of a
button, while remote programming functions we will make a roller shutter or
O-View TT and TTP programmer. Correctness of programmed settings, the blind
confirms with short movements.
FUNCTIONS:
- Safe and fast programming - thanks to this function in if
incorrect parameters are entered, they can be quickly corrected without the
need to restore factory settings and start the procedure programming from the
beginning
- Nice TTBus technology (2-wire) - we can move the engine control
the individual devices by a bell button (step by step) or the entire
installation It is possible to connect the F210S and. photocells O-View TT
and TTP programmers
Programming the transmitter in 2 modes:
- Mode I (standard, 3 button UP DOWN)
- Mode II (STEP BY STEP, using just one button)
Memory for up to 30 pilots.
Low power consumption in STAND-BY mode (less than 0.5 W).
Five-wire cable with a length of 3m.
We can connect a resistive strip and photocells to the motor.
TECHNICAL PARAMETERS:
- power: 230V AC
- power: 390W
- power consumption: 1.75A
- torque: 100Nm
- speed: 12rot/min
- number of turns: 28
- work time: 4min
- motor weight: 7.70kg

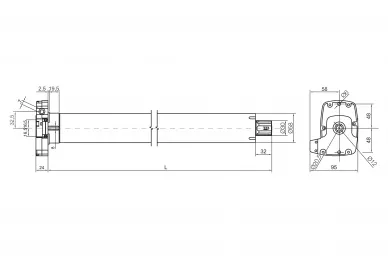

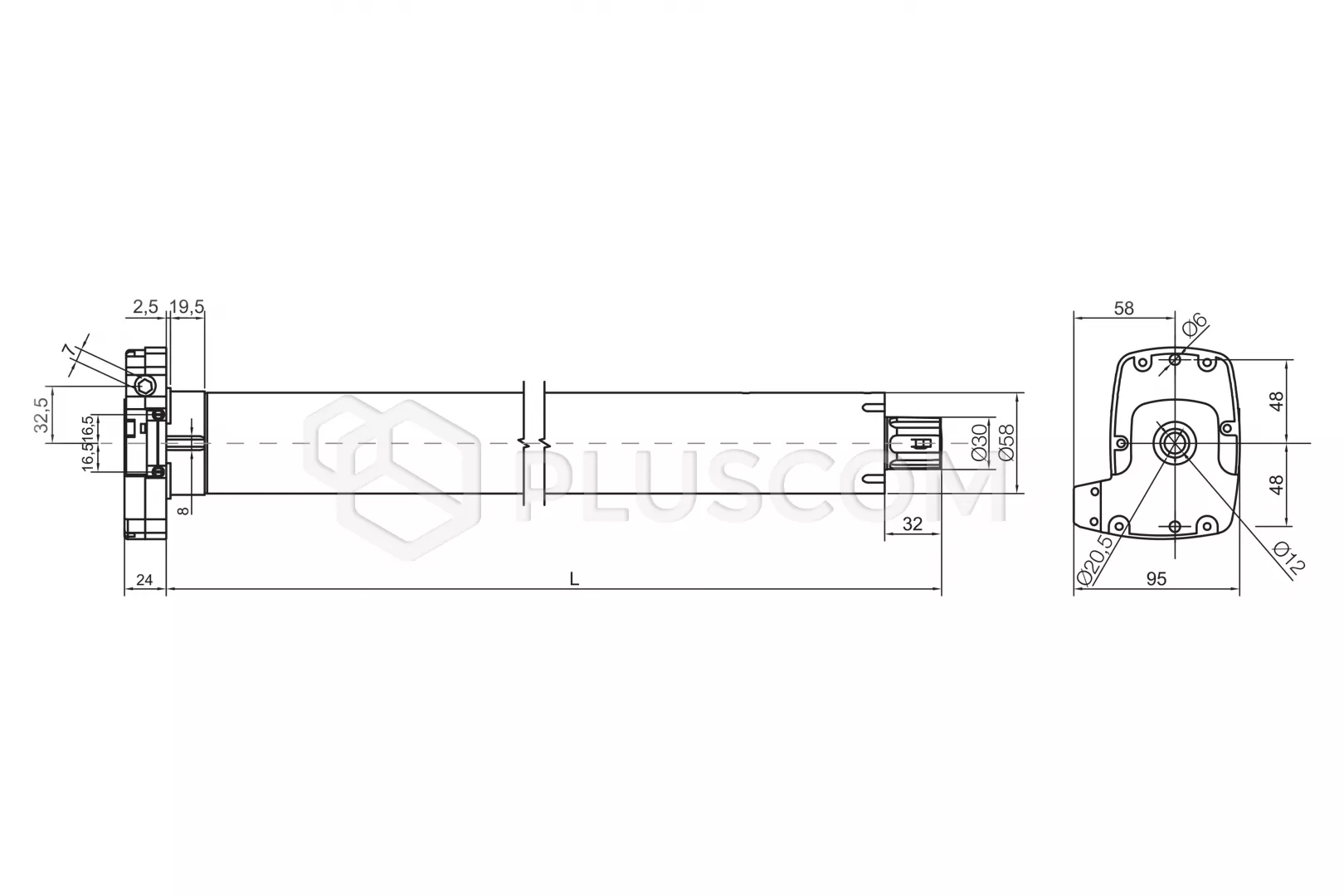

- length: 910mm
- IP44
