Motor for window rolling shutters ERA MH 5012

196,16 EUR including 23.00% VAT
Product code: #14926
Manufacturer: Nice
  • mechanical limit switch
  • pipe diameter: 45mm
  • torque: 50Nm
  • speed: 12rot/min
  • manual NHK emergency move
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Motor for window rolling shutters ERA MH 5012

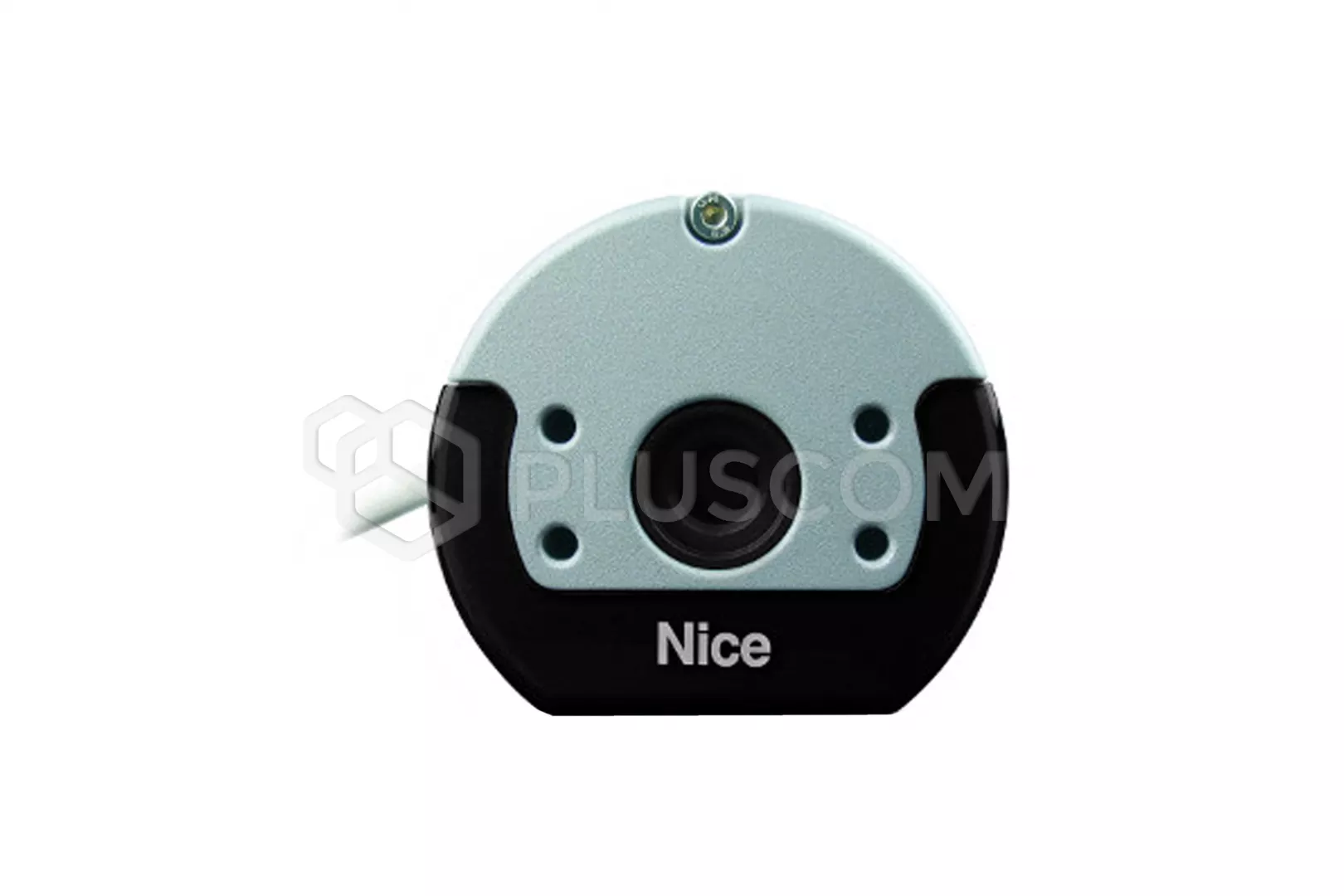

The ERA MH 5012 motor is an ideal solution for roller shutters, awnings, screens and gates shutters. It is equipped with a mechanical limit switch and manual movement Emergency NHK. The motor head is made of a zamak (aluminum alloy) and its dimensions have been reduced (head size 85mm), which allows the use of the engine in small window boxes.

The ERA MH 5012is a dedicated holder (525.10050) by means of which the motor is mounted it has very easy. Equally simple and intuitive is the position adjustment extreme opening. We can connect climate sensors with the help of the engine external control panels by radio as well as by wire.

Low power consumption in STAND-BY mode (less than 0.5 W). Four-wire 2.5m cable.

TECHNICAL PARAMETERS:
  • power: 230V AC
  • power: 250W
  • power consumption: 1.10A

  • torque: 50Nm
  • speed: 12rot/min
  • number of turns: 36
  • work time: 4min
  • lifted weight: 95kg

  • motor weight: 3.6kg

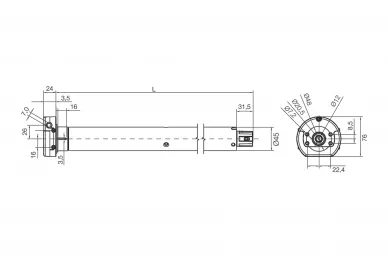

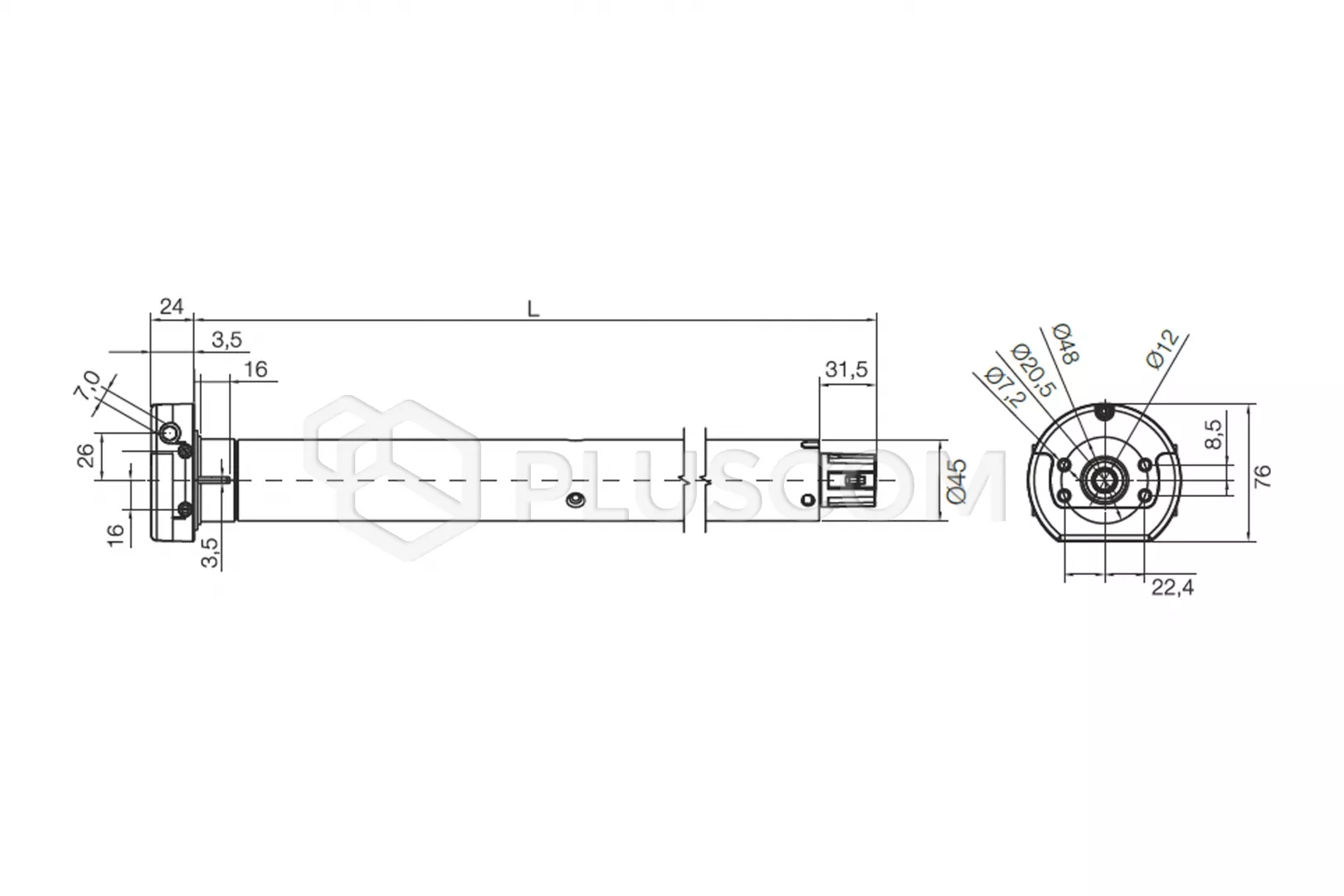

  • length: 637mm
  • IP44
