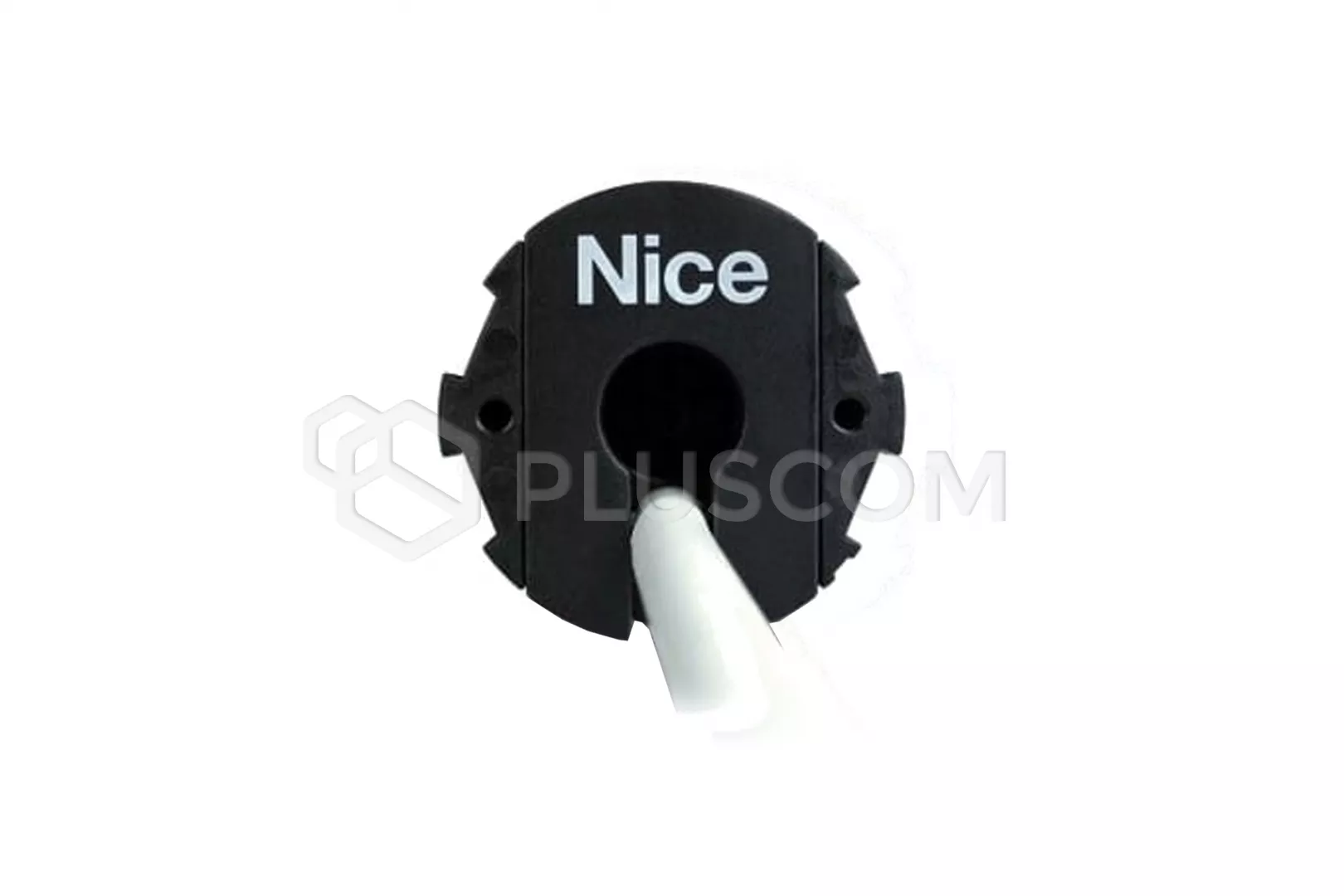

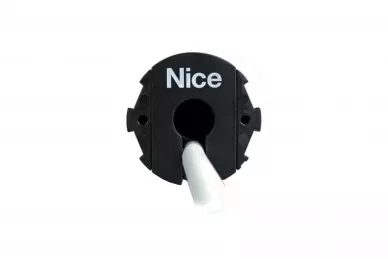

Motor for window rolling shutters ERA MAT ST 1011

Motor for window rolling shutters ERA MAT ST 1011

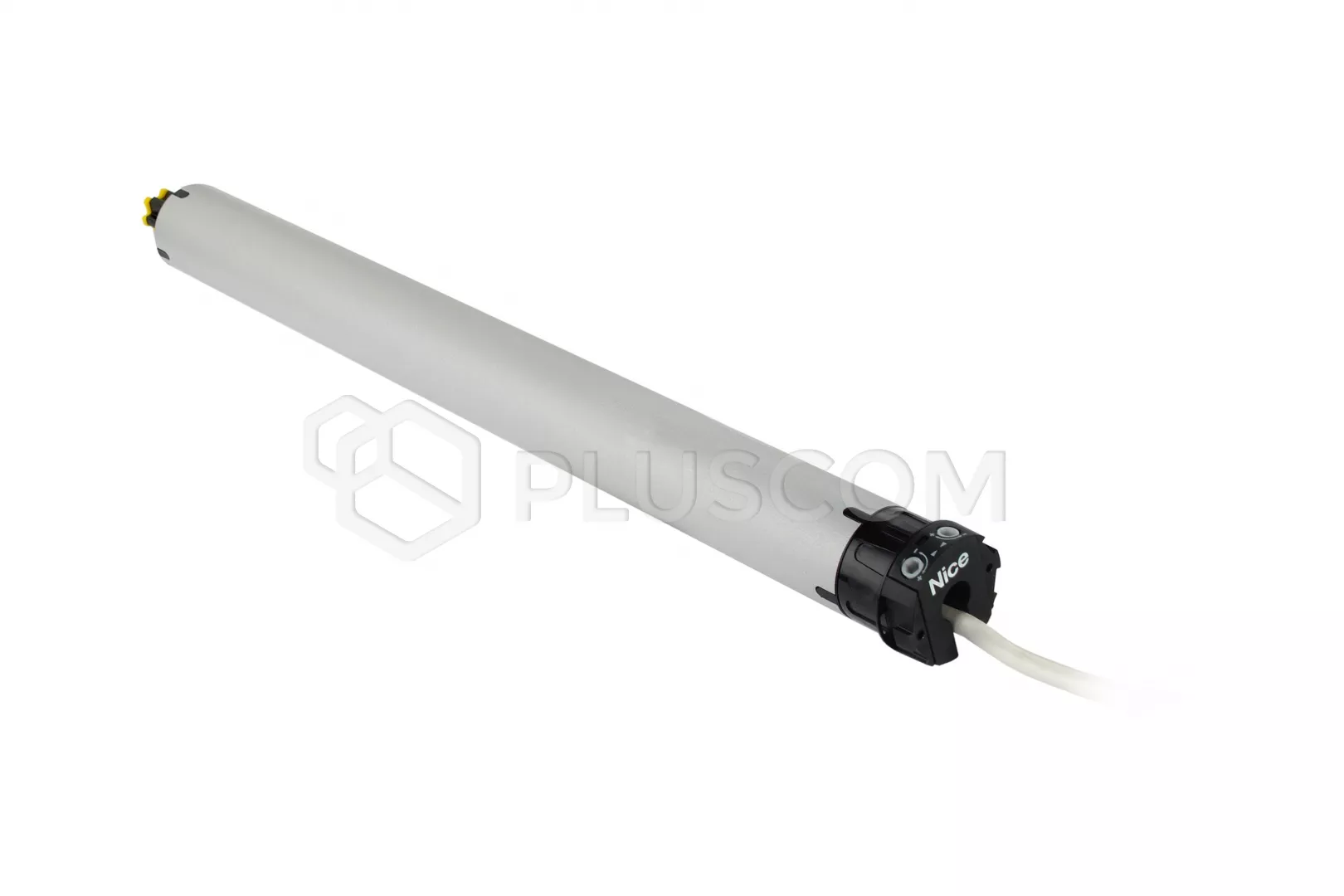

The ERA MAT ST 1011 tubular motor is ideal for awnings with straight arms and blinds. It has an electronic end, a built-in radio and a control center, which works with an encoder that provides electronic control maneuvers and the precision of the position limiters. Thanks to technology encoder we guarantee millimeter accuracy, no default settings in life and durability of the device. Fast and secure, multi-level programming, gives the user access to many functions. At choosing the wrong settings, programming the device can start from previous level, without having to repeat the entire procedure from the beginning.

Using the remote control or O-View TT or TTP programmers, in manual mode, automatic or semi-automatic, we set the end positions remotely.
The 3-wire Nice TTBus technology supervises the operation of the motor in the system low voltage and intuitive connection of climate sensors is not required additional interfaces (also via radio). Thanks to double insulation, no has grounding needs. A five-wire 2.5 m long cable.

MOTOR FUNCTIONS:

• FRT - folds the canvas to the programmed position after fully open awnings. This eliminates unsightly loosening of the material
• RDC - torque reduction system just before closing, thus preventing deformation and drawing the material
• FTC - specific for awnings with locking and manual mechanisms hooking
• FTA - sspecific for awnings with locking and manual mechanisms fastening, It guarantees the right tension of the canvas in one or several positions in which the manual locking mechanism is set

TECHNICAL PARAMETERS:

• power: 230V AC
• power: 120W
• power consumption: 0.54A
•

• torque: 10Nm
• speed: 11 rot/min
• max. number of turns: >100
• work time: 4min
•

• motor weight: 1kg

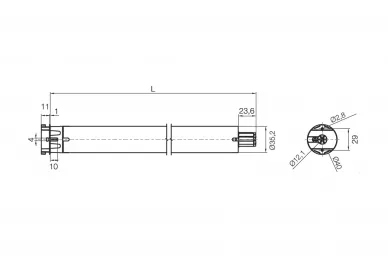

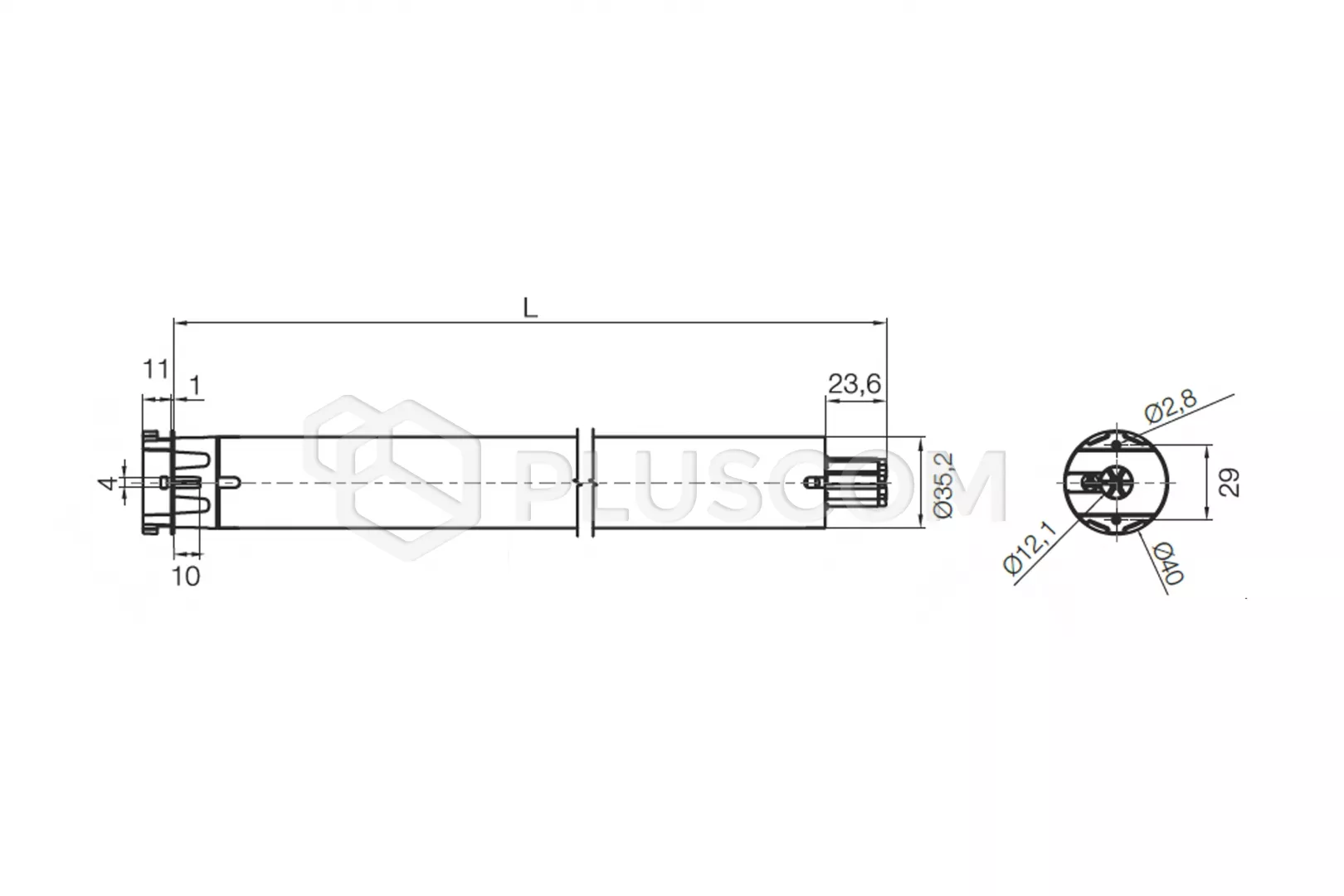

• length: 496mm
