Motor for window rolling shutters ERA MAT SA 611

212,51 EUR including 23.00% VAT
Product code: #14933
Manufacturer: Nice
  • electronic limit switch
  • pipe diameter: 35mm
  • torque: 6Nm
  • speed: 11rot/min
  • built-in FLOR radio

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

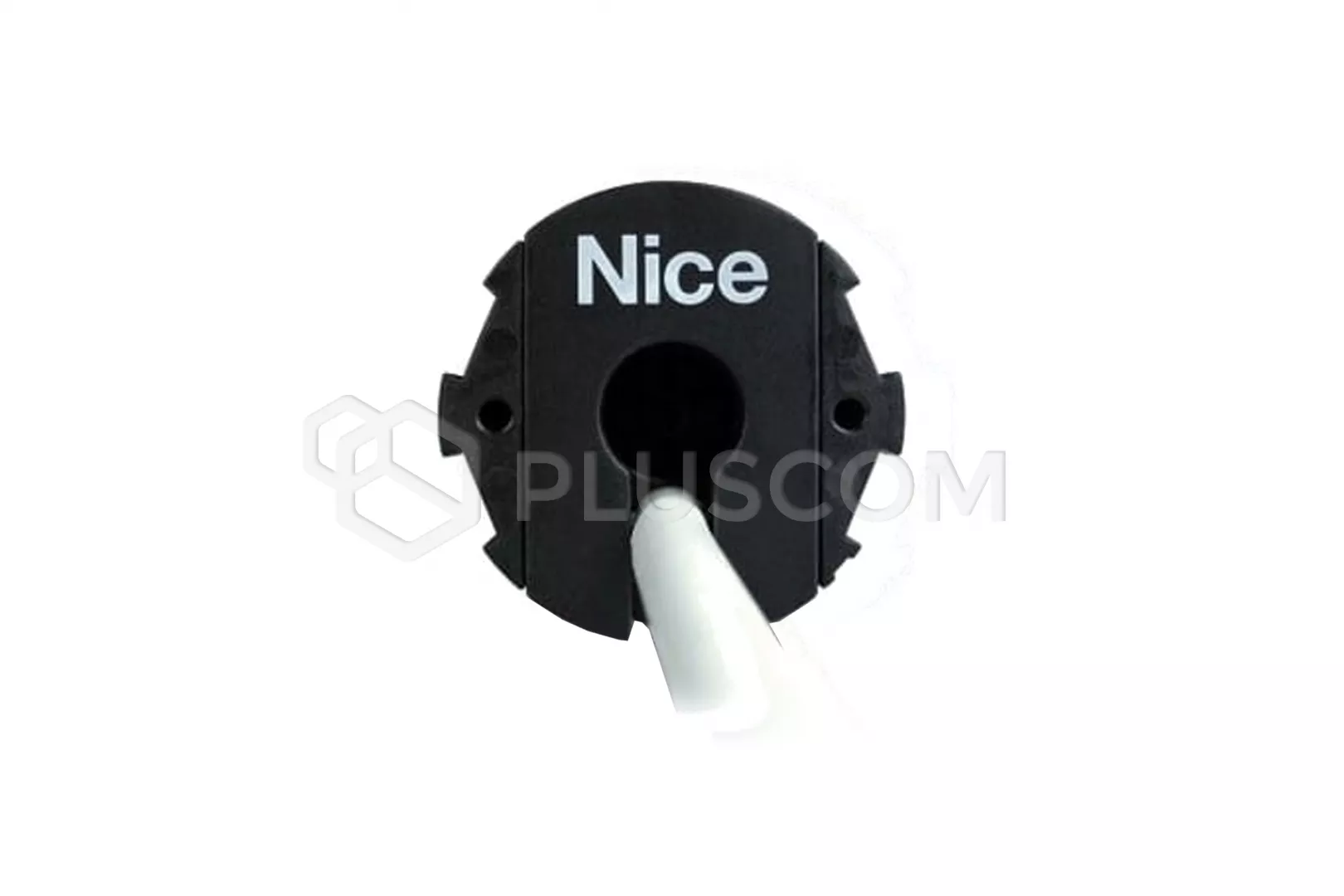

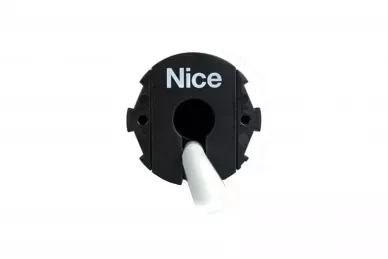

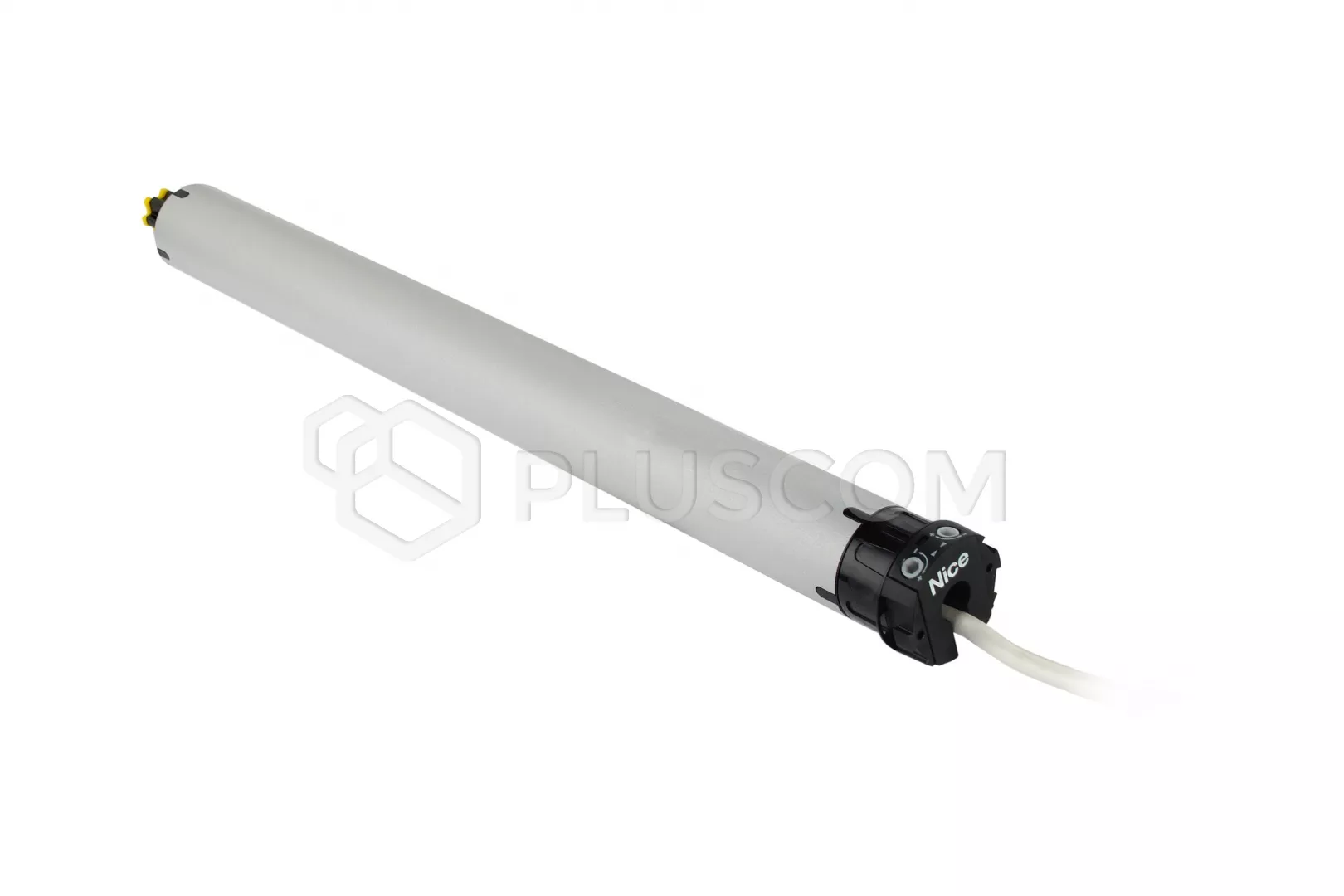

Motor for window rolling shutters ERA MAT SA 611



The ERA MAT SA 611 tubular motor is the ideal roller motor for roller shutters. It's electronic end, built-in FLOR radio and TTBus technology. It is equipped with complete and intuitive software, and the programming itself, in a convenient way, we can remotely by means of a remote control or an O-View TT and TTP programmer. By using short movements, the blind confirms the correctness of the settings. We can set three different controlled programming modes:
  • manual
  • automaic
  • semi-automatic
Intelligent encoder technology gives us a millimeter guarantee precision, reliability and preservation over time of connection settings extreme, programmed strength or other settings. We have the opportunity programming the comfortable position of the blind. 3-wire Nice technology TTBus allows you to control the motor movements using the button, intuitive connection of climate sensors does not require additional interfaces (also by radio). Thanks to the double insulation, there is no need for grounding. A five-wire 2.5 m long cable.

FUNCTIONS:
  • The ability to move even if you encounter an obstacle - thanks precise, constantly controlling the power by the switchboards. Thanks to that we minimize the possibility of damaging the blind if you encounter it obstacle or freezing of the roller blind
  • Detection of obstacles - when the blind meets an obstacle, will stop and make a short move in the opposite direction. We have the opportunity regulation of amperometric sensitivity
  • Safe and fast programming - thanks to this function in if incorrect parameters are entered, they can be quickly corrected without the need to restore factory settings and start the procedure programming from the beginning
In automatic and semi-automatic mode the engine retains maximum precision when locking the blind in end positions lifting and lowering thanks to dynamic and automatic updating position limiters.

TECHNICAL PARAMETERS:
  • power: 230V AC
  • power: 90W
  • power consumption: 0.40A

  • torque: 6Nm
  • speed: 11 rot/min
  • max. number of turns: >100
  • work time: 4min
  • lifted weight: 12kg

  • motor weight: 1kg

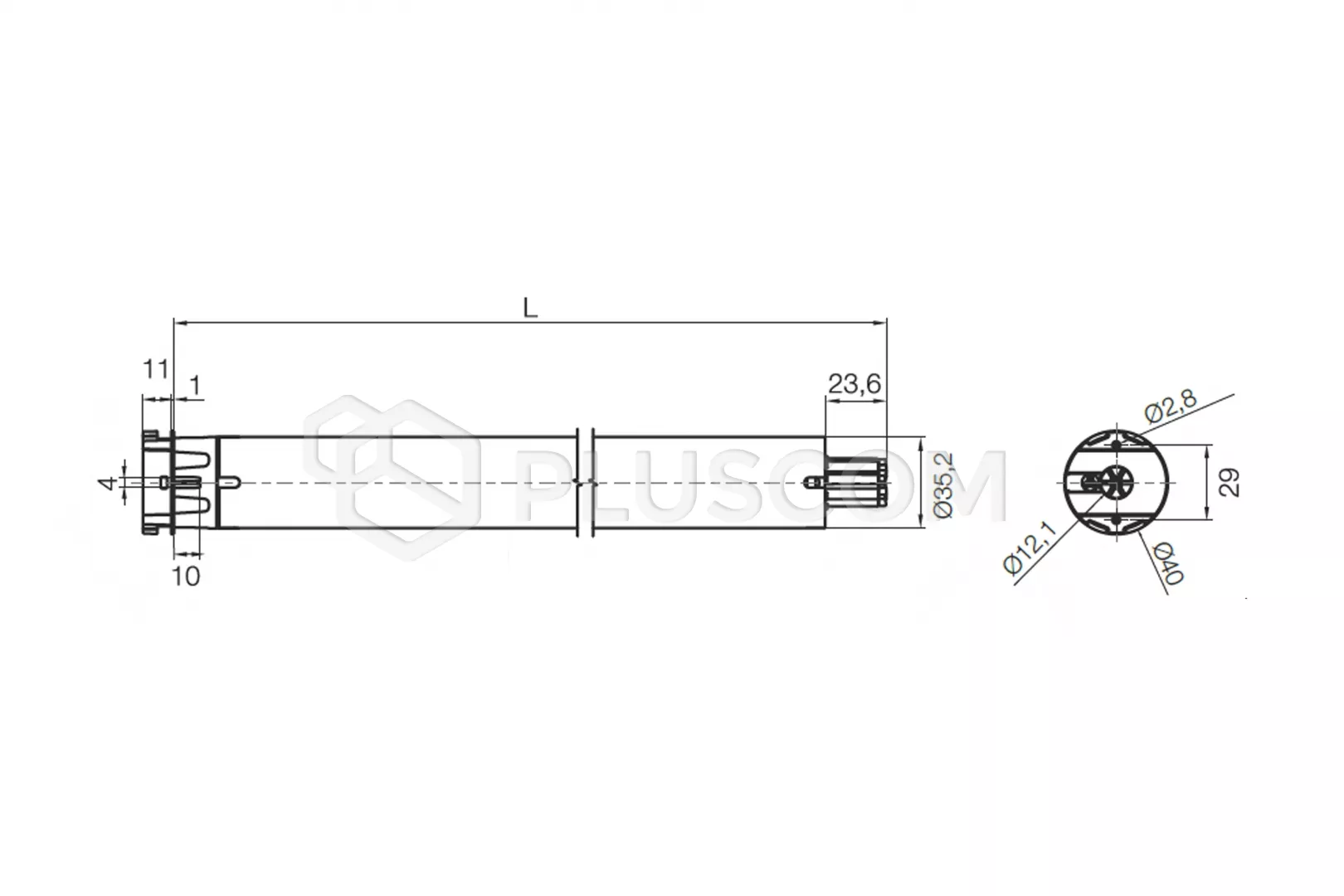

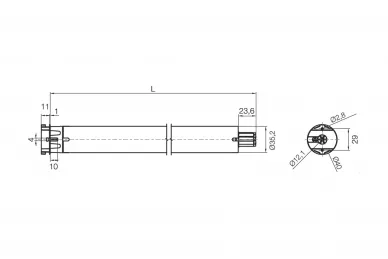

  • length: 496mm
  • IP44
