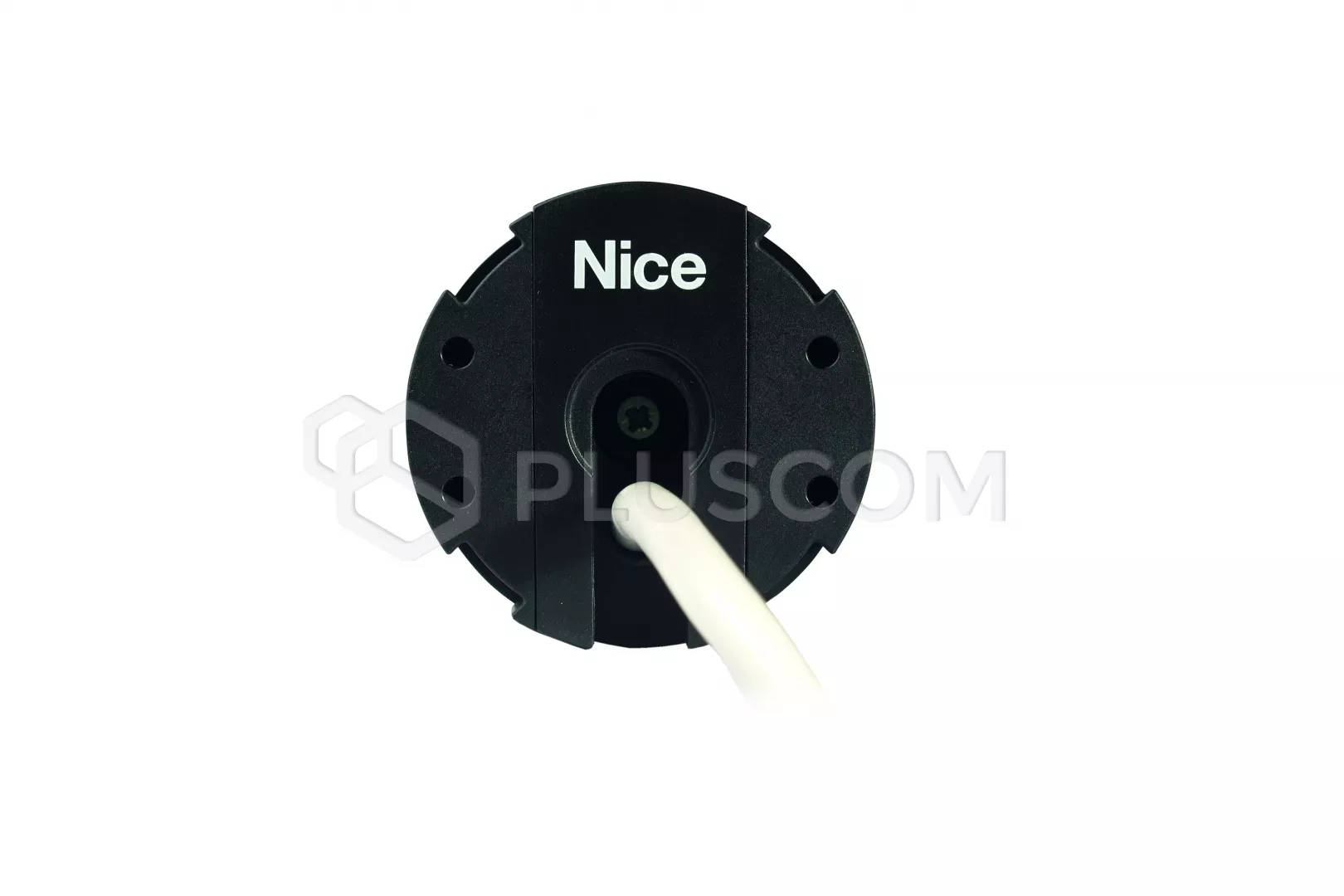

Motor for window rolling shutters ERA MAT MA 517

Motor for window rolling shutters ERA MAT MA 517

The ERA MAT MA 517 tubular motor is the ideal roller motor for roller shutters. It has electronic limit switch, built-in FLOR radio and TTBus technology. It is equipped with complete and intuitive software. By using the remote control or the O-View TT and TTP programmer, we can program the end positions remotely. By using short movements, the blind confirms the correctness of the settings. We can set three different controlled programming modes:

• manual
• automaic
• semi-automatic

The intelligent encoder technology guarantees us millimeter precision, reliability and preservation of terminal settings over time, programmed force or other settings. Possibility of programming the comfort position of the blind.
Six-wire cable 2.5m long.
The control panel gives the possibility to connect motors and controls in parallel one point without the need for additional control devices. TTBus technology allows you to control the movement of the motor using the button.
Low power consumption in STAND-BY mode (less than 0.5 W).

FUNCTIONS:

• The ability to move even if you encounter an obstacle - thanks precise, constantly controlling the power by the switchboards. Thanks to that we minimize the possibility of damaging the blind if you encounter it obstacle or freezing of the roller blind
• Detection of obstacles - when the blind meets an obstacle, will stop and make a short move in the opposite direction. We have the opportunity regulation of amperometric sensitivity
• Safe and fast programming - thanks to this function in if incorrect parameters are entered, they can be quickly corrected without the need to restore factory settings and start the procedure programming from the beginning
• In automatic and semi-automatic mode the engine retains maximum precision when locking the blind in end positions lifting and lowering thanks to dynamic and automatic updating position limiters

The built-in radio gives us the ability to load pilots without having to disconnecting and connecting the motor after loading the first roller shutter remote control. We can load radio climate sensors or connect them by wire.

TECHNICAL PARAMETERS:

• power: 230V AC
• power: 75W
• power consumption: 0.33A
•

• torque: 5Nm
• speed: 17rot/min
• number of turns: 92
• work time: 4min
• lifted weight: 9kg
•

• motor weight: 2.15kg

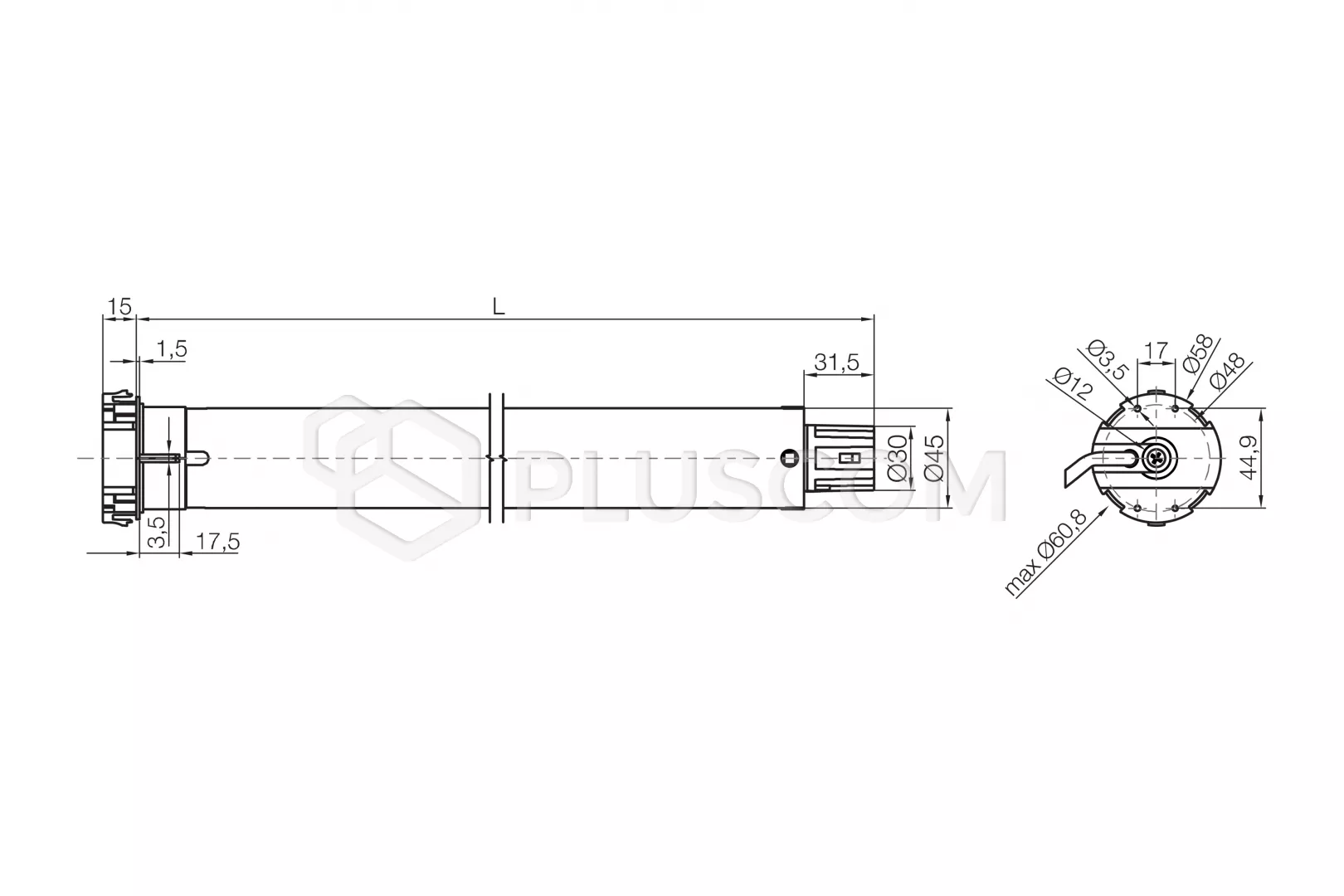

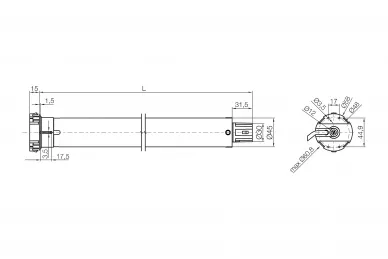

• length: 426mm
• IP44
