Motor for window rolling shutters ERA M 517

76,20 EUR including 22.00% VAT
Product code: #14847
Manufacturer: Nice
  • mechanical limit switch
  • pipe diameter: 45mm
  • torque: 5Nm
  • speed: 17rot/min
  • lifted weight: 9kg
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

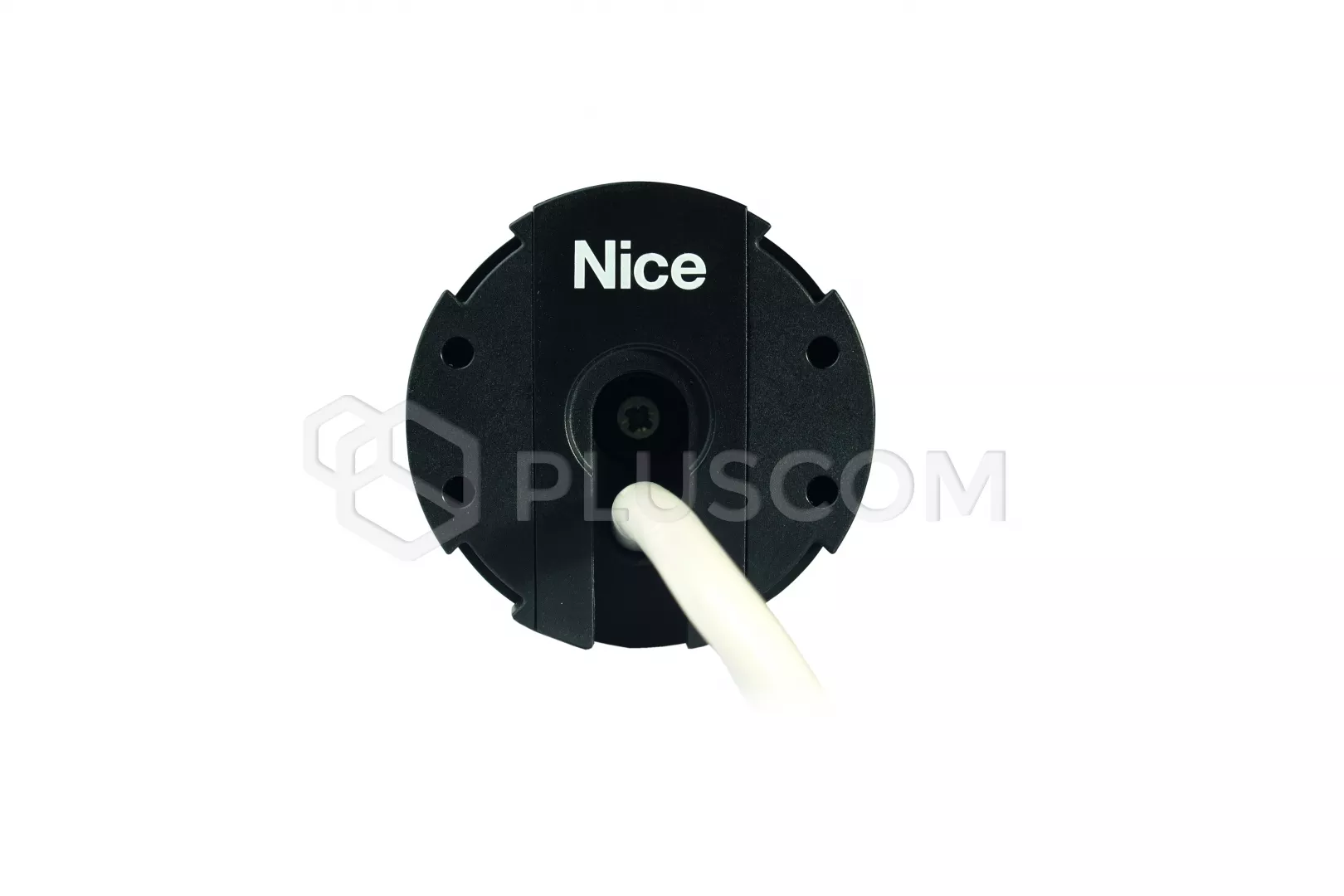

Motor for window rolling shutters ERA M 517



The ERA M 517 tubular motor is the ideal solution for roller shutters, awnings and covers solar. The motor has a mechanical position limiter. Thanks to him Adjusting the end positions of lowering and lifting is very simple and intuitive. It is also possible to connect by wire or radio, sensors climate, thanks to the external control center. By using a new grip, the motor has inver- age is very easy, using a click (click system). ERA M 517 has a four-wire 2.5m cable.

TECHNICAL PARAMETERS:
  • power: 230V AC
  • power: 75W
  • power consumption: 0.33A

  • torque: 5Nm
  • speed: 17rot/min
  • number of turns: 27
  • lifted weight: 9kg
  • work time: 4min

  • motor weight: 1.85kg

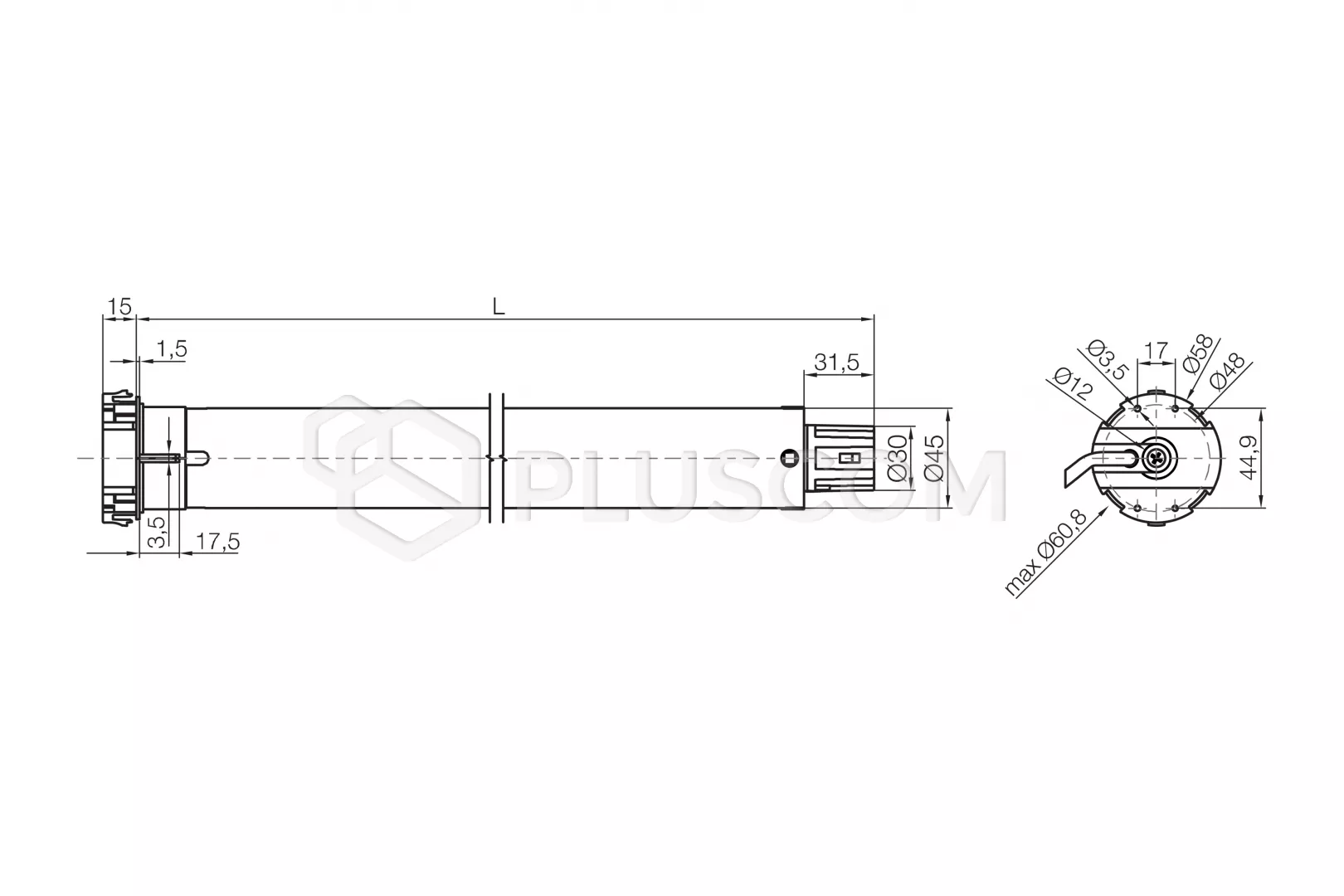

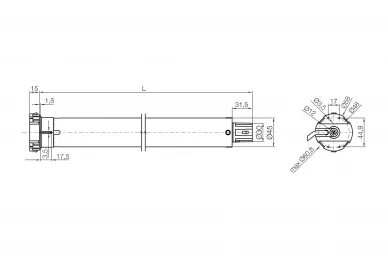

  • length: 426mm
  • IP44
Download
Instruction 5.83 MB
